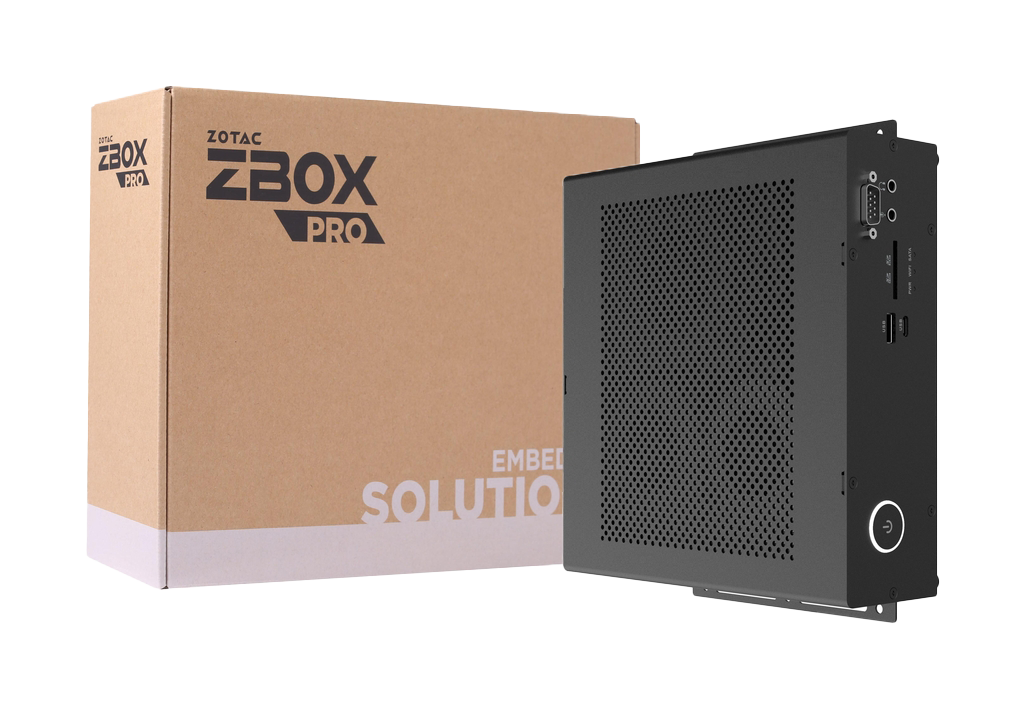

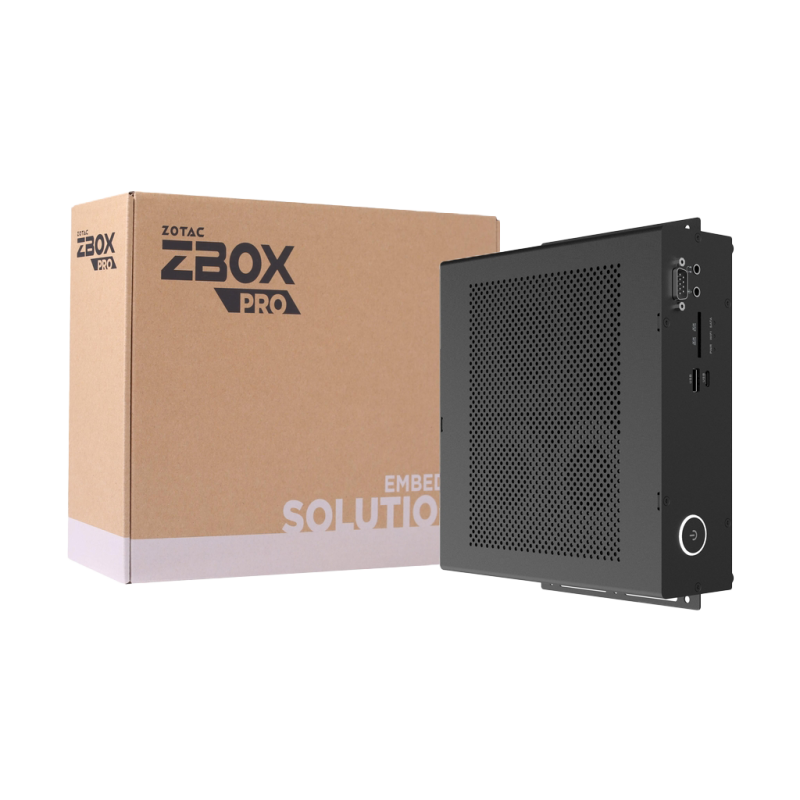

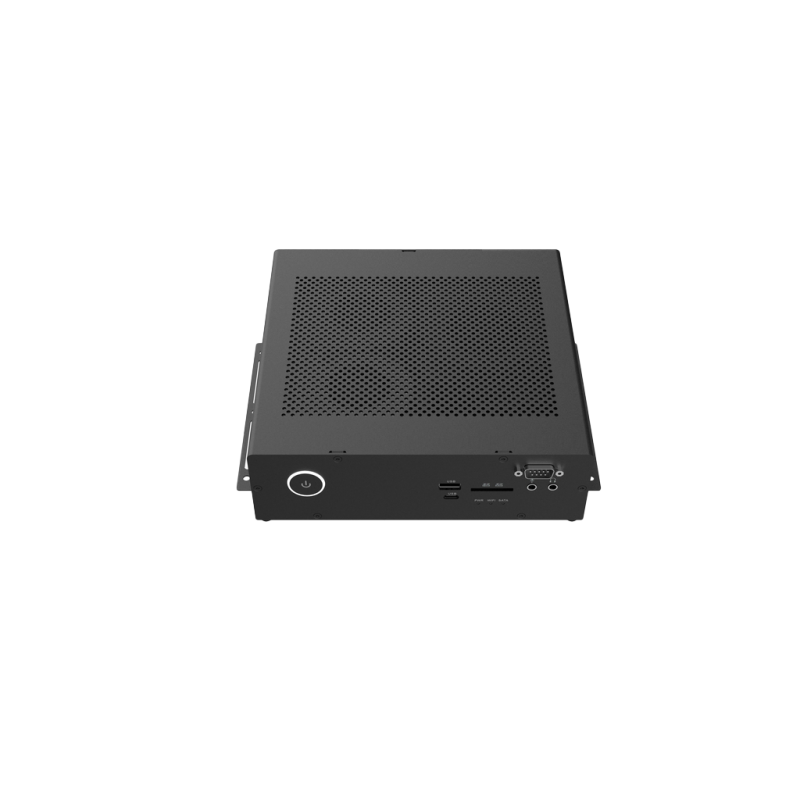

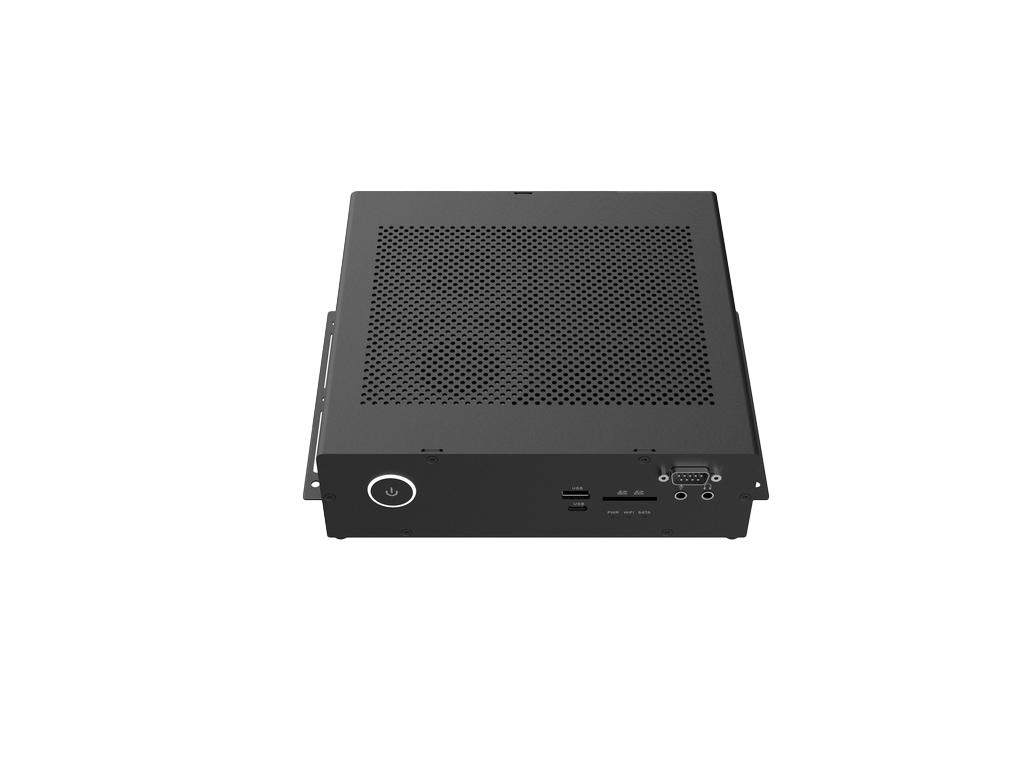

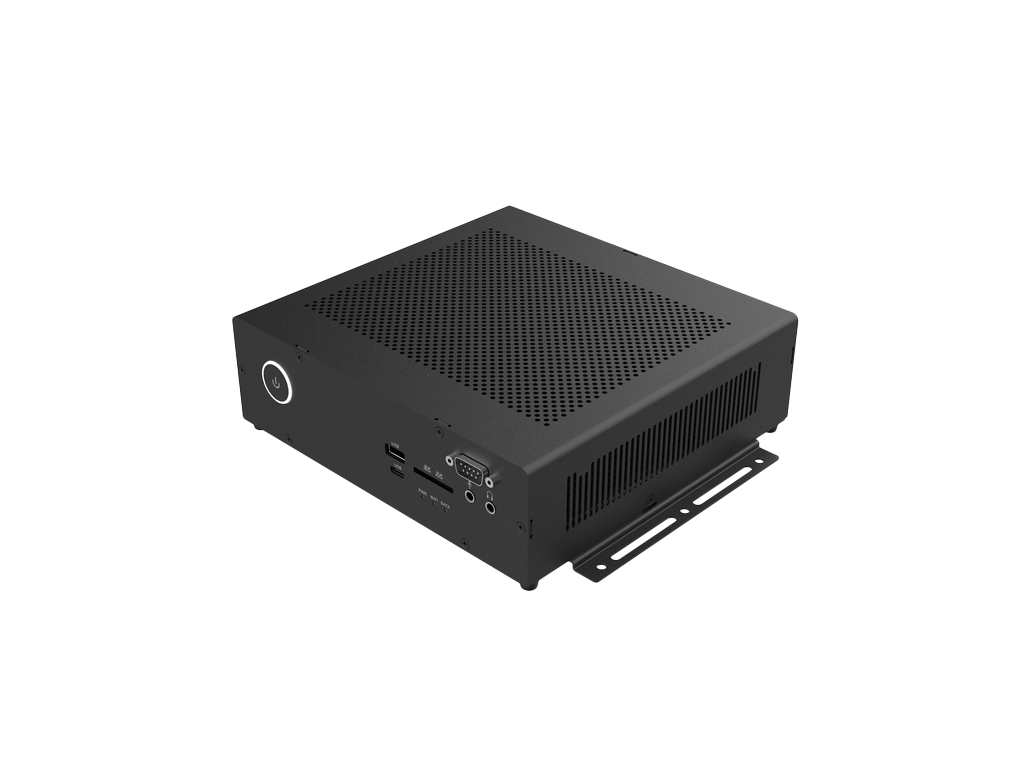

ZBOX PRO
-
ZBOX PRO ZRP5N2000: prestazioni elevate con grafica potente.
-
GPU embedded NVIDIA RTX Ada Generation per AI e calcolo intensivo.
-
Ampia gamma di opzioni di connettività: porte USB 3.2, Ethernet 2.5G e Wi-Fi 6E.
-
Supporta fino a 3 display 4K simultanei per una visualizzazione fluida e realistica.
-
Ideale per visualizzazione scientifica, analisi mediche, realtà virtuale e creazione di contenuti.
-
Ottimo per intelligenza artificiale, deep learning e applicazioni professionali avanzate.
Dimensions
Length: 209.8mm (8.26in)
Width: 202.3mm (7.96in)
Height: 62.5mm (2.46in)
CPU
Intel Core i5-13400 (10-core 2.5 GHz, up to 4.6 GHz)
Intel Processor N100 (quad-core 0.8GHz up to 3.4GHz, 6MB cache)
Intel Core i7-11850HE (8-core 2.6 GHz, up to 4.7 GHz)
Intel Celeron J6412 (quad-core 2.0GHz up to 2.6GHz, 1.5MB cache)
Intel Pentium N6415 (quad-core 1.2GHz up to 3.0GHz, 1.5MB cache)
Intel Celeron N6211 (dual-core 1.2GHz up to 3.0GHz, 1.5MB cache)
Memory
2 x DDR5-5600 SODIMM Slots (up to 64GB)
4GB LPDDR5/X memory (onboard)
8GB LPDDR5/X memory (onboard)
Ethernet
10/100/1000 Mbps Ethernet
Dual 2.5Gbps Ethernet
Graphics Support
NVIDIA RTX 2000 Ada Generation Embedded GPU (8GB GDDR6 128-bit) MXM3.1 Type-B
Intel UHD Graphics (Integrated)
NVIDIA RTX A4500 (16GB GDDR6 256-bit)
Audio
Mic / Stereo Audio
8-channel Digital via HDMI
Storage
1 x M.2 NVMe PCIe 4.0 x4 SSD slot (2230,2242,2280,22110), 1 x M.2 NVMe PCIe 4.0 x4 / SATA SSD slot (2230, 2242,2280, 22110)

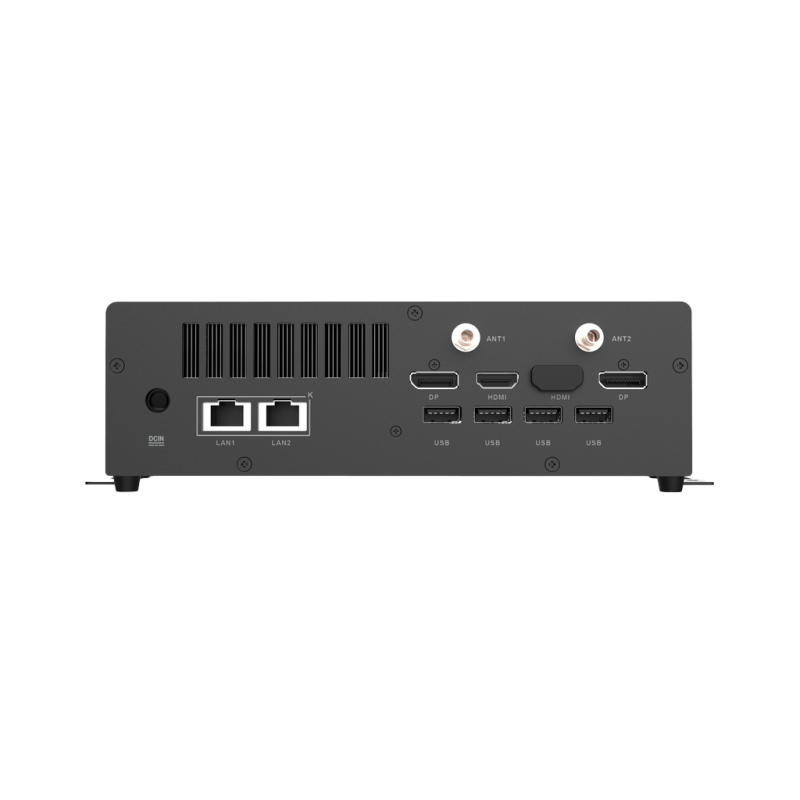

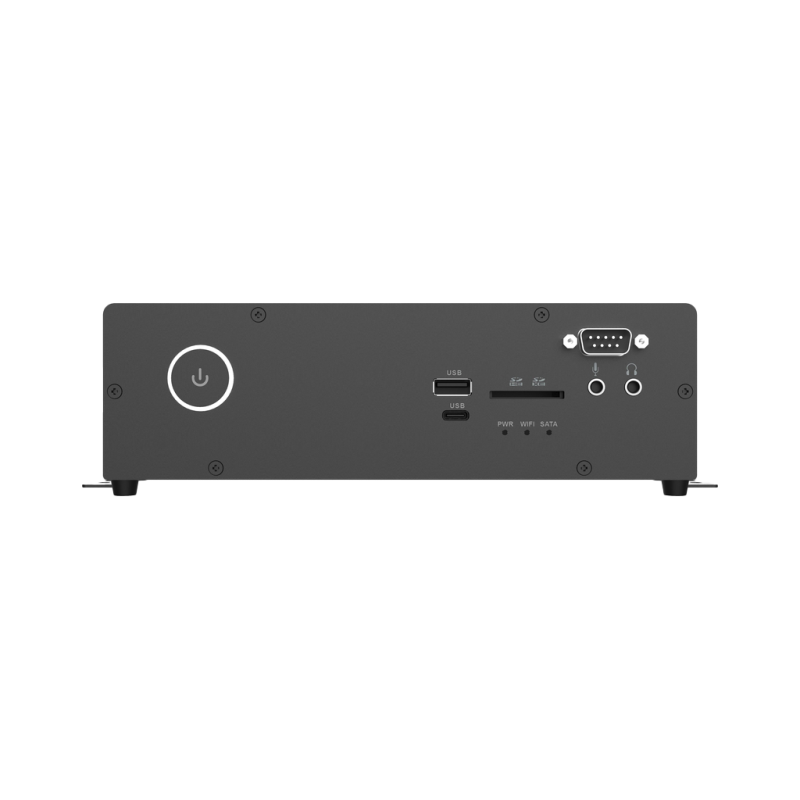

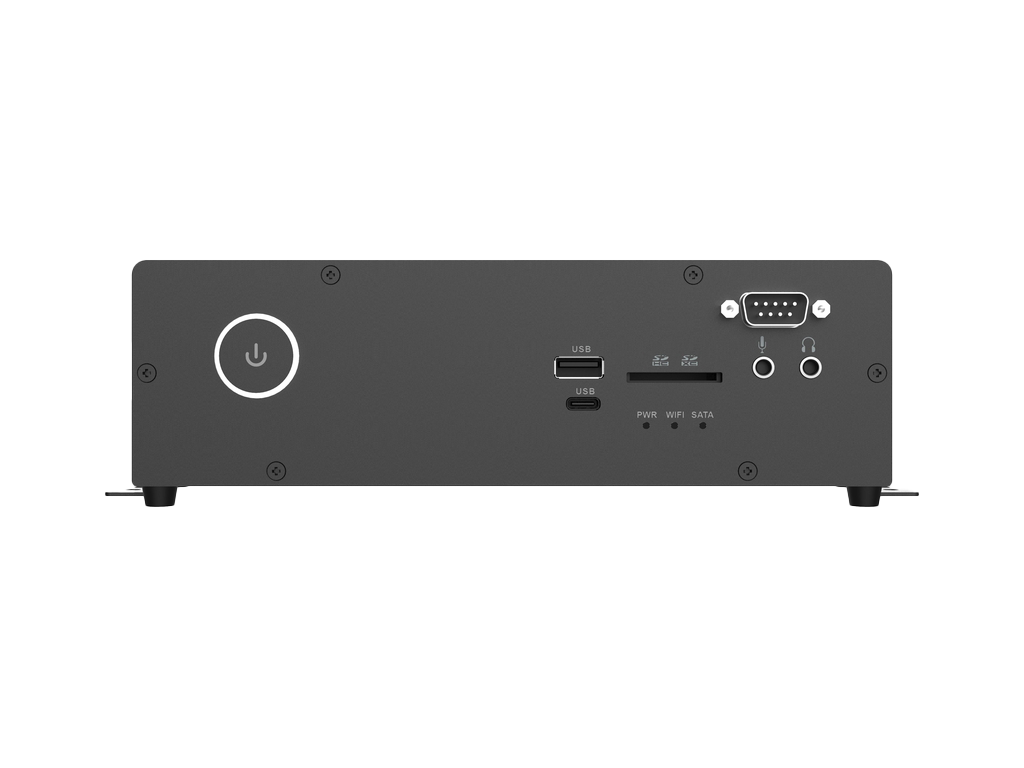

I/O Ports
Audio: Mic / Stereo Audio 8-channel Digital via HDMI
Porte: USB1 x USB 3.2 Type-C
5 x USB 3.2
LAN: Dual 2.5Gbps Ethernet
Antenna: Dual Wi-FI SMA connetor
Wifi: Wi-Fi 6E
Bluetooth: Bluetooth 5.3
Legacy I/O: RS-232 serial port
Power
DC 19.5V, 330W
Specifiche Tecniche
| CPU | Intel Celeron J6412 (quad-core 2.0GHz up to 2.6GHz, 1.5MB cache) Intel Celeron N6211 (dual-core 1.2GHz up to 3.0GHz, 1.5MB cache) Intel Core i5-13400 (10-core 2.5 GHz, up to 4.6 GHz) Intel Core i7-11850HE (8-core 2.6 GHz, up to 4.7 GHz) Intel Pentium N6415 (quad-core 1.2GHz up to 3.0GHz, 1.5MB cache) Intel Processor N100 (quad-core 0.8GHz up to 3.4GHz, 6MB cache) |
|---|---|
| Tipo Memoria | 2 x DDR5-5600 SODIMM Slots (up to 64GB) 4GB LPDDR5/X memory (onboard) 8GB LPDDR5/X memory (onboard) |
| Storage | 1 x M.2 NVMe PCIe 4.0 x4 SSD slot (2230/2242/2280/22110) + 1 x M.2 NVMe PCIe 4.0 x4 / SATA SSD slot (2230/2242/2280/22110) + UHS-I/II SD/SDHC/SDXC memory card slot |
| GPU | Integrata - Intel UHD Graphics NVIDIA RTX 2000 Ada Generation Embedded GPU (8GB GDDR6 128-bit) MXM3.1 Type-B NVIDIA RTX™ A4500 16GB GDDR6 256-bit |
| Porte USB | 1 x USB 3.2 Type-C + 5 x USB 3.2 Type-A + 1 x Legacy RS232 (COM) port |
| Lan | Dual 2.5Gbps Ethernet x1 10/100/1000 Mbps, 1G LAN |
| Dimensioni | 209.8 x 202.3 x 62.5 mm |
