ZBOX H

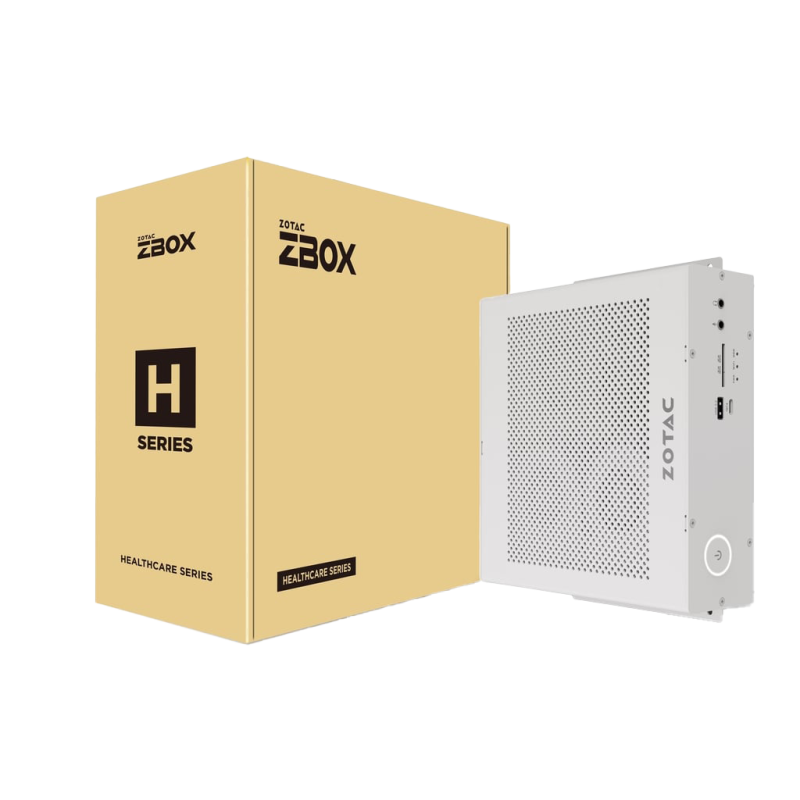

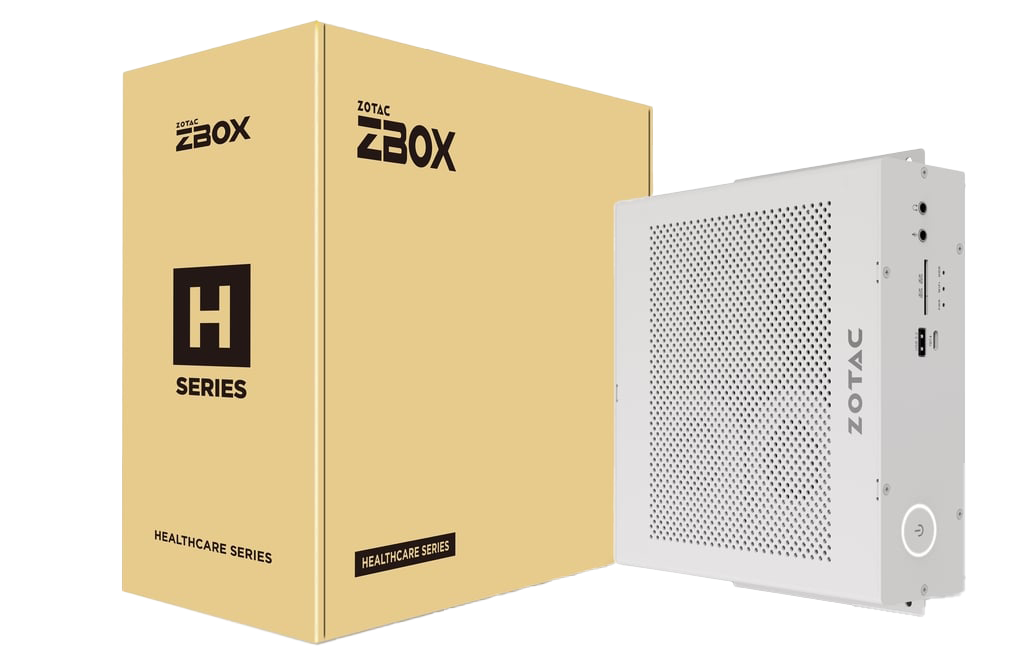

- ZBOX H39R5000W: mini PC progettato per strutture mediche e sanitarie moderne.
- Funzionalità intelligenti e potenti per affrontare applicazioni future.

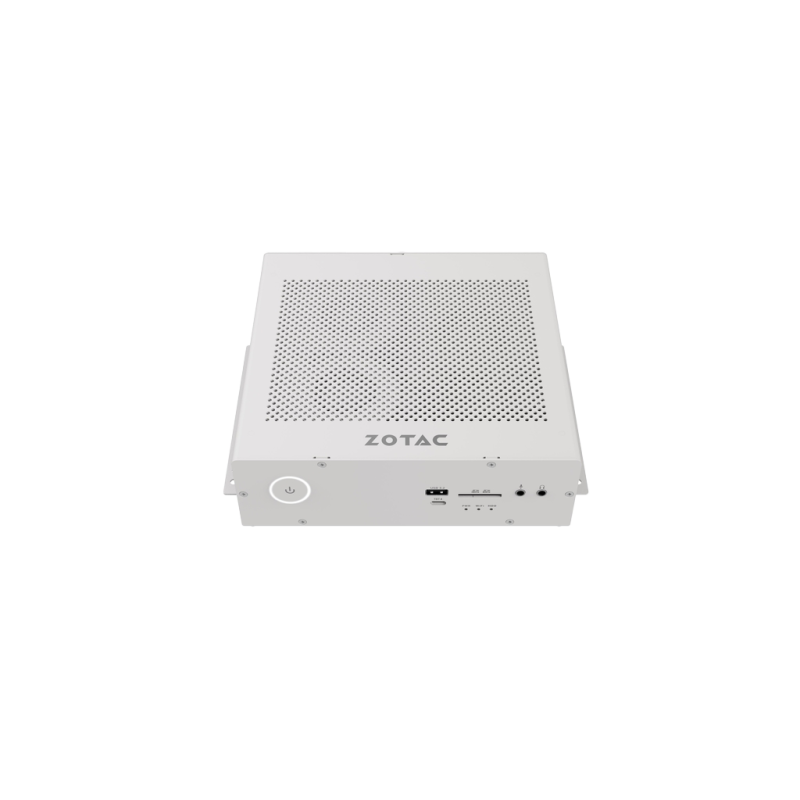

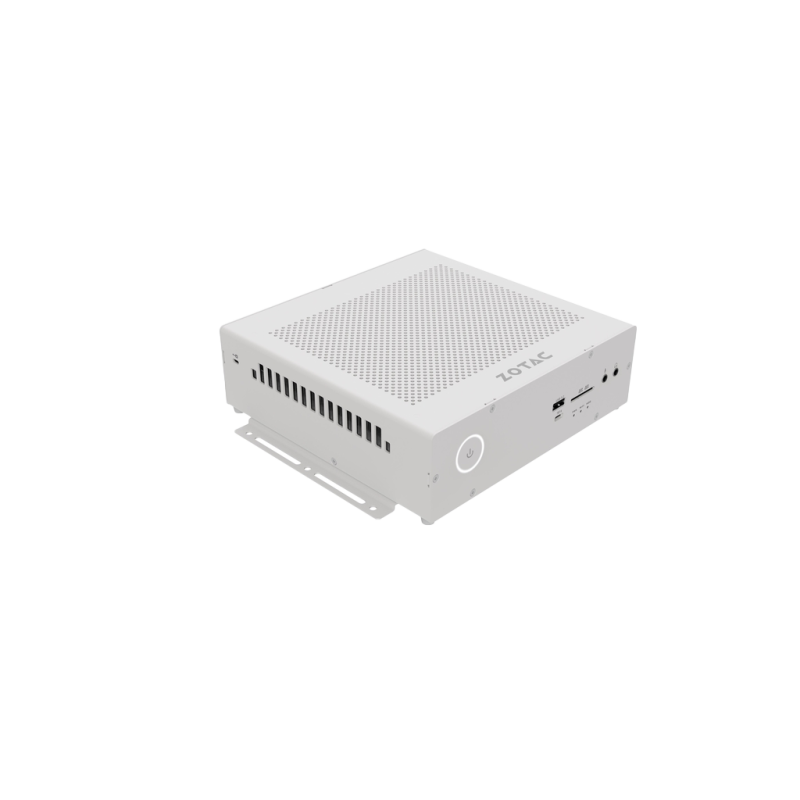

- Design compatto con bordi arrotondati e finitura bianca.
- Certificazioni EN60601-1 per dispositivi elettromedicali.
- Processore Intel Core i9 di 13ª generazione per prestazioni elevate.
- GPU dedicata NVIDIA RTX 5000 Ada Generation di livello professionale.
- Ideale per algoritmi diagnostici basati su AI, imaging medico, rendering e slicing 3D.
Dimensions
Length: 209.8mm (8.26in)
Width: 202.3mm (7.96in)
Height: 67.5mm (2.66in)
CPU
Intel Core i9-13900HX (24-core, up to 5.4 GHz)
Intel Core i7-13700HX (16-core, up to 5.0 GHz)
Memory
2 x DDR5-5600 SODIMM Slots (up to 64GB)
2 x DDR5-4800 SODIMM Slots (up to 64GB)
Ethernet
Dual 2.5Gbps Ethernet
Graphics Support
NVIDIA RTX 5000 Ada Generation Laptop GPU (16GB GDDR6 256-bit, 2115 MHz Boost Clock, 115W TDP)
NVIDIA RTX 3500 Ada Generation Laptop GPU (12GB GDDR6 192-bit, 2250 MHz Boost Clock, 115W TDP)
Audio
Mic / Stereo Audio
8-channel Digital via HDMI
Storage
1 x M.2 NVMe PCIe 4.0 x4 SSD slot (2230,2242,2280,22110), 1 x M.2 NVMe PCIe 4.0 x4 / SATA SSD slot (2230, 2242,2280, 22110)

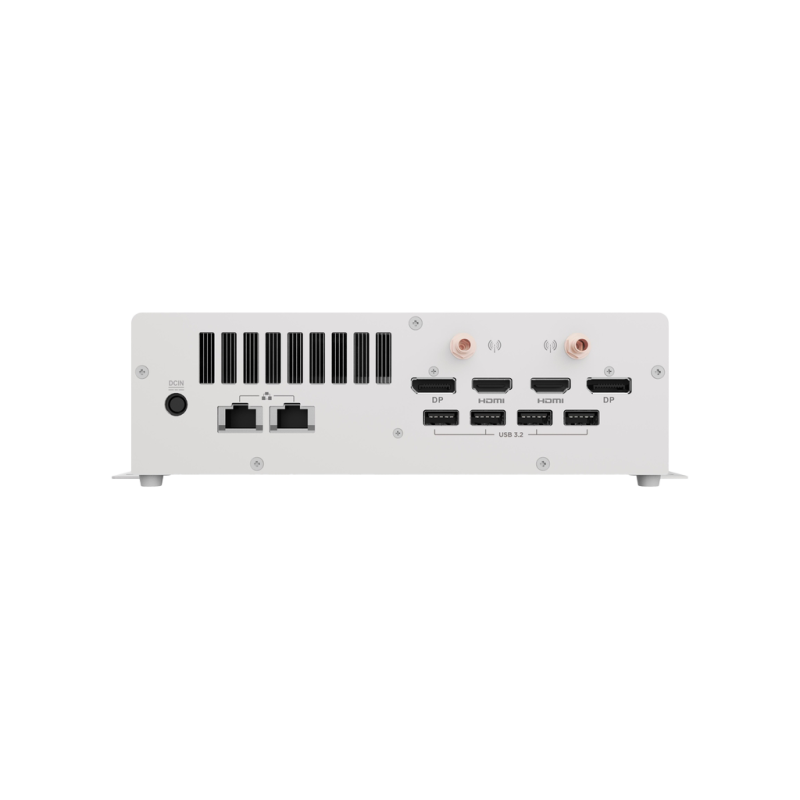

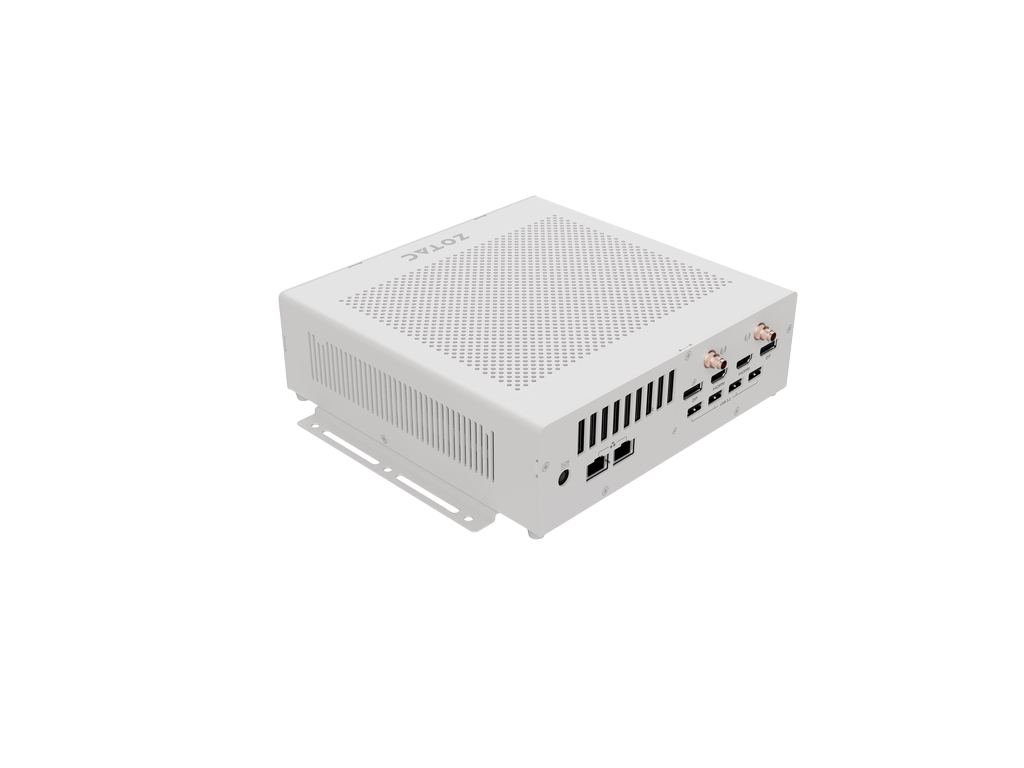

Ports I/O
Audio: Mic / Stereo Audio
8-channel Digital via HDMI
Porte USB: 5 x USB 3.2
LAN: Dual 2.5Gbps Ethernet
Antenna: Dual Wi-FI SMA connetor
Wifi: Wi-Fi 6
Bluetooth: Bluetooth 5.2
Thunderbolt: Thunderbolt 4
Specifiche Tecniche
| CPU | Intel Core i7-13700HX (16-core, up to 5.0 GHz) Intel Core i9-13900HX (24-core, up to 5.4 GHz) |
|---|---|
| Tipo Memoria | 2 x DDR5-4800 SODIMM Slots (up to 64GB) 2 x DDR5-5600 SODIMM Slots (up to 64GB) |
| Storage | 1 x M.2 NVMe PCIe 4.0 x4 SSD slot (2230,2242,2280,22110), 1 x M.2 NVMe PCIe 4.0 x4 / SATA SSD slot (2230, 2242,2280, 22110) |
| GPU | NVIDIA RTX 5000 Ada Generation Laptop GPU (16GB GDDR6 256-bit, 2115 MHz Boost Clock, 115W TDP NVIDIA RTX 5000 Ada Generation Laptop GPU (16GB GDDR6 256-bit, 2115 MHz Boost Clock, 115W TDP) |
| Porte USB | Audio Mic / Stereo Audio 8-channel Digital via HDMI + USB: 5 x USB 3.2 + Dual 2.5Gbps Ethernet + Dual Wi-FI SMA connetor + Wi-Fi 6 + Bluetooth 5.2 + Thunderbolt 4 |
| Lan | Dual 2.5Gbps Ethernet |
| Dimensioni | 209.8 x 202.3 x 67.5 mm |
