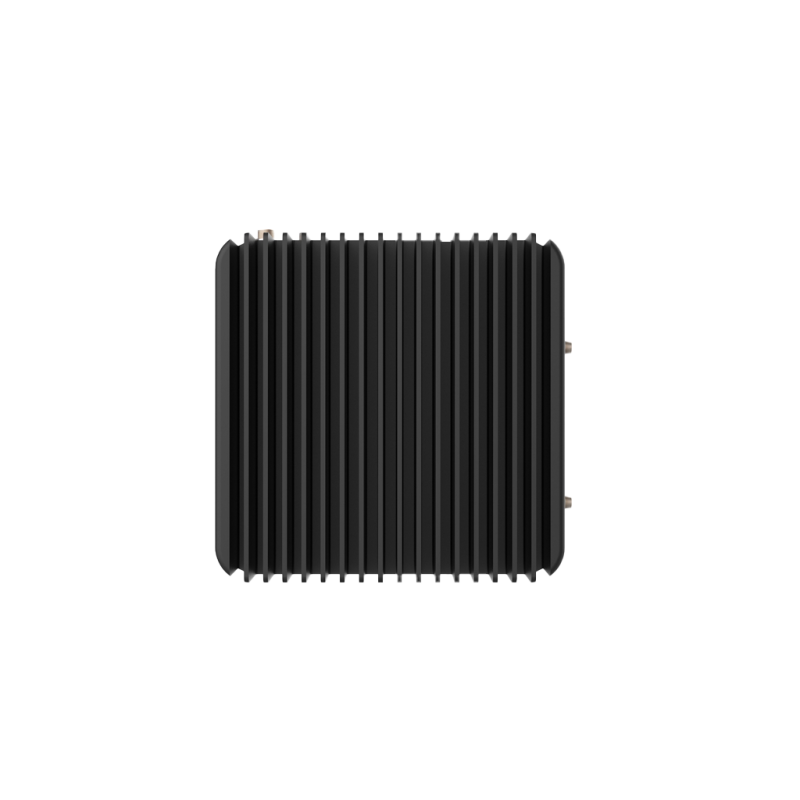

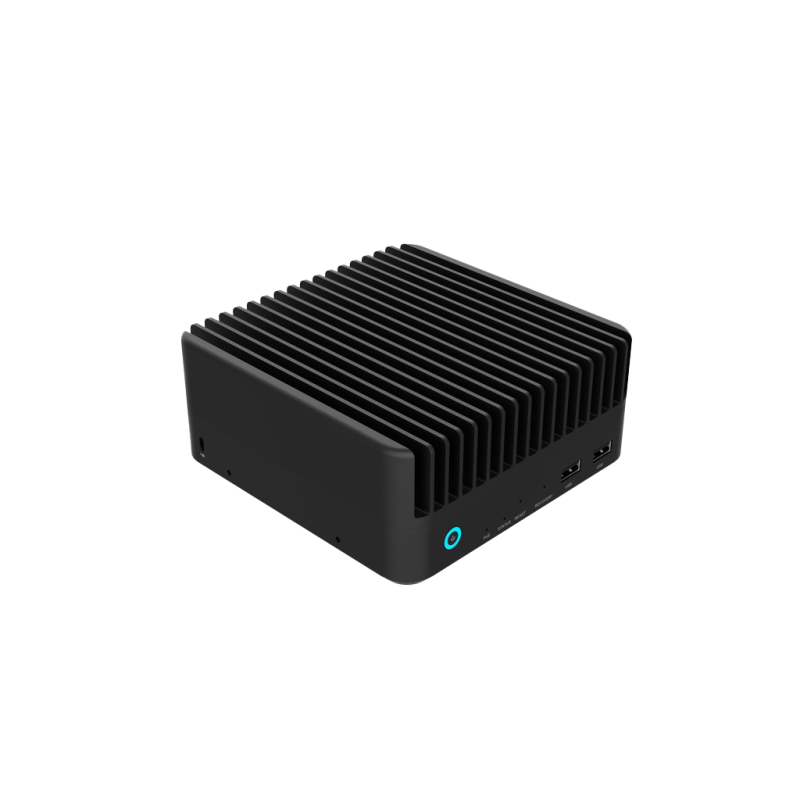

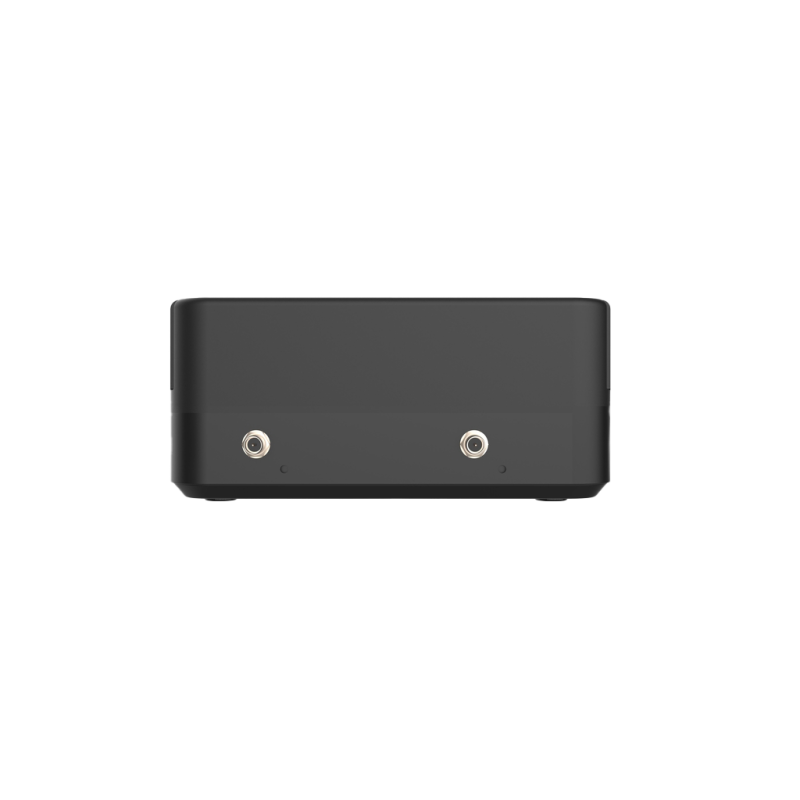

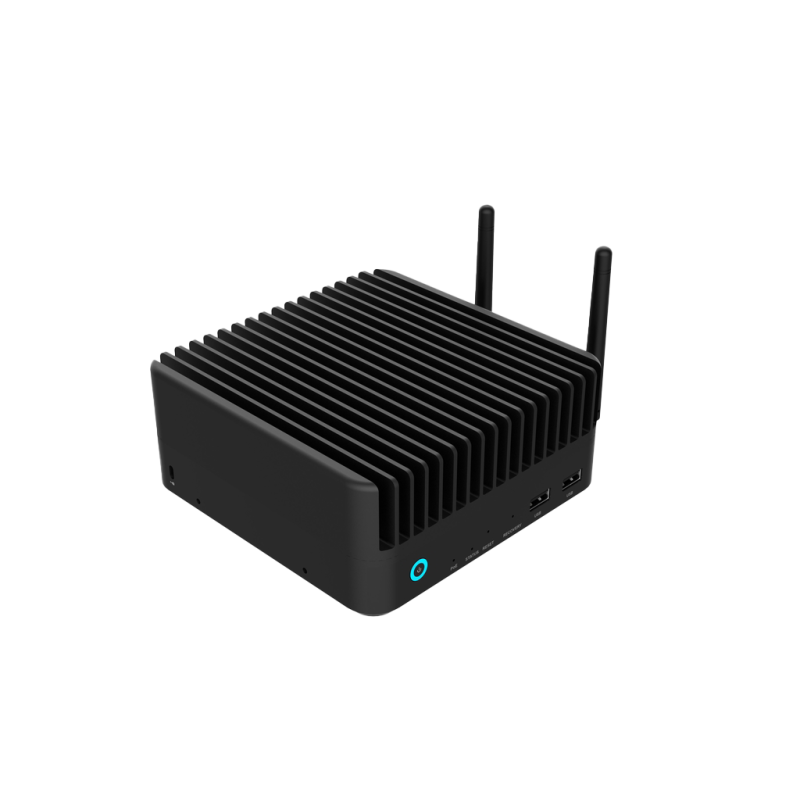

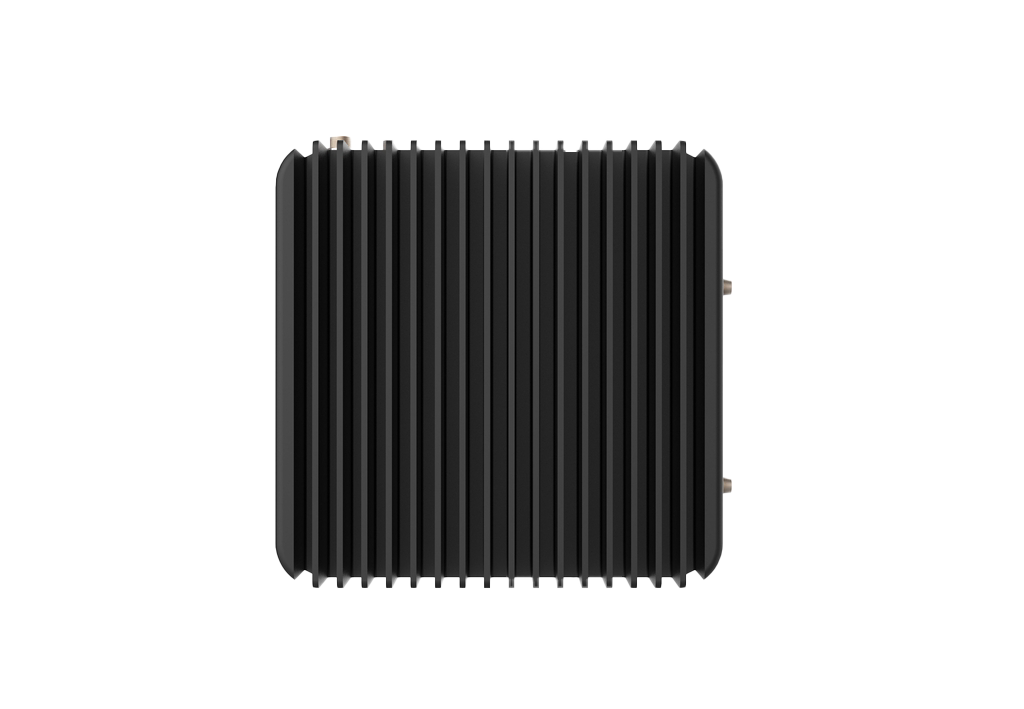

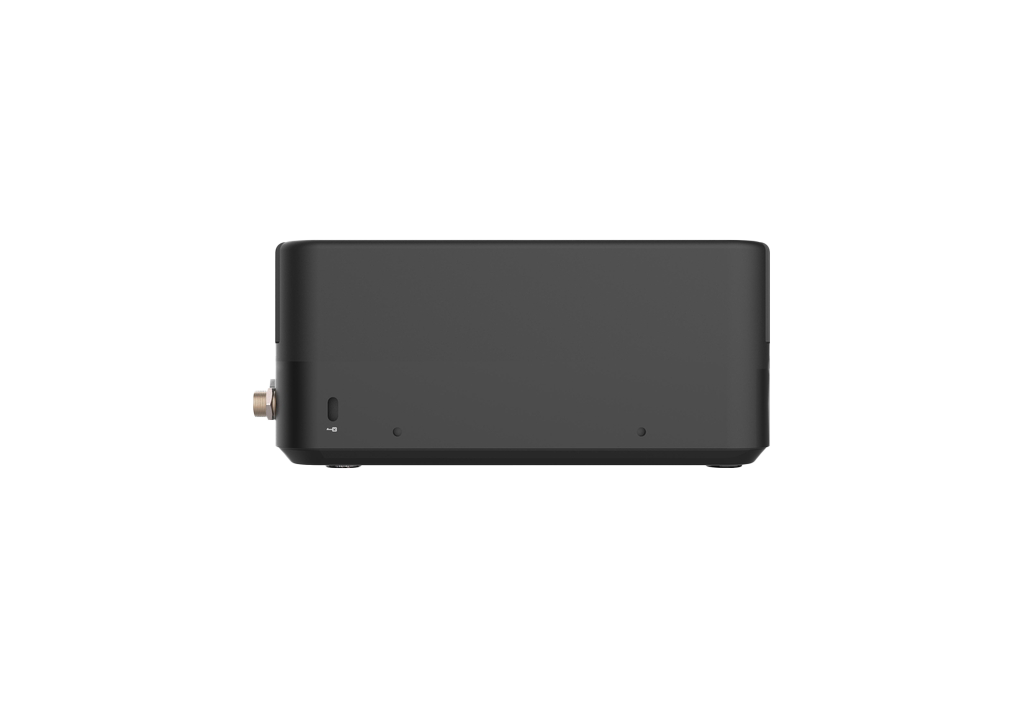

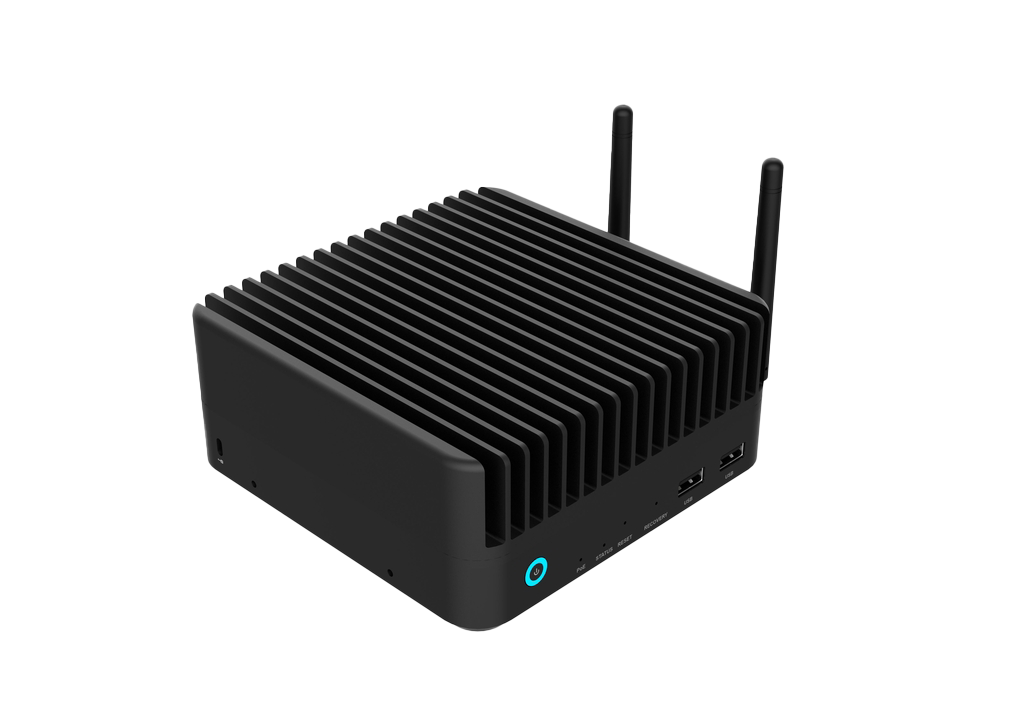

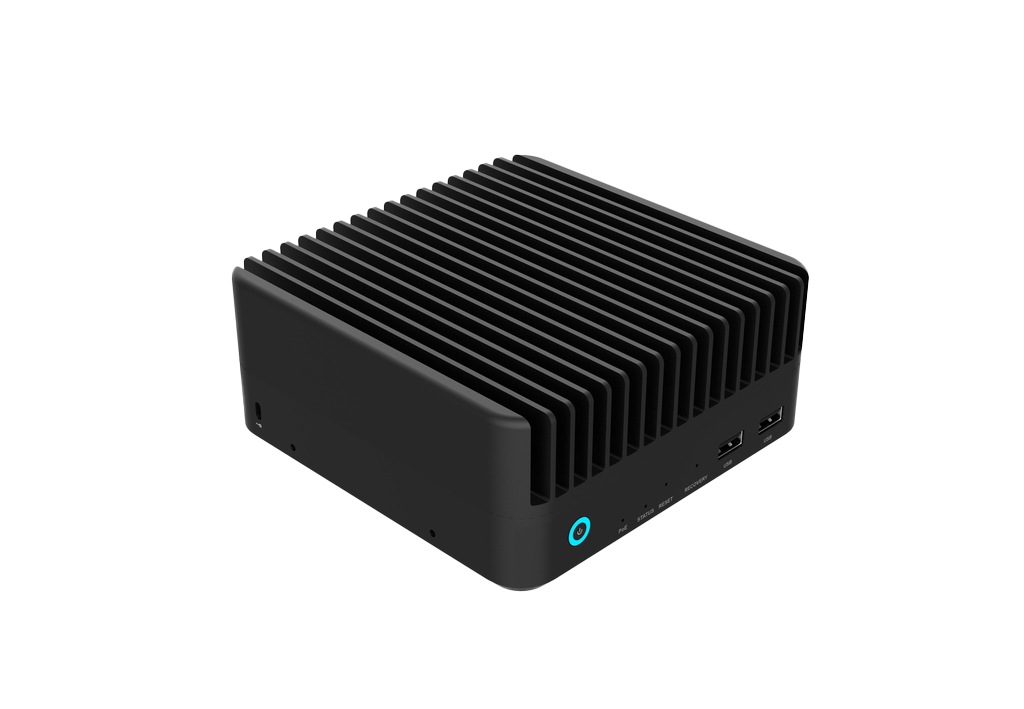

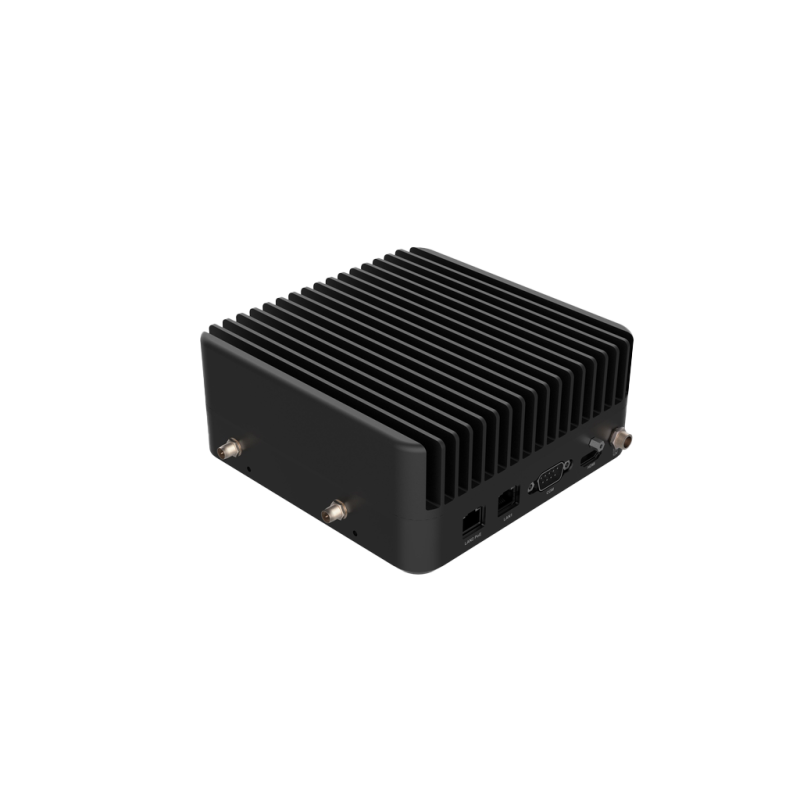

ZBOX PRO Jetson
- Sistema embedded AI Edge Jetson Orin NX: unità compatta con elevate prestazioni AI.
- Basato su architettura Ampere per calcoli avanzati.
- Storage veloce e connettività avanzata con supporto Power over Ethernet (PoE).
- Ideale per videosorveglianza, applicazioni robotiche e guida autonoma.
- Perfetto per smart cities e applicazioni di intelligenza artificiale.
Dimensions
Length: 147.2mm (5.79in)
Width: 147.2mm (5.79in)
Height: 61.1mm (2.41in)
CPU
NVIDIA Jetson Orin NX 16GB
NVIDIA Jetson Orin NX 8GB
NVIDIA Jetson Orin Nano 8GB
NVIDIA Jetson Orin Nano 4GB
NVIDIA Jetson Nano
Memory
16GB 128-bit LPDDR5 (onboard)
8GB 128-bit LPDDR5 (onboard)
4GB 128-bit LPDDR5 (onboard)
4GB 64-bit LPDDR4 (onboard)
Ethernet
1 x Gigabit LAN, 1 x PoE Gigabit LAN
Graphics Support
NVIDIA Ampere 1024-core GPU, 32 Tensor Cores
NVIDIA Ampere 512-core GPU, 16 Tensor Cores
NVIDIA Maxwell SoM 128 CUDA cores
Audio
Microphone / Headphone combo
Storage
256GB M.2 2280 NVMe SSD
1 x M.2 key-E socket (occupied by WIFI module)

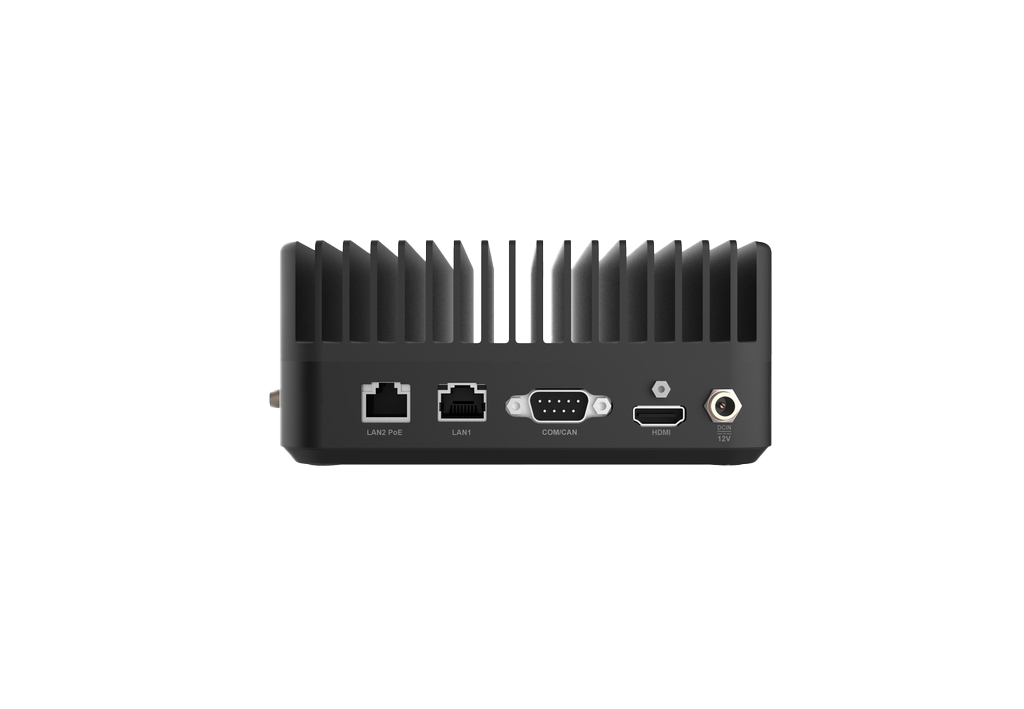

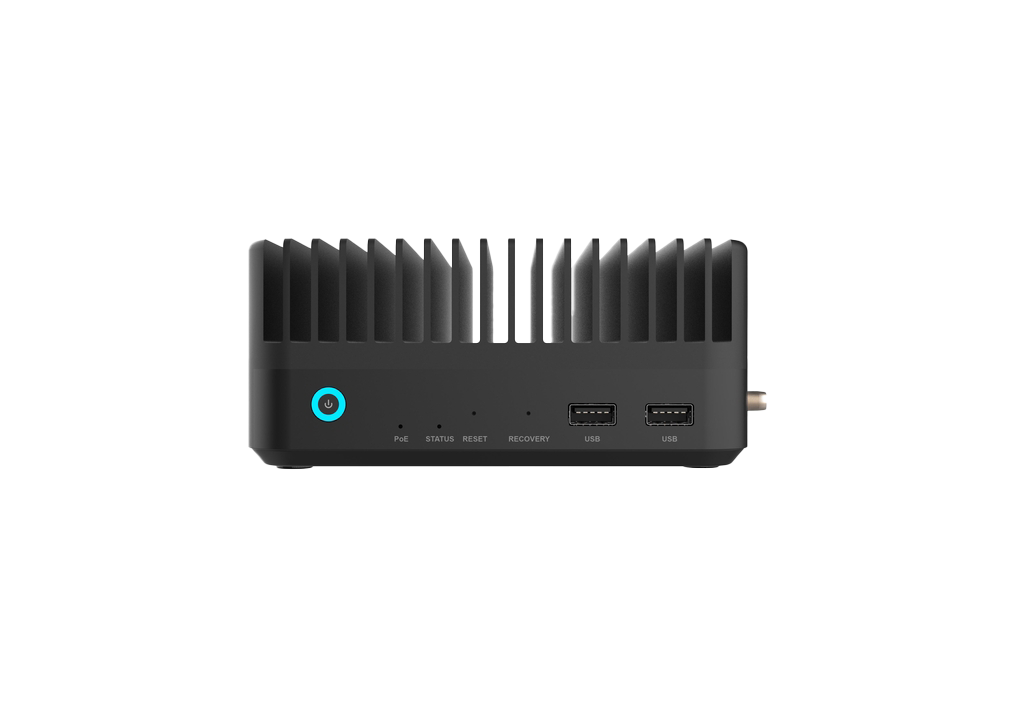

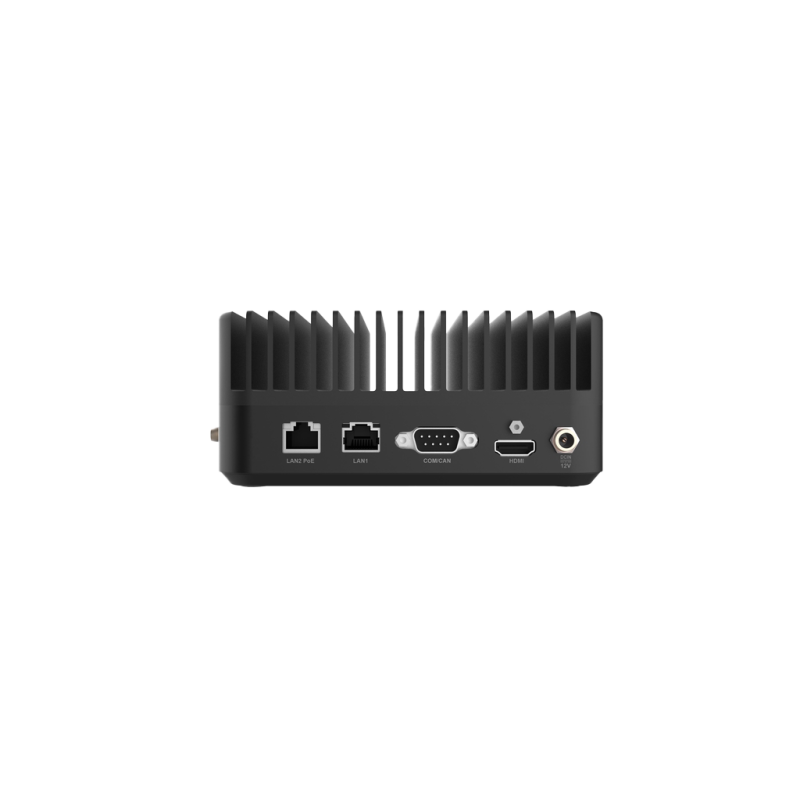

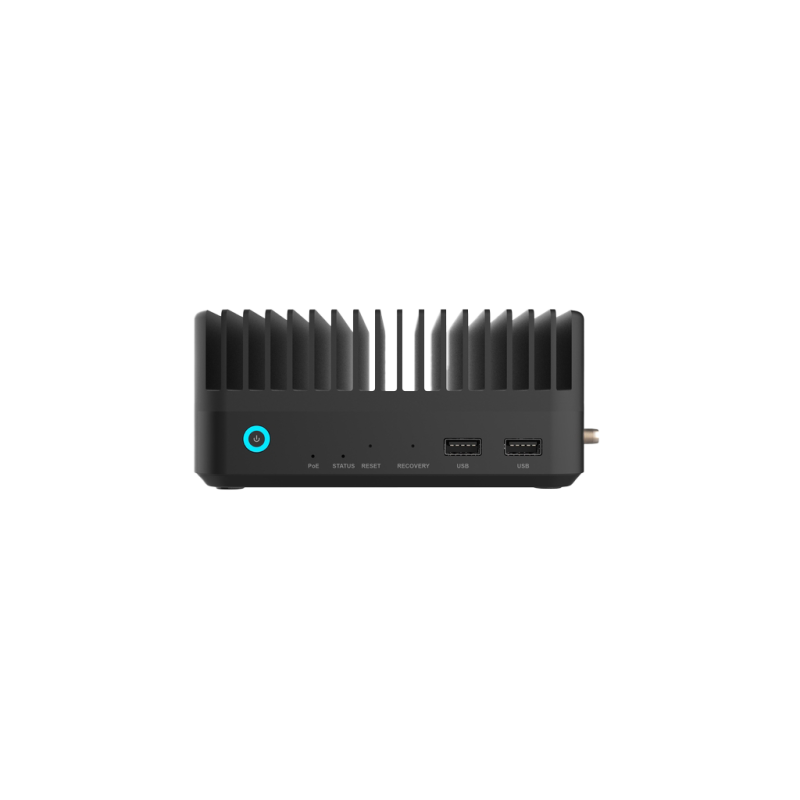

I/O Ports
Porte USB: 2 x USB 3.0 Type-A
LAN: 1 x Gigabit LAN, 1 x PoE Gigabit LAN
Antenna: 2 x WiFi SMA connector
Wi-Fi 6E AX210 IEEE 802.11ax/ac/a/b/g/n
Legacy I/O: 1 x RS232 / RS485 serial port, 1 x CAN bus
Power

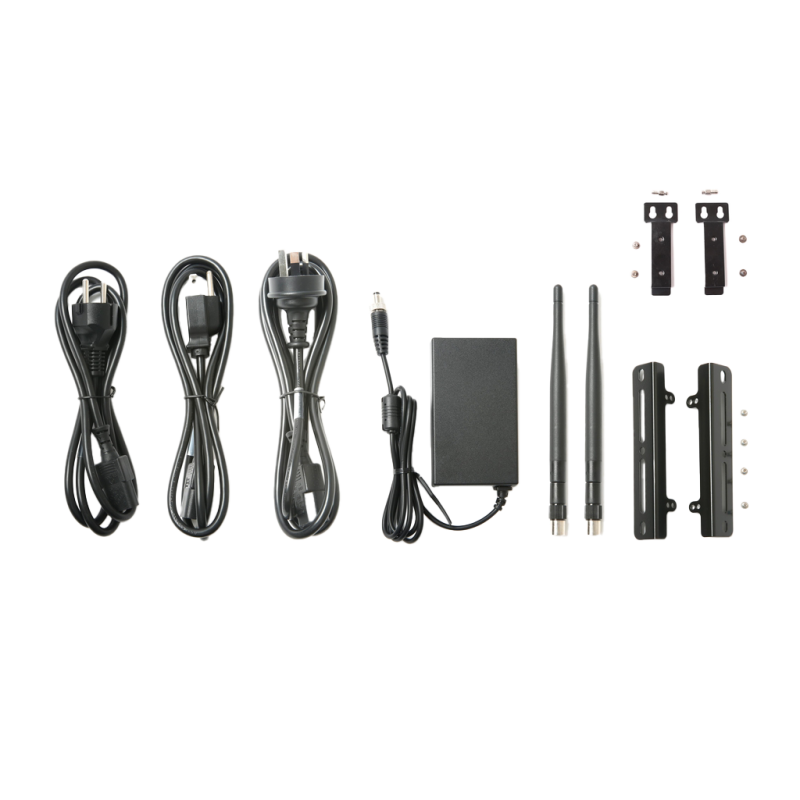

DC 12V, 60W power adapter
Operation Temperature
Main unit: -20°C ~ +65°C
AC adapter: +0°C ~ +40°C
Specifiche Tecniche
| CPU | NVIDIA Jetson Nano NVIDIA Jetson Orin NX 8GB NVIDIA Jetson Orin NX 16GB NVIDIA Jetson Orin Nano 4GB NVIDIA Jetson Orin Nano 8GB |
|---|---|
| Tipo Memoria | 4GB 64-bit LPDDR4 (onboard) 4GB 128-bit LPDDR5 (onboard) 8GB 128-bit LPDDR5 (onboard) 16GB 128-bit LPDDR5 (onboard) |
| Storage | 256GB M.2 2280 NVMe SSD |
| GPU | NVIDIA Ampere 512-core GPU, 16 Tensor Cores NVIDIA Ampere 1024-core GPU, 32 Tensor Cores NVIDIA Maxwell SoM 128 CUDA cores |
| Porte USB | 2 x USB 3.0 Type-A + 2 x USB 3.0 Type-A + 2 x USB 3.0 Type-A + Wi-Fi 6E AX210 IEEE 802.11ax/ac/a/b/g/n + Legacy I/O: 1 x RS232 / RS485 serial port, 1 x CAN bus |
| Lan | 1 x Gigabit LAN, 1 x PoE Gigabit LAN |
| Dimensioni | 147.2 x 147.2 x 61.1 mm |
