PMP-AB
- 199.5 x 213.1 x 58.3 mm
- Intel Celeron / Core
- 6x COM Ports
- 1x HDMI, 1x VGA
- 2x Lan Ports
Dimensions
199.5×213.1×58.3 mm
CPU
Intel Celeron J1900 / J4125
Intel Core i3: i3-6100U / i3-8145U / i3-10110U
Intel Core i5: i5-6200U / i5-7200U / i5-8265U / i5-10210U
Intel Core i7: i7-6500U / i7-7500U / i7-8565U / i7-10210U
Memory
4GB / 8GB / 16GB / 32GB / 64GB (Optional)
Ethernet
2 × LAN 10/100/1000M
Graphics Support
Integrated Graphics Processor:
Intel HD Graphic 520 / Intel HD Graphic 620
HDMI: up to 4K (3840×2160)
Storage
2 x 2.5" HDD/SSD

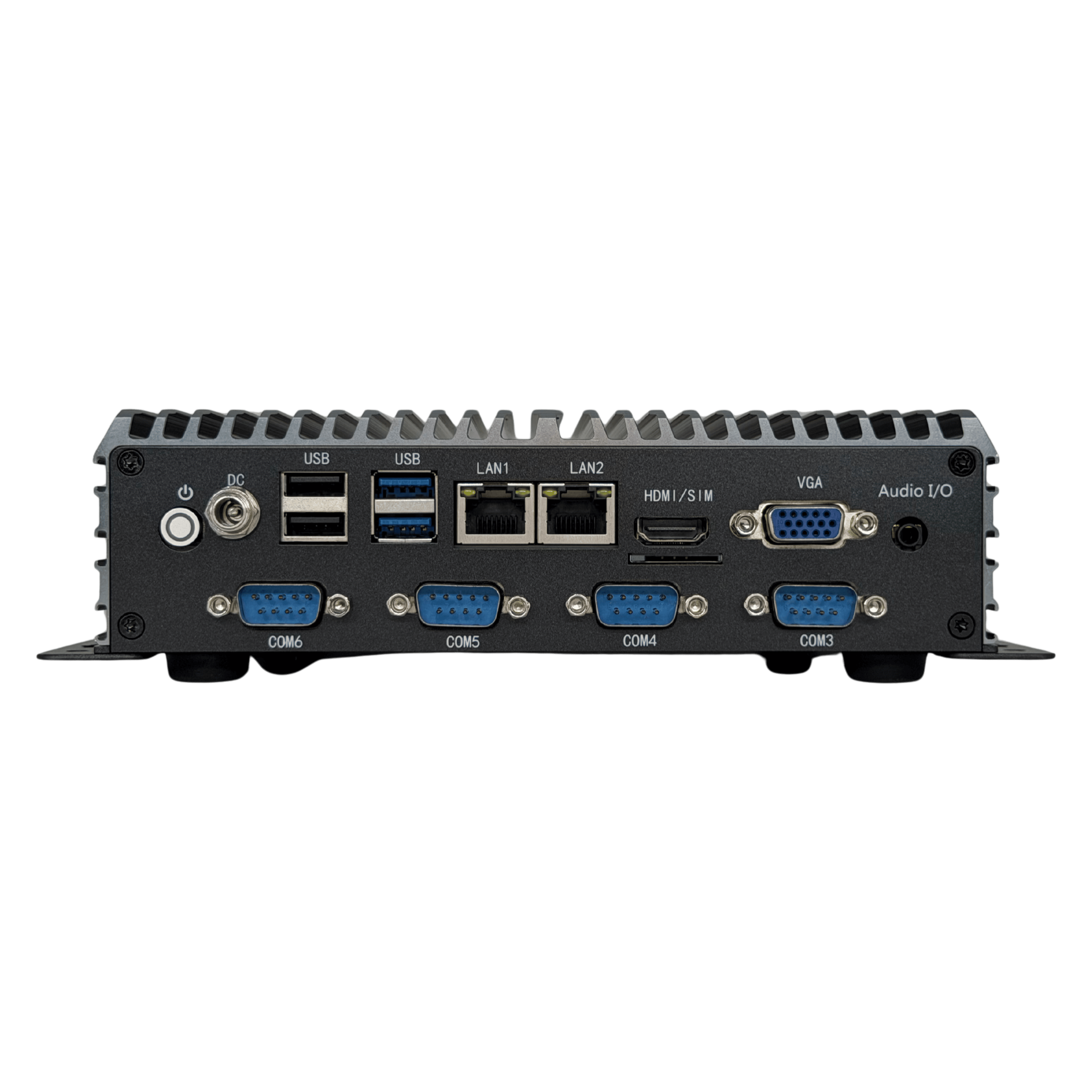

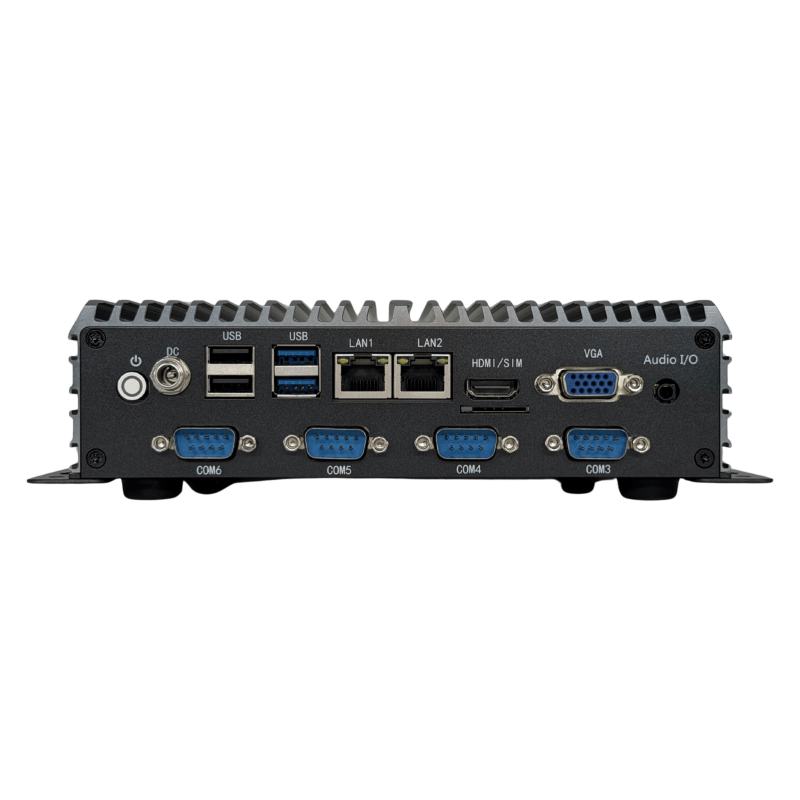

Front I/O
2 x USB 3.0
2 x USB 2.0
1 x Power button with LED
4 x COM Ports
1 x Sim slot
1 x Audio I/O
1 x HDMI

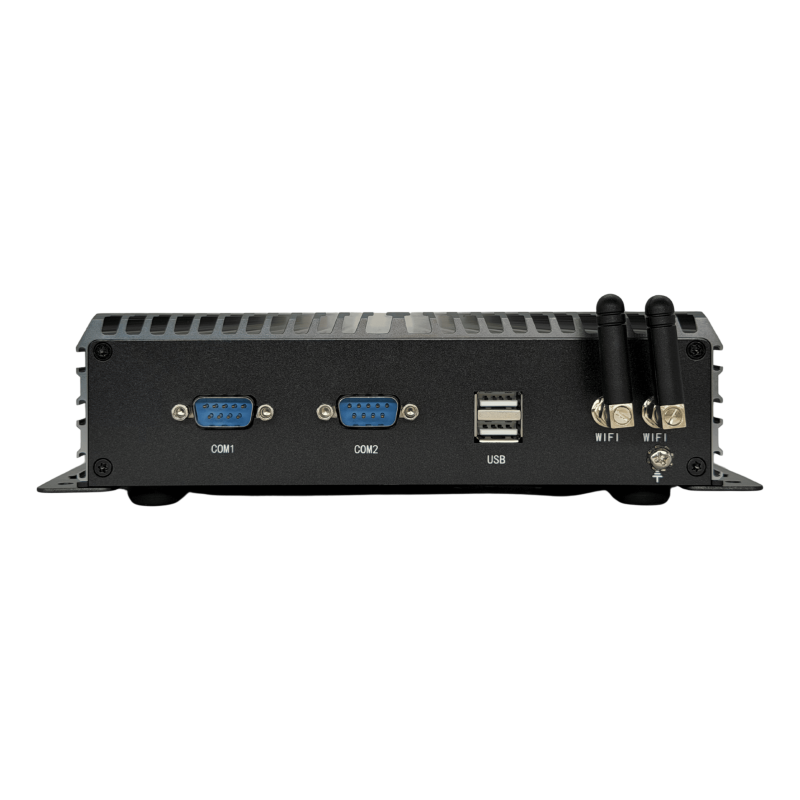

Rear l/O
2 x External Antenna
2 x USB 2.0
2 x COM Ports
1 x GND
Power
+12V~36V DC
Operation Temperature
Operating temperature: -10°C to 60°C
Operating humidity: 0-95% (non-condensing)
Non-operating temperature:-20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Vibration During Operation
IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis
Shock During Operation
IEC 60068-2-27, Half sine wave, duration 11 ms
Specifiche Tecniche
| CPU | Intel® Core 12th Gen (I3-1215U, I5-1235U, I7-1255U) |
|---|---|
| Tipo Memoria | 1 x DDR4 SO-DIMM socket, Max. Capacity 32 GB Support Single Channel DDR4 3200 MHz memory modules |
| Storage | x1 M.2 2280 PCIe + x1 2.5" SATA |
| GPU | Integrata - Intel® Iris® Xe Graphics |
| Lan | 2 x 10/100/1000 Mbps |
| Peso | 1900g |
