QBiX-Lite-AMDA1605H-A1

Dimensions

234W x 155D x 30H (mm)

CPU

AMD Ryzen™ V1605B Embedded Processor

14nm, 4 cores, 8 threads, up to 3.6 GHz

TDP 25W

2MB of shared L2 plus 4MB of shared L3 total

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB

Support Dual channel DDR4 2400 MHz memory modules

Ethernet

2 x GbE LAN Ports (Realtek® RTL8111HS)

Graphics Support

Integrated Graphics Processor - AMD Radeon™ Vega 8 Graphics:

4 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz

*Support EDID emulation with AMD graphic driver/utility

(4 independent display outputs)

Audio

Realtek® Audio Codec

Storage

1 x 2.5" HDD/SSD (SATA 6Gb/s)

Expansion-Slots

1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)

1 x 2230 M.2 E-Key (WiFi/BT)

1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G module

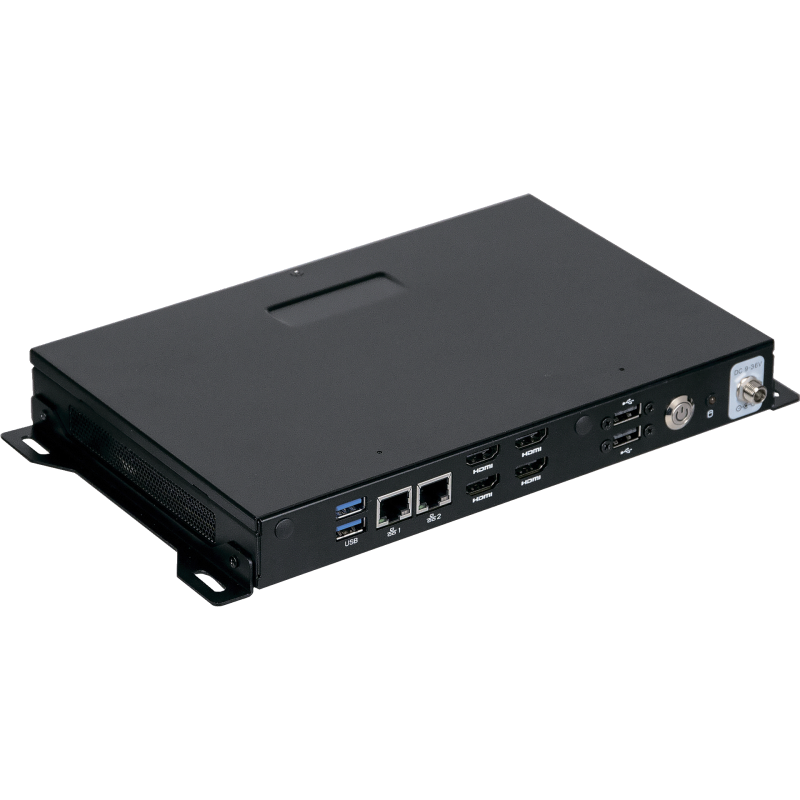

Front I/O

2 x RJ45 LAN Ports

2 x USB 3.2 Gen 1

2 x USB 2.0

4 x HDMI

1 x Power button with LED

1 x HDD LED

1 x Screw type DC Jack

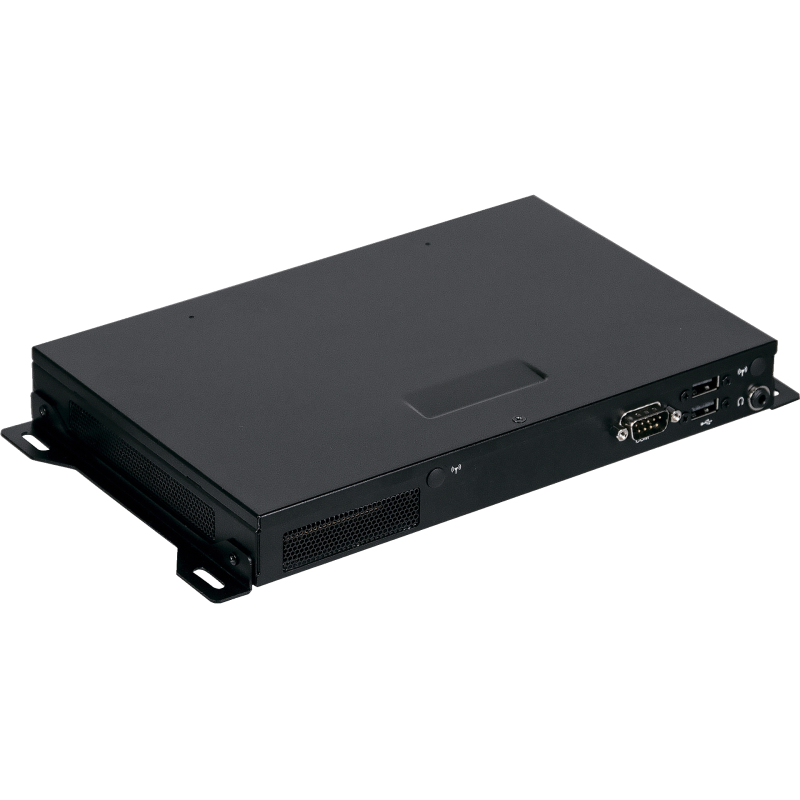

Rear l/O

1 x COM Port (RS-232/422/485 & RI/5V/12V)

2 x USB 2.0

1 x Line out phone jack

2 x External Antenna Holes (Optional)

TPM

Onboard TPM 2.0 security chip

INFINEON SLB9665TT2.0

Power

+9V~36VDC (Adapter 19V/65W)

Operation Temperature

Operating temperature: 0°C to 50°C

Operating humidity: 0-90% (non-condensing)

Non-operating temperature: -20°C to 70°C

Non-operating humidity: 0%-95% (non-condensing)

Use wide temperature range memory and storage

Vibration During Operation

Operation: IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242

Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

Packing Content

Carton size: 481 x 300 x 375 (mm)

Packing Capacity: 5pcs

Single Box size: 336 x 279 x 90 (mm)

Including:

Bracket for Wall Mount x 2 : 25HB1-SD4000-R0R

PSU ADP 19V 65W 100-240VAC x 1 : 25EP1-100650-A3S

Power Cord : Optional (by region)
