QBiX-Lite SDM Kits

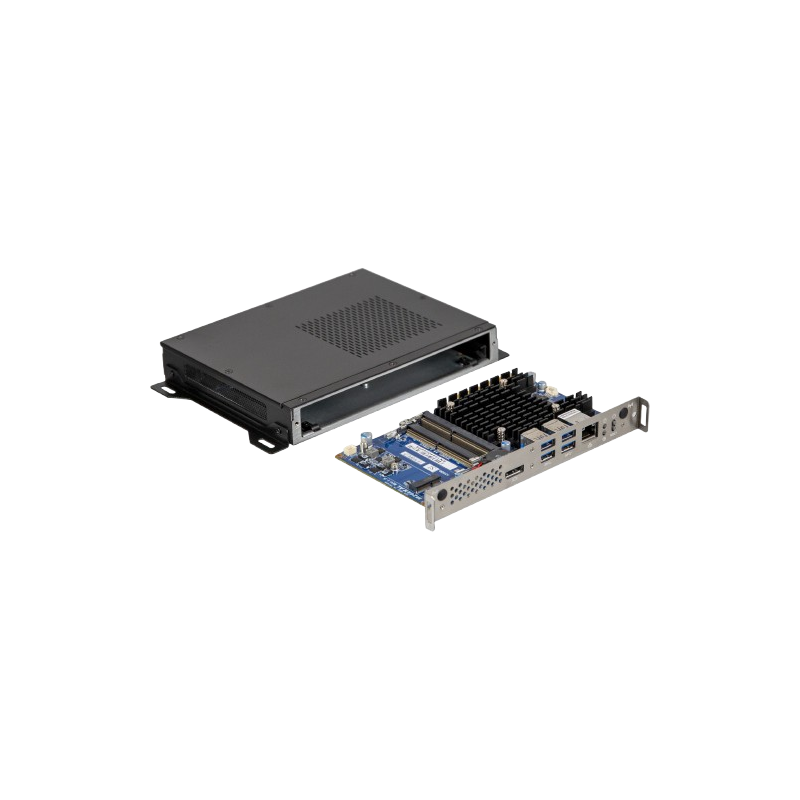

• SDM Chassis Kit (Support SDM module)
• System Size : 195W x 158D x 30H (mm)
Dimensions
195W x 158D x 30H(mm)
CPU
Support SDM module as follows:
SDM-1135G7L
SDM-1115G4L
SDM-7300L (with Intel vPro support)
SDM-7100L
SDM-4000L
SDM-3350L-HW
SDM-3350L-QV
Memory
Depends on SDM module:
SDM-1135G7L (2 x DDR4 SO-DIMM sockets, Dual Channel 3200 MHz memory Module, Max. Capacity 64 GB)
SDM-1115G4L (2 x DDR4 SO-DIMM sockets, Dual Channel 3200 MHz memory Module, Max. Capacity 64 GB)
SDM-7300L (2 x DDR4 SO-DIMM sockets, Dual Channel 2133 MHz memory Module, Max. Capacity 32 GB)
SDM-7100L (2 x DDR4 SO-DIMM sockets, Dual Channel 2133 MHz memory Module, Max. Capacity 32 GB)
SDM-4000L (2 x DDR4 SO-DIMM sockets, Dual Channel 2400 MHz memory Module, Max. Capacity 8 GB)
SDM-3350L-HW (2 x DDR3L SO-DIMM sockets, Dual Channel 1866 MHz memory Module, Max. Capacity 8 GB)
SDM-3350L-QV (2 x DDR3L SO-DIMM sockets, Dual Channel 1866 MHz memory Module, Max. Capacity 8 GB)
Ethernet
1 x GbE LAN Port
Graphics Support
Depends on SDM module:
SDM-1135G7L (3 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz)
SDM-1115G4L (3 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz)
SDM-7300L (1 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz)
SDM-7100L (1 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz)
SDM-4000L (1 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz)
SDM-3350L-HW (1 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz)
SDM-3350L-QV (1 x HDMI 2.0, 2 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz)
Audio
Intel® Integrated Audio
Storage
Depends on SDM module:
SDM-1135G7L (--)
SDM-1115G4L (--)
SDM-7300L (--)
SDM-7100L (--)
SDM-4000L (1 x eMMC 32GB)
SDM-3350L-HW (1 x eMMC 32GB)
SDM-3350L-QV (1 x eMMC 32GB)
Expansion-Slots
1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-key (WiFi/BT)

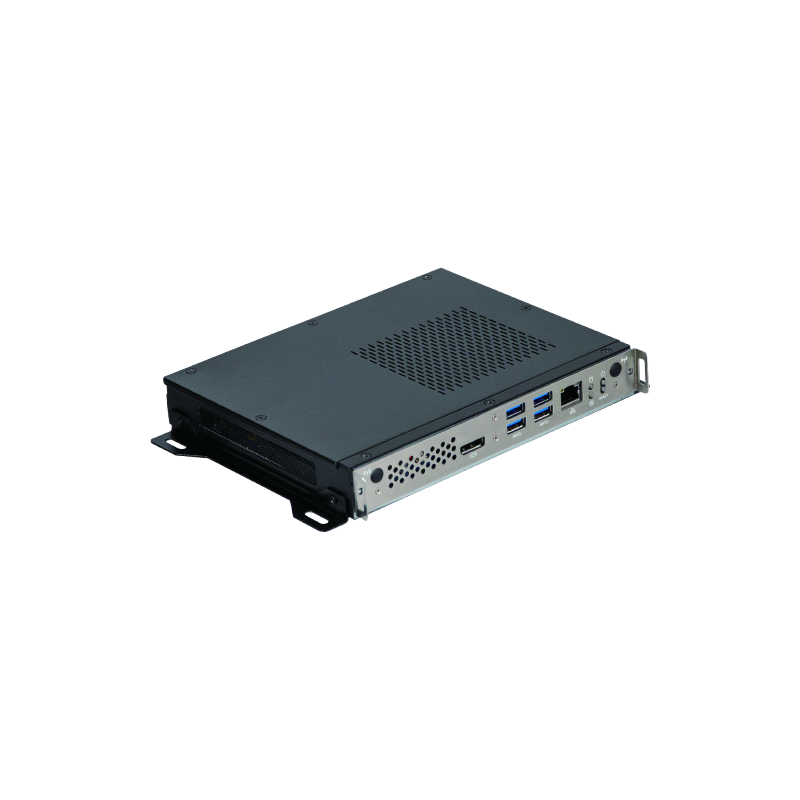

Front I/O
Depends on SDM module

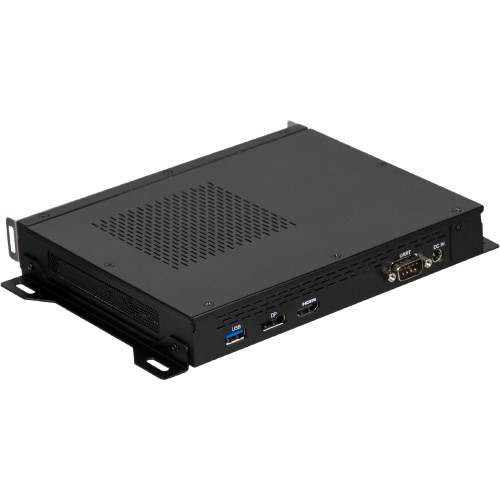

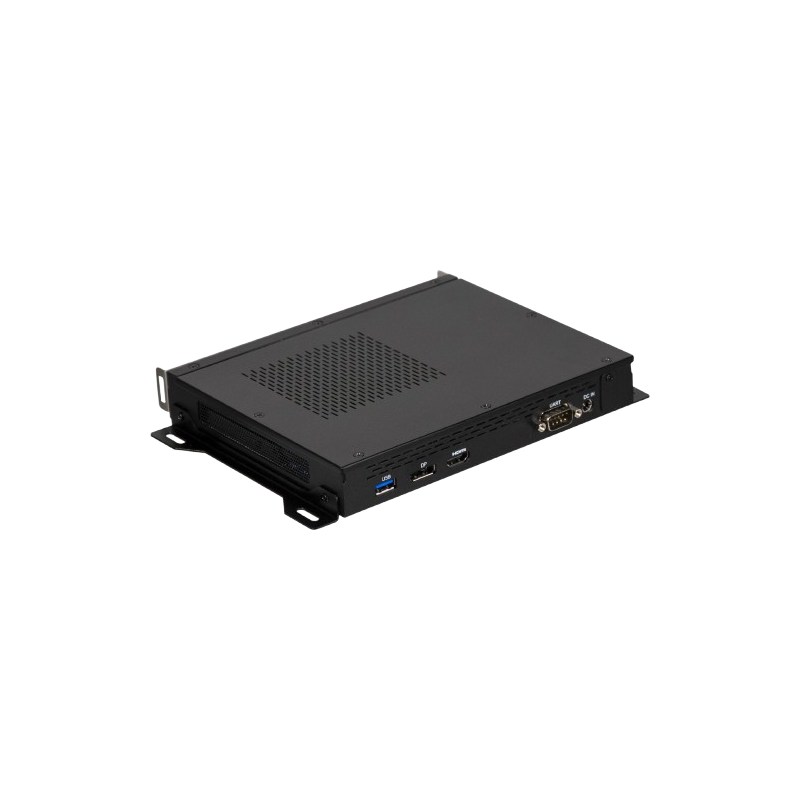

Rear l/O
1 x USB 3.2 Gen 1
1 x Display Port (Co-lay with front Display Port)
1 x HDMI
1 x UART
1 x DC-Jack
1 x 2x2 Power connector
Power
+12V/+19V/+24VDC (Adapter 19V/65W)
(Adapter 19V/90W for SDM-1135G7L, SDM-1115G4L)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 469 x 382 x 381 (mm)
Packing Capacity: 10pcs
Single Box size: 345 x 221 x 70 (mm)
Including:
Bracket for Wall Mount x 2 : 25HB1-SD4000-R0R
PSU ADP 19V 65W 100-240VAC x 1 : 25EP2-10065Q-A3S or
PSU ADP 19V 90W 100-240VAC x 1 : 25EP4-10090D-F3S (for SDM-1135G7L, SDM-1115G4L)
Power Cord : Optional (by region)
Specifiche Tecniche
| CPU | Support SDM module as follows: SDM-1135G7L SDM-1115G4L SDM-7300L (with Intel vPro support) SDM-7100L SDM-4000L SDM-3350L-HW SDM-3350L-QV |
|---|---|
| Tipo Memoria | SDM-1115G4L (2 x DDR4 SO-DIMM sockets, Dual Channel 3200 MHz memory Module, Max. Capacity 64 GB) SDM-1135G7L (2 x DDR4 SO-DIMM sockets, Dual Channel 3200 MHz memory Module, Max. Capacity 64 GB) SDM-3350L-QV (2 x DDR3L SO-DIMM sockets, Dual Channel 1866 MHz memory Module, Max. Capacity 8 GB) SDM-4000L (2 x DDR4 SO-DIMM sockets, Dual Channel 2400 MHz memory Module, Max. Capacity 8 GB) SDM-7100L (2 x DDR4 SO-DIMM sockets, Dual Channel 2133 MHz memory Module, Max. Capacity 32 GB) SDM-7300L (2 x DDR4 SO-DIMM sockets, Dual Channel 2133 MHz memory Module, Max. Capacity 32 GB) |
| GPU | SDM-1115G4L (3 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz) SDM-1135G7L (3 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz) SDM-3350L-HW (1 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz) SDM-3350L-QV (1 x HDMI 2.0, 2 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz) SDM-4000L (1 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz) SDM-7100L (1 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz) SDM-7300L (1 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz) |
| Porte USB | 1 x USB 3.2 Gen 1 |
| Lan | 1 x GbE LAN Port |
| Dimensioni | 195W x 158D x 30H mm |
