QBiX-Jetson-XavierAHP-A1

Dimensions

210W x 169.8D x 55.2H (mm)

CPU

6-core NVIDIA® Carmel Arm® v8.2 64-bit CPU

6MB L2 cache + 4MB L3 cache

Memory

8GB 128-bit LPDDR4 DRAM 1600MHz (Module)

Ethernet

8 x GbE LAN Ports with PoE 15W/Port, IEEE802.3af compliant, Total 120W

2 x GbE LAN Ports

Graphics Support

384-core NVIDIA® Volta™ GPU with 48 Tensor Cores

1 x HDMI port, supporting a maximum resolution of 3840x2160 @60Hz

1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz

Storage

1 x 16GB eMMC 5.1 (Module)

1 x SATA 6Gb/s (Swappable 2.5" HDD/SSD)

Expansion-Slots

1 x 3052 M.2 B-Key

1 x Mini PCIe slot

1 x 2230 M.2 E-Key

1 x SIM slot

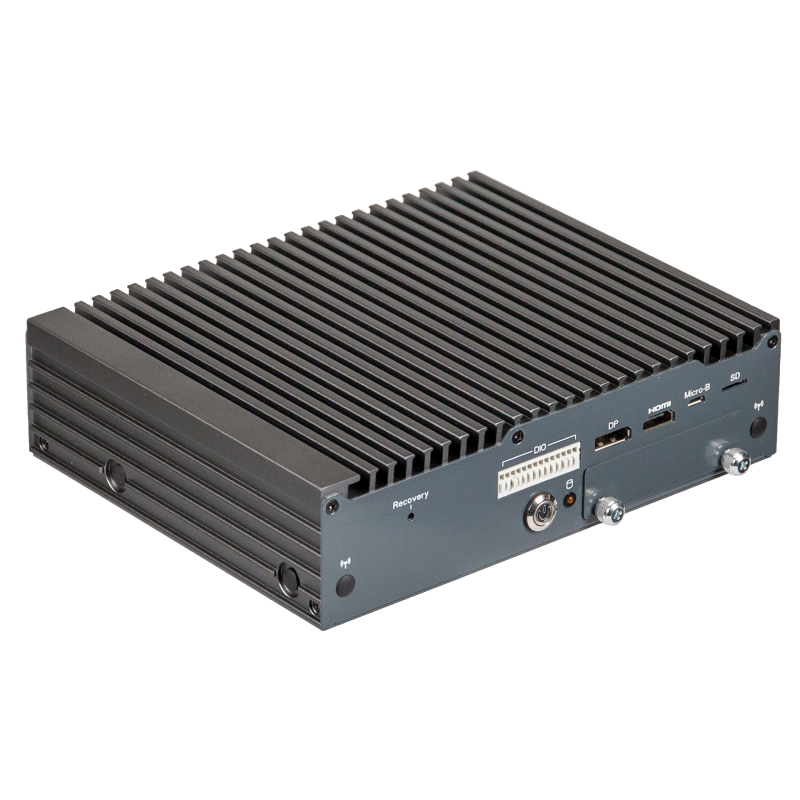

Front I/O

1 x Power button with LED

1 x HDD LED

1 x GPIO (12 bits)

1 x DP

1 x HDMI

1 x USB 2.0 Type Micro B

1 x SD slot (Micro SD)

1 x Recovery button

2 x External Antenna Holes (Optional)

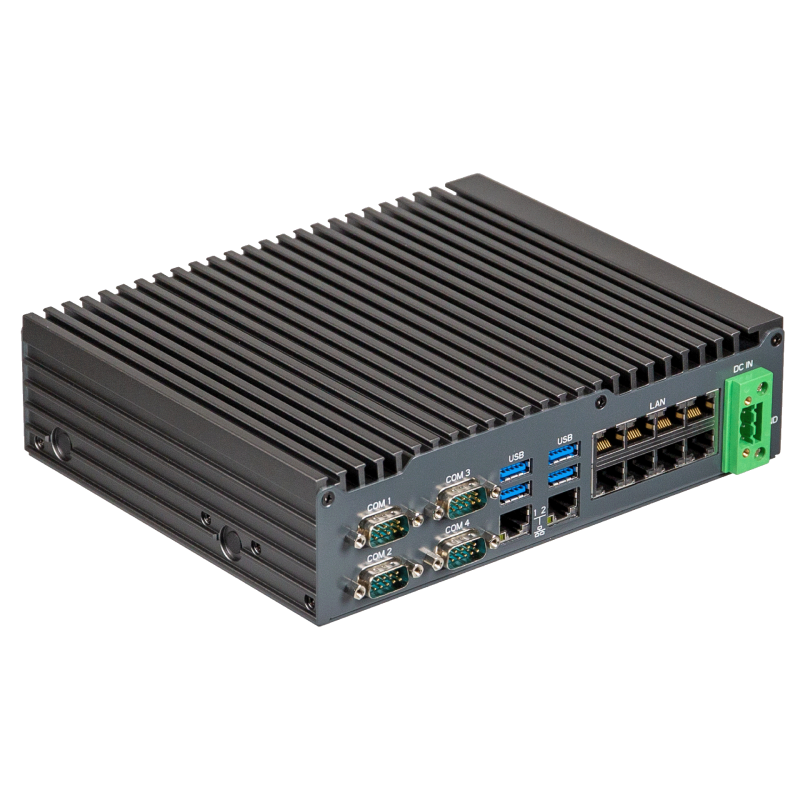

Rear l/O

4 x COM Ports (RS-232/422/485)

4 x USB 3.2 Gen 1

8 x GbE LAN Ports with PoE 15W/Port

2 x GbE LAN Ports

1 x 3-pin Terminal Block

Side I/O

4 x External Antenna Holes (Optional)

Power

+12V~54VDC (non PoE)

+54VDC (PoE support)

Operation Temperature

Operating temperature: -20°C to 70°C

Operating humidity: 0-90% (non-condensing)

Non-operating temperature: -40°C to 85°C

Non-operating humidity: 0%-95% (non-condensing)

Use wide temperature range memory and storage

Vibration During Operation

Shock During Operation

Packing Content

Carton size: 523 x 297 x 339 (mm)

Packing Capacity: 4pcs

Single Box size: 316 x 281 x 125 (mm)

Including:

54V/180W adapter x 1 (P/N: 25EP4-101807-F3S)

Power cord x 1 (By region)

Screw for 2.5" HDD/SSD, M3x4L x 4 (P/N: 25984G-1C014-S00)
