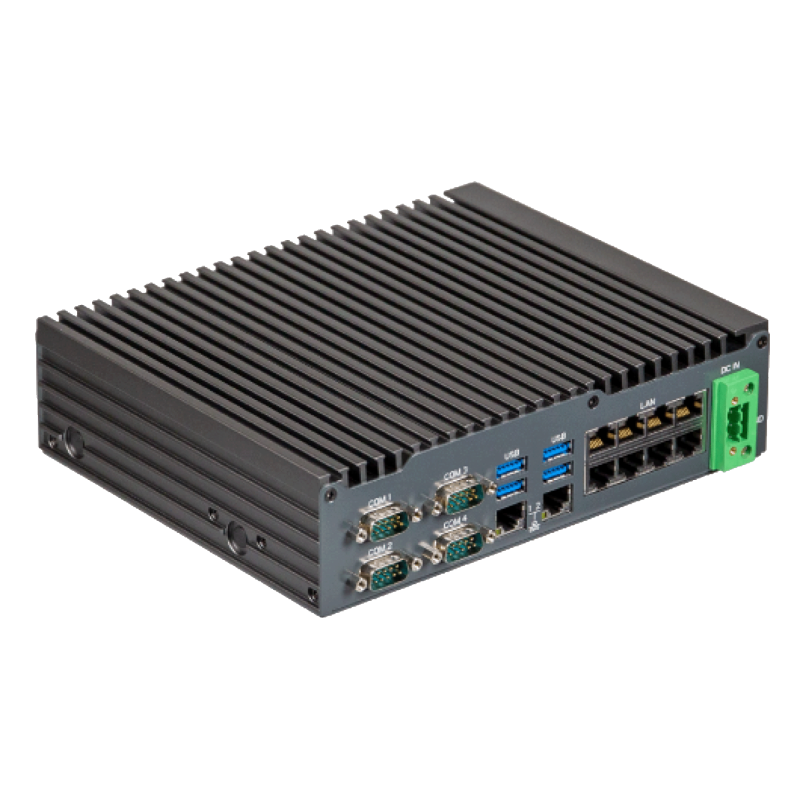

QN-ORNX
• System Size : 210W x 169.8D x 55.2H (mm)
• NVIDIA® Jetson Orin™ NX, up to 100 TOPS
• 16GB 128-bit LPDDR5 DRAM
• 10 x GbE LAN Ports
• AI, NVR, surveilance application
• Fanless system
• PoE function upon request
Dimensions
210W x 169.8D x 55.2H (mm)
CPU
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU
2MB L2 + 4MB L3
Memory
16GB 128-bit LPDDR5 DRAM (Module)
Ethernet
10 x GbE LAN Ports
Graphics Support
NVIDIA® Ampere™ architecture with 1024 NVIDIA® CUDA® cores and 32 Tensor cores
Storage
1 x SATA 6Gb/s (Swappable 2.5" HDD/SSD)
Expansion-Slots
1 x 2280 M.2 B-Key (PCIe Gen4x4)
1 x 2230 M.2 E-Key
1 x Mini PCIe slot
1 x SIM slot
Front I/O
1 x Power button with LED
1 x HDD LED
1 x GPIO (12 bits)
1 x DP
1 x HDMI
1 x USB 2.0 Type Micro B
1 x SD slot (Micro SD)
1 x Recovery button
2 x External Antenna Holes (Optional)
Rear l/O
4 x COM Ports (RS-232/422/485)
4 x USB 3.2 Gen 1
10 x GbE LAN Ports
1 x 3-pin Terminal Block
Side I/O
4 x External Antenna Holes (Optional)
Power
+12V~54VDC (non PoE)
+54VDC (If PoE support)
Operation Temperature
Operating temperature: -20°C to 70°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Specifiche Tecniche
| CPU | 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 |
|---|---|
| Tipo Memoria | 16GB 128-bit LPDDR5 DRAM (Module) |
| GPU | NVIDIA® Ampere™ architecture with 1024 NVIDIA® CUDA® cores and 32 Tensor cores |
| Porte USB | 1 x USB 2.0 Type Micro B + 4 x USB 3.2 Gen 1 |
| Lan | 10 x GbE LAN Ports |
| Dimensioni | 210W x 169.8D x 55.2H mm |
