QBiX-Pro-BYTA1900HD-A1

Dimensions

160W x 118D x 62.6H (mm)

CPU

Intel® Celeron® J1900 Processor

22nm, 4 cores, 4 threads, up to 2.42 GHz

TDP 10W

Memory

1 x DDR3L SO-DIMM socket, Max. Capacity 8 GB

Support Single Channel DDR3L 1333 MHz memory modules

Ethernet

2 x GbE LAN Ports (Intel® I211AT)

Graphics Support

Integrated Grapics Processor -Intel® HD Graphics:

1 x HDMI 1.4 port, supporting a maximum resolution of 1920x1200 @60Hz

1 x VGA port, supporting a maximum resolution of 2560x1600 @60Hz

(2 independent display outputs)

Audio

Realtek® Audio codec

Storage

1 x 2.5" HDD/SSD (SATA 3Gb/s)

Expansion-Slots

1 x 2280 M.2 M-Key (SATA 3Gb/s)

1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0)--support 3G/4G module

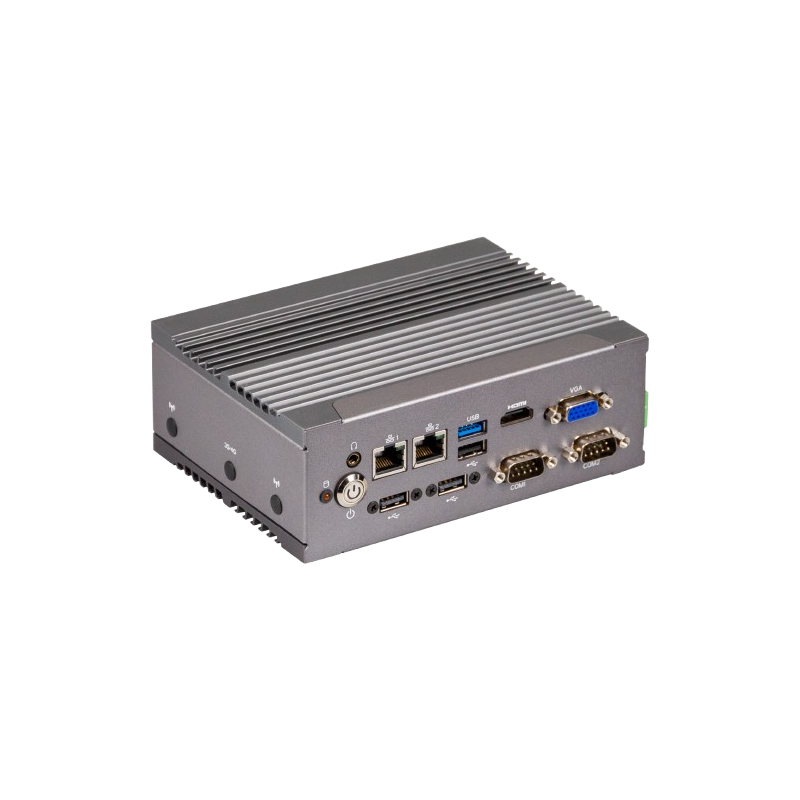

Front I/O

2 x RJ45 LAN Ports

1 x USB 3.2 Gen 1

3 x USB 2.0

1 x HDMI

1 x VGA

1 x COM Port (RS-232/422/485 & RI/5V/12V)

1 x COM Port (RS-232/422/485)

1 x Power button with LED

1 x HDD LED

1 x Headphone Jack

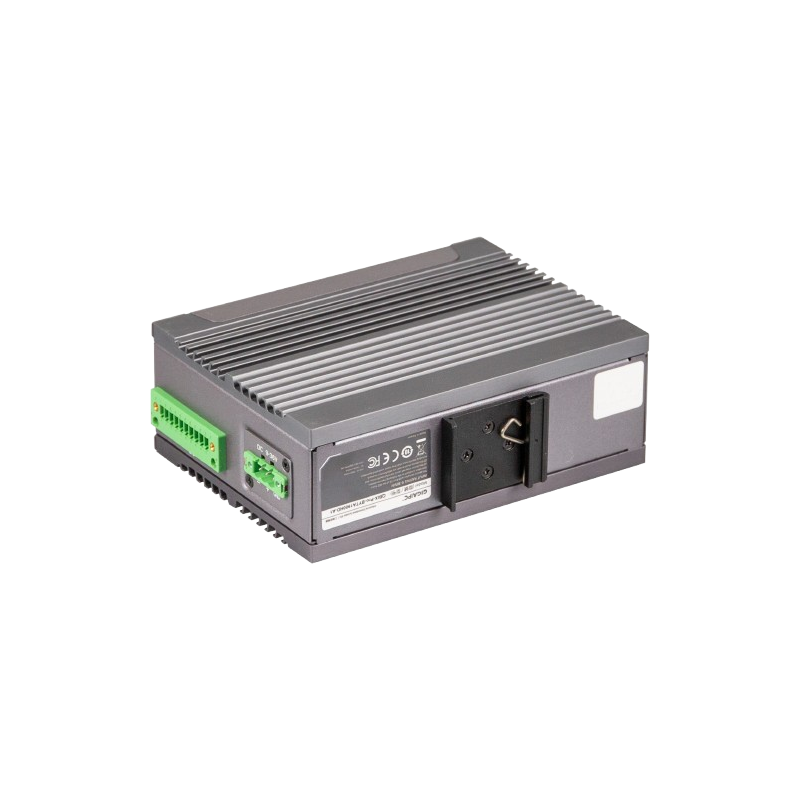

Rear l/O

1 x Din Rail Mounting Support

Side I/O

1 x GPIO (8 bits)

1 x 3-pin Terminal Block

3 x External Antenna Holes (Optional)

TPM

1 x TPM header

Power

+9V~36VDC (Full Range)

Operation Temperature

Operating temperature: 0°C to 50°C

Operating humidity: 0-90% (non-condensing)

Non-operating temperature: -40°C to 85°C

Non-operating humidity: 0%-95% (non-condensing)

Use wide temperature range memory and storage

Vibration During Operation

Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242

Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

Packing Content

Carton size: 416 x 409 x 347 (mm)

Packing Capacity: 6pcs

Single Box size: 308 x 191 x 130 (mm)

Including:

Screw for 2.5" HDD M3x4L x 4 (P/N: 25984G-1C014-S00)

Terminal Blocks 1*3P x 1 (P/N: 25IO0-5ESDV0-D2R)

Terminal Blocks 1*10P x 1 (P/N: 25IO0-EC3810-D2R)
