QBiX-DR-EHLA6412H-A1
•System Size : 160W x 118D x 62.6H (mm)
•Intel® Celeron® J6412 Processor
•Single Channel DDR4 3200 MHz
•4 x COM Ports (RS-232/422/485 & RI/5V/12V)
•1 x GPIO Port (8 Bits)
•2 x GbE LAN Ports
Dimensions
160W x 118D x 62.6H (mm)
CPU
Intel® Celeron® J6412 Processor
10nm, 4 cores, 4 threads, up to 2.60 GHz
TDP 10W
Memory
1 x DDR4 SO-DIMM socket, Max. Capacity 32 GB
Support Single Channel DDR4 3200 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I210AT)
Graphics Support
Integrated Graphics Processor-
Intel® UHD Graphics for 10th Gen Intel® Processors:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
(2 independent display outputs)
Audio
Realtek® Audio codec
Storage
1 x 2.5” HDD/SSD (SATA 6Gb/s)
Expansion-Slots
1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x 3052/3042 M.2 B key with SIM Slot –4G/5G Support
1 x Vertical USB 2.0

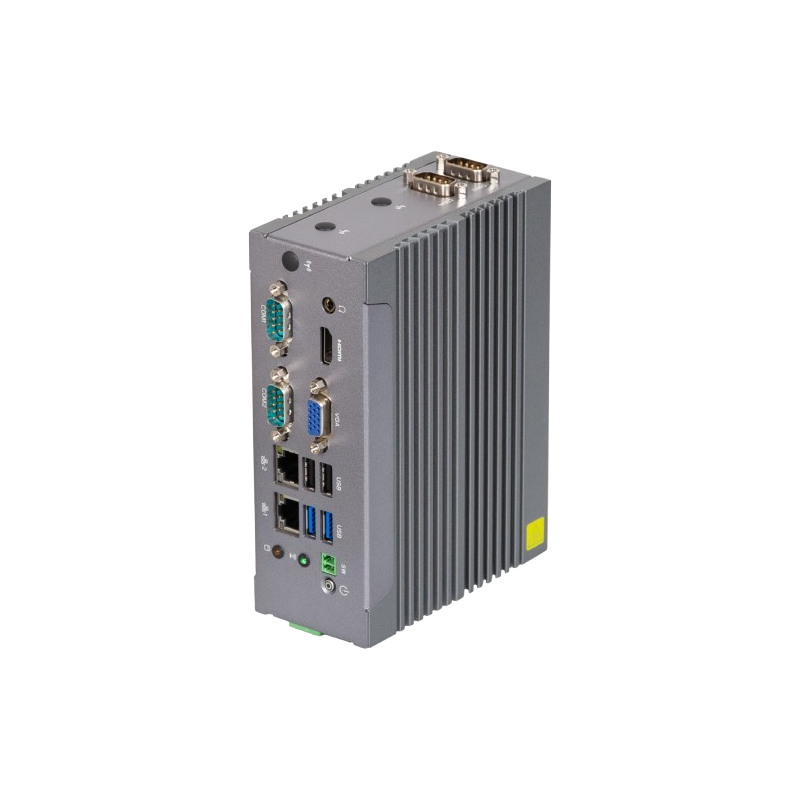

Front I/O
1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key
1 x 3052/3042 M.2 B key with SIM Slot –4G/5G Support
1 x Vertical USB 2.0
Rear l/O

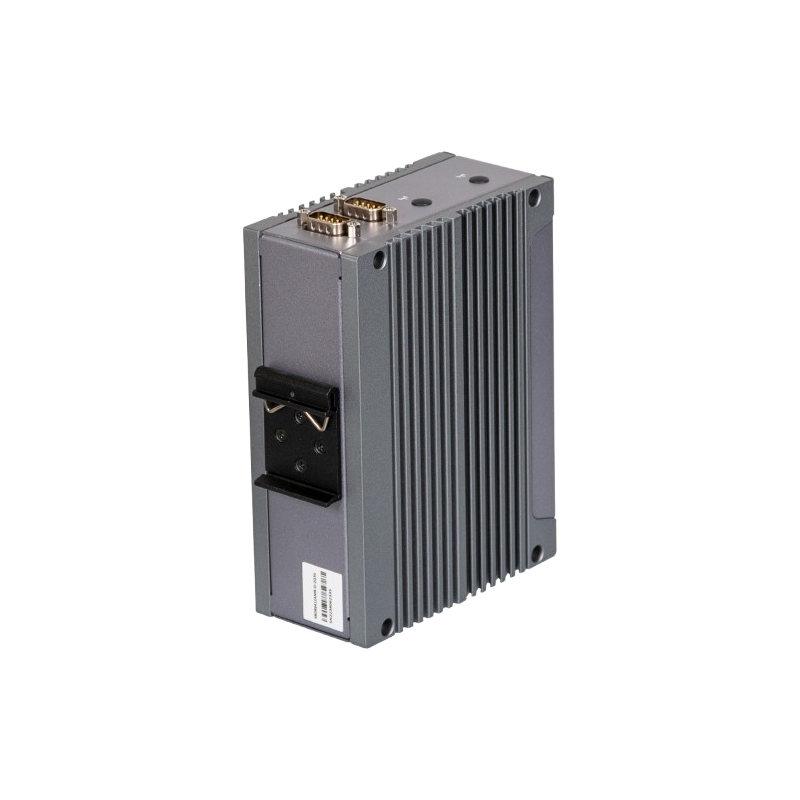

1 x Din Rail Mounting Support
Side I/O
1 x GPIO (8 bits)
1 x 3-pin Terminal Block
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
2 x External Antenna Holes (Optional)
Power
+9V~36VDC (Full Range)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 416 x 409 x 347 (mm)
Packing Capacity: 6pcs
Single Box size: 308 x 191 x 130 (mm)
Single Box weight: Approx. 1.8kg
Including:
Terminal Blocks 1*3P x 1 (P/N: 25IO0-5ESDV0-D2R)
Terminal Blocks 1*2P x 1 (P/N: 25IO0-EC3500-D2R)
Terminal Blocks 1*10P x 1 (P/N: 25IO0-EC3810-D2R)
SATA cable x 1 (P/N: 25CF4-500500-S9R)
SATA power cable x 1 (P/N: 25CRI-190920-S9R)
Screw HDD M3x4L x 4 (P/N: 25984G-1C014-S00)
Specifiche Tecniche
| CPU | Intel® Celeron® J6412 Processor 10nm, 4 cores, 4 threads, up to 2.60 GHz TDP 10W |
|---|---|
| Tipo Memoria | 1 x DDR4 SO-DIMM socket, Max. Capacity 32 GB Support Single Channel DDR4 3200 MHz memory modules |
| GPU | Integrated Graphics Processor- Intel® UHD Graphics for 10th Gen Intel® Processors: 1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz 1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz |
| Porte USB | 2 x USB 3.2 Gen 1 + 2 x USB 2.0 |
| Lan | 2 x GbE LAN Ports (Intel® I210AT) |
| Dimensioni | 160W x 118D x 62.6H mm |
