QBiX-Expert-TGLA

Dimensions

210.36W x 165D x 67H(mm)

CPU

Intel® Core™ i7-1165G7 Processor

10nm SuperFin, 4 cores, 8 threads, up to 4.7 GHz

Chipset

SoC

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB

Support Dual Channel DDR4 3200 MHz memory modules

Ethernet

2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)

4 x PoE GbE LAN Ports (Intel® I211AT)

Graphics Support

Integrated Graphics Processor - Intel® Iris Xe Graphics:

2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz

(2 independent display outputs)

Audio

Realtek® Audio Codec

Storage

1 x Swappable 2.5" HDD/SSD (SATA 6Gb/s)

Expansion-Slots

1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)

1 x 2230 M.2 E-Key (WiFi/BT)

1 x Full-size Mini PCIe with SIM slot

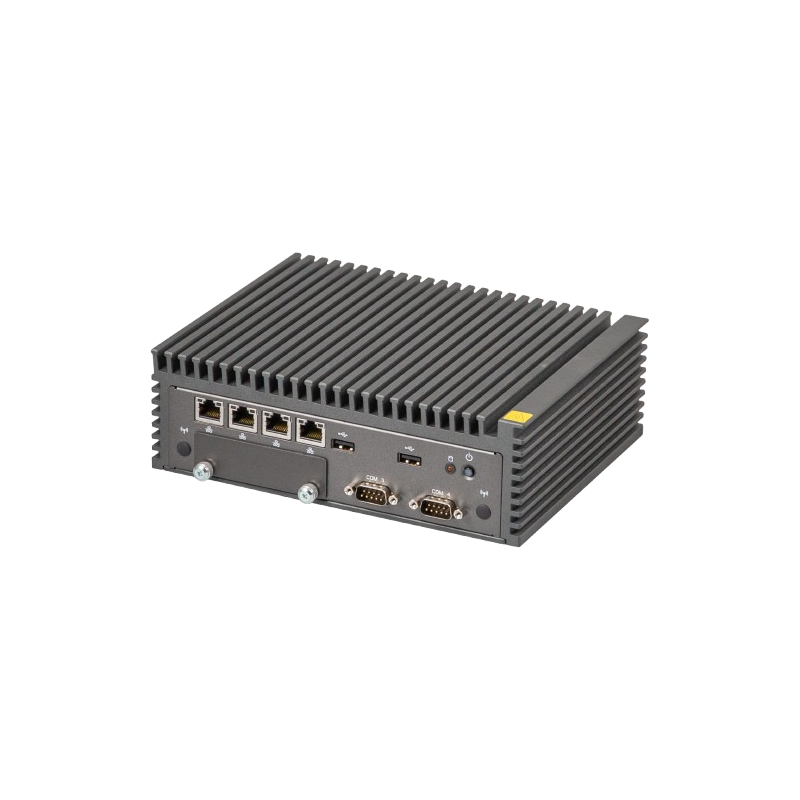

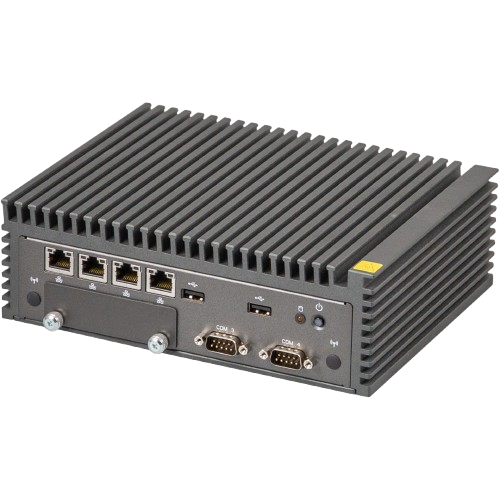

Front I/O

4 x RJ45 LAN Ports with PoE

2 x USB 2.0

1 x Power button with LED

1 x HDD LED

2 x COM Ports (RS-232/422/485)

2 x External Antenna Holes (Optional)

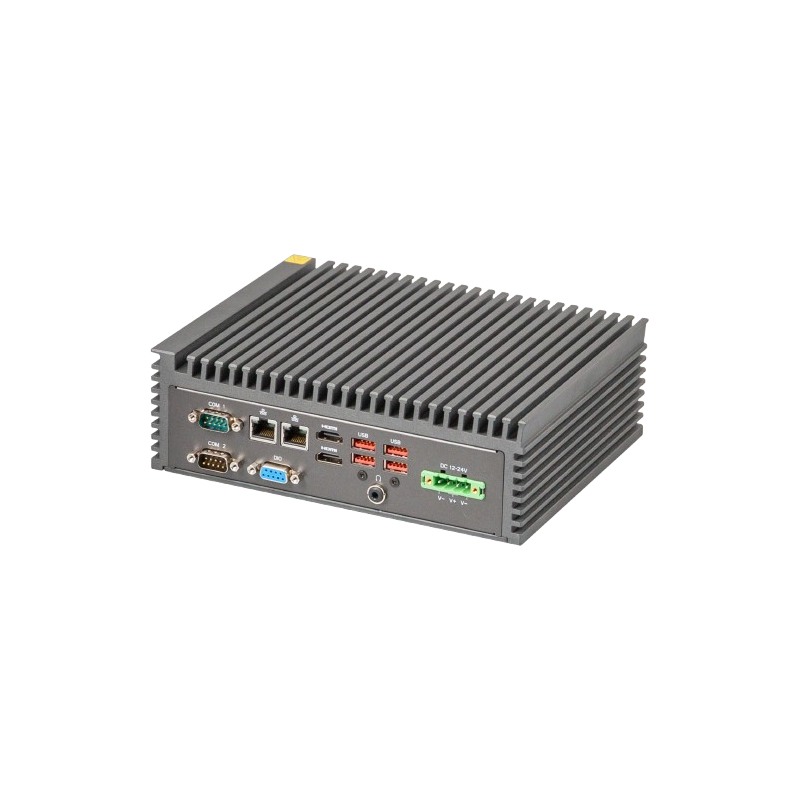

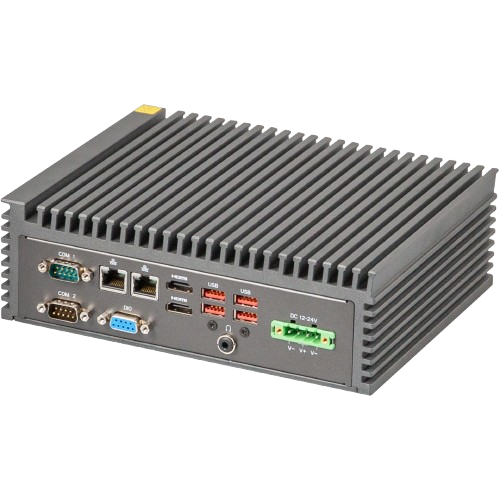

Rear l/O

2 x HDMI

2 x RJ45 LAN Ports

4 x USB 3.2 Gen 2x1

1 x COM Port (RS-232/422/485 & RI/5V/12V)

1 x COM Port (RS-232/422/485)

1 x GPIO (8 bits)

1 x Headphone Jack

1 x 4-pin Terminal Block

Power

+12~24VDC / 13A (PoE support)

Operation Temperature

Operating temperature: 0°C to 50°C

Operating humidity: 0-90% (non-condensing)

Non-operating temperature: -40°C to 85°C

Non-operating humidity: 0%-95% (non-condensing)

Use wide temperature range memory and storage

Vibration During Operation

Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280

Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

Packing Content

Carton size: 572 x 321 x 372 (mm)

Packing Capacity: 4pcs

Single Box size: 300 x 276 x 170 (mm)

Single Box weight: Approx. 4.0kg

Including:

Terminal Blocks Male Plug x 1 (P/N: 25IO0-2ESDV0-D2R)

Screw For 2.5" HDD M3x4L x 8 (P/N: 25984G-1C014-S00)

Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R)
