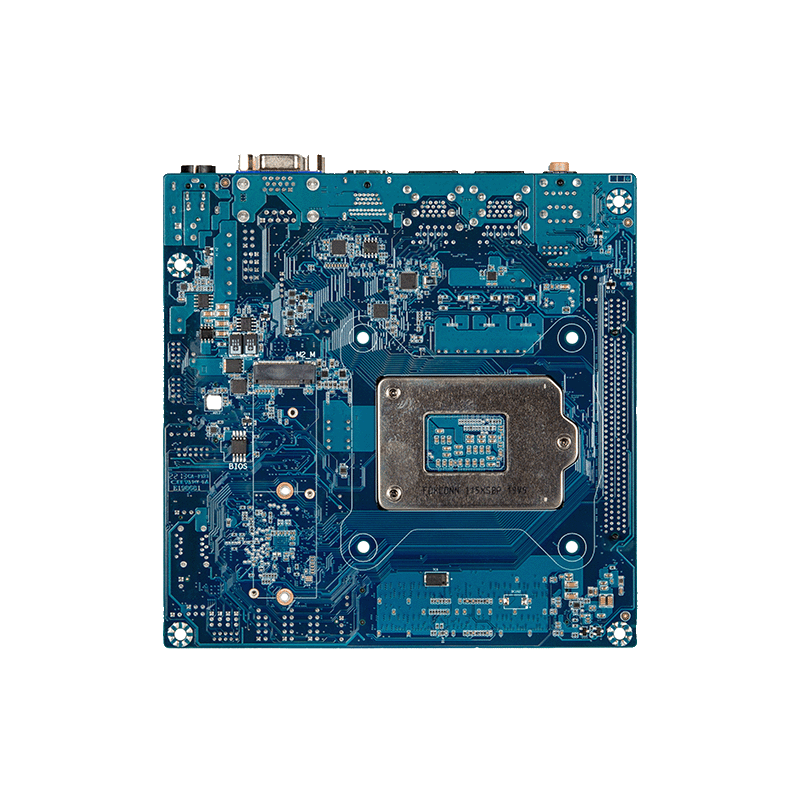

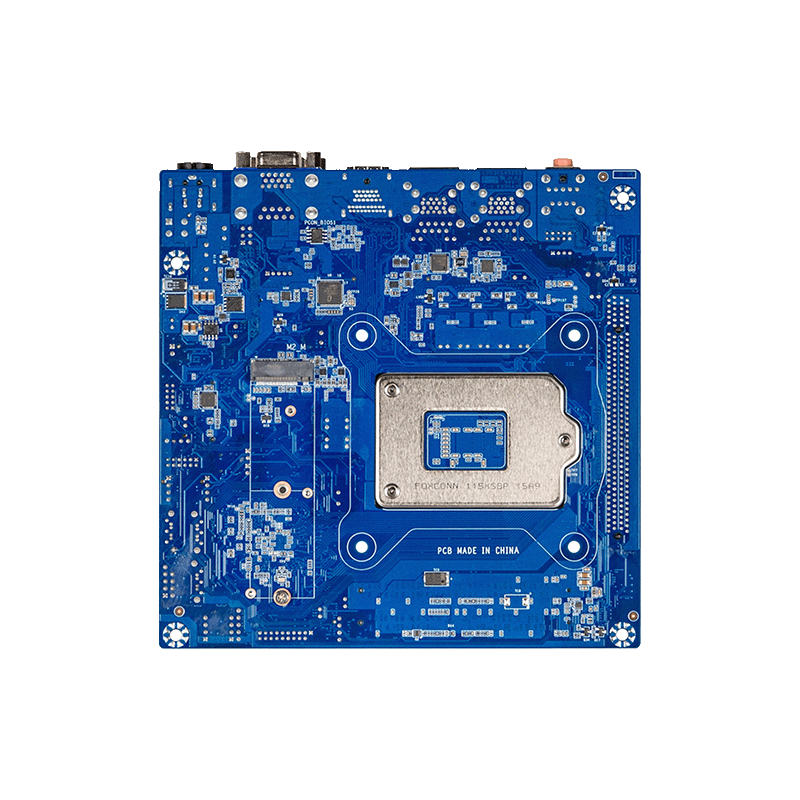

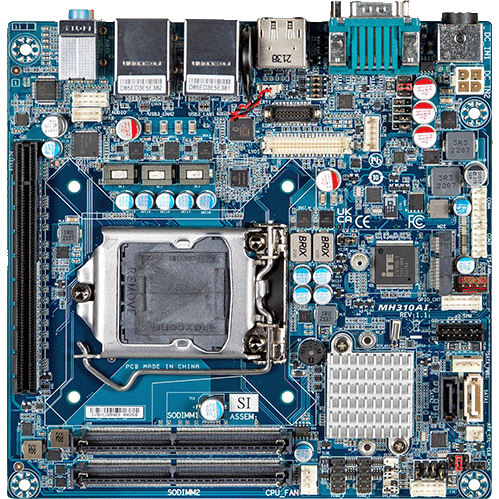

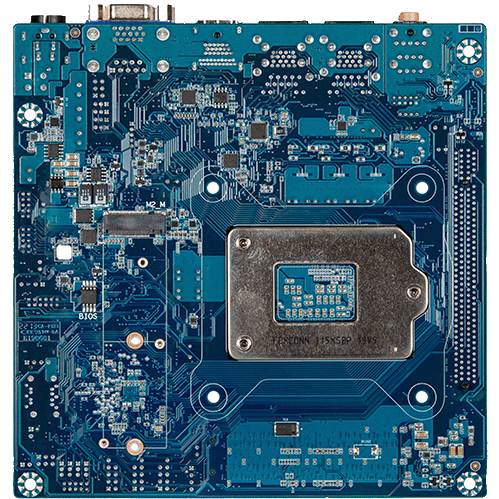

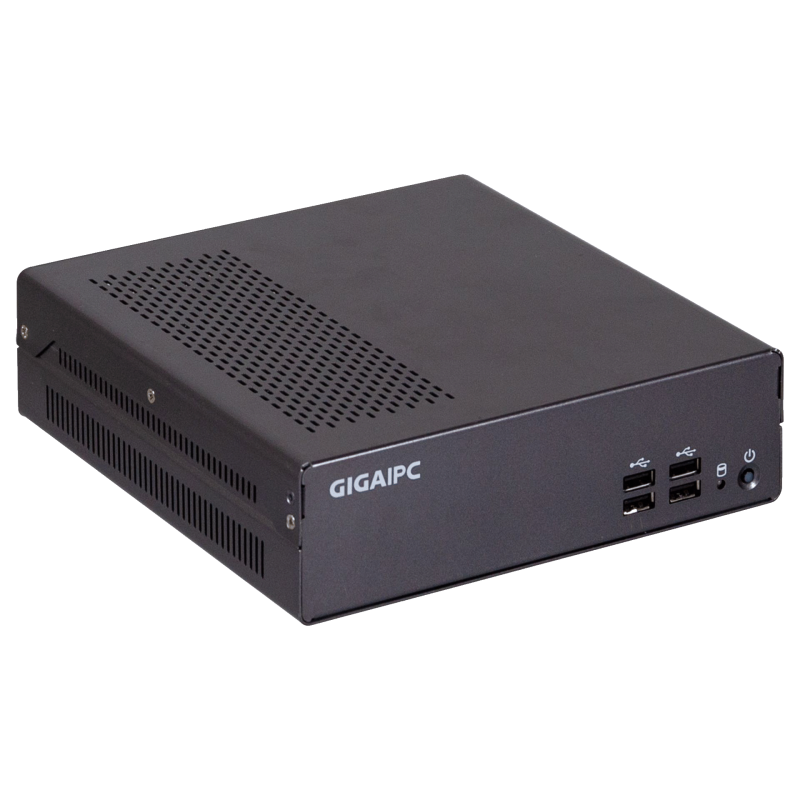

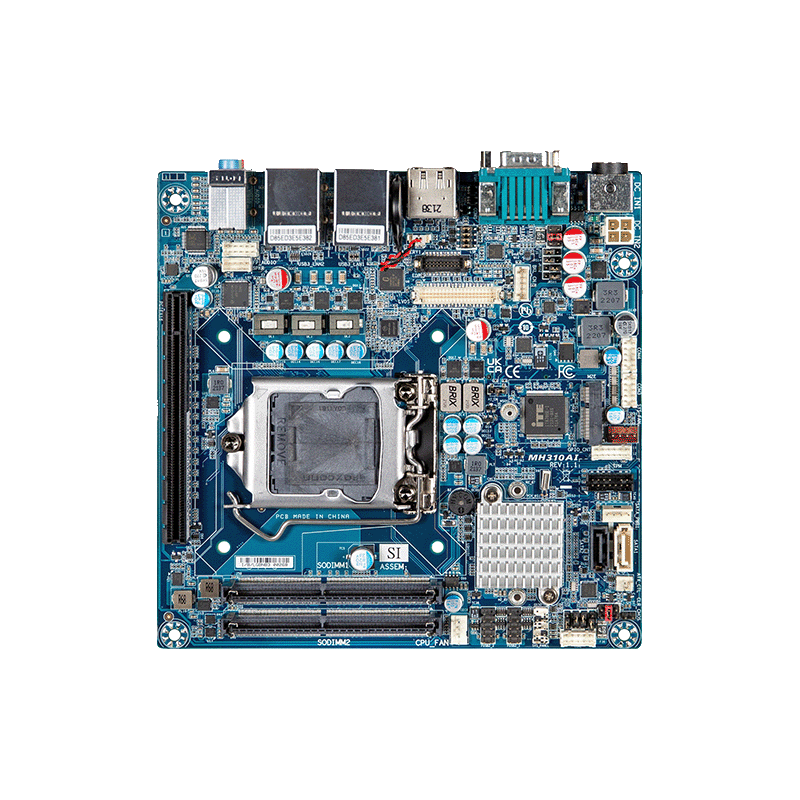

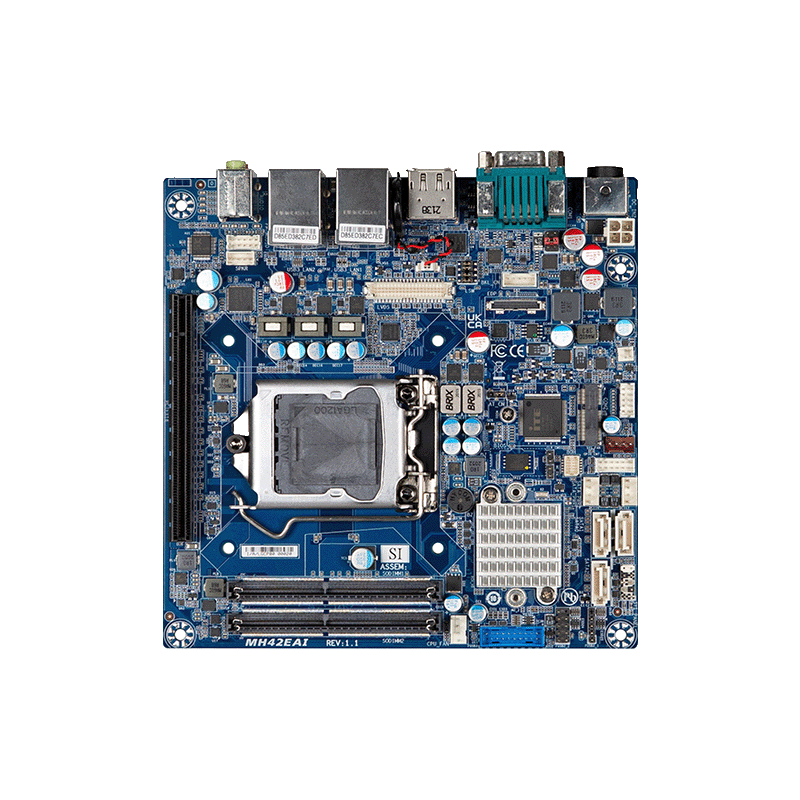

QBiX-ITX-H310A-A1
• Support 10th/9th/8th Generation Intel® Core™ Processors
• Intel® H420E / H310 Express Chipset
• Dual Channel DDR4, 2 x SO-DIMMs
• 2 x GbE LAN Ports
• HDMI, Display Port, VGA, eDP ports for multiple display
• 2 x COM Ports (RS-232/422/485 & RI/5V/12V)
• 2 x COM Ports (RS-232)
Dimensions
210W x 200D x 58H (mm)
CPU
mITX-H310A :
Support for 9th/8th Generation
Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors in the LGA1151 package
TDP under 65W
mITX-H42EA :
Support for 10th Generation
Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors in the LGA1200 package
TDP under 65W
Memory
mITX-H310A :
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2666/2400 MHz memory modules
mITX-H42EA :
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR4 2933/2666 MHz memory modules
Ethernet
mITX-H310A :
2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)
mITX-H42EA :
2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)
Graphics Support
mITX-H310A :
Integrated Graphics Processor - depends on CPU:
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
1 x eDP port, supporting a maximum resolution of 1920x1080 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
* eDP port is alternative with LVDS port, only one can be worked at the same time
(2 independent display outputs)
mITX-H42EA :
Integrated Graphics Processor - depends on CPU:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x DP 1.4 port, supporting a maximum resolution of 4096x2304 @60Hz
1 x D-Sub port, supporting a maximum resolution of 1920x1200 @60Hz
1 x eDP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
* eDP connector is alternative with LVDS port, only one can be worked at the same time
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
mITX-H310A :
2 x SATA 6Gb/s Ports
mITX-H42EA :
3 x SATA 6Gb/s Ports
Expansion-Slots
1 x PCIe x16 (Gen3 x16)
1 x 2280/2242 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
Front I/O
mITX-H310A :
1 x 4-pin ATX main power connector
1 x SATA power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
4 x USB 2.0 headers
2 x COM headers (RS-232)
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x GPIO (8-bits) & SMBus header
1 x Backlight Control header
1 x Clear CMOS jumper
1 x Buzzer
1 x ATX Control header
1 x AT/ATX mode select jumper
mITX-H42EA :
1 x 4-pin ATX main power connector
2 x SATA power connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
3 x USB 2.0 headers
2 x USB 3.2 Gen 1 headers
1 x COM header (RS-232)
1 x GPIO (8 bits) & SMBus header
1 x Backlight Control header
1 x Clear CMOS jumper
1 x Buzzer
1 x ATX Control header
1 x AT/ATX mode select jumper

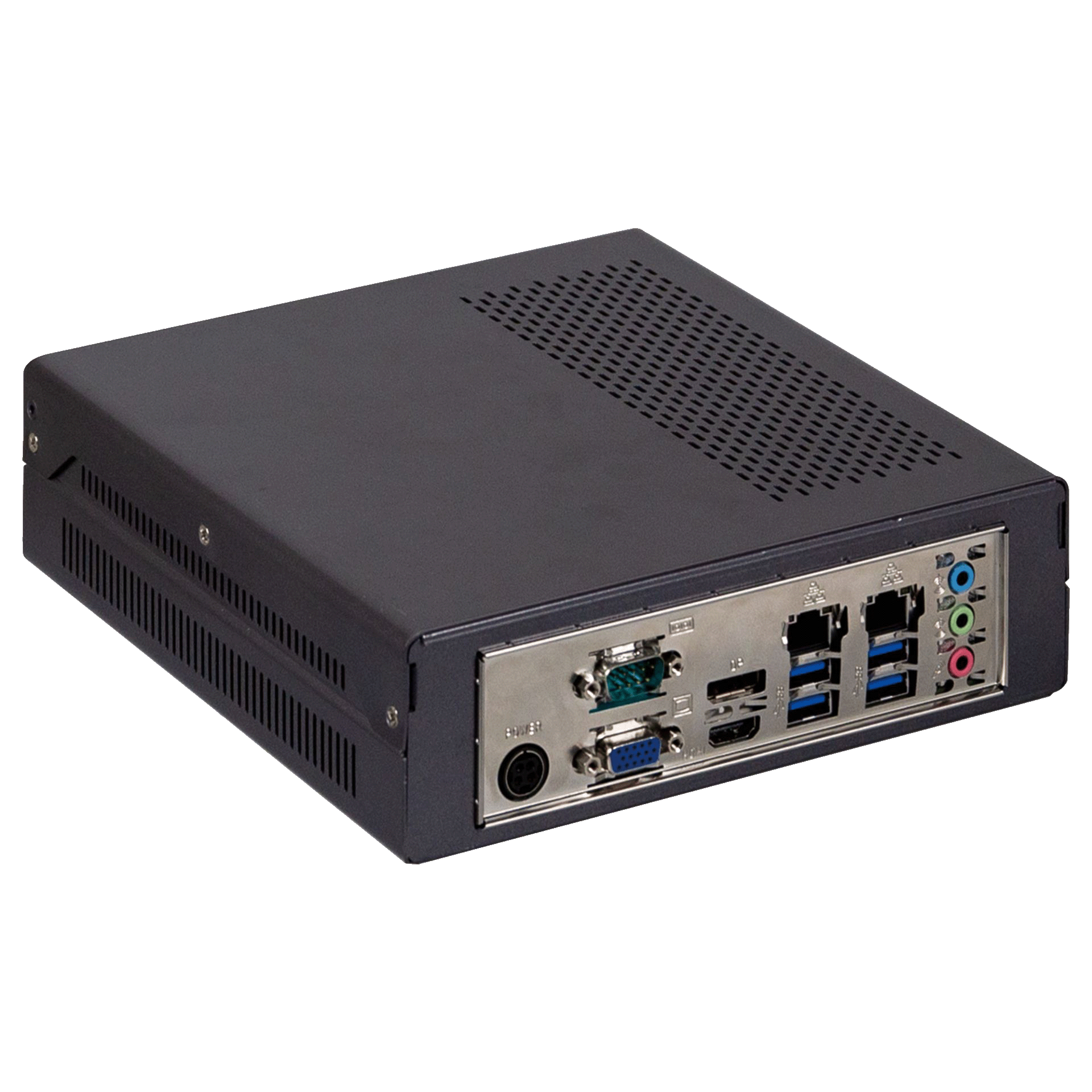

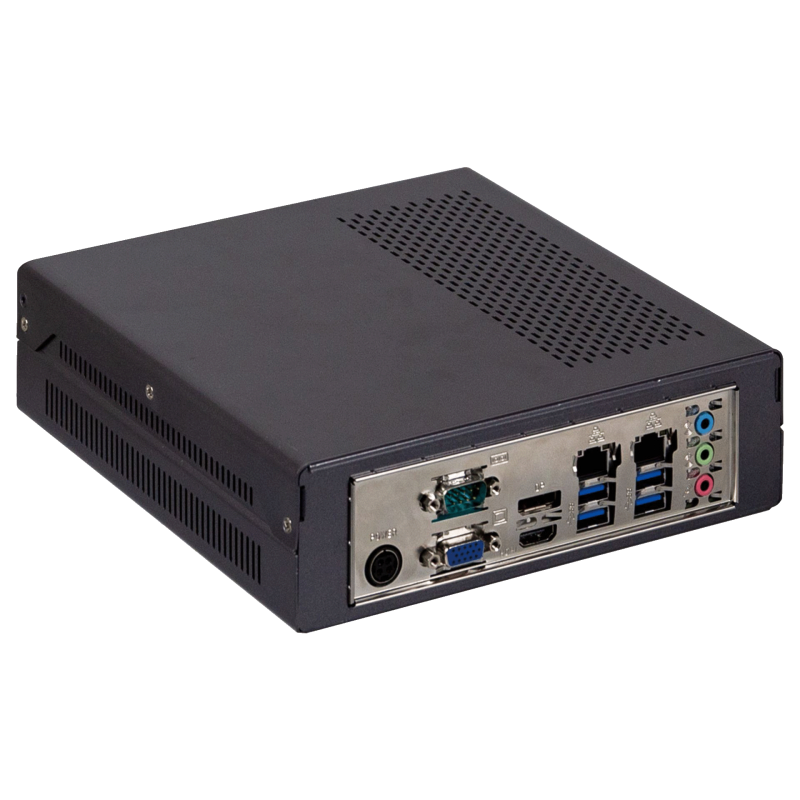

Rear l/O
mITX-H310A :
3 x Audio Jacks (Line in, Line out, Mic in)
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x HDMI
1 x Display Port
1 x VGA
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
1 x DC Jack (+12V/+19V/+24VDC)
mITX-H42EA :
2 x Audio Jacks (Line out, Mic in)
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x HDMI
1 x Display Port
1 x D-Sub
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
1 x DC Jack (+12V/+19V~+24VDC)
TMP
1 x TPM header
Specifiche Tecniche
| CPU | mITX-H42EA : Support for 10th Generation Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors in the LGA1200 package TDP under 65W mITX-H310A : Support for 9th/8th Generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors in the LGA1151 package TDP under 65W |
|---|---|
| Tipo Memoria | mITX-H42EA : 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Support Dual channel DDR4 2933/2666 MHz memory modules mITX-H310A : 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB Support Dual channel DDR4 2666/2400 MHz memory modules |
| Porte USB | mITX-H42EA: 3 x USB 2.0 headers + 2 x USB 3.2 Gen 1 headers mITX-H310A: 4 x USB 2.0 headers |
| Lan | mITX-H42EA : 2 x GbE LAN Ports (Intel® I219V and Intel® I211AT) mITX-H310A : 2 x GbE LAN Ports (Intel® I219V and Intel® I211AT) |
| Dimensioni | 210W x 200D x 58H (mm) |
