QBiX-Expert-RPLA
• System Size : 210.36W x 165D x 65H (mm)
• Intel® Core™ i5-1340P Processor
• Dual Channel DDR5, 2 x SO-DIMMs
• 2 x HDMI for Dual display
• 4 x GbE LAN Ports with PoE 15W/Port
• 4 x GbE LAN Ports
• 2 x 2.5GbE LAN Ports
Dimensions
210.36W x 165D x 65H(mm)
CPU
Intel® Core™ i5-1340P Processor
Intel 7, 12 cores, 16 threads, up to 4.60 GHz
Chipset
SoC
Memory
2 x DDR5 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR5 5200 MHz memory modules
Ethernet
2 x 2.5GbE LAN Ports(Intel® I226V)
4 x GbE LAN Ports(Intel® I226V)
4 x GbE LAN Ports with PoE support (Intel® I226V)
Graphics Support
Integrated Graphics Processor - Intel® Iris® Xe Graphics eligible:
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
Audio
Realtek® ALC269
Storage
Support 2 x Swappable 2.5" HDD/SSD (SATA 6Gb/s)
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe Gen 4x4)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x 3052 M.2 B-Key with SIM slot

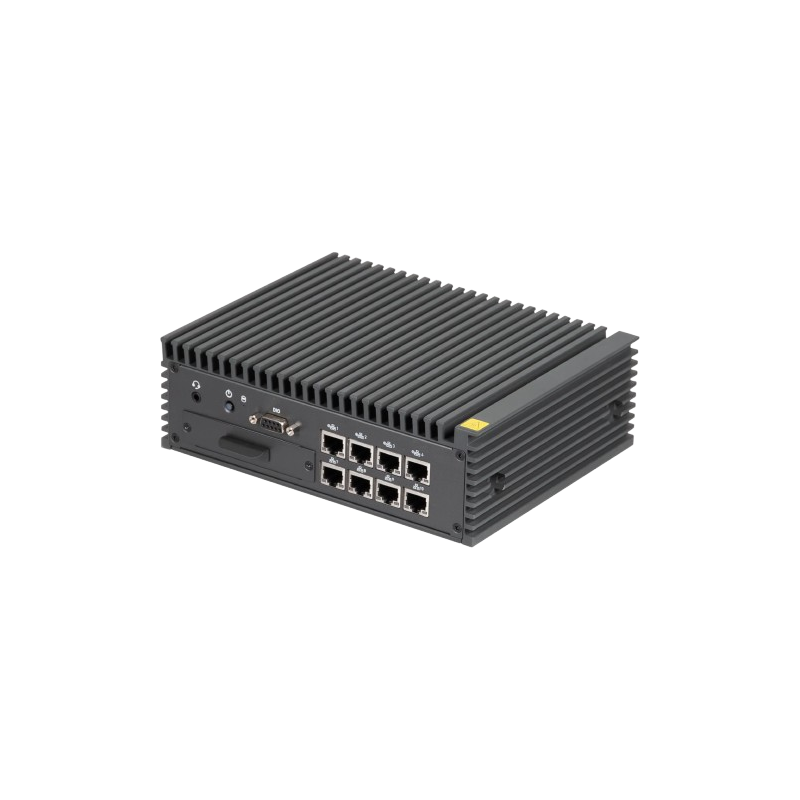

Front I/O
4 x RJ45 LAN Ports with PoE
4 x RJ45 LAN Ports
1 x GPIO (8 bits)
1 x HDD LED
1 x Power button with LED
1 x Combo audio jack (Headphone & Headset)

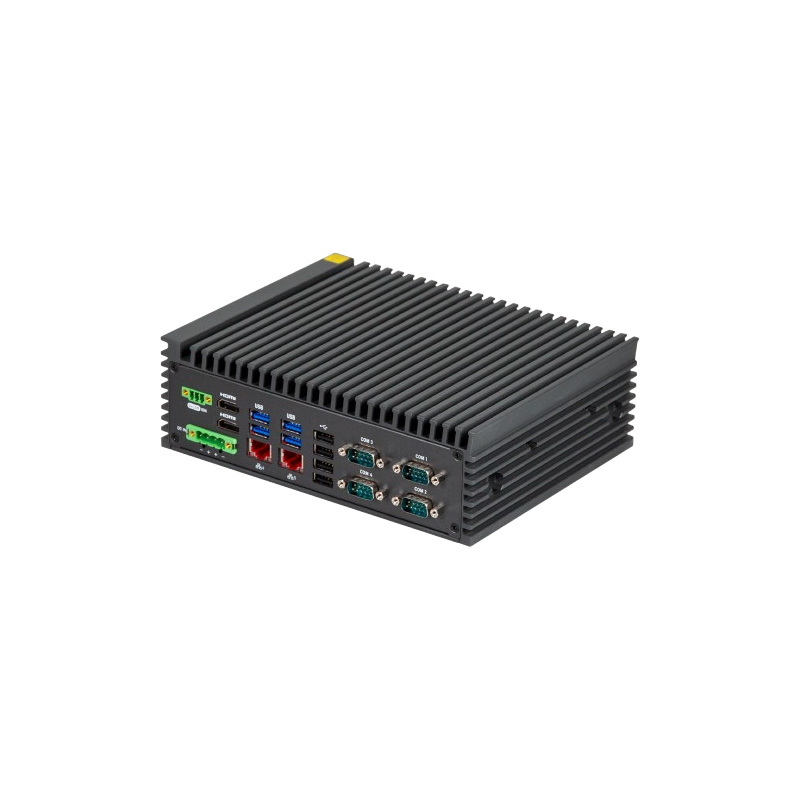

Rear l/O
2 x RJ45 LAN Ports
1 x COM Port (RS-232/422/485 & RI/5V/12V)
3 x COM Ports (RS-232/422/485)
4 x USB 3.2 Gen 1
4 x USB 2.0
2 x HDMI
1 x Ignition support (3pin)
1 x 4-pin Terminal Block
Side I/O
4 x External Antenna Holes (wifi/5G)-optional
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9672XU2.0
Power
+19~36VDC
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz,1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 Grms, Sine, 10 ~ 500 Hz,1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 Grms, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 572 x 321 x 372 (mm)
Packing Capacity: 4pcs
Single Box size: 300 x 276 x 170 (mm)
Single Box weight: Approx. 4.0kg
Including:
2-pin Terminal Blocks Male Plug x 1 (P/N: 25IO0-EC3812-D2R)
4-pin Terminal Blocks Male Plug x 1 (P/N: 25IO0-2ESDV0-D2R)
Screw For 2.5” HDD M3x4L x 8 (P/N: 25KS2-13004G-S0R)
Thermal Pad for SSD x 2 (P/N: 25ST3-260200-T5R)
Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R)
Specifiche Tecniche
| CPU | Intel® Core™ i5-1340P Processor Intel 7, 12 cores, 16 threads, up to 4.60 GHz |
|---|---|
| Tipo Memoria | 2 x DDR5 SO-DIMM sockets, Max. Capacity 64 GB Support Dual Channel DDR5 5200 MHz memory modules |
| GPU | Integrated Graphics Processor - Intel® Iris® Xe Graphics eligible: 2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz |
| Porte USB | 4 x USB 3.2 Gen 1 + 4 x USB 2.0 |
| Lan | 2 x 2.5GbE LAN Ports(Intel® I226V) 4 x GbE LAN Ports(Intel® I226V) 4 x GbE LAN Ports with PoE support (Intel® I226V) |
| Dimensioni | 210.36W x 165D x 65H(mm) |
