QBiX-Plus-APLA3450-A1

Dimensions

System Size : 165W x 105D x 27H (mm)

CPU

Intel® Celeron® N3450 Processor

14nm, 4 cores, 4 threads, up to 2.2 GHz

TDP 6W

2MB L2 cache

Chipset

SoC

Memory

2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB

Support Dual Channel DDR3L 1866 MHz memory modules

Ethernet

2 x GbE LAN Ports (Realtek® RTL8111HS)

Graphics Support

Integrated Graphics Processor - Intel® HD Graphics 500:

2 x HDMI 1.4 ports, supporting a maximum resolution of 3840x2160 @30Hz

(2 independent display outputs)

Audio

Realtek® Audio Codec

Expansion-Slots

1 x 2280 M.2 M-Key (SATA 6Gb/s)

1 x 2230 M.2 E-Key (WiFi/BT)

1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0)

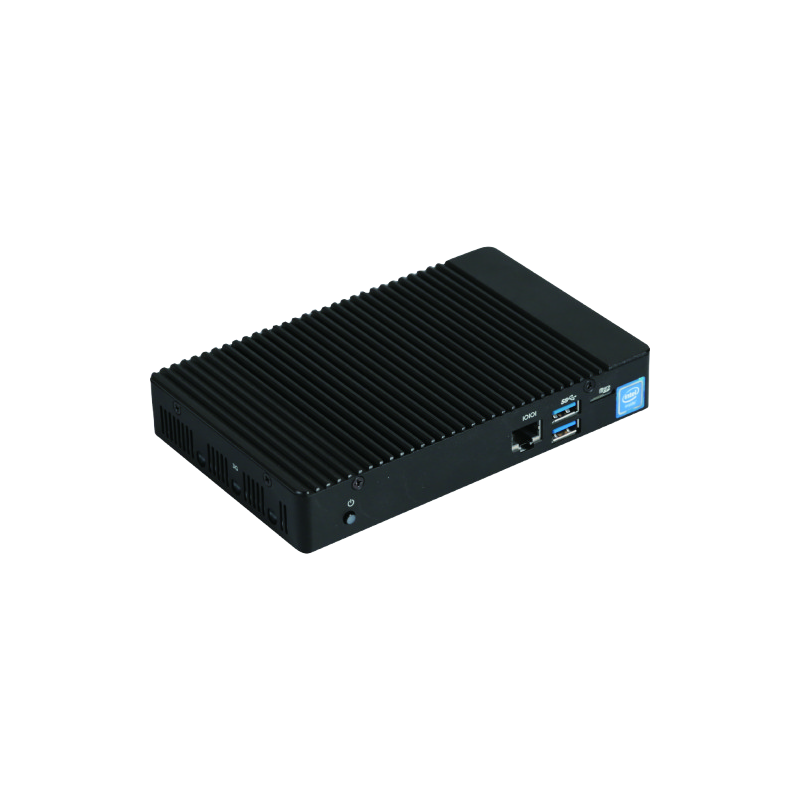

Front I/O

2 x USB 3.0

1 x COM Port (RS-232/422/485)(RJ45 Type)

1 x Micro SD card slot

1 x Power button

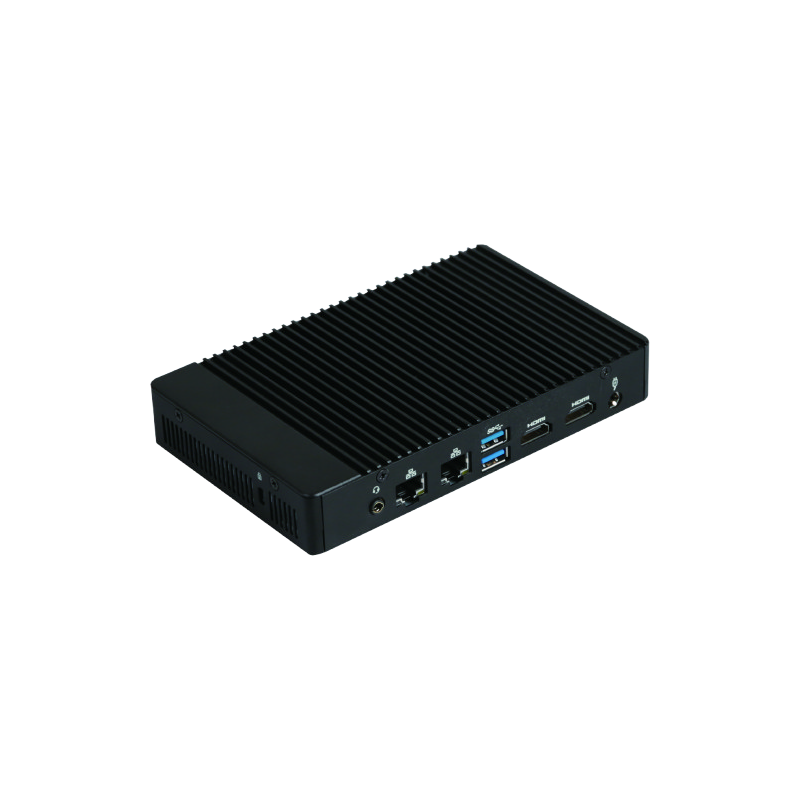

Rear l/O

1 x Combo Audio Jack (Microphone & Headphone)

2 x RJ45 LAN Ports

2 x USB 3.0

2 x HDMI

1 x DC Jack

Side I/O

3 x External Antenna Holes (Optional)

Power

+19VDC (Adapter 19V/65W)

Operation Temperature

Operating temperature: 0°C to 50°C

Operating humidity: 0-90% (non-condensing)

Non-operating temperature: -40°C to 85°C

Non-operating humidity: 0%-95% (non-condensing)

Vibration During Operation

Carton size: 416 x 359 x 257 (mm)

Packing Capacity: 10pcs

Including:

Power Cord 3Gx0.75 H03VV-F SP05/QP038 700mm TW x 1 (P/N: 25CP2-007006-Q0R)

PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065K-F3S)

RJ45 to D-SUB Cable #24 150mm x 1 (P/N: 25CR0-150400-S9R)

Vesa Mount Bracket x 1 (P/N: 25HB2-XM2720-E4S)
