QBiX-Pro-BYTA1900H-A1

Dimensions

178W x 125D x 52.7H(mm)

CPU

Intel® Celeron® J1900 Processor

22nm, 4 cores, 4 threads, up to 2.42 GHz

TDP 10W

Memory

1 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB

Support Single Channel DDR3L 1333MHz memory module

Ethernet

2 x GbE LAN Ports (Intel® I211AT)

Graphics Support

Integrated Graphics Processor - Intel® HD Graphics:

1 x HDMI 1.4 port, supporting a maximum resolution of 1920x1200 @60Hz

1 x VGA port, supporting a maximum resolution of 2560x1600 @60Hz (with compatible displays)

(2 independent display outputs)

Audio

Realtek® Audio Codec

Storage

1 x 2.5" HDD/SSD (SATA 3Gb/s)

Expansion-Slots

1 x 2280 M.2 M-Key (SATA 3Gb/s)

1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module

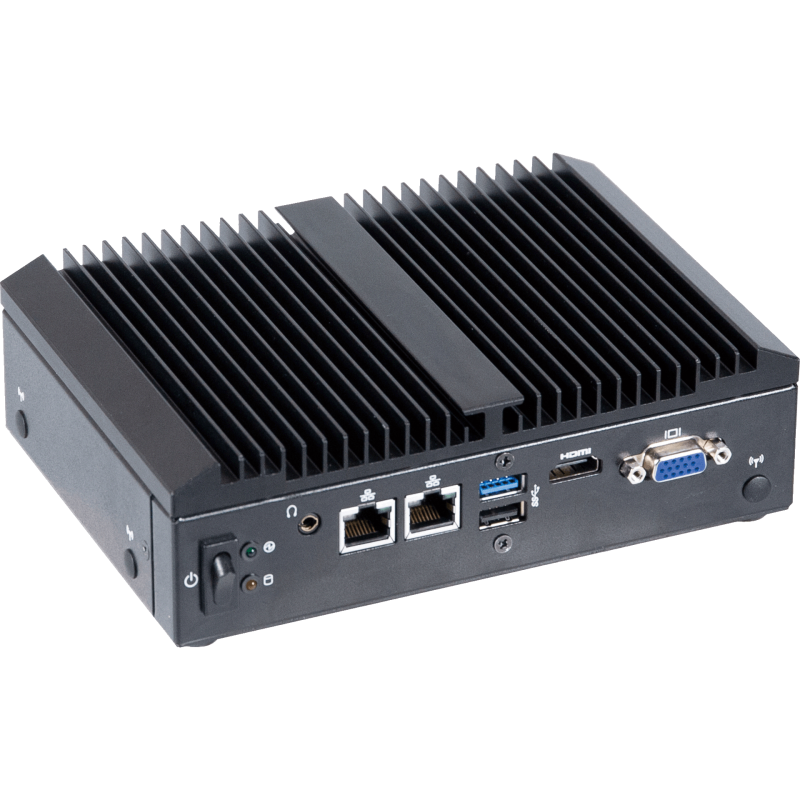

Front I/O

2 x RJ45 LAN Ports

1 x USB 3.2 Gen 1

1 x USB 2.0

1 x HDMI

1 x VGA

1 x Power switch

1 x Power & HDD LED

1 x Headphone Jack

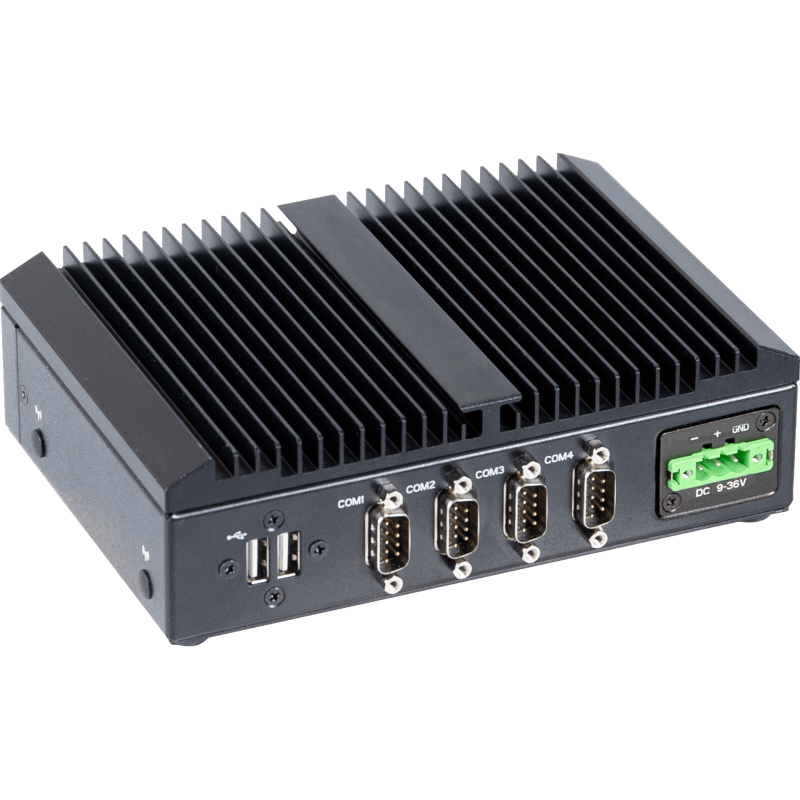

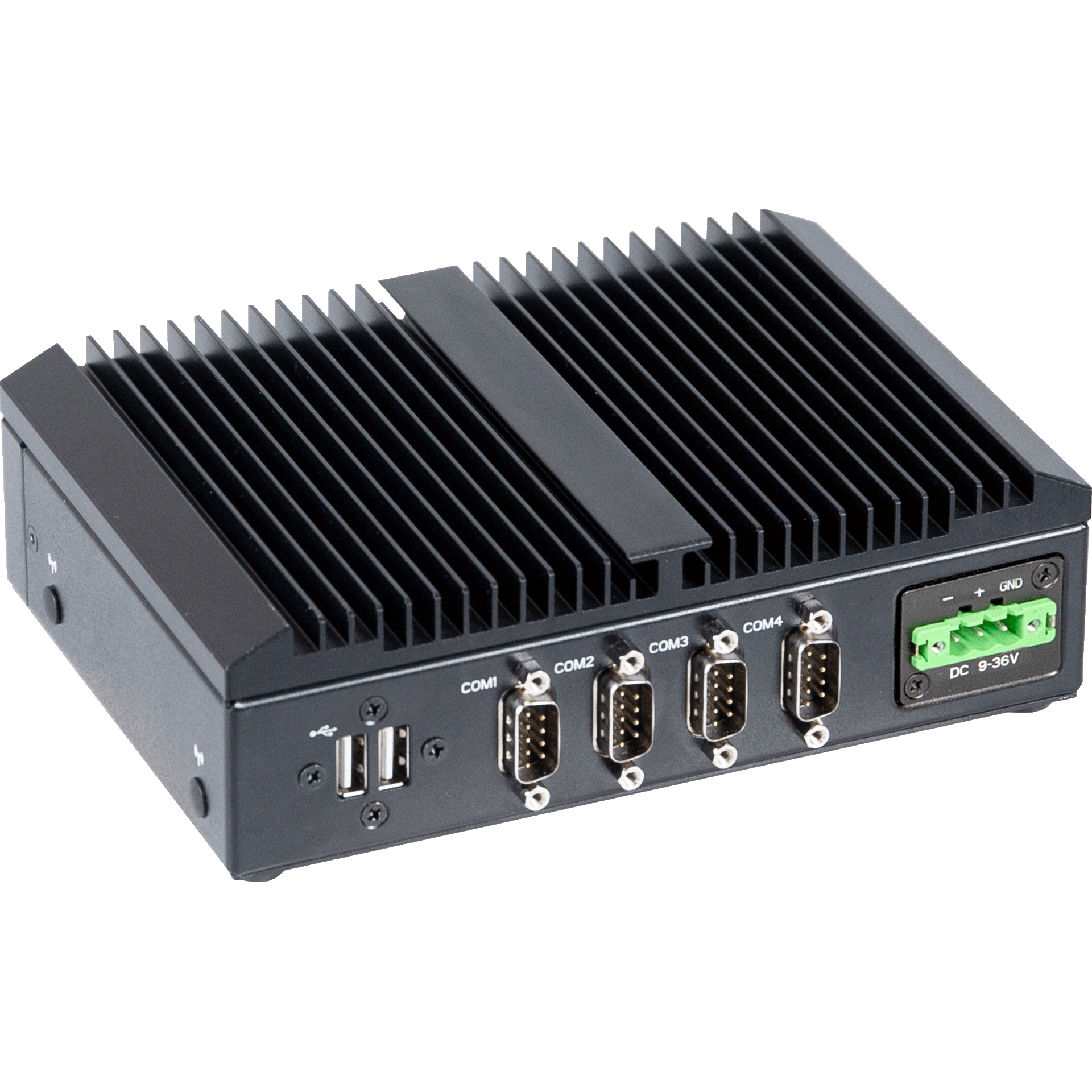

Rear l/O

2 x USB 2.0

2 x COM Ports (RS-232)

1 x COM Port (RS-232/422/485)

1 x COM Port (RS-232/422/485 & RI/5V/12V)

1 x 3-pin Terminal Block

Side I/O

2 x External Antenna Holes (Optional)

Power

+9V~36VDC (Full Range)

Operation Temperature

Operating temperature: 0°C to 50°C

Operating humidity: 0-90% (non-condensing)

Non-operating temperature: -20°C to 70°C

Non-operating humidity: 0%-95% (non-condensing)

Use wide temperature range memory and storage

Vibration During Operation

Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242

Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

Packing Content

Carton size: 505 x 333 x 231 (mm)

Packing Capacity: 5pcs

Single Box size: 313 x 191 x 95 (mm)

Including:

Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)

Thermal Pad x 2 (P/N: 25ST3-200052-T5R)

SATA Cable x 1 (P/N: 25CF4-170020-S9R)

Terminal Blocks Male Plug x 1 (P/N: 25IO0-5ESDV0-D2R)
