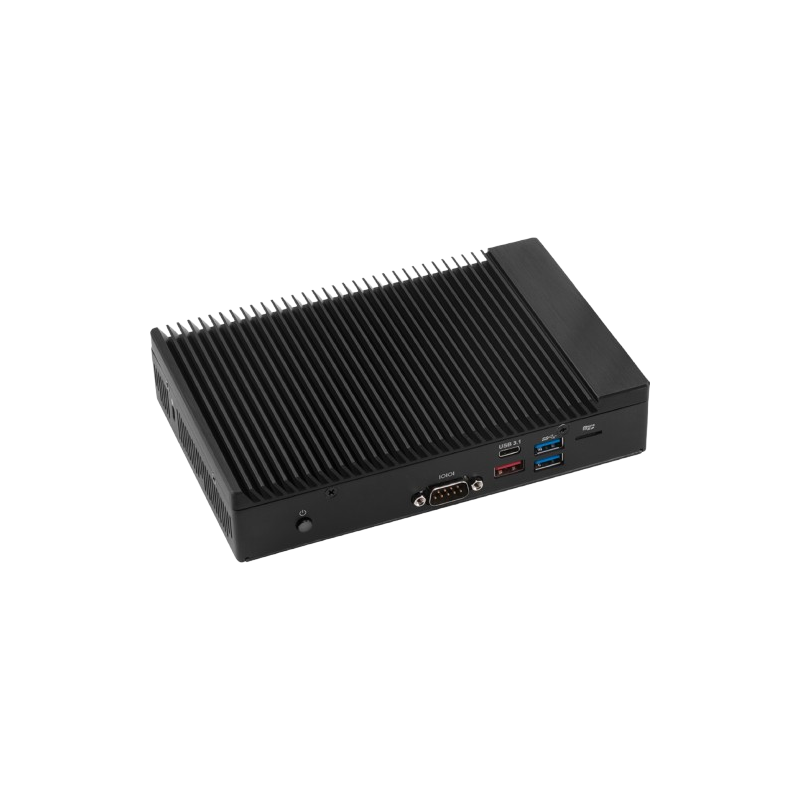

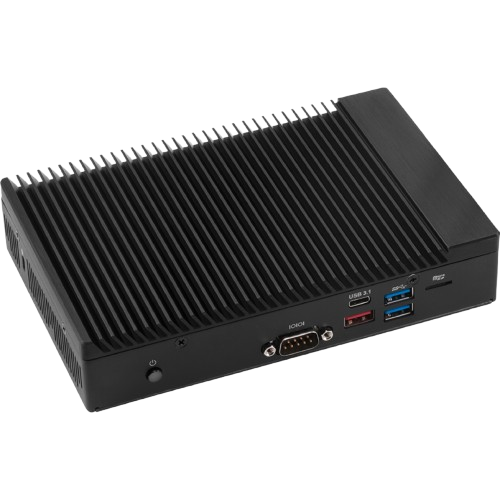

QBiX-Plus-KBLA7100-A1

Dimensions

System Size : 180W x 117D x 36H (mm)

CPU

Intel® Core™ i3-7100U Processor

14nm, 2 cores, 4 threads, 2.4 GHz

TDP 15W

3 MB SmartCache

Chipset

SoC

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB

Support Dual Channel DDR4 2133 MHz memory modules

Ethernet

2 x GbE LAN Ports (Intel® I219LM and Intel® I210AT)

Graphics Support

Integrated Graphics Processor - Intel® HD Graphics 620:

2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz

(2 independent display outputs)

Audio

Realtek® Audio Codec

Expansion-Slots

1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)

1 x 2230 M.2 E-Key (WiFi/BT)

1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0)

Front I/O

1 x USB 3.1 Gen2 Type C

1 x USB 3.1 Gen2 Type A

2 x USB 3.0

1 x COM Port (RS-232/422/485)

1 x Micro SD card slot

1 x Power button

Rear l/O

1 x Combo Audio Jack (Microphone & Headphone)

2 x RJ45 LAN Ports

2 x USB 3.0

2 x HDMI

1 x DC Jack

Side I/O

3 x External Antenna Holes (Optional)

Power

+19VDC (Adapter 19V/90W)

Operation Temperature

Operating temperature: 0°C to 40°C

Operating humidity: 0-90% (non-condensing)

Non-operating temperature: -40°C to 85°C

Non-operating humidity: 0%-95% (non-condensing)

Vibration During Operation

Carton size: 451 x 186 x 245 (mm)

Packing Capacity: 5pcs

Single Box size: 231 x 179 x 81 (mm)

Including:

Power Cord 3Cx18AWG SVT QP-02+QP038 700mm US x 1 (P/N: 25CP0-007001-Q0R)

PSU ADP 19V 90W 100-240VAC x 1 (P/N: 25EP4-100908-F3S)

Vesa Mount Bracket x 1 (P/N: 25HB2-XM2720-E4S)

Order Information

System : 9BCKABZAMR-SI (CTO)

(Built in Components: Please contact with your sales representative for more information

or e-mailed to : sales@gigaipc.com)

Optical Kit

Internal Antenna 90mm : 25CA0-090003-A5S

Internal Antenna 120mm : 25CA0-120002-A5S

Internal Antenna 120mm : 25CA0-120003-A5S

WiFi module : 25FC7-3165N0-10R

Antenna_WiFI x 2 : 25CA0-111000-A5S

Antenna_3G x 1 : 25CA0-111001-A5S
