QBiX-Plus-EHLA6412-A1

Dimensions

165W x 105D x 27H (mm)

CPU

Intel® Celeron® J6412 Processor

10nm, 4 cores, 4 threads, up to 2.60 GHz

TDP 10W

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB

Support Dual Channel DDR4 3200 MHz memory modules

Ethernet

2 x GbE LAN Ports

Graphics Support

Integrated Graphics Processor -

Intel® UHD Graphics for 10th Gen Intel® Processors:

3 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz

(3 independent display outputs)

Audio

Realtek® audio codec

Expansion-Slots

1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)

1 x 2230 M.2 E-Key

1 x 3042 M.2 B-key with SIM Slot (USB 3.2 Gen 1)

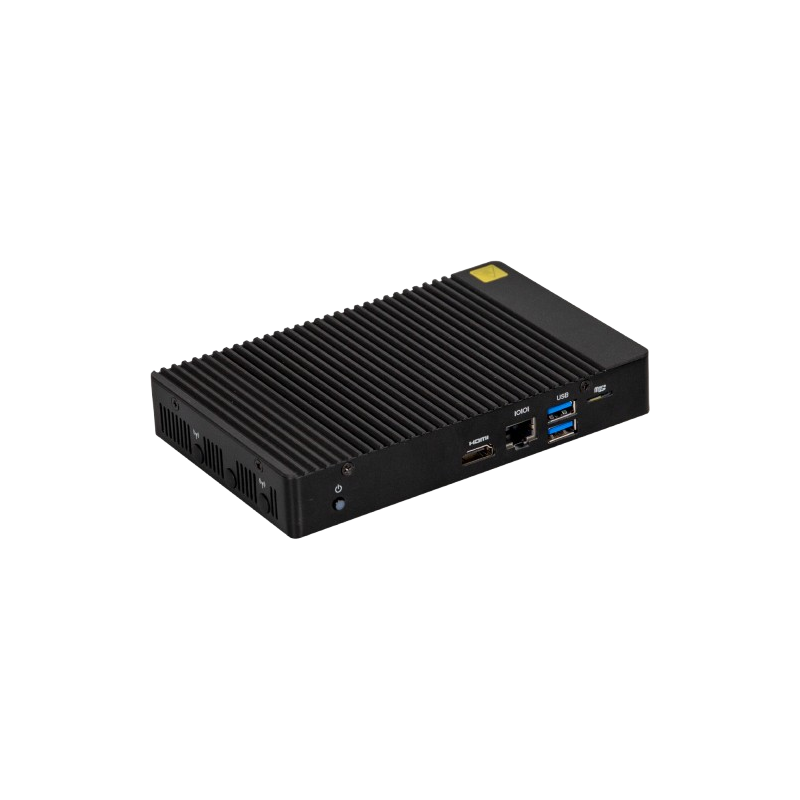

Front I/O

2 x USB 3.2 Gen 1

1 x COM Port (RS-232)(RJ45 Type)

1 x Micro SD card slot

1 x Power button

1 x HDMI

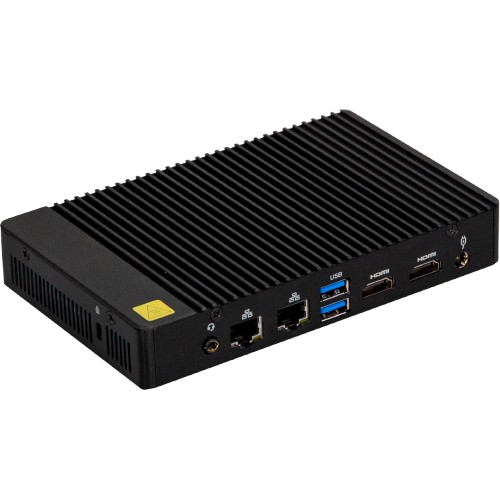

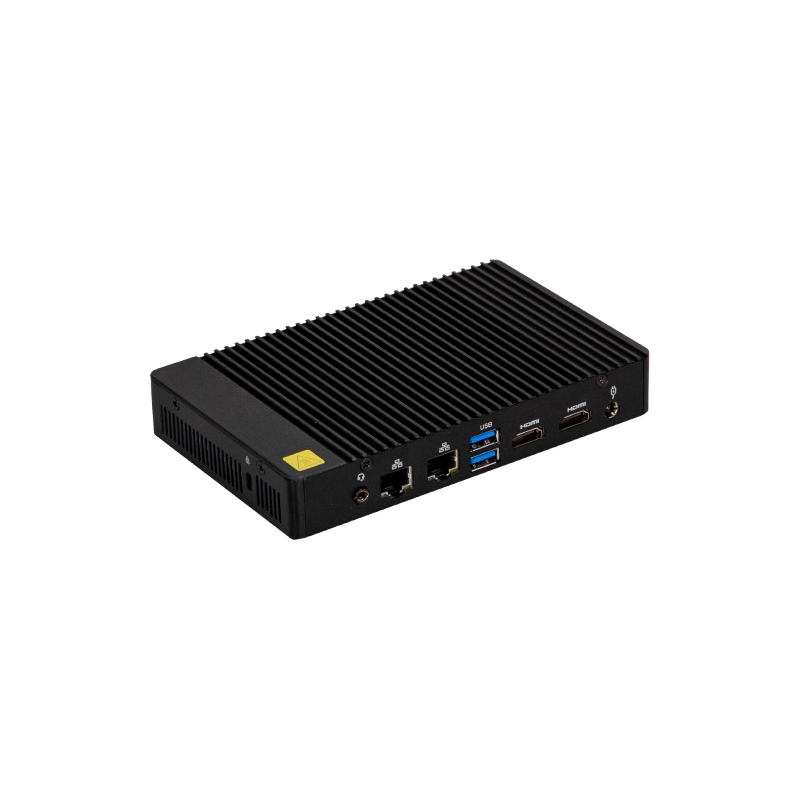

Rear l/O

1 x Headphone Jack

2 x RJ45 LAN Ports

2 x USB 3.2 Gen 1

2 x HDMI

1 x DC Jack

Side I/O

3 x External Antenna Holes (Optional)

Power

+12~19VDC (Adapter 19V/65W)

Operation Temperature

Operating temperature: 0°C to 50°C

Operating humidity: 0-90% (non-condensing)

Non-operating temperature: -40°C to 85°C

Non-operating humidity: 0%-95% (non-condensing)

Vibration During Operation

Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280

Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

Packing Content

Carton size: 416 x 359 x 257 (mm)

Packing Capacity: 10pcs

Single Box size: 209 x 169 x 75 (mm)

Single Box weight: Approx. 1.5kg

Including:

Power Cord : Optional (by region)

PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065U-A3S)

RJ45 to D-SUB Cable #24 150mm x 1 (P/N: 25CR0-150402-S9R)

VESA Mount Bracket x 1 (P/N: 25HB1-TPL021-S8R)

VESA Mount screws x 1 (P/N: 25KSD-000002-C0R)
