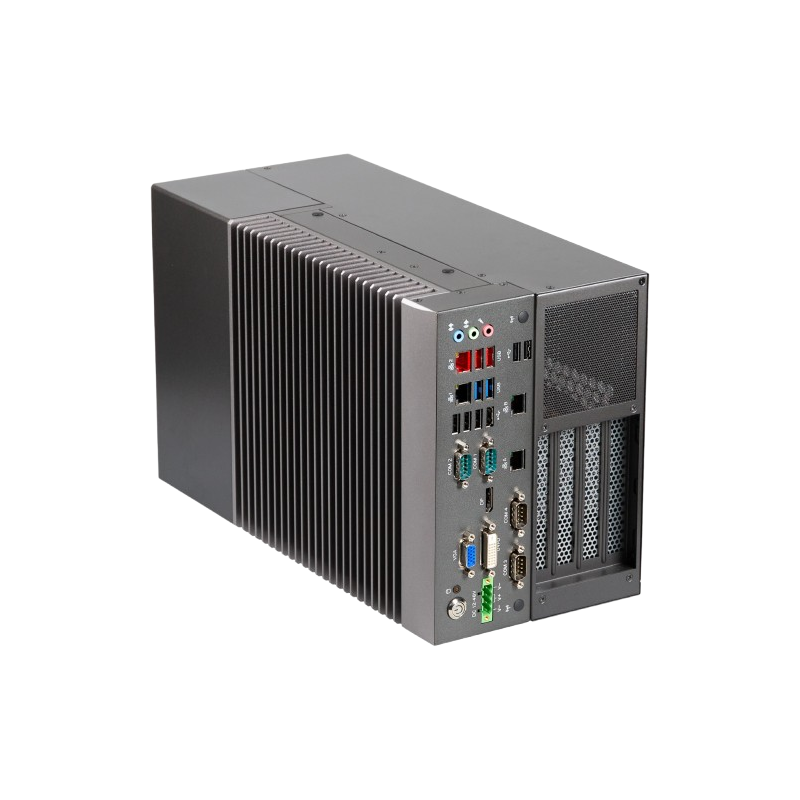

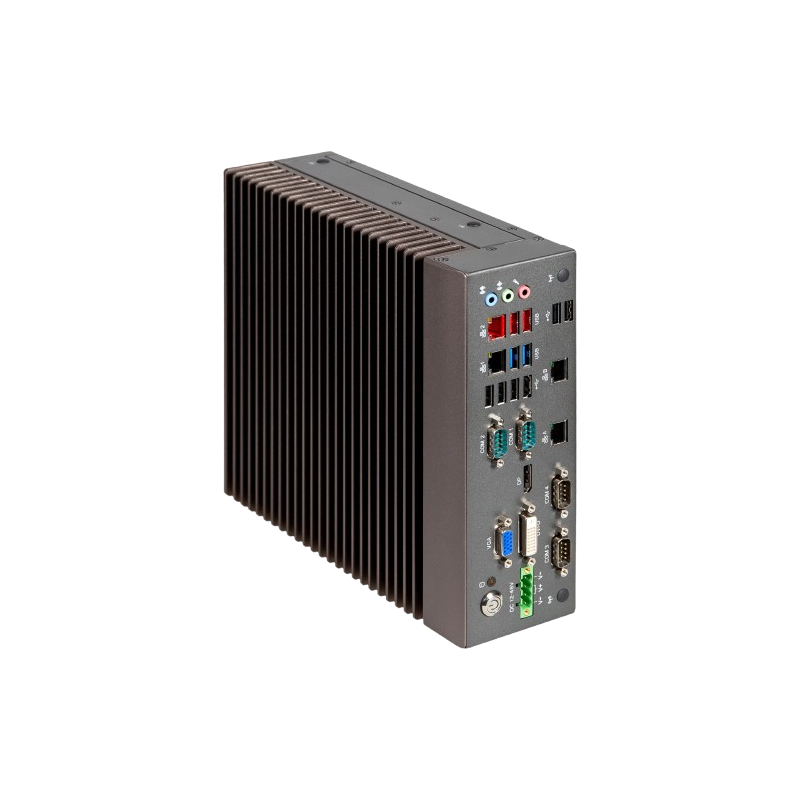

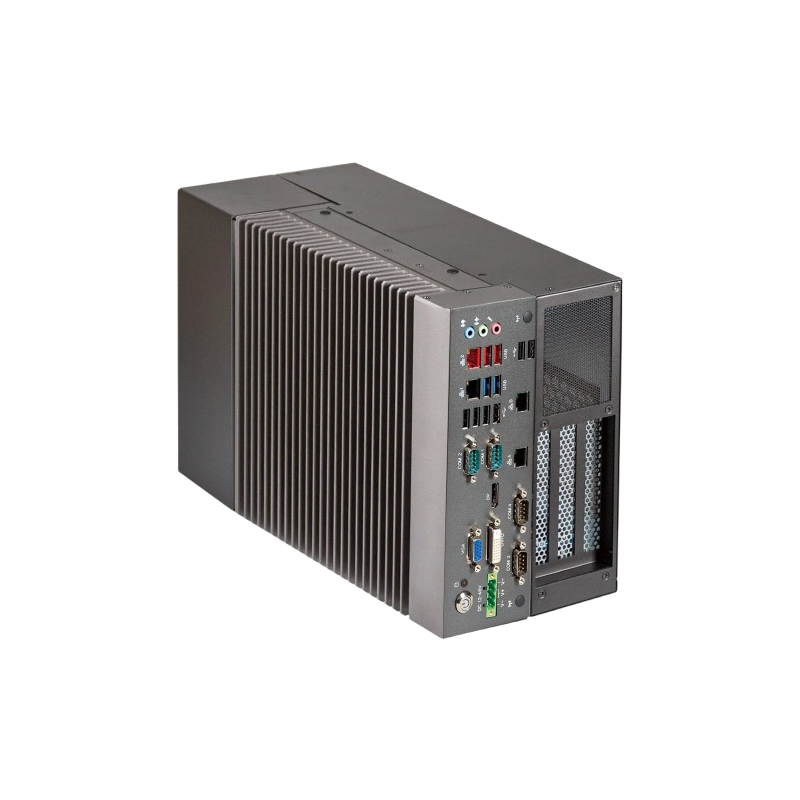

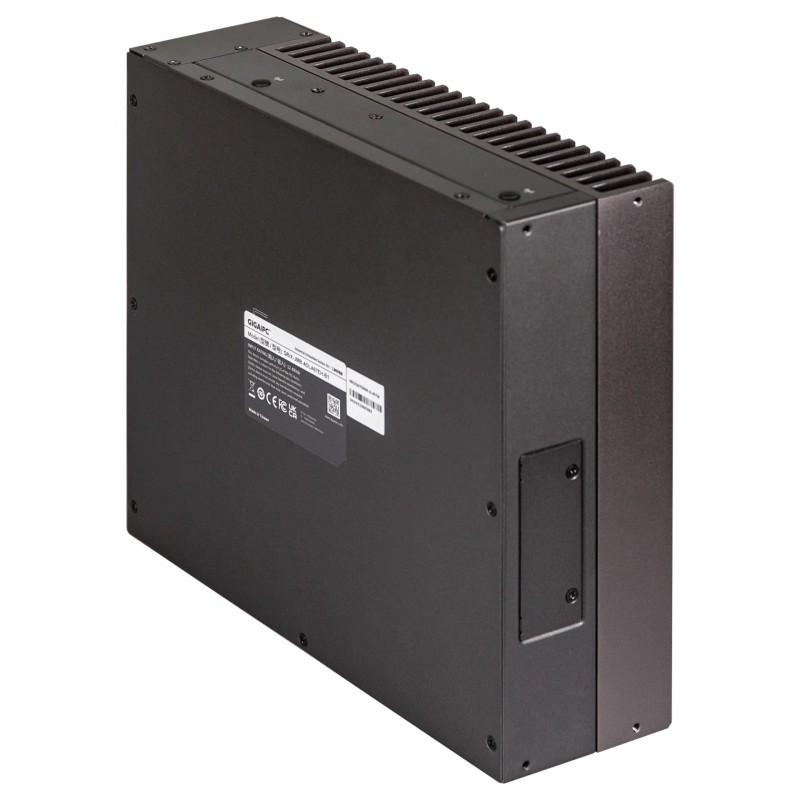

QBiX-JMB-ADLA
•System Size : 224W x 256.3D x 77.7H (mm)
•Support Intel® 14th/13th/12th Gen. Processor
•Dual Channel DDR4, 2 x SO-DIMMs
•DVI-D, VGA & DP ports for multiple display
•1 x 2.5GbE LAN Port
•3 x GbE LAN Ports
•4 x COM Ports
•10 x USB Ports
Dimensions
224W x 256.3D x 77.7H(mm)
CPU
Support for 14th/13th/12th Generation
Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors in the LGA1700 package
TDP under 65W
Chipset
Intel® Q670E Express Chipset
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual channel DDR4 3200 MHz memory modules
Ethernet
1 x 2.5GbE LAN Port (Intel® I226V)
1 x GbE LAN Port (Intel® I219LM, Vpro support)
2 x GbE LAN Ports (Intel® I211AT)
Graphics Support
Integrated Graphics Processor - depends on CPU:
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1080 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz
(3 independent display outputs)
Audio
Realtek® ALC897
Storage
4 x 2.5" HDD/SSD (SATA 6Gb/s) -- support RAID 0/1/5/10
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe Gen4x4)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot

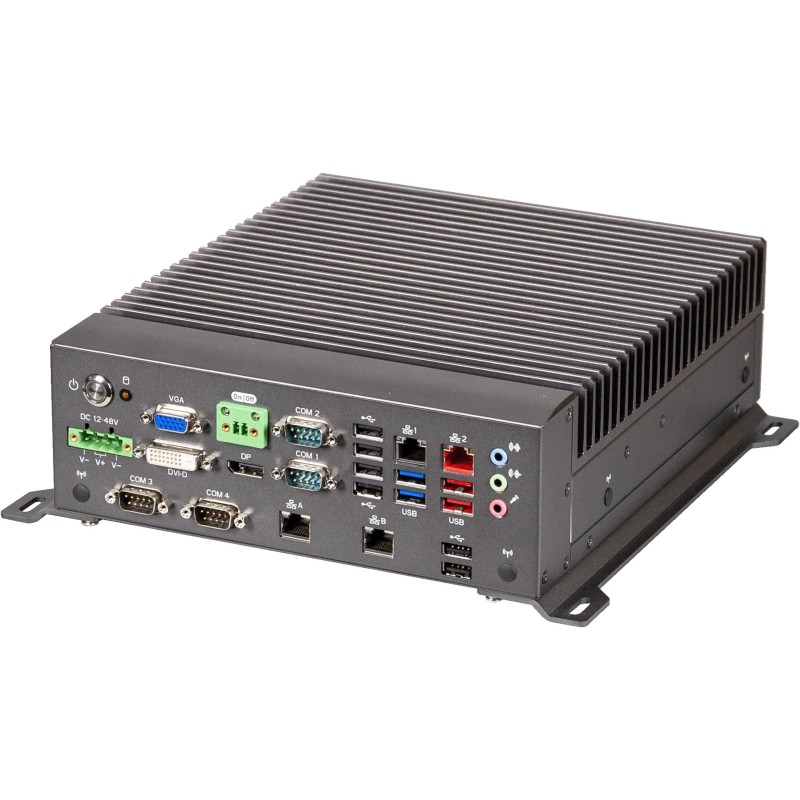

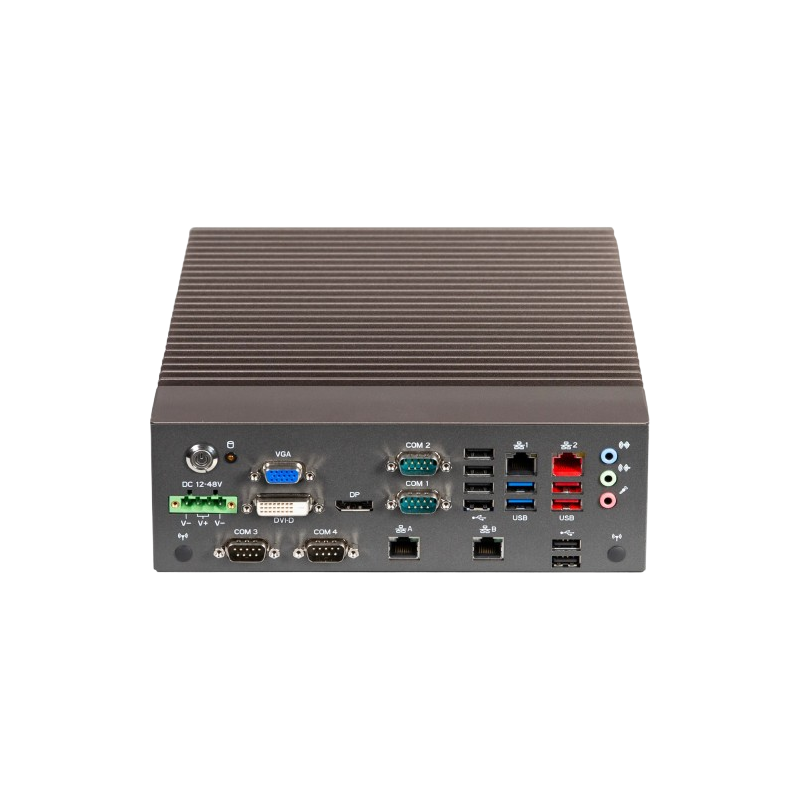

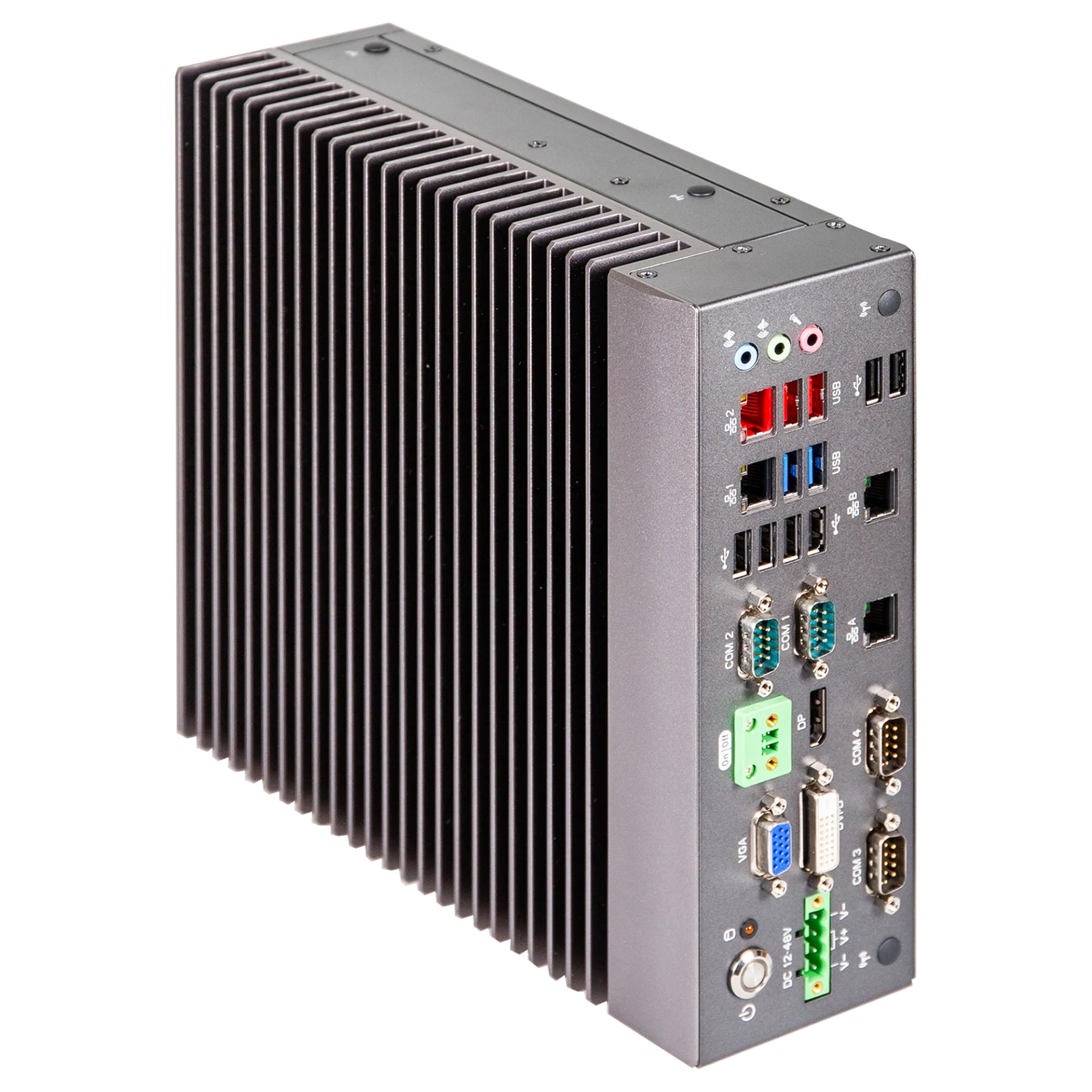

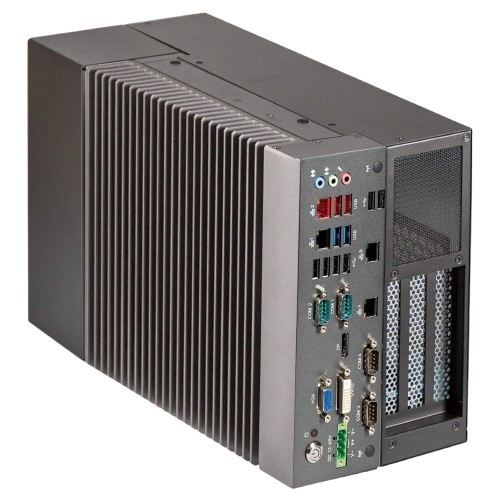

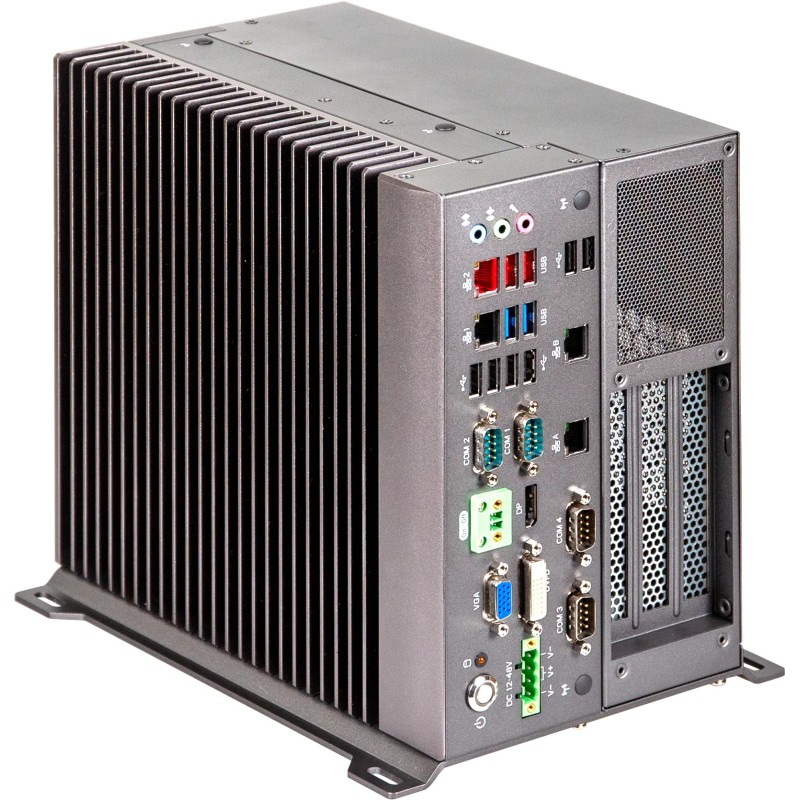

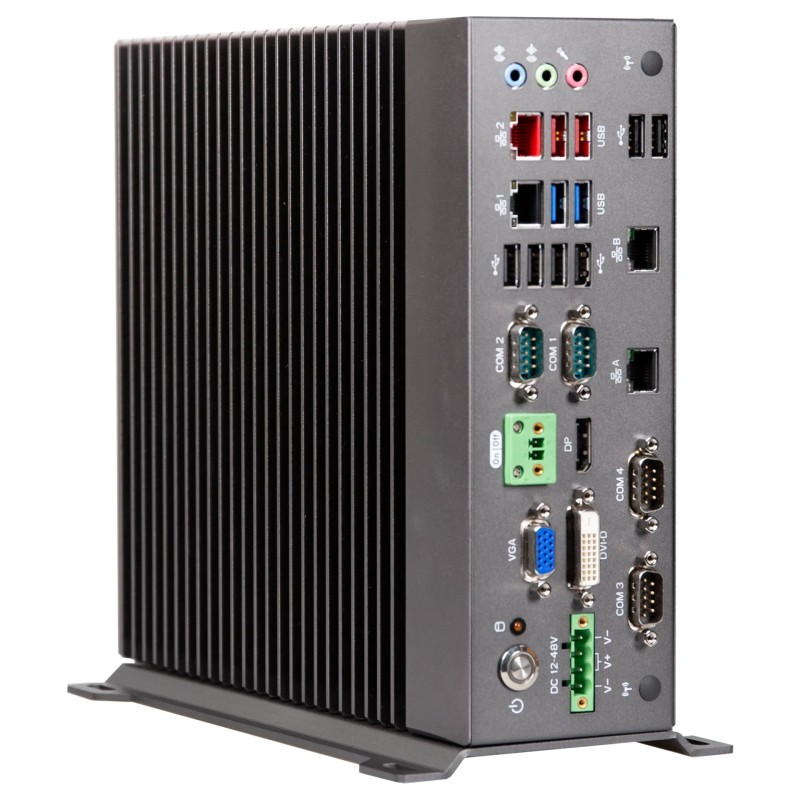

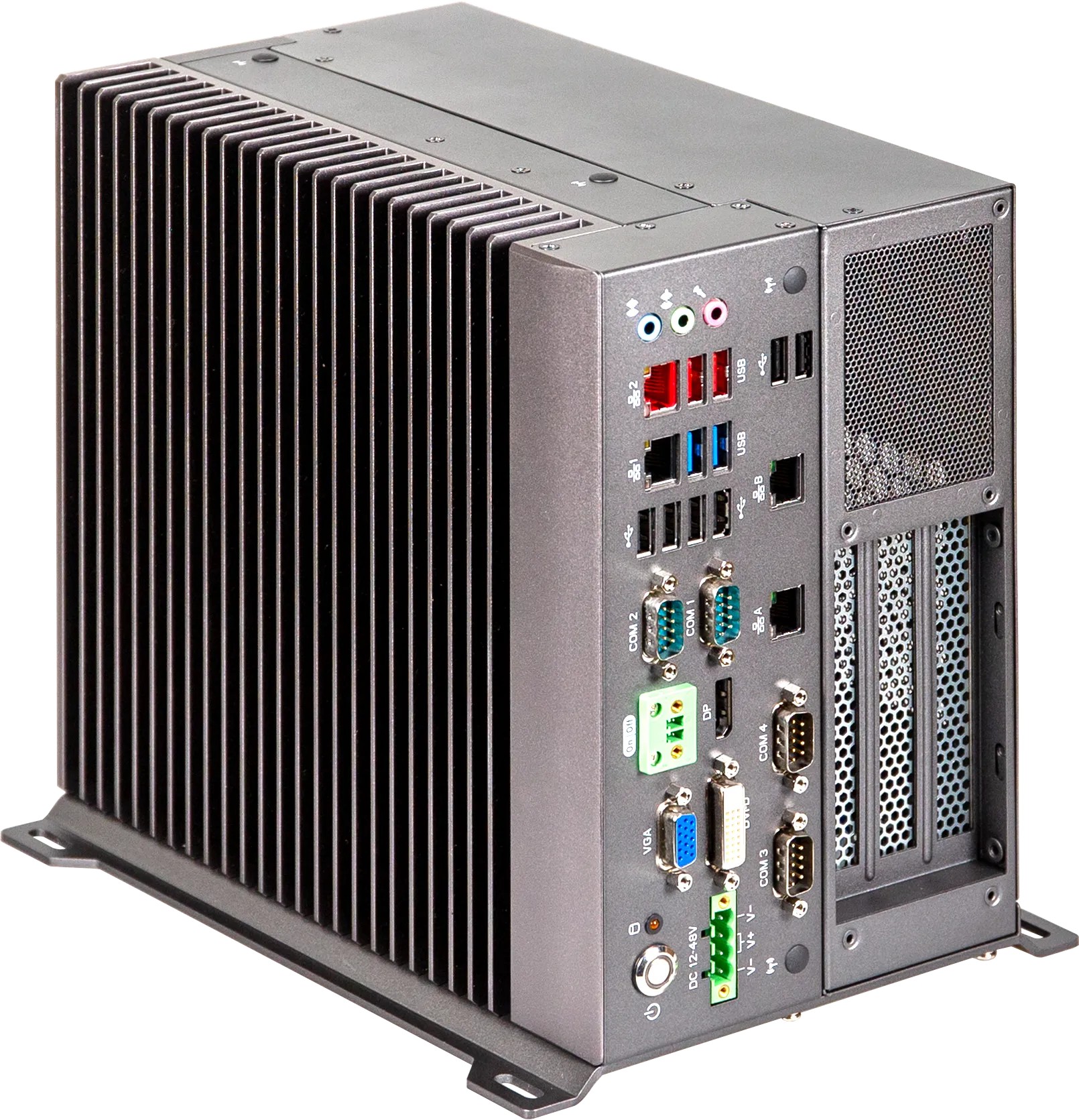

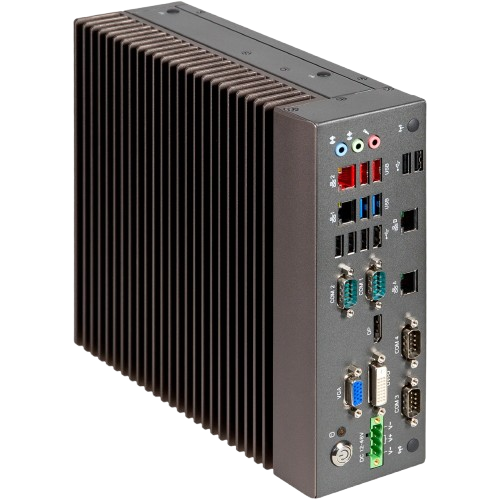

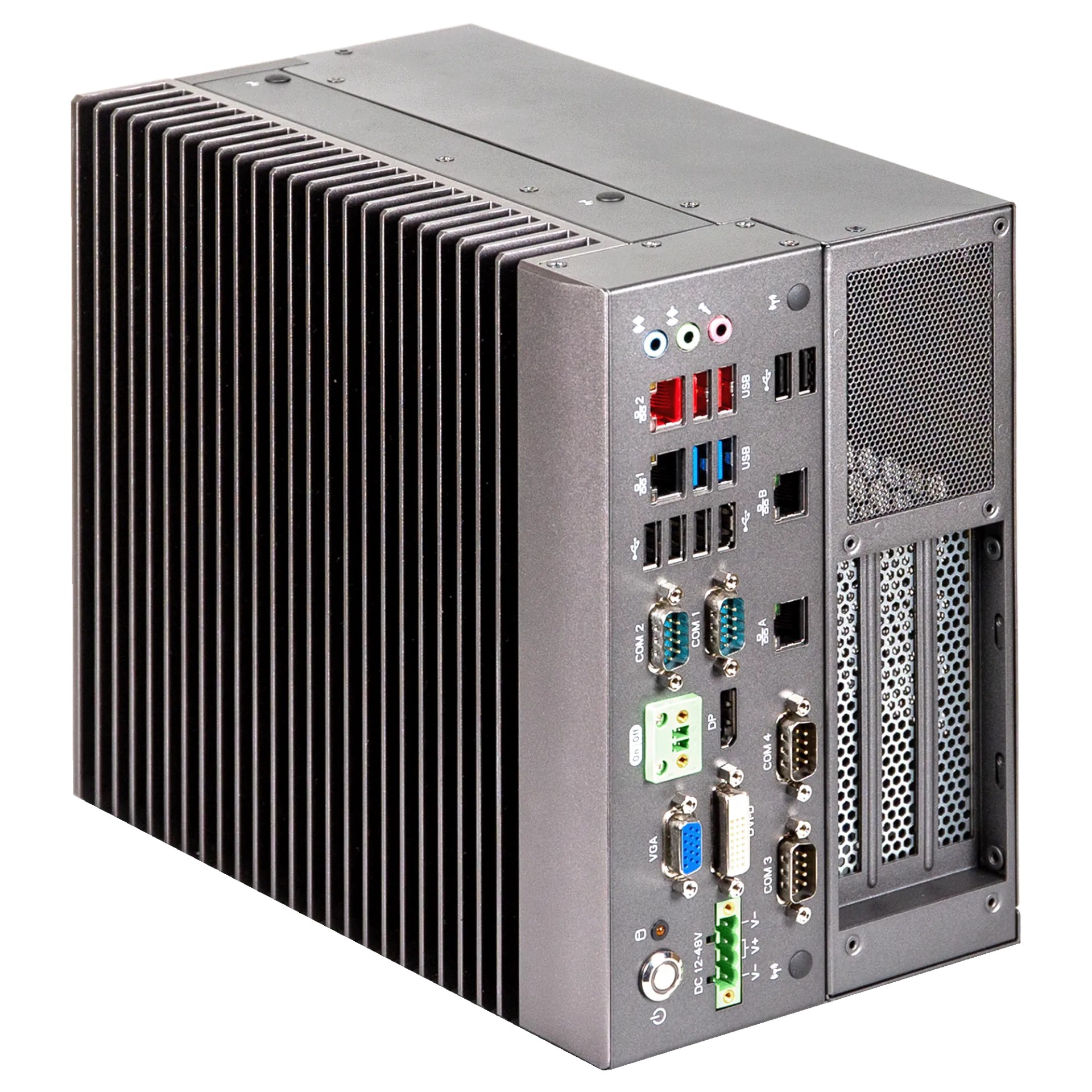

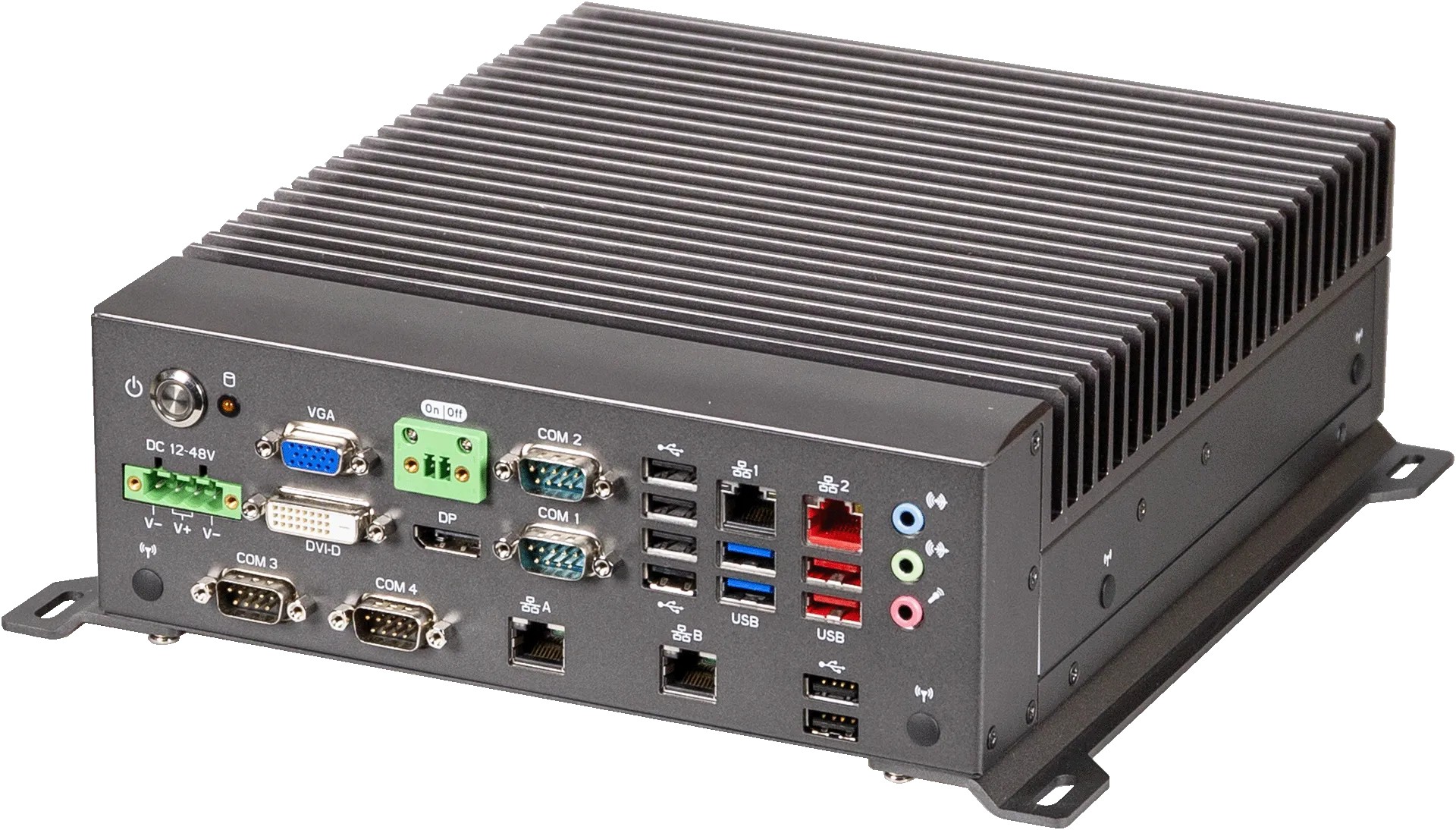

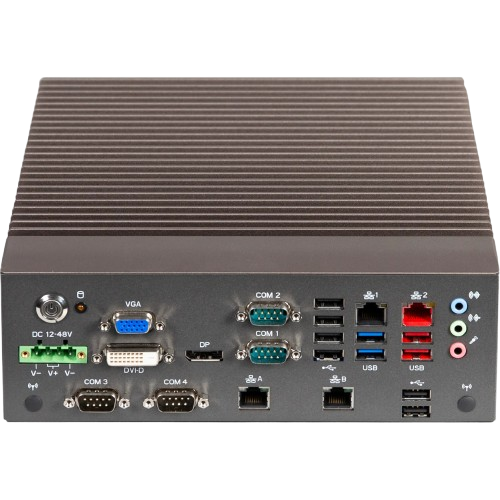

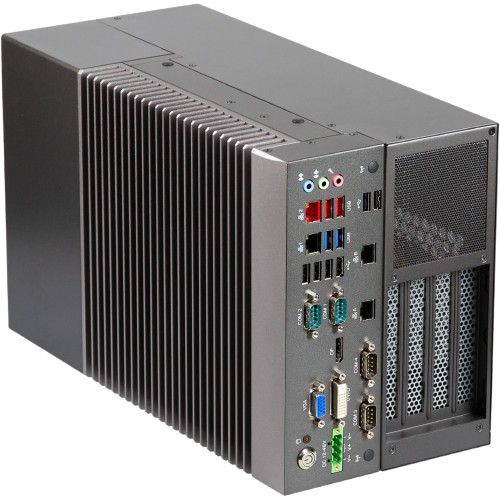

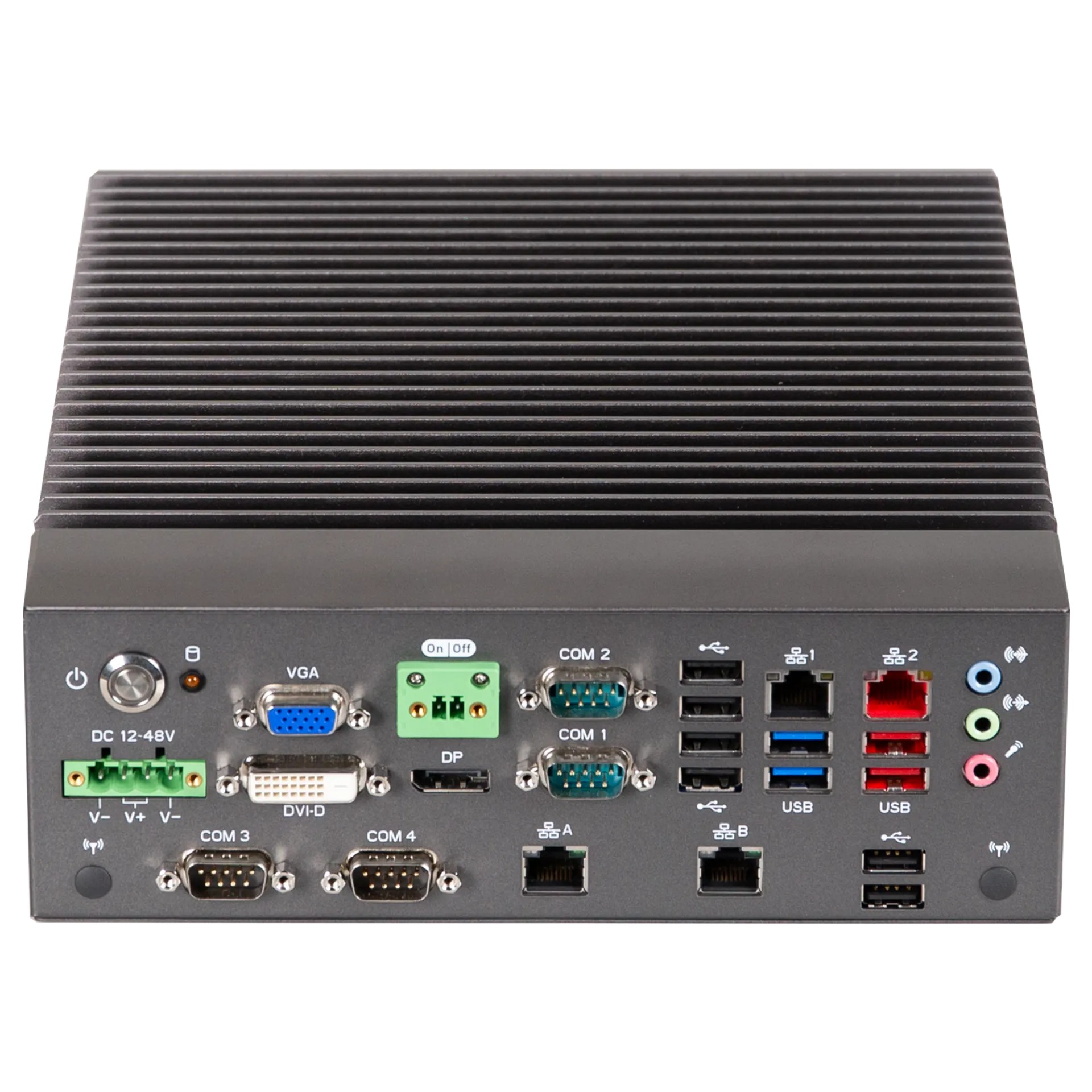

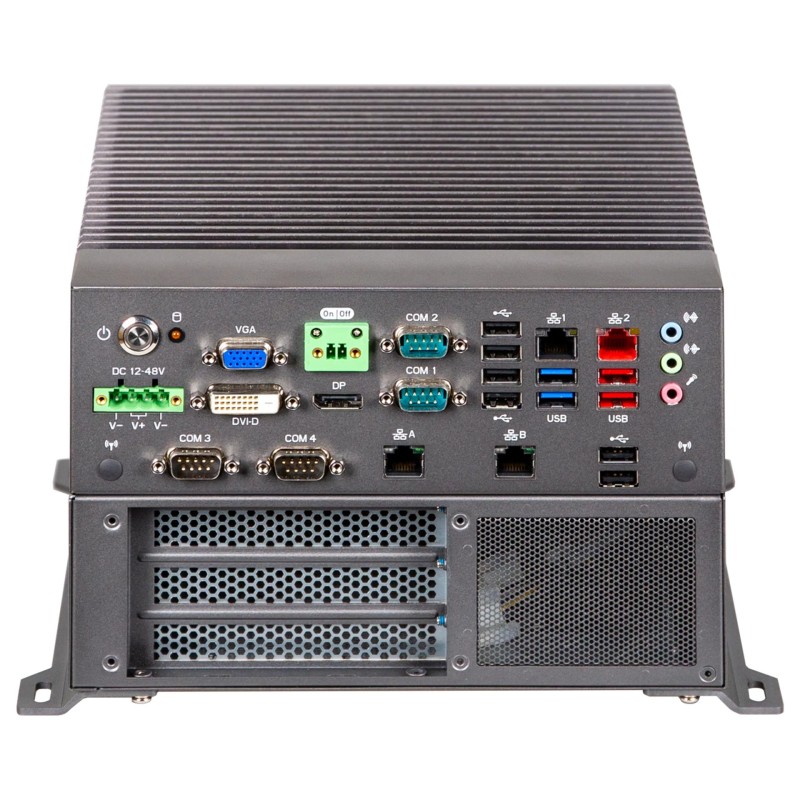

Front I/O
1 x Power Switch/Power/HDD LED
3 x Audio Jacks (Line in, Line out, Mic in)
1 x Display port
1 x DVI-D
1 x VGA
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
2 x COM Ports (RS-232)
4 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x USB 3.2 Gen 1
6 x USB 2.0
1 x 4-pin Terminal Block
1 x Remote control terminal block header
2 x External Antenna Holes (Optional)
Power
+12V~48VDC (Full Range)
Operation Temperature
Operating temperature: -20°C to 50°C (CPU 65W TDP)
Operating temperature: -20°C to 60°C (CPU 35W TDP)
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 358 x 327 x 235 (mm)
Packing Capacity: 1
Weight: Approx. 5.5kg
Including:
HDD Screw M3x4L x 20 (P/N: 25984G-1C014-S00)
*Quantity of the HDD screws in the accessory kit may decreased based on actual HDD assemble quantity
4-pin Terminal Blocks Male Plug x 1 (P/N: 25IO0-2ESDV0-D2R)
2-pin Terminal Blocks Male Plug x 1 (P/N: 25IO0-EC3812-D2R)
Specifiche Tecniche
| CPU | Support for 14th/13th/12th Generation Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors in the LGA1700 package TDP under 65W |
|---|---|
| Tipo Memoria | 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Support Dual Channel DDR4 3200 MHz memory modules |
| GPU | Integrated Graphics Processor - depends on CPU: 1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1080 @60Hz 1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz |
| Porte USB | 2 x USB 3.2 Gen 2x1 + 2 x USB 3.2 Gen 1 + 6 x USB 2.0 |
| Lan | 1 x 2.5GbE LAN Port (Intel® I226V) 1 x GbE LAN Port (Intel® I219LM, Vpro support) 2 x GbE LAN Ports (Intel® I211AT) |
| Dimensioni | 224W x 256.3D x 77.7H(mm) |
