QBiX-Pro-TGLA

Dimensions

178W x 125D x 52.7H(mm)

CPU

Intel® Core™ i5-1135G7 Processor

10nm SuperFin, 4 cores, 8 threads, up to 4.2 GHz

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB

Support Dual Channel DDR4 3200 MHz memory modules

Ethernet

2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)

Graphics Support

Integrated Graphics Processor - Intel® Iris® Xᵉ Graphics:

2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz

(2 independent display outputs)

Audio

Realtek® Audio Codec

Storage

1 x 2.5" HDD/SSD (SATA 6Gb/s)

Expansion-Slots

1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)

1 x 2230 M.2 E-Key (WiFi/BT)

1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module

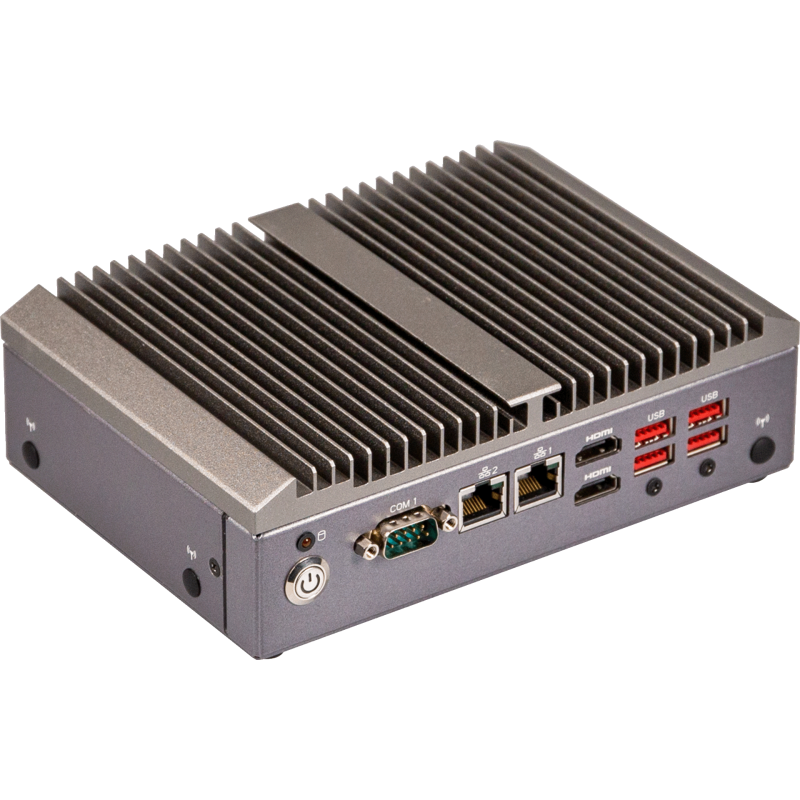

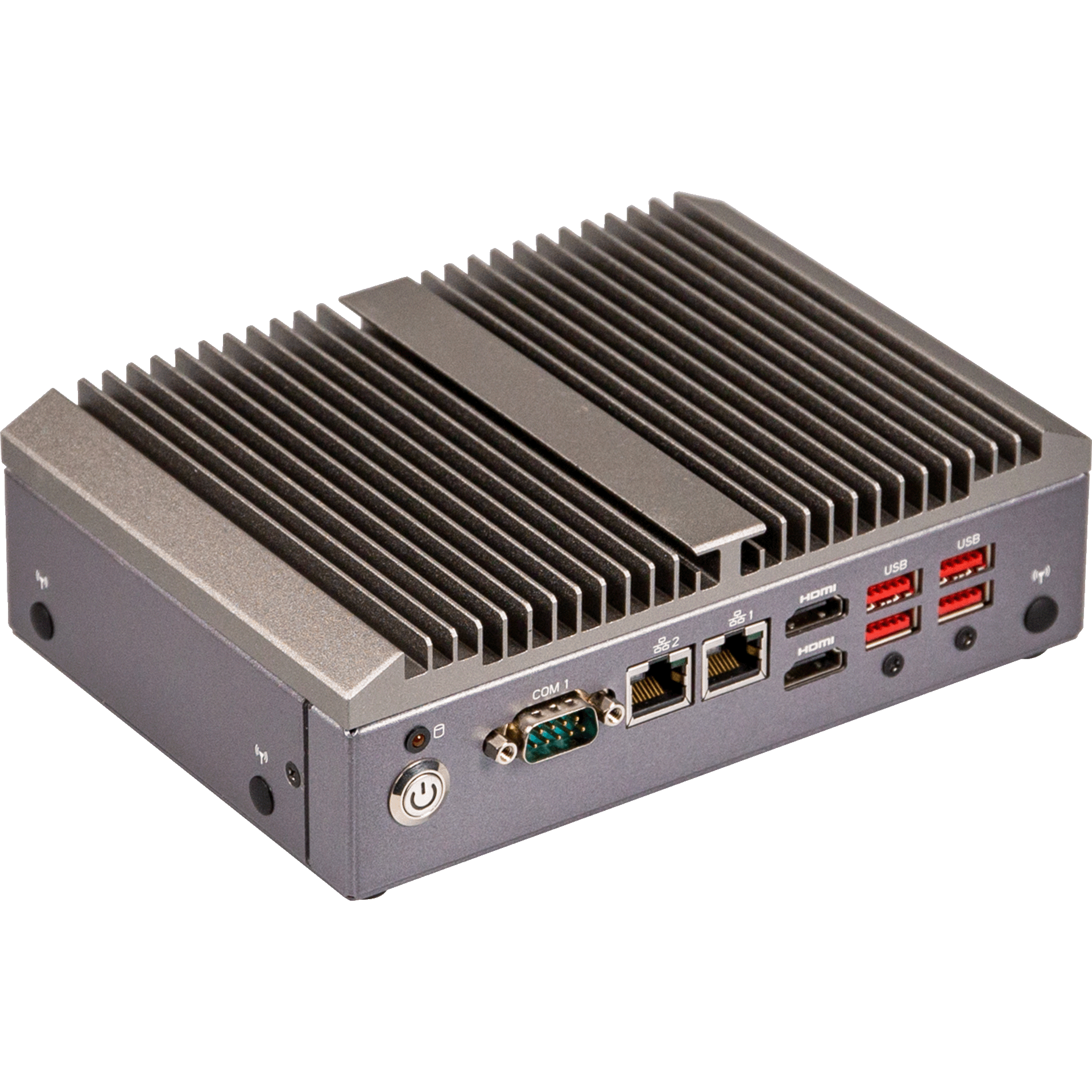

Front I/O

2 x RJ45 LAN Ports

4 x USB 3.2 Gen 2x1

2 x HDMI

1 x Power button with LED

1 x HDD LED

1 x COM Port (RS-232/422/485 & RI/5V/12V)

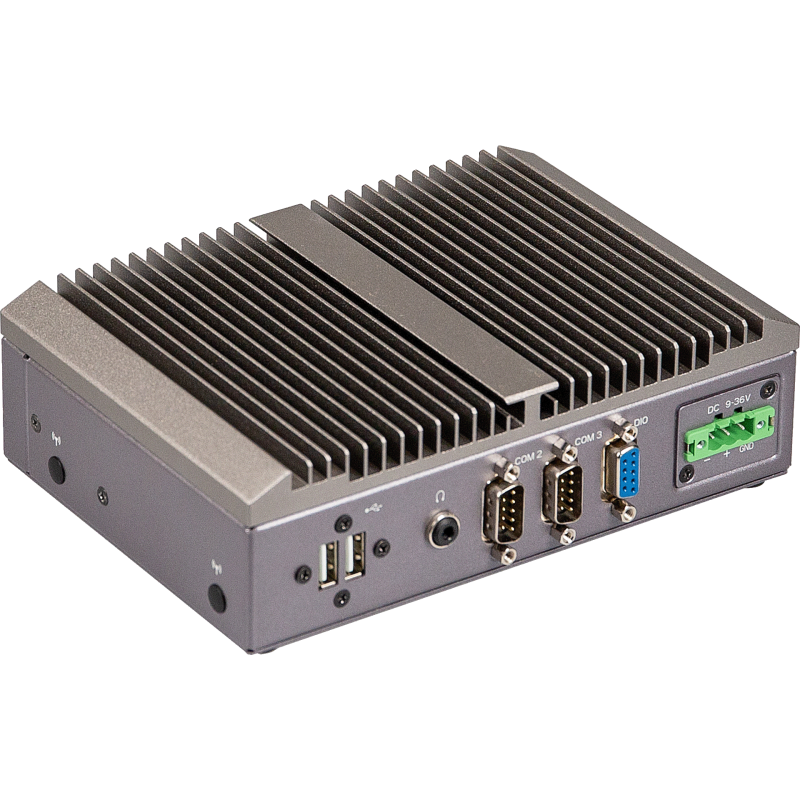

Rear l/O

2 x USB 2.0

2 x COM Ports (RS-232/422/485)

1 x GPIO (8 bits)

1 x Headphone Jack

1 x 3-pin Terminal block

Side I/O

2 x External Antenna Holes (Optional)

Power

+9V~36VDC (Full Range)

Operation Temperature

Operating temperature: 0°C to 50°C

Operating humidity: 0-90% (non-condensing)

Non-operating temperature: -40°C to 85°C

Non-operating humidity: 0%-95% (non-condensing)

Use wide temperature range memory and storage

Vibration During Operation

Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280

Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

Packing Content

Carton size: 505 x 333 x 231 (mm)

Packing Capacity: 5pcs

Single Box size: 313 x 191 x 95 (mm)

Single Box weight: Approx. 1.9kg

Including:

Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)

Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R)

SATA Cable x 1 (P/N: 25CRI-070000-S9R)

Terminal Blocks Male Plug x 1 (P/N: 25IO0-5ESDV0-D2R)
