QBiX-Pro-ADNAN
• System Size : 178W x 125D x 52.7H(mm)
• Intel® Processor N97
• Single Channel DDR5, 1 x SO-DIMM
• 1 x COM Port (RS-232/422/485 & RI/5V/12V)
• 1 x COM Port (RS-232/422/485)
• 1 x COM Port (RS-232)
• 2 x 2.5GbE LAN Ports
Dimensions
178W x 125D x 52.7H(mm)
CPU
Intel® Processor N97
Intel 7, 4 cores, 4 threads, up to 3.60 GHz
Memory
1 x DDR5 SO-DIMM sockets, Max. Capacity 16 GB
Support Single channel DDR5 4800 MHz memory modules
Ethernet
2 x 2.5GbE LAN Ports (Intel® I225V)
Graphics Support
Integrated Graphics Processor - Intel® UHD Graphics support:
2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)
Audio
Realtek® ALC897
Storage
1 x 2.5" HDD/SSD (SATA 6Gb/s)
Expansion-Slots
1 x 2280 M.2 M-Key (PCIe x2)
1 x 2230 M.2 E-Key
1 x Full-size mini PCIe with SIM slot

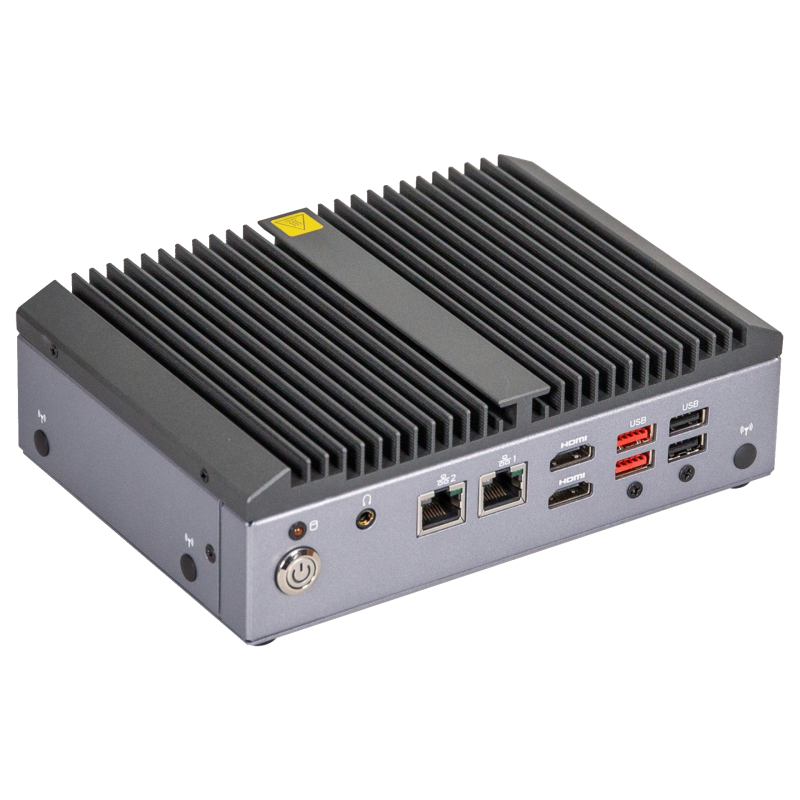

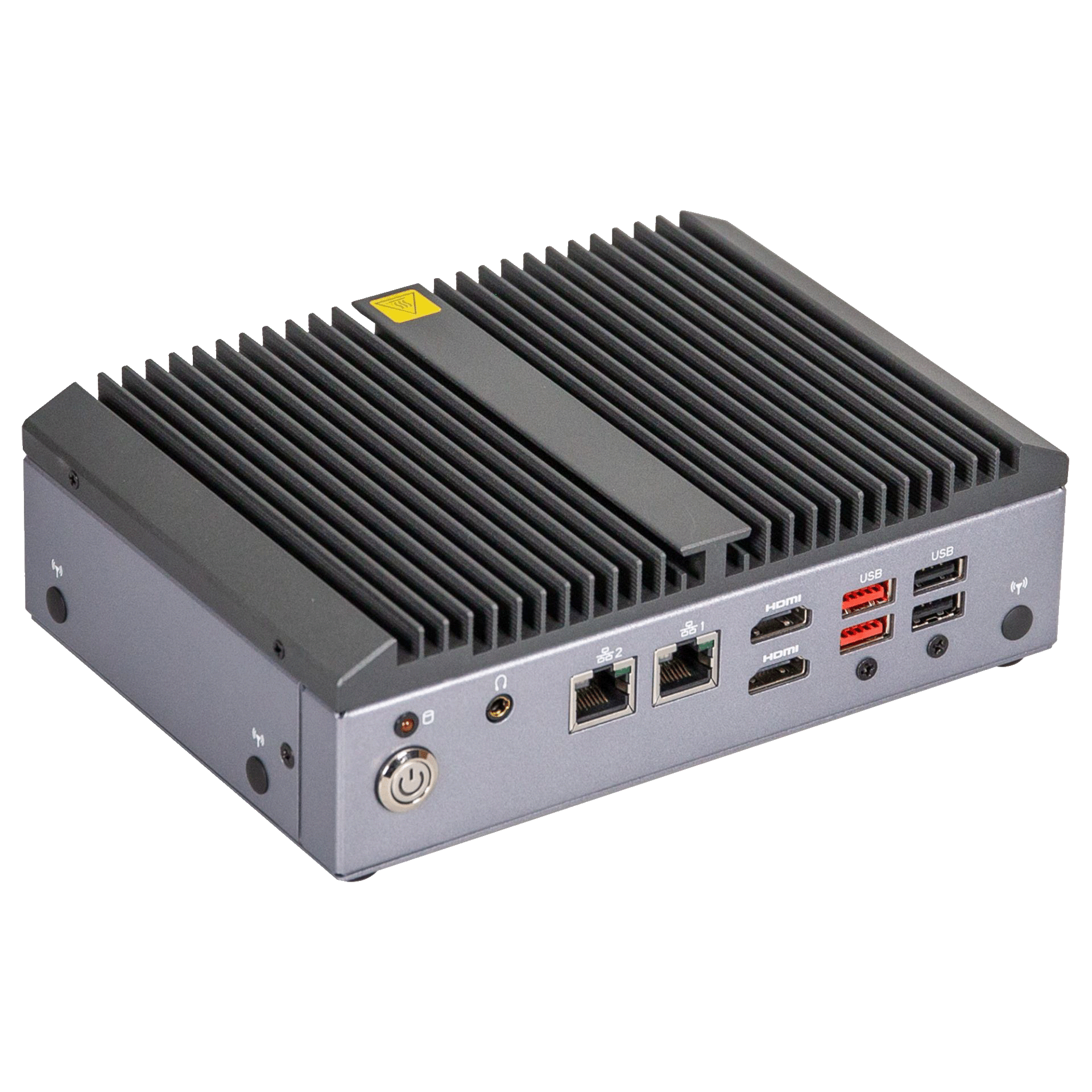

Front I/O
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
2 x USB 2.0
2 x HDMI
1 x Power button with LED
1 x HDD LED
1 x Headphone jack

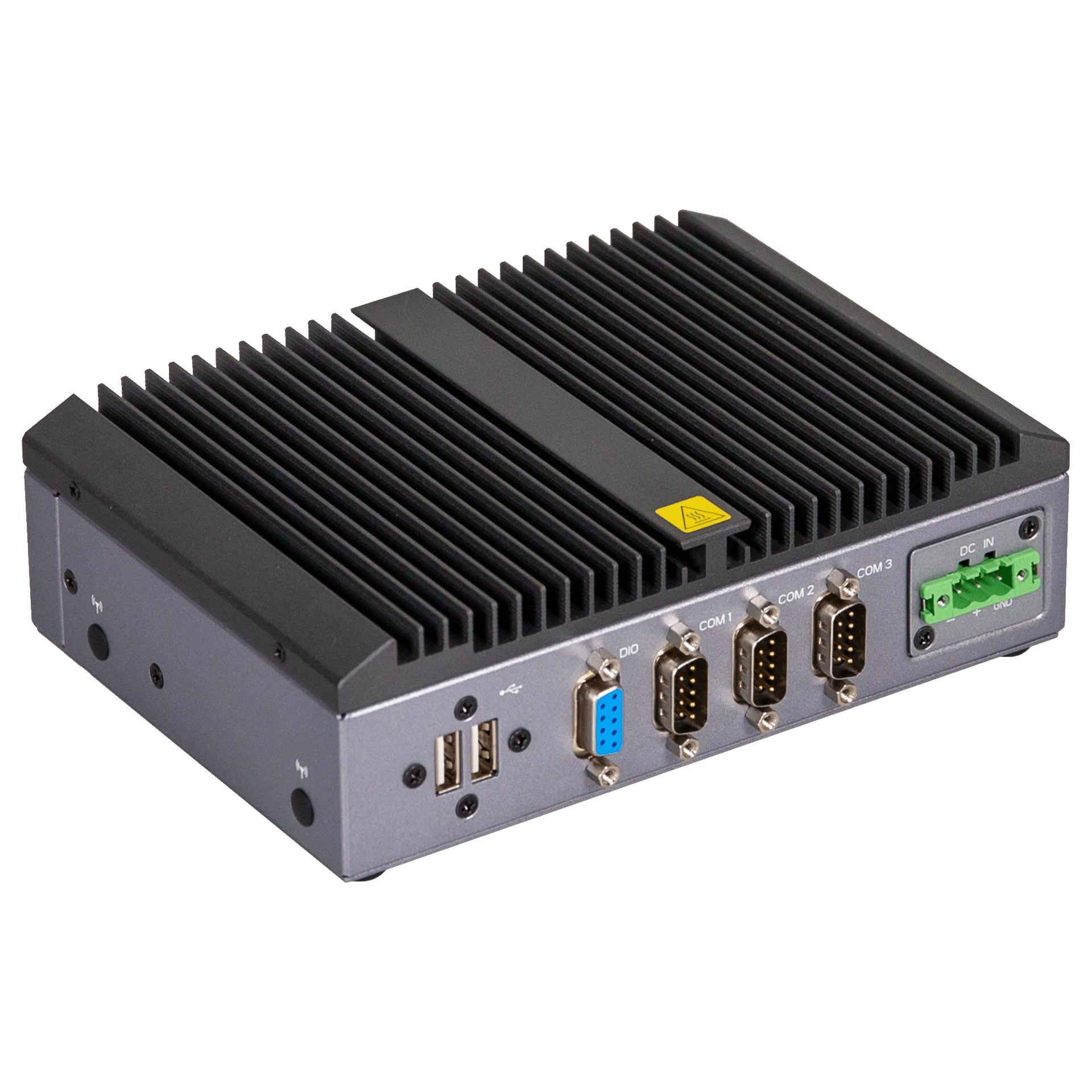

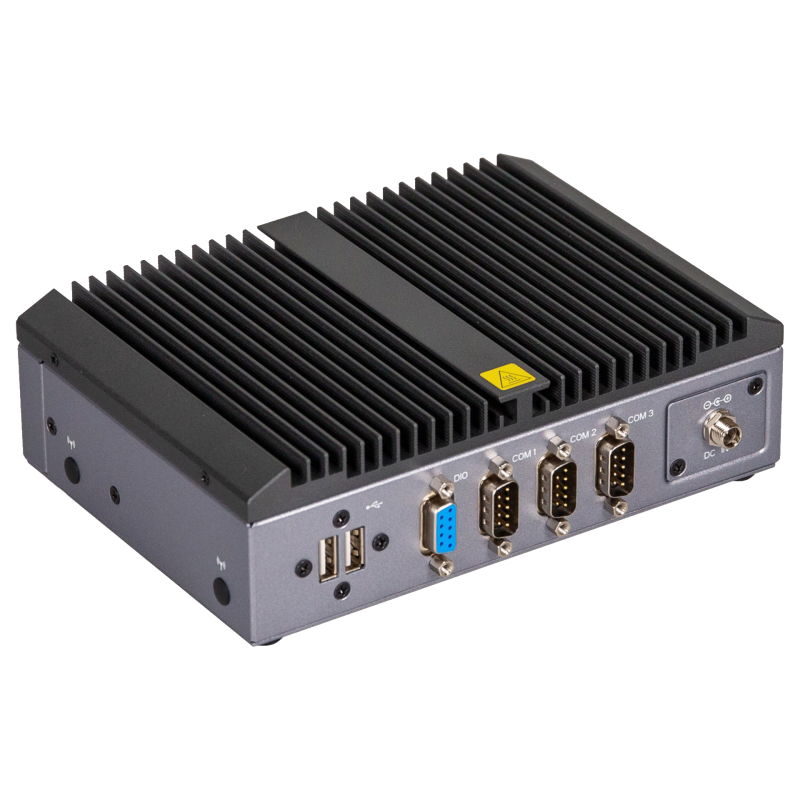

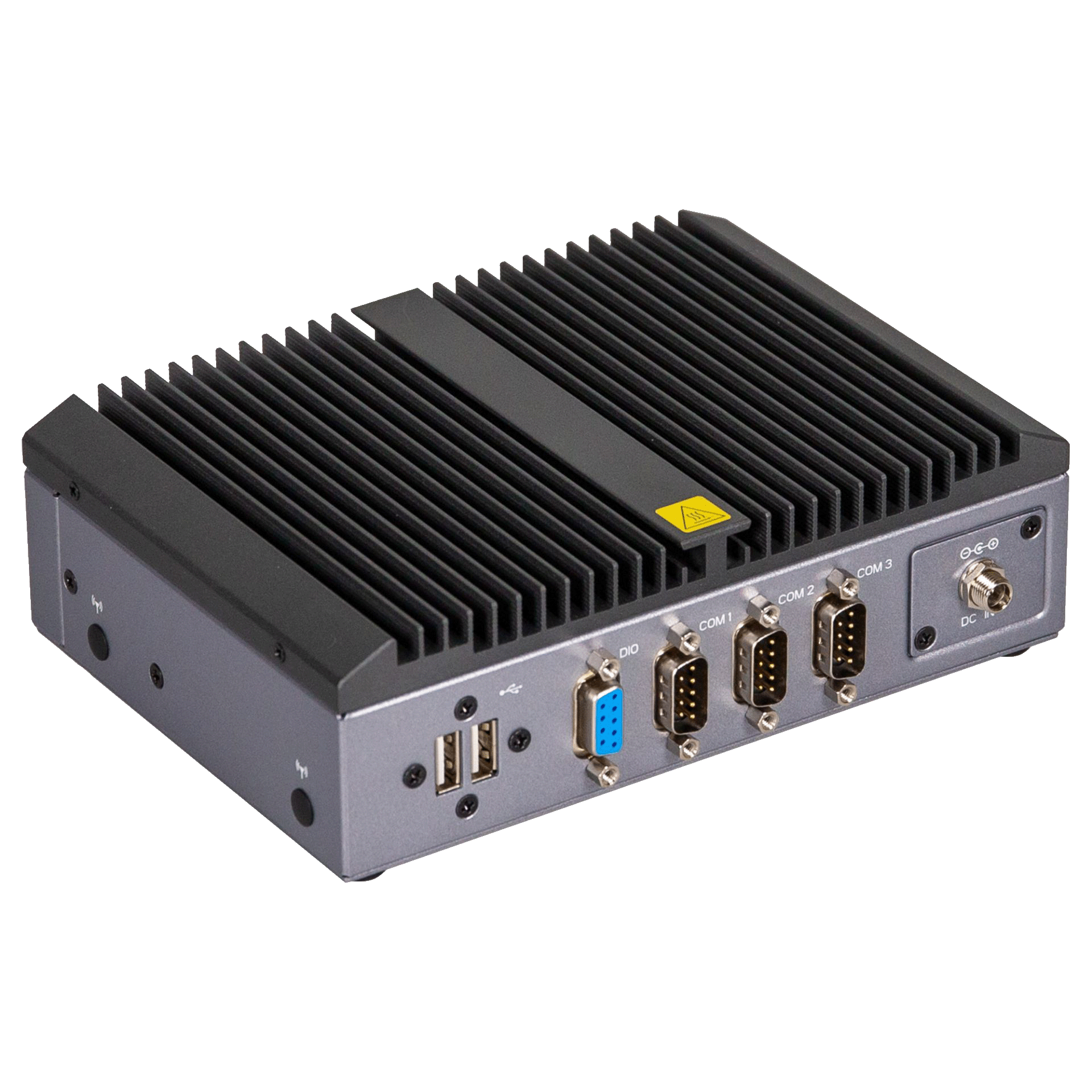

Rear l/O
2 x USB 2.0
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x COM Port (RS-232/422/485)
1 x COM Port (RS-232)
1 x GPIO (8 bits)
1 x 3-pin Terminal Block
Side I/O
2 x External Antenna Holes (Optional)
TPM
Onboard TPM 2.0 security chip
INFINEON SLB9670VQ2.0
Power
+12V~36VDC (Full Range)
Operation Temperature
Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation
Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation
Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packing Content
Carton size: 505 x 333 x 231 (mm)
Packing Capacity: 5pcs
Single Box size: 313 x 191 x 95 (mm)
Single Box weight: Approx. 1.5kg
Including:
Screw I Head For 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad for Memory x 1 (P/N: 25ST3-200086-T5R)
SATA Cable x 1 (P/N: 25CRI-150001-S9R)
Terminal Blocks Male Plug x 1 (P/N: 25IO0-5ESDV0-D2R)
Specifiche Tecniche
| CPU | Intel® Processor N97 Intel 7, 4 cores, 4 threads, up to 3.60 GHz |
|---|---|
| Tipo Memoria | 1 x DDR5 SO-DIMM sockets, Max. Capacity 16 GB Support Single channel DDR5 4800 MHz memory modules |
| GPU | Integrated Graphics Processor - Intel® UHD Graphics support: 2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz (2 independent display outputs) |
| Porte USB | 2 x USB 3.2 Gen 2x1 + 4 x USB 2.0 |
| Lan | 2 x 2.5GbE LAN Ports (Intel® I225V) |
| Dimensioni | 178W x 125D x 52.7H mm |
