QBiX-GLKA5005H-A1

Dimensions

118W x 109.4D x 54.4H(mm)

CPU

Intel® Pentium® Silver J5005 Processor

14nm, 4 cores, 4 threads, up to 2.8 GHz

TDP 10W

Memory

1 x DDR4 SO-DIMM socket, Max. Capacity 8 GB

Support Single Channel DDR4 2400 MHz memory modules

Ethernet

1 x GbE LAN Port (Realtek® RTL8111HS)

Graphics Support

Integrated Graphics Processor - Intel® UHD Graphics 605:

1 x HDMI 1.4b port, supporting a maximum resolution of 4096x2160 @30Hz

1 x VGA port, supporting a maximum resolution of 2560x1600 @60Hz (with compatible displays)

(2 independent display outputs)

Audio

Realtek® Audio Codec

Storage

1 x 2.5" HDD/SSD (SATA 6Gb/s)

Expansion-Slots

1 x 2230 M.2 E-Key (WiFi/BT)

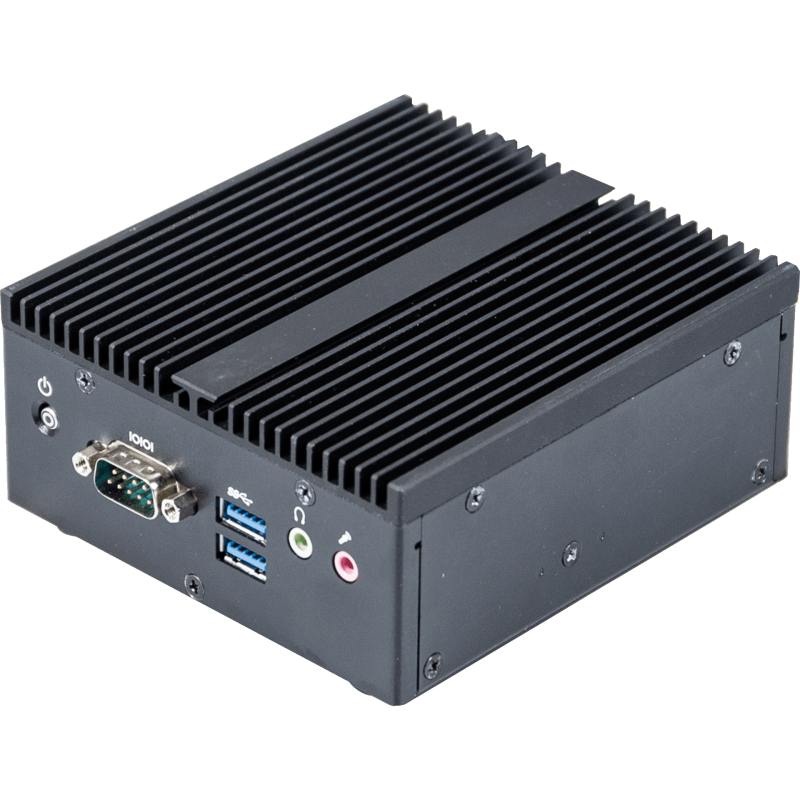

Front I/O

2 x USB 3.2 Gen 1

1 x COM Port (RS-232)

1 x Headphone Jack

1 x Microphone Jack

1 x Power button with LED

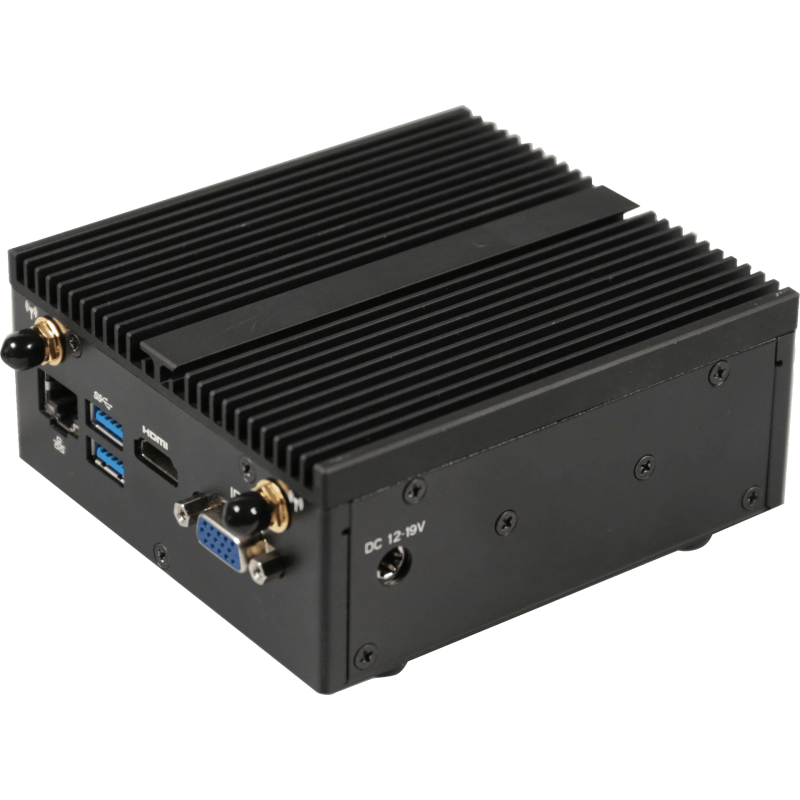

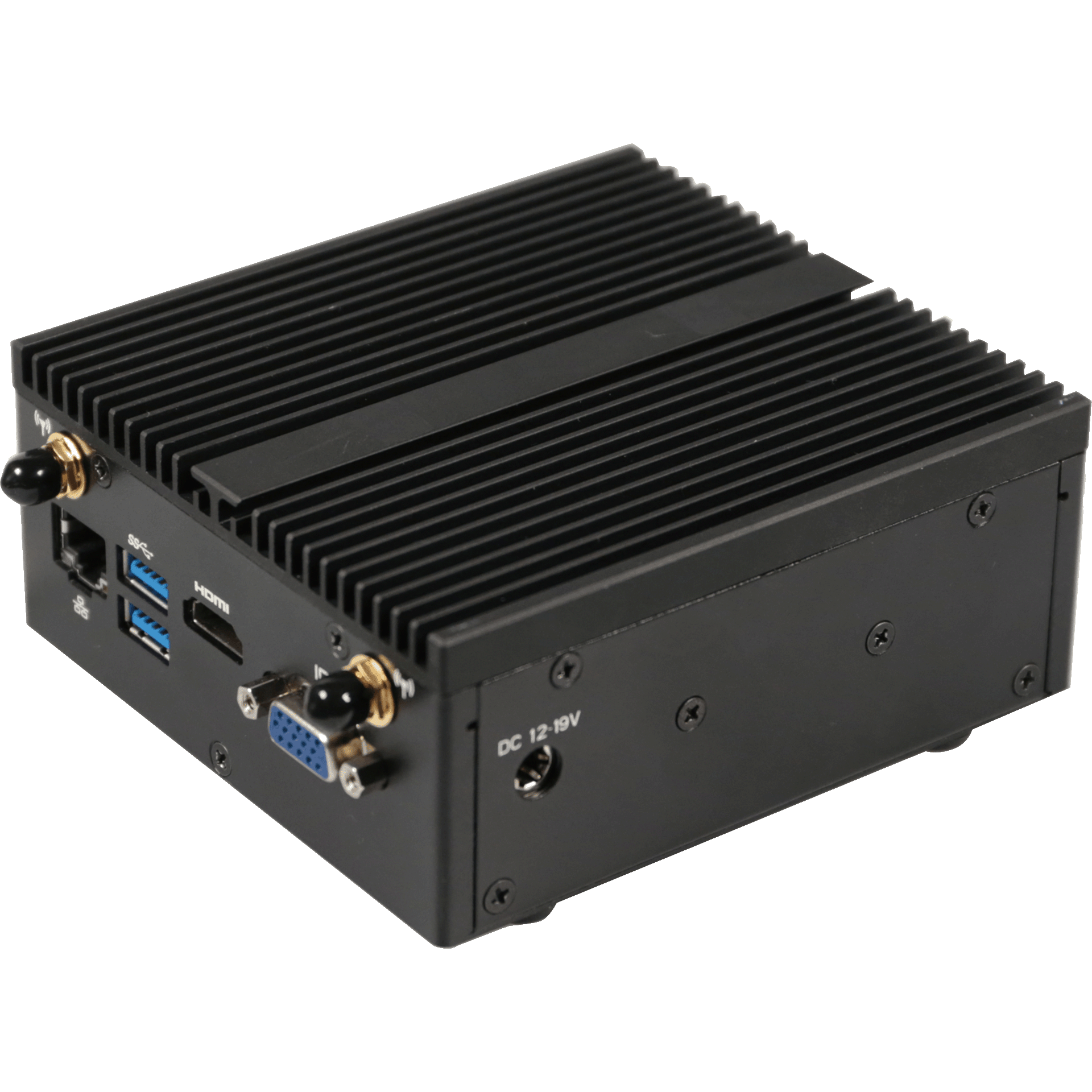

Rear l/O

1 x RJ45 LAN Port

2 x USB 3.2 Gen 1

1 x HDMI

1 x VGA

2 x External Antenna Holes (Optional)

Side I/O

1 x DC-Jack

Power

+12V~19VDC (Adapter 19V/65W)

Operation Temperature

Operating temperature: 0°C to 50°C

Operating humidity: 0-90% (non-condensing)

Non-operating temperature: -40°C to 85°C

Non-operating humidity: 0%-95% (non-condensing)

Use wide temperature range memory and storage

Vibration During Operation

Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD

Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

Shock During Operation

Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

Packing Content

Carton size: 416 x 409 x 296 (mm)

Packing Capacity: 6pcs

Single Box size: 258 x 191 x 130 (mm)

Including:

Power Cord 3Cx18AWG SVT US x 1 (P/N: 25CP0-007001-Q0R)

PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065M-F3S)

VESA_RS_BKT_KP x 1 (P/N: 25HB1-TPL021-S8R)

VESA-SCREW-ASM x 1 (P/N: 25KSD-000001-S4R)

Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)

Thermal Pad HDD x 2 (P/N: 25ST3-200047-T5R)

FFC SATA Cable x 1 (P/N: 25CFE-100004-J3R)
