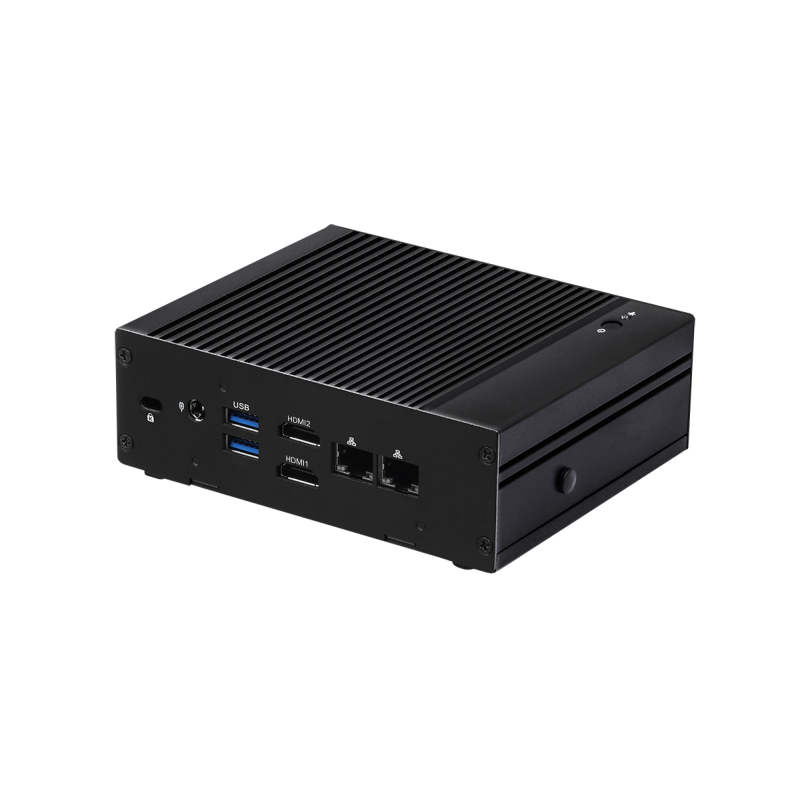

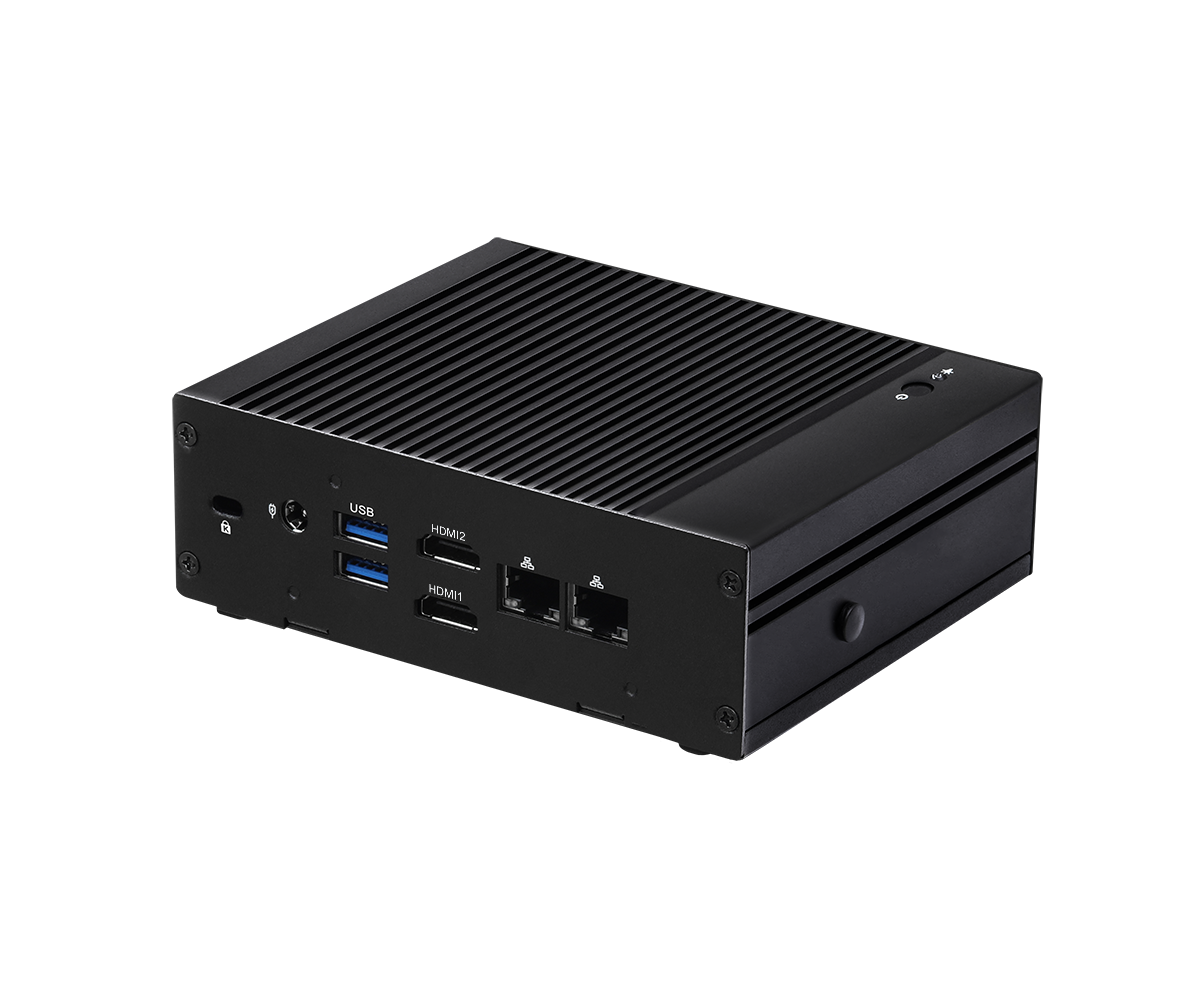

iBOX-N97 R2

Dimensions

135 x 110 x 44.5mm (5.31" x 4.33" x 1.75")

CPU

Intel® Alder Lake-N SoC Processors

iBOX-N97 R2 (N97, QC, Max Speed Up to 3.6GHz, 12W)

Memory

Single Channel DDR4 3200 MHz

32GB

1 x 260-pin SO-DIMM

Ethernet

LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps

LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps

2 x RJ-45

Graphics Support

Intel® UHD Graphics

HDMI 2.0b

Max resolution up to 4096x2160@60Hz

DisplayPort 1.4a, DP++

Max resolution up to 4096x2160@60Hz

MultiDisplay: Triple-Display (Included 2 outputs from Type-C)

Audio

Realtek ALC256, High Definition Audio

Storage

M.2: 1 x M.2(KEY M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD

*M.2 Key M 2280 (Supported by bracket)

SATA: 1 x SATA3.0 (6.0 Gb/s)

Expansion-Slots

1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

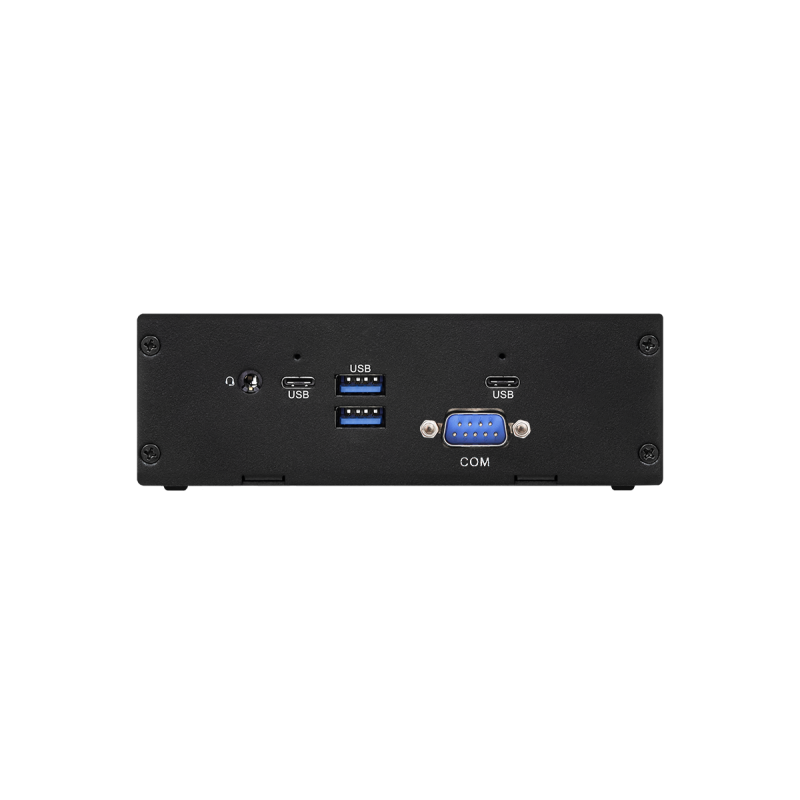

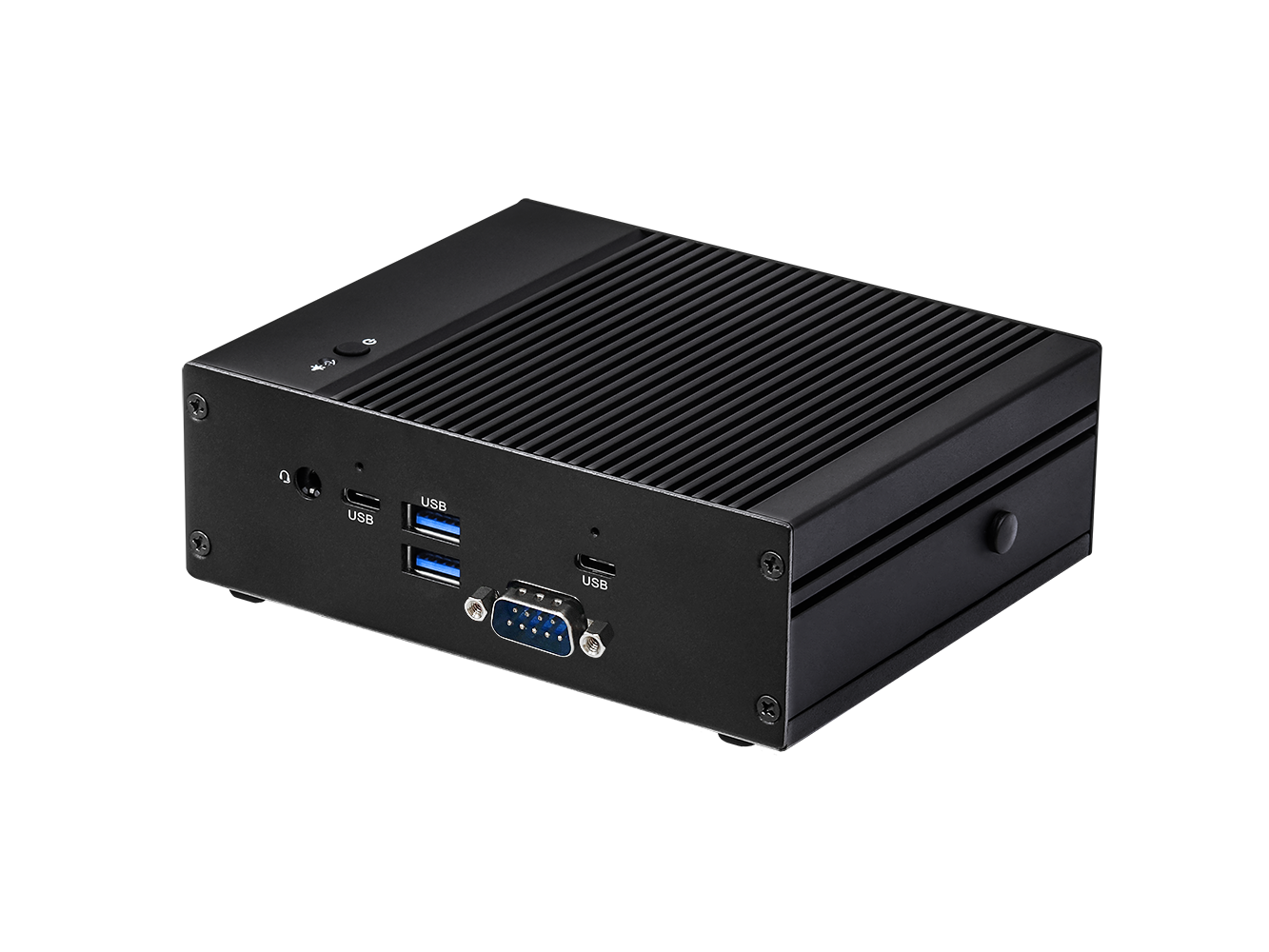

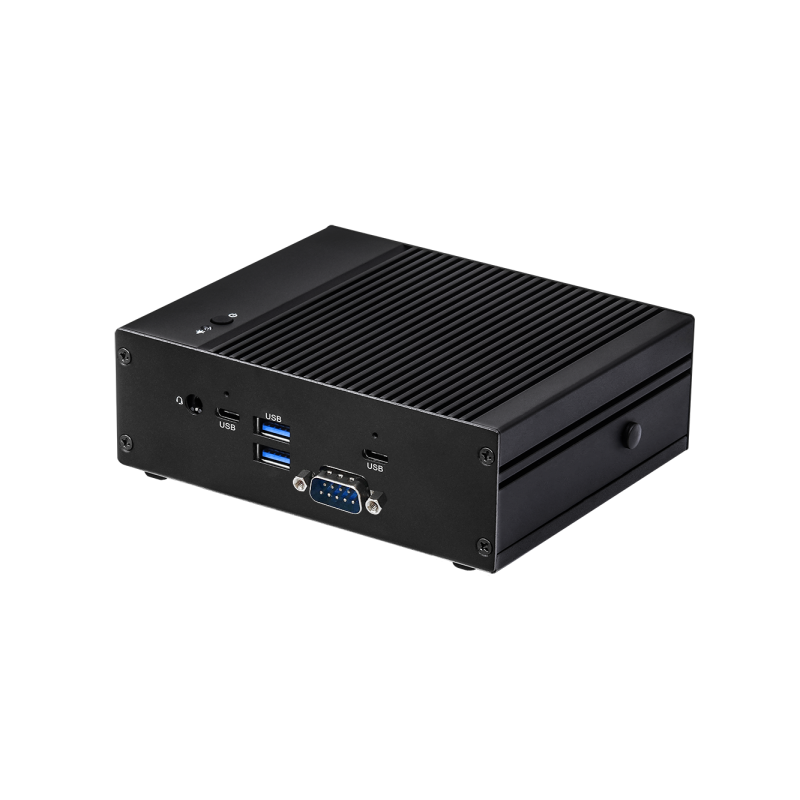

Front I/O

2 x USB 3.2 Gen2 (Type-A)

2 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output)

1 x COM (RS-232/422/485)

1 x Audio (headphone & microphone jack)

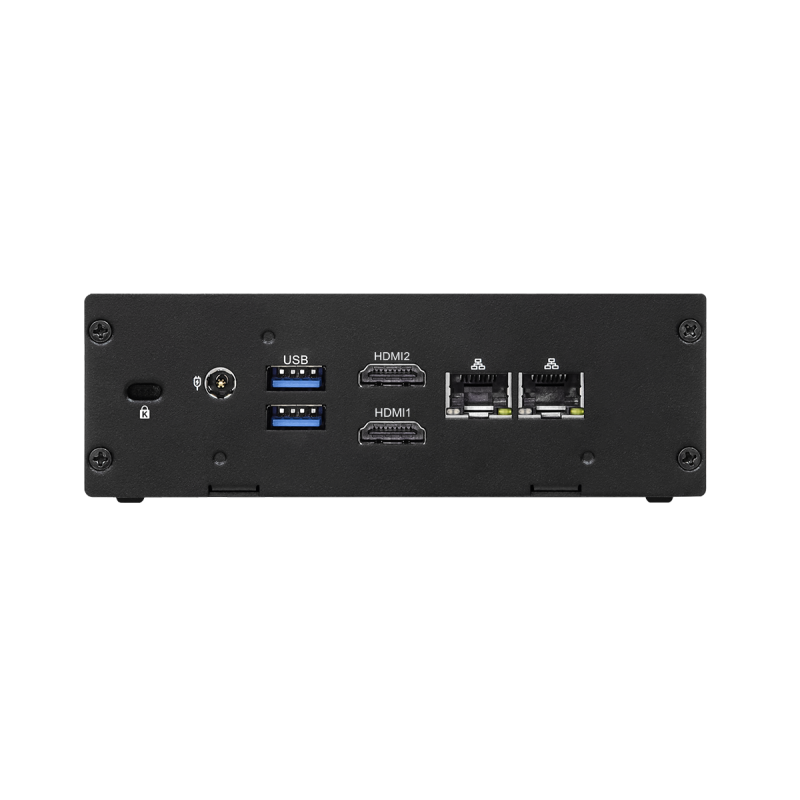

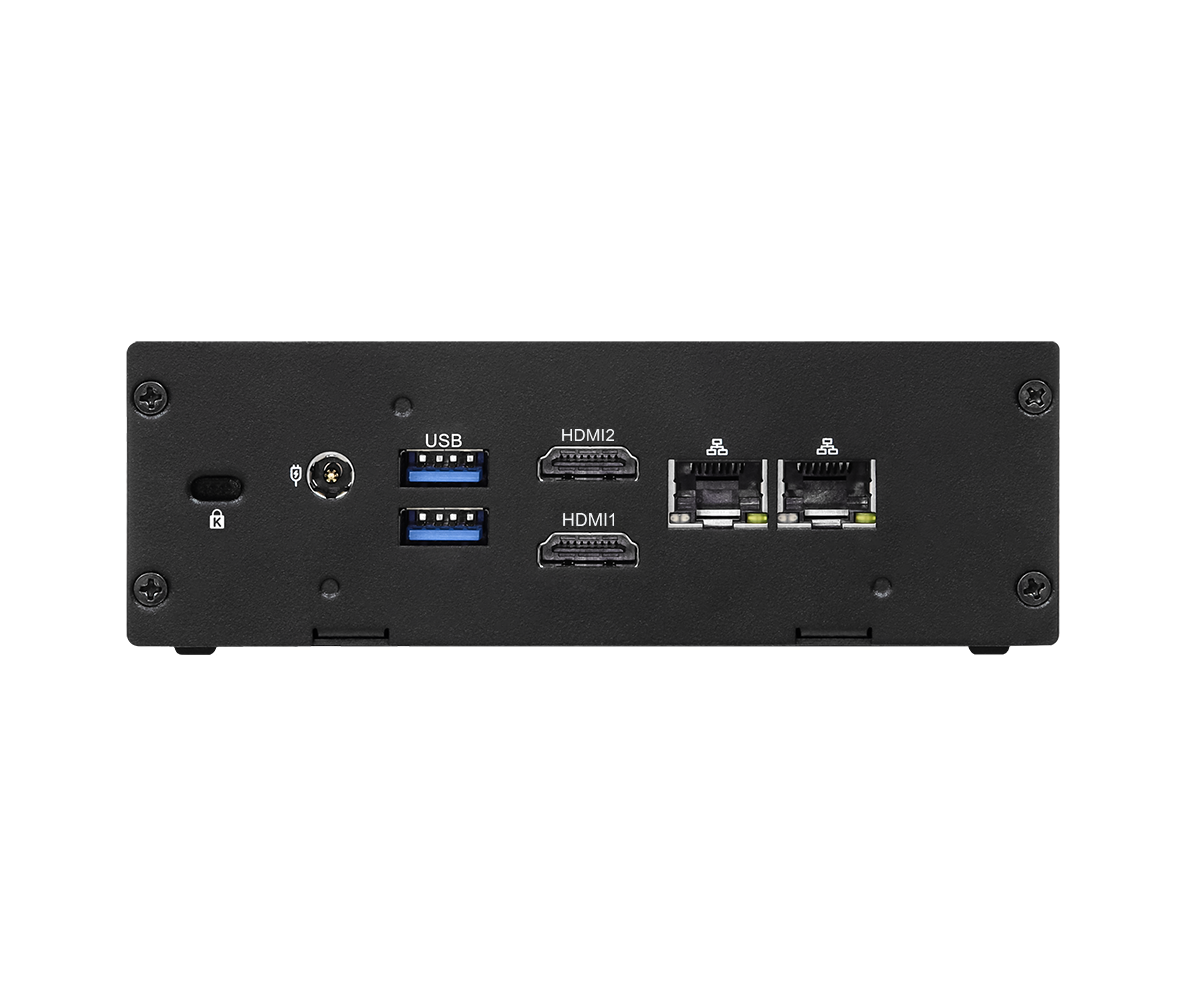

Rear l/O

2 x HDMI 2.0b

2 x 2.5 Gigabit LAN

2 x USB 3.2 Gen2 (Type-A)

1 x DC Jack

Power

Input PWR: 9V~19V DC-In Jack

Power On: AT/ATX Supported

- AT : Directly PWR on as power input ready

- ATX : Press button to PWR on after power input ready

Operation Temperature

Operating Temp -20ºC ~ 50ºC with air flow 0.5~0.8 m/s (with extended temp.

peripherals)

Storage Temp -40° C ~ 85° C

Operating Humidity 5% ~ 90%

Storage Humidity 5% ~ 90%
