DSF-A6000

Dimensions

182.2 x 175.2 x 25 mm ( 7.1" x 6.9" x 1")

CPU

AMD Ryzen™ Embedded R-Series (R2314, 4C, 2.1GHz, 12-35W)

Memory

Dual Channel ECC/non-ECC DDR4 2666 MHz

64 GB (32 GB per DIMM)

2 x 260-pin SO-DIMM

Ethernet

LAN1: Realtek® RTL8111H with 10/100/1000 Mbps

LAN2: Intel® I210 with 10/100/1000 Mbps

LAN3: Realtek® RTL8125BG with 10/100/1000/2500 Mbps,supports PoE+ (optional)

3 x RJ-45

Graphics Support

AMD Radeon™ Graphics

HDMI 2.0b

Max resolution up to 4096x2160@60Hz

MultiDisplay: Quad Display

Audio

Realtek ALC256, High Definition Audio. Line-out, Mic-in

Storage

1 x M.2 (Key M, 2242/2280) with PCIe Gen3 x4 for SSD

Expansion-Slots

M.2/WLAN: 1 x M.2 (Key E, 2230) with PCIe Gen3 x1 and USB 2.0 for Wireless

1 x M.2 (Key B, 3042/3052) with PCIe Gen3 x1, USB 3.2 Gen1, USB 2.0 and SIM for 4G/5G

SIM Socket: 1 x Socket connected to M.2 Key B

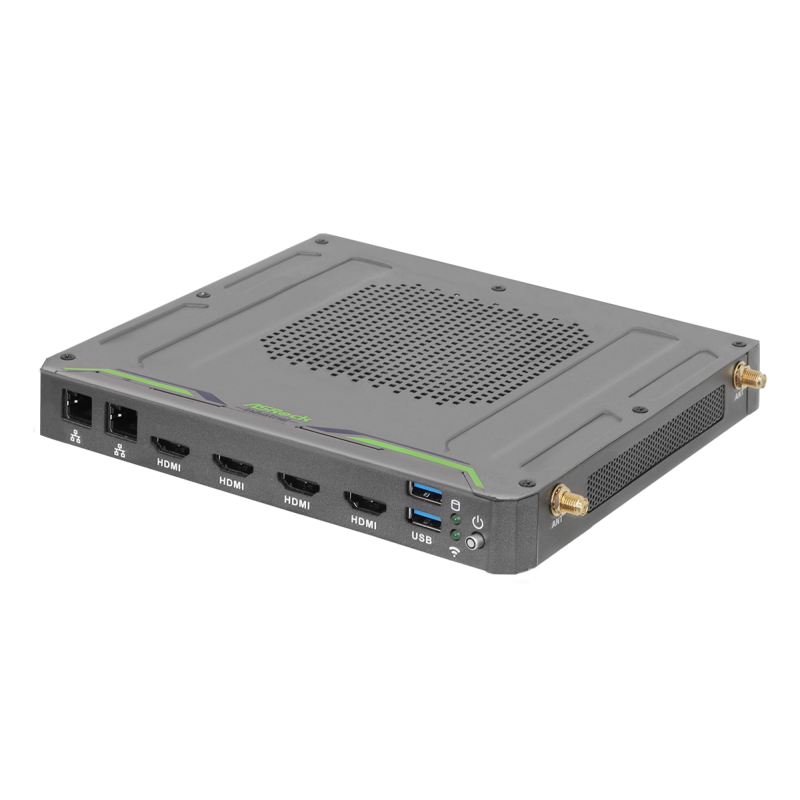

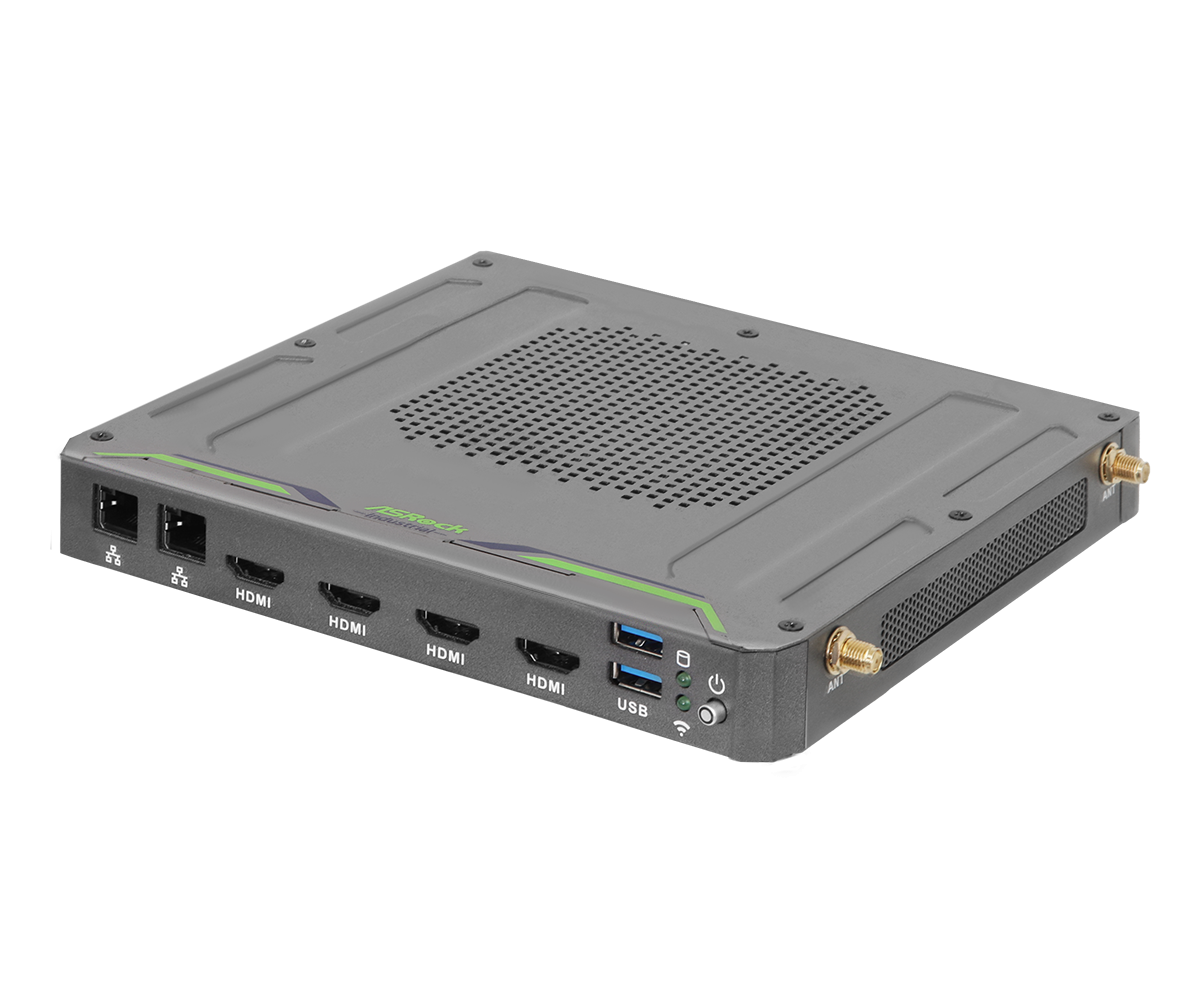

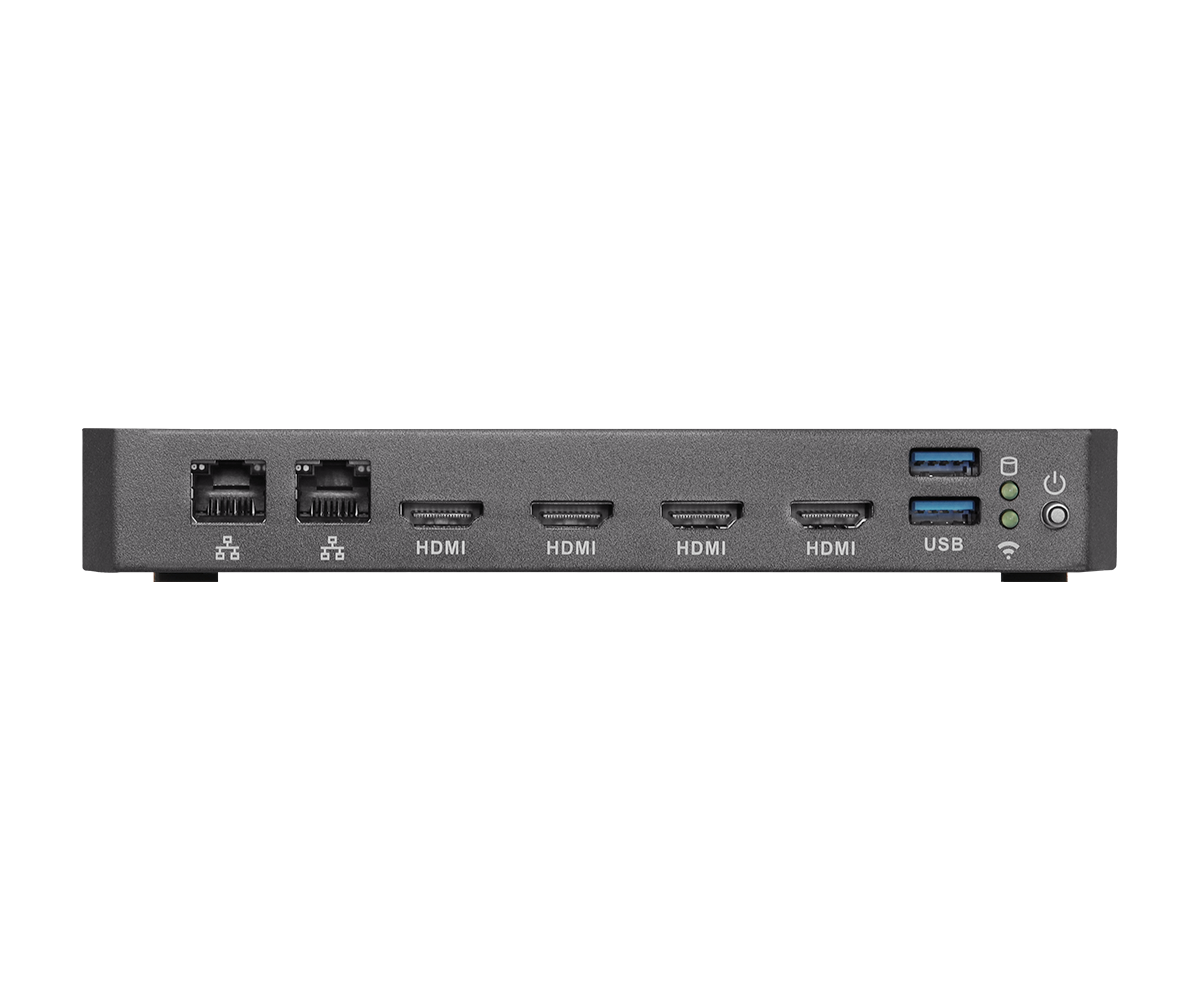

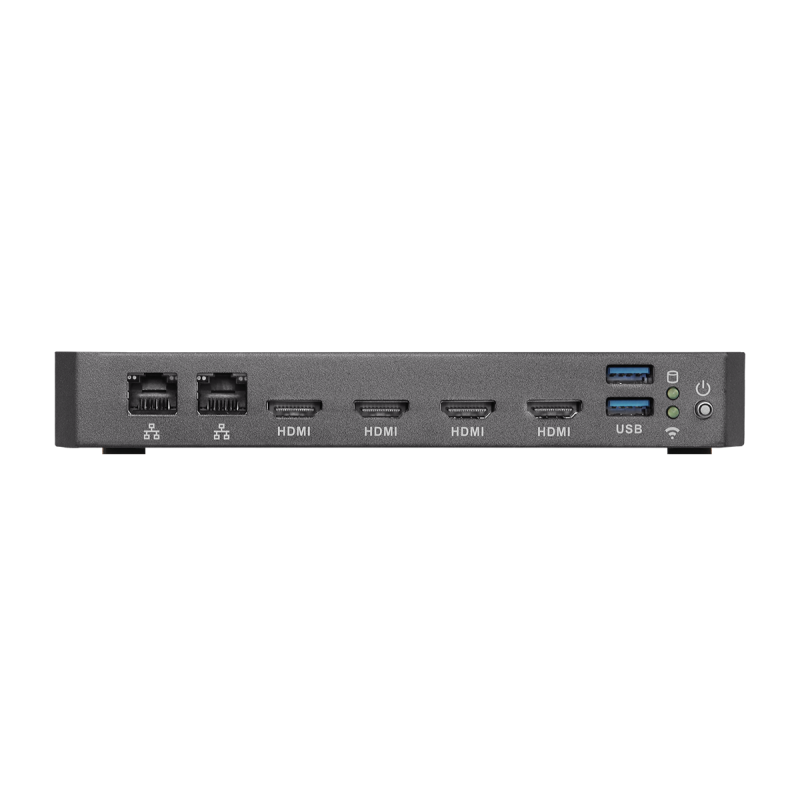

Front I/O

2 x 1 Gigabit LAN

4 x HDMI 2.0b

2 x USB 3.2 Gen2

1 x Power Button

1 x HDD/WIFI LED

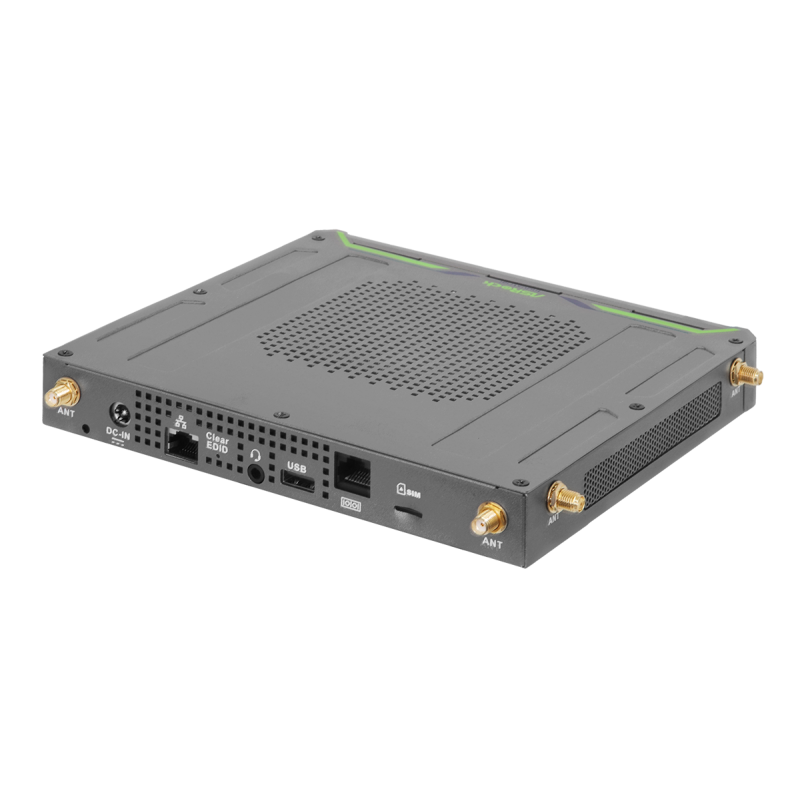

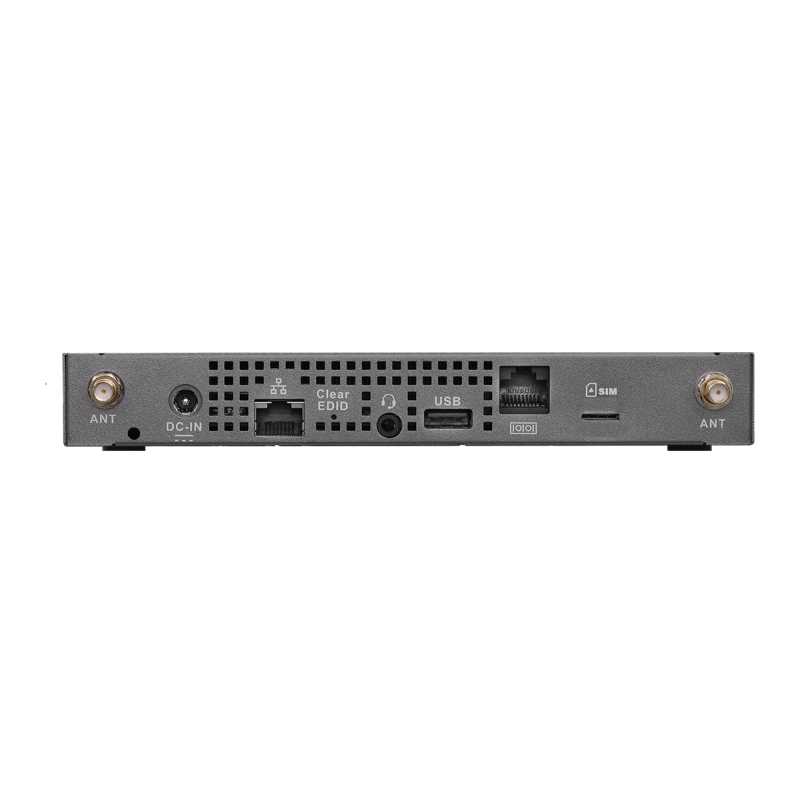

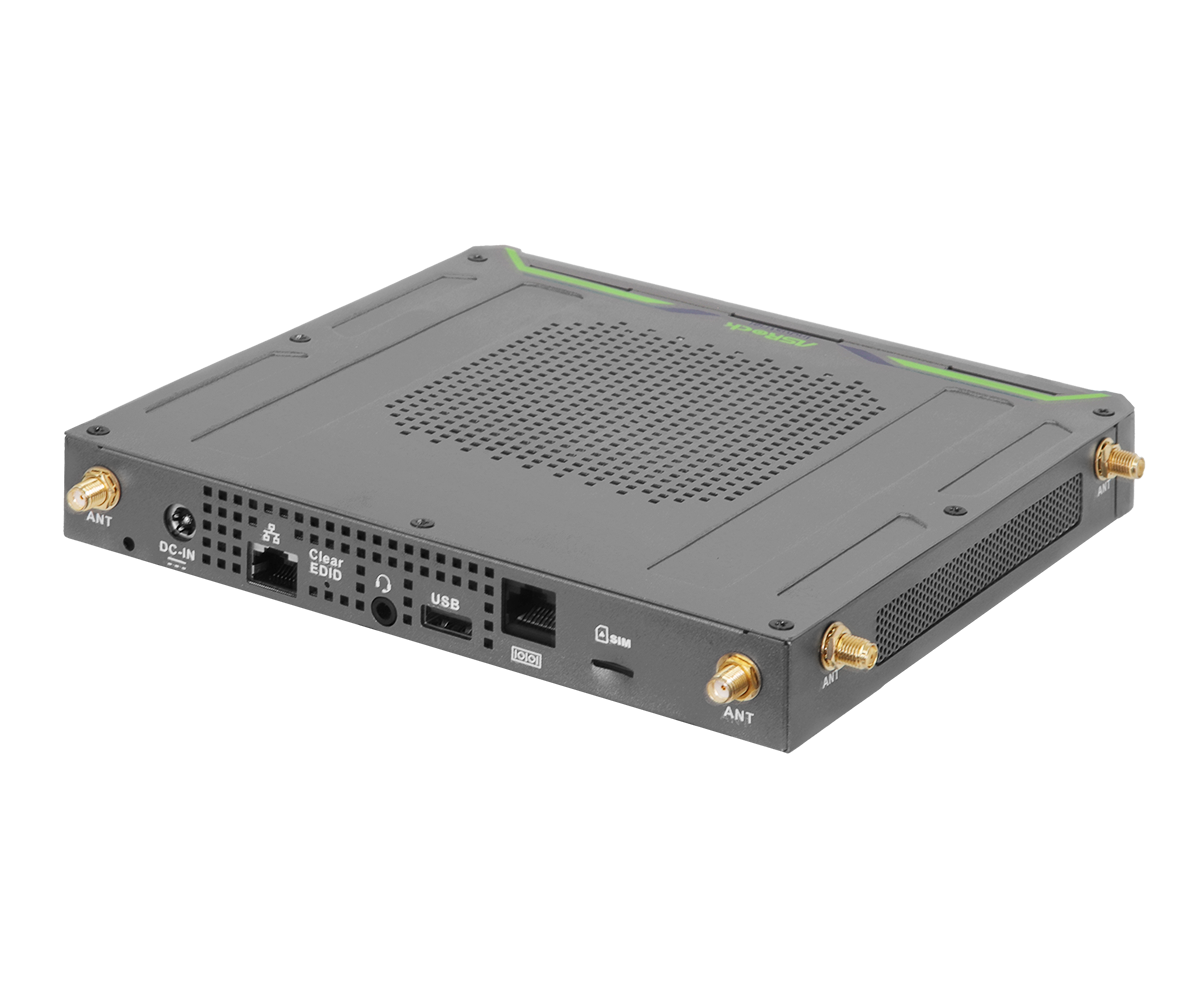

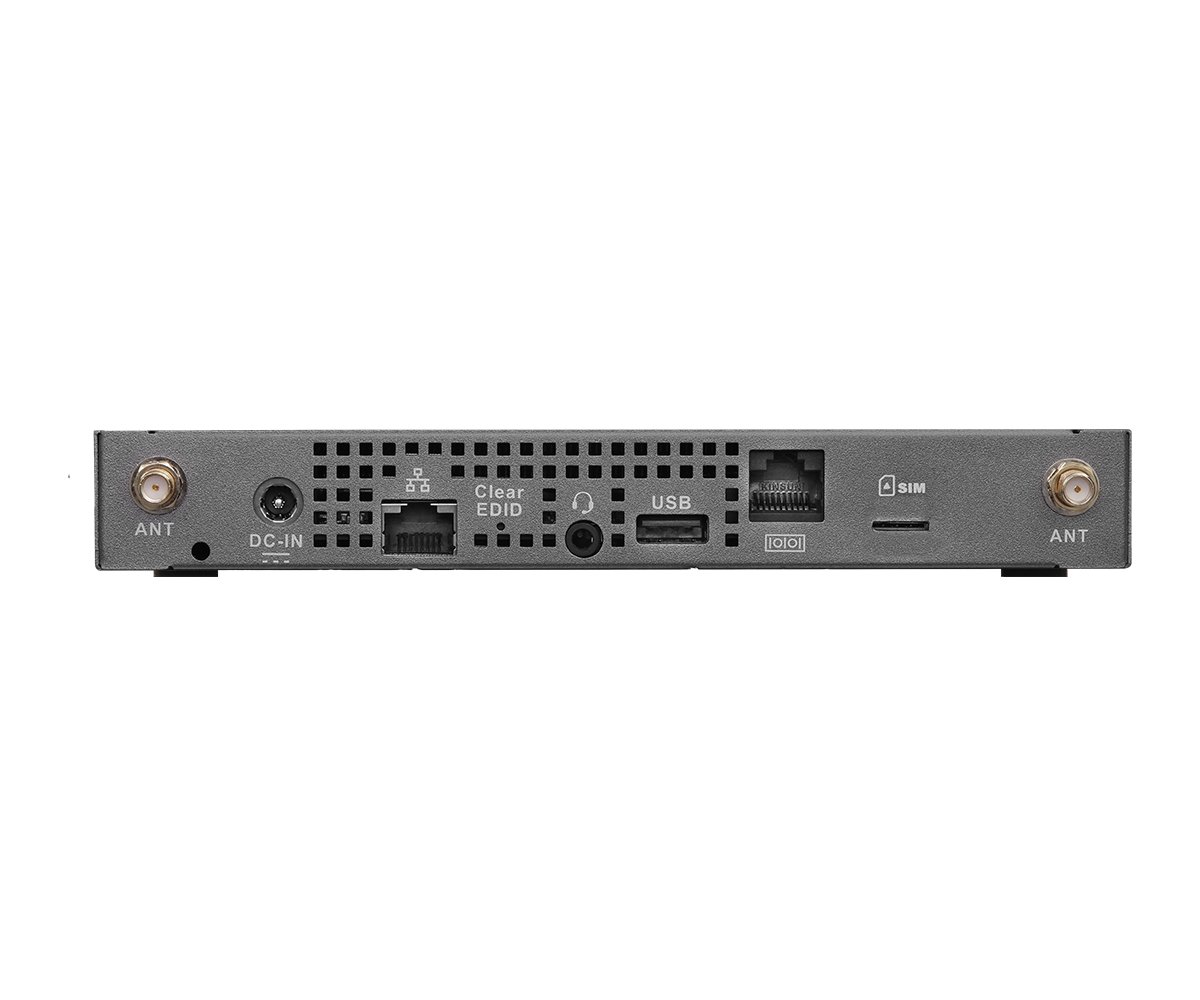

Rear l/O

1 x DC Jack

1 x 2.5 Gigabit LAN

1 x RS232 (RJ50)

1 x USB 2.0

1 x Audio (Mic-in or Line-out)

1 x Clear EDID Button

1 x SIM Socket

Power

Input PWR: 12V~19V DC-In Jack

Power On: AT/ATX Supported

- AT : Directly PWR on as power input ready

- ATX : Press button to PWR on after power input ready

Operation Temperature

Operating Temp 0ºC ~ 40ºC

Storage Temp -40° C – 85° C

Operating Humidity 5% ~ 90%

Storage Humidity 5% ~ 90%
