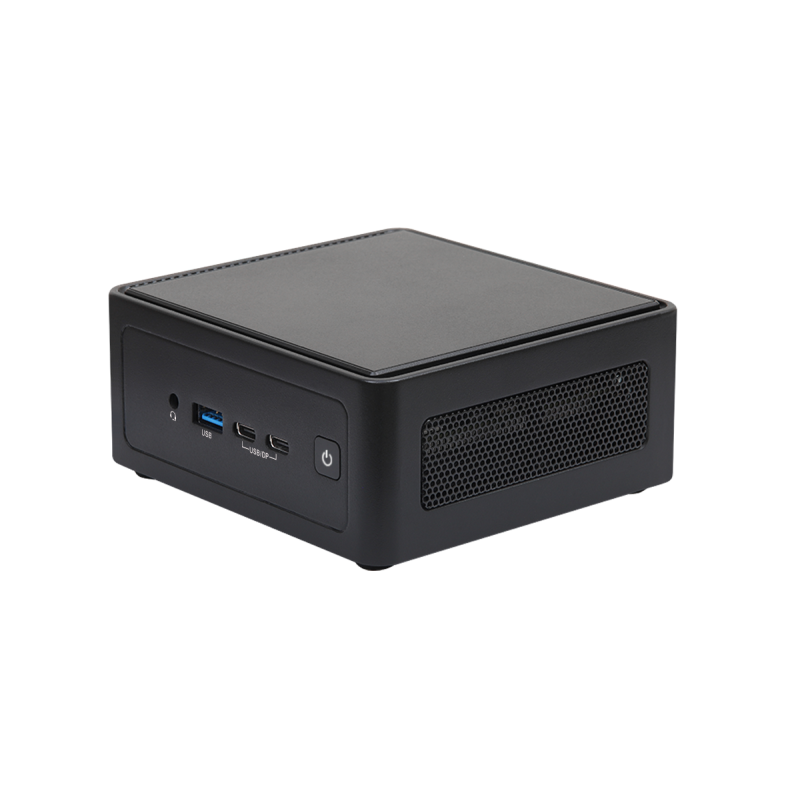

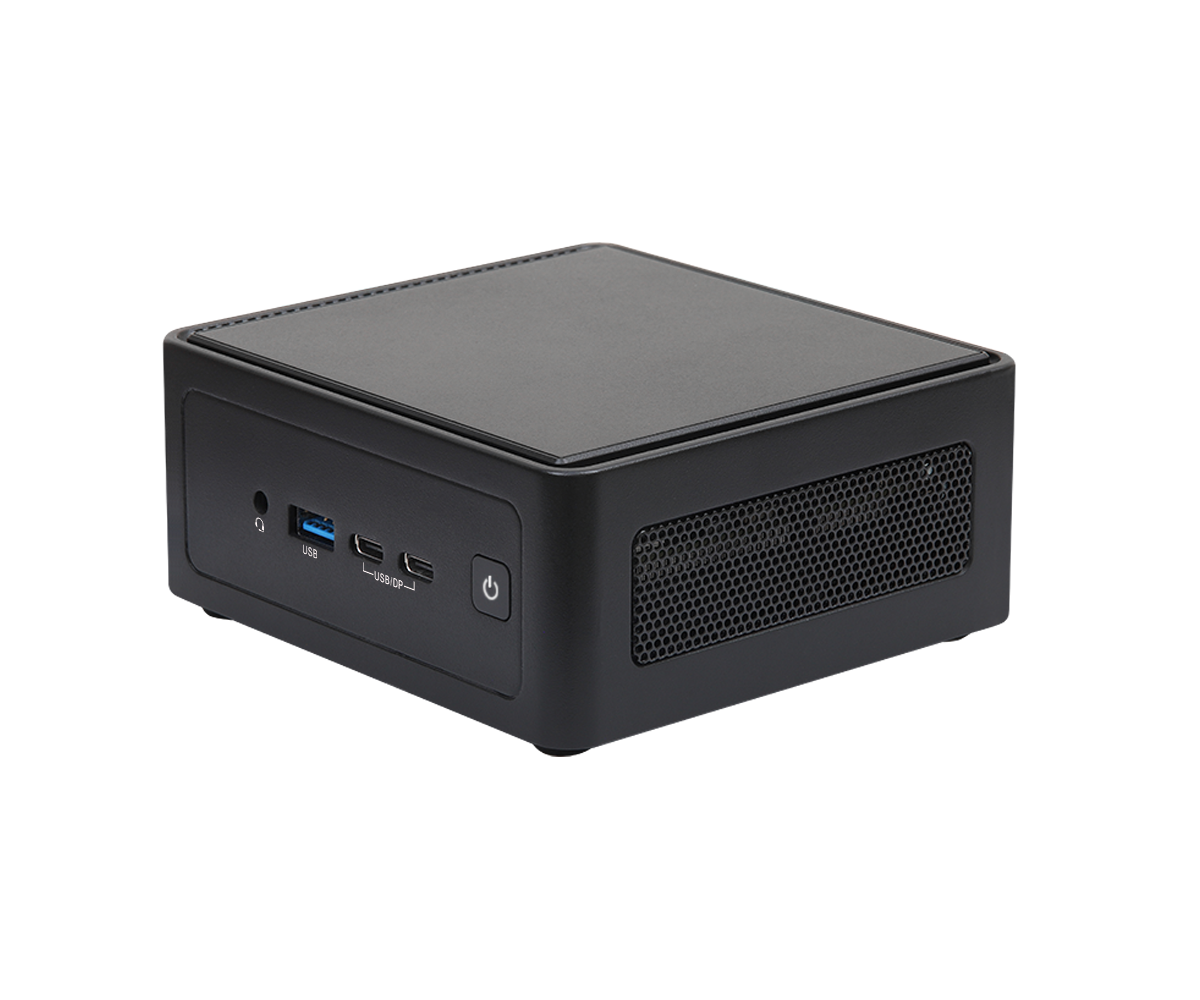

4X4 BOX Serie AI 300
- AMD Ryzen™ AI 300 Series (AI340 / AI350)
- 2 x 262-pin SO-DIMM DDR5 5600 MHz, up to 96GB (48GB per DIMM)
- 2 x USB4, 1 x USB 3.2 Gen2, 2 x USB 3.2 Gen1, 2 x M.2 Key M, 1 x M.2 Key E (WiFi-6E Module)
- 1 x Realtek Gigabit LAN, 1 x Realtek 2.5 Gigabit LAN
- Supports Quad display, 2 x HDMI 2.1, 2 x DP 1.4a (from Type C)
- 19V Power Adapter
- 117.5 x 110.0 x 49mm (4.63" x 4.33" x 1.93"), Fanned Barebone
Dimensions
117.5 x 110.0 x 49mm(4.63" x 4.33" x 1.93")
CPU
AMD Ryzen™ AI 300 Series
- 4X4 BOX-AI350 (AMD Ryzen™ AI 7 350, 8Cores, Max Speed up to 5.0GHz)
Memory
Dual Channel DDR5 5600 MHz
96GB (48 GB per DIMM)
*Recommended: Use at least 16 GB memory module to enhance
performance.
2 x 262-pin SO-DIMM
Ethernet
LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek RTL8111H with 10/100/1000 Mbps
2 x RJ-45
Graphics Support
AMD Radeon™ Graphics
HDMI 2.1
Max resolution up to 7680x4320@60Hz
DisplayPort 1.4a
Max resolution up to 4096x2160@60Hz
MultiDisplay: Max 4 display (Included 2 outputs from Type-C)
Audio
Realtek ALC256, High Definition Audio.
Storage
1 x M.2 (KEY M, 2242/2280) with PCIe Gen4x4 for SSD
1 x M.2 (KEY M, 2242) with PCIe Gen4x4 for SSD
Expansion-Slots
1 x Wi-Fi 6E 802.11ax + BT 5.2

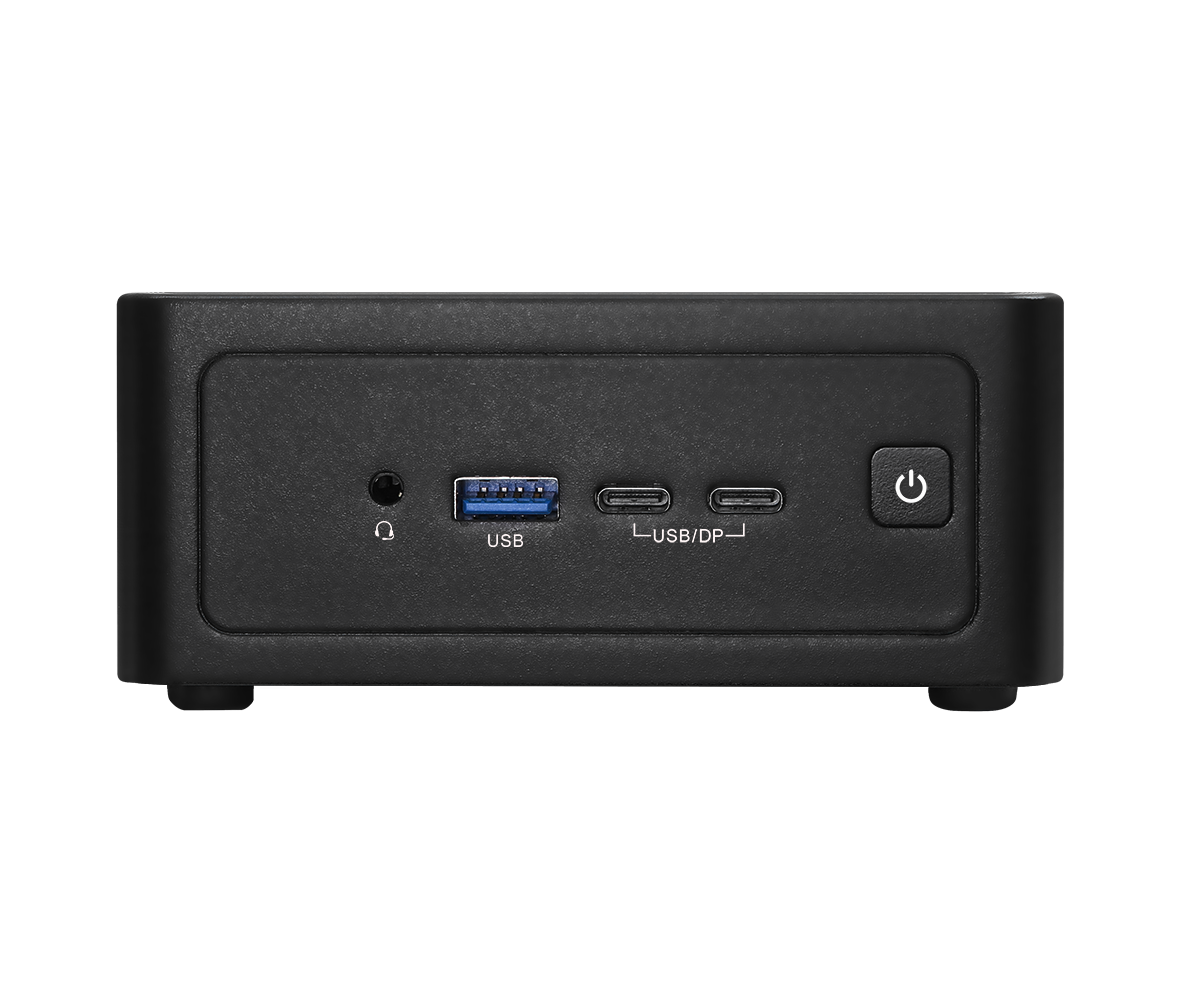

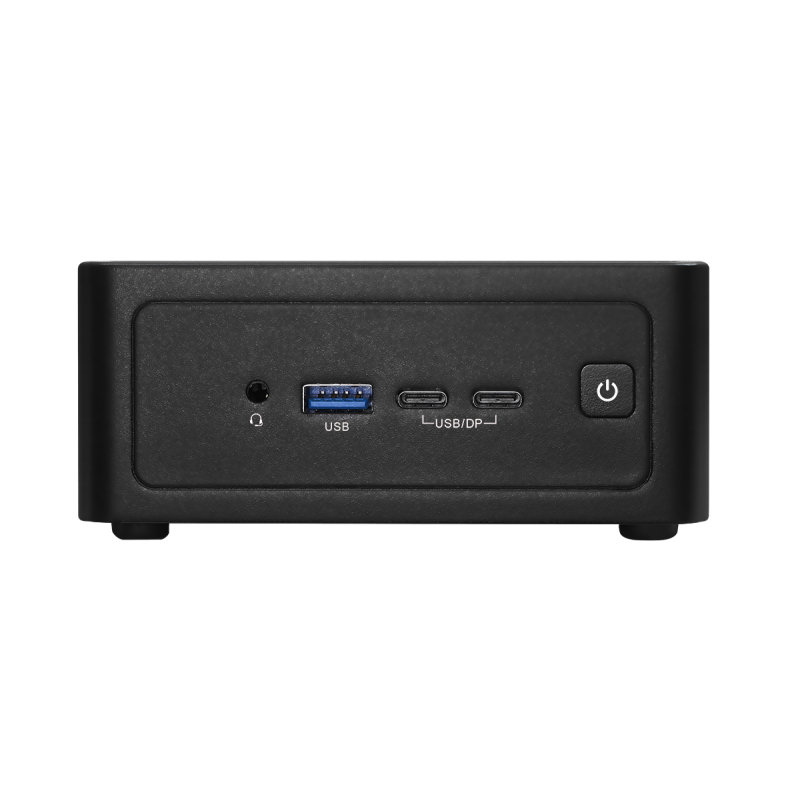

Front I/O
1 x USB 3.2 Gen2 (Type-A)
2 x USB4 (Supports DP1.4a display output)
1 x Audio (headphone & microphone jack)

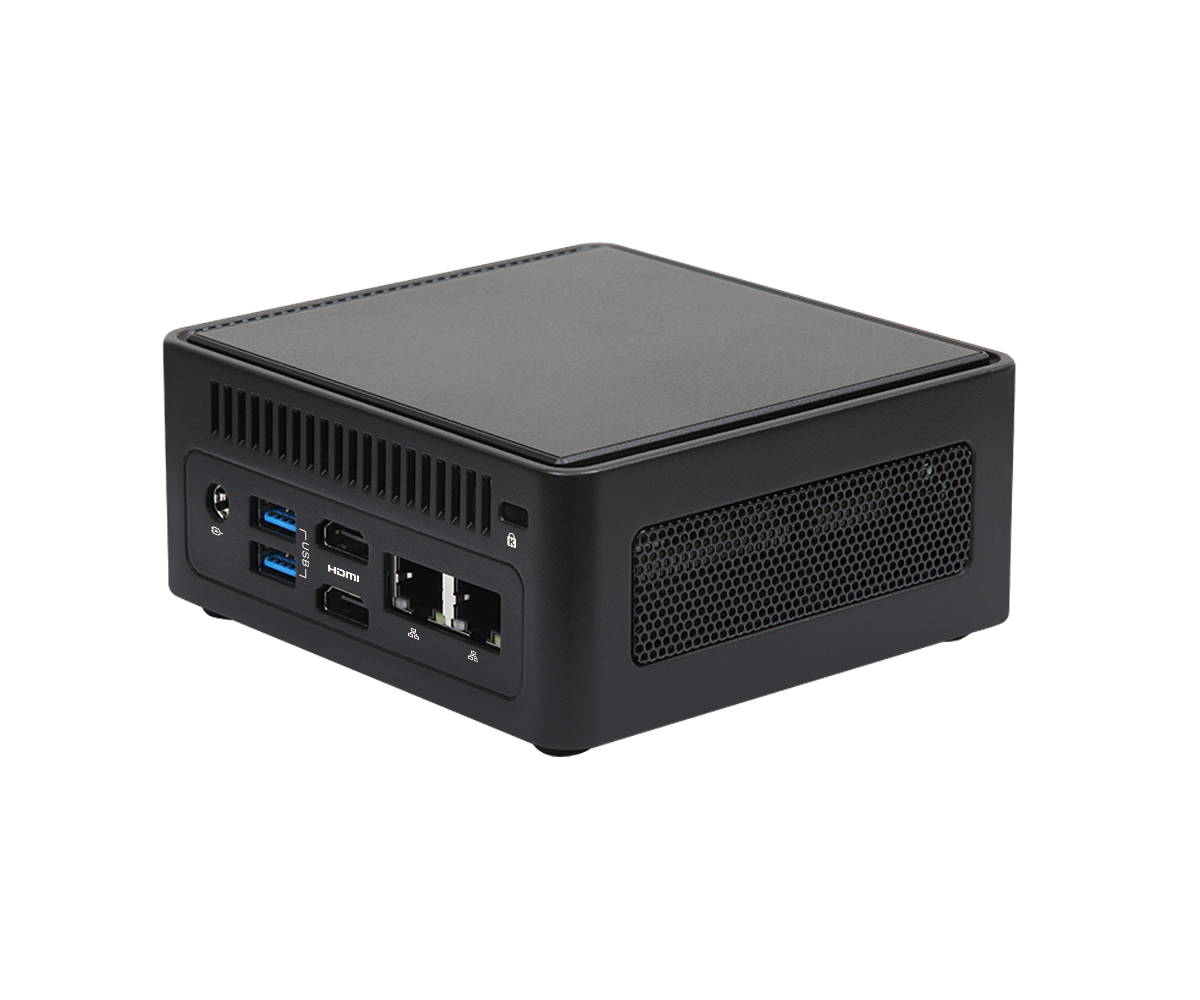

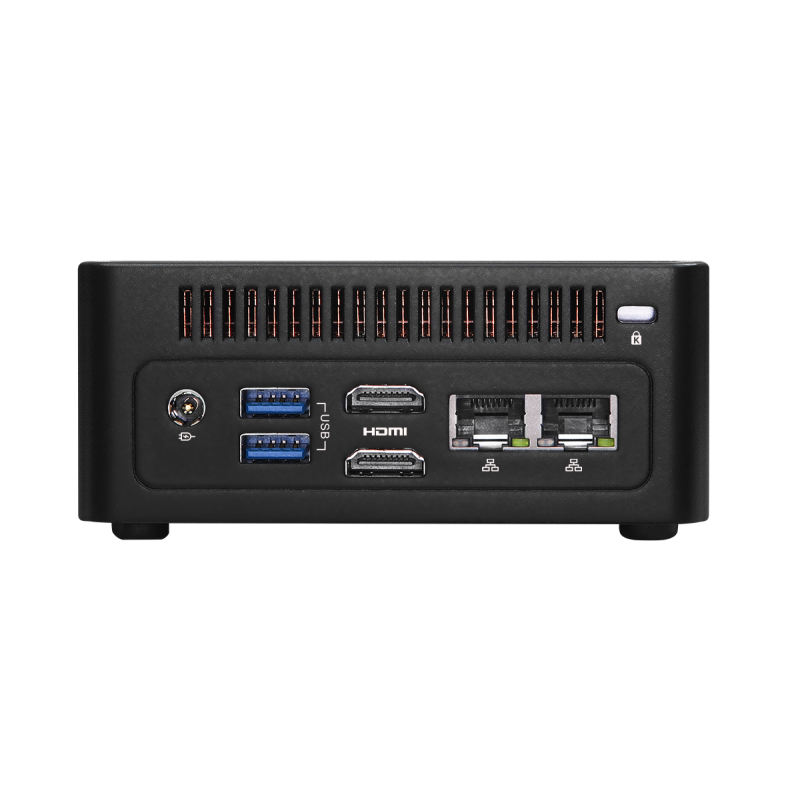

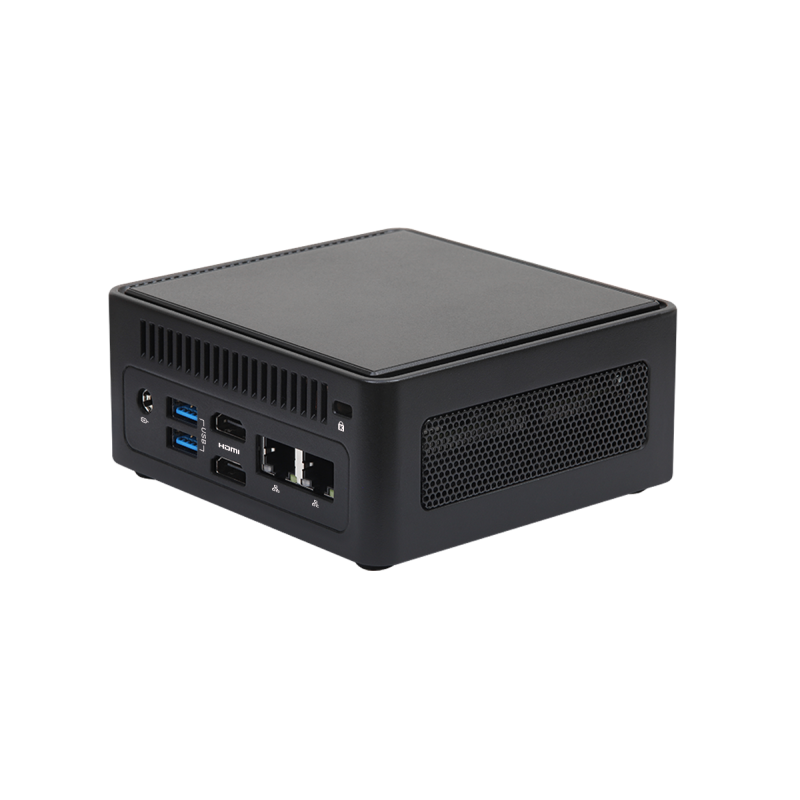

Rear l/O
2 x HDMI 2.1
1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
2 x USB 3.2 Gen1
1 x DC Jack
Power
Input PWR: 12V~24V DC-In Jack
Power On: AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready
Operation Temperature
Operating Temp 0ºC ~ 40ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%
Specifiche Tecniche
| CPU | AMD Ryzen™ AI 300 Series - AI350 / AI340 |
|---|---|
| Tipo Memoria | 96GB DDR5 SO-DIMM 5600MHZ |
| Storage | x1 M.2 2280 PCIe + x1 M.2 2242 PCIe |
| GPU | AMD Radeon™ Graphics |
| Porte USB | 1 x 1 Gigabit LAN + 1 x 2.5 Gigabit LAN 2 x HDMI 2 x Jack 2 x USB4 + 2 x USB 3.2 Gen1 + 1 x USB 3.2 Gen2 Type-A |
| Lan | x1 10/100/1000 Mbps, 1G LAN x1 10/100/1000/2500 Mbps, 2.5G LAN |
| Dimensioni | 117.5 x 110.0 x 49 mm |
| Peso | 1000g |
