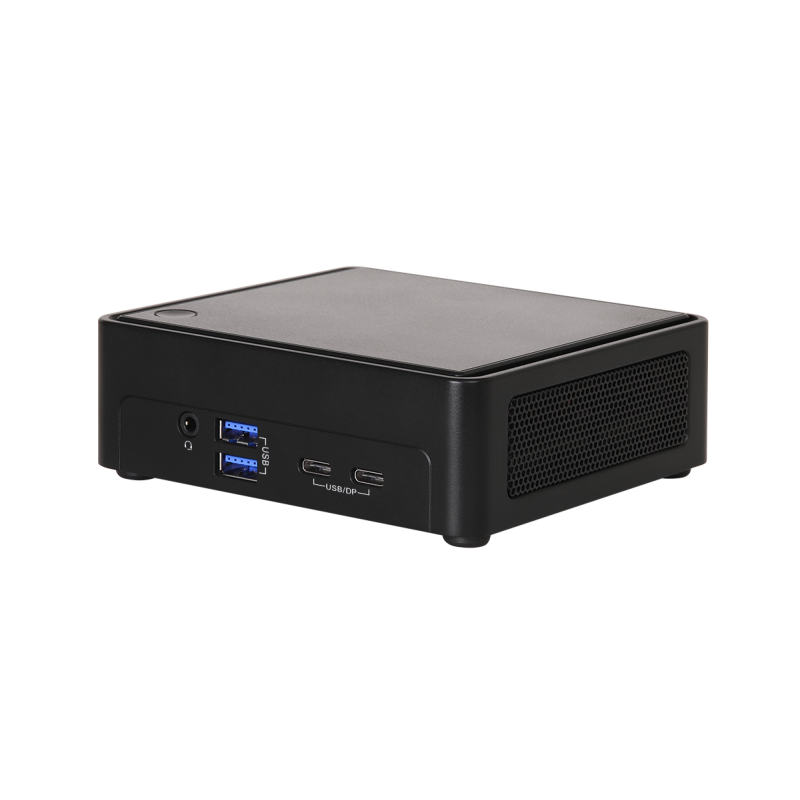

NUCS BOX Intel® Core™ Ultra Arrow Lake
- Intel® Core™ Ultra processors (Arrow Lake-H): 255H, 225H.
- 2 x 262-pin CSO-DIMM DDR5 6400MHz up to 96GB (48GB per DIMM)
- 1 x USB4/Thunderbolt™4, 5 x USB 3.2 Gen2, 2 x M.2 Key M, 1 x M.2 Key E (WiFi-6E Module)
- 1 x Intel 2.5 Gigabit LAN
- Supports Quad display, 2 x HDMI 2.1 TMDS, 1 x DP 2.1 (from Type-C), 1 x DP 1.4a (from Type-C)
- Intel® PTT
- Supports Intel® vPro, VMD RAID 0/1
- 19V Power Adapter
- 117.5 x 110.0 x 38mm (4.63" x 4.33" x 1.50"), Slim Type Fanned Barebone
Dimensions
117.5 x 110.0 x 38mm (4.63" x 4.33" x 1.50")
CPU
Intel® Core™ Ultra processors (Arrow Lake-H)
NUCS BOX-255H (Ultra 7 255H, 6P+8E)
Memory
Dual Channel DDR5 6400 MHz
96GB (48 GB per DIMM)
2 x 262-pin SO-DIMM
Ethernet
LAN1: Intel® I226LM with 10/100/1000/2500 Mbps
1 x RJ-45
Graphics Support
Intel® Arc™ 140T graphics
HDMI 2.1 TMDS
Max resolution up to 4096x2160@60Hz
DisplayPort 1.4a/ 2.1, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay: Quad-Display (Included 2 outputs from Type-C)
Audio
Realtek ALC256, High Definition Audio.
Storage
M.2: 1 x M.2 (KEY M, 2280) with PCIe Gen4x4 for SSD
1 x M.2 (KEY M, 2242) with PCIe Gen4x1 for SSD
RAID: Intel® VMD RAID 0/1
**supported by identical interface (PCIe)
PCIe interface: 2*M.2 Key M
Expansion-Slots
1 x Wi-Fi 6E 802.11ax + BT 5.3

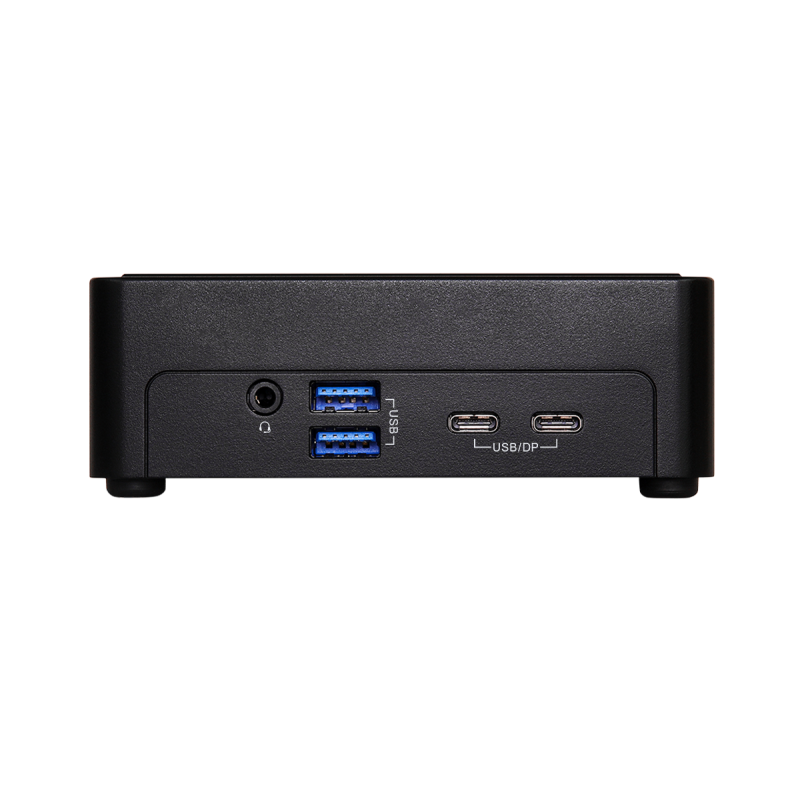

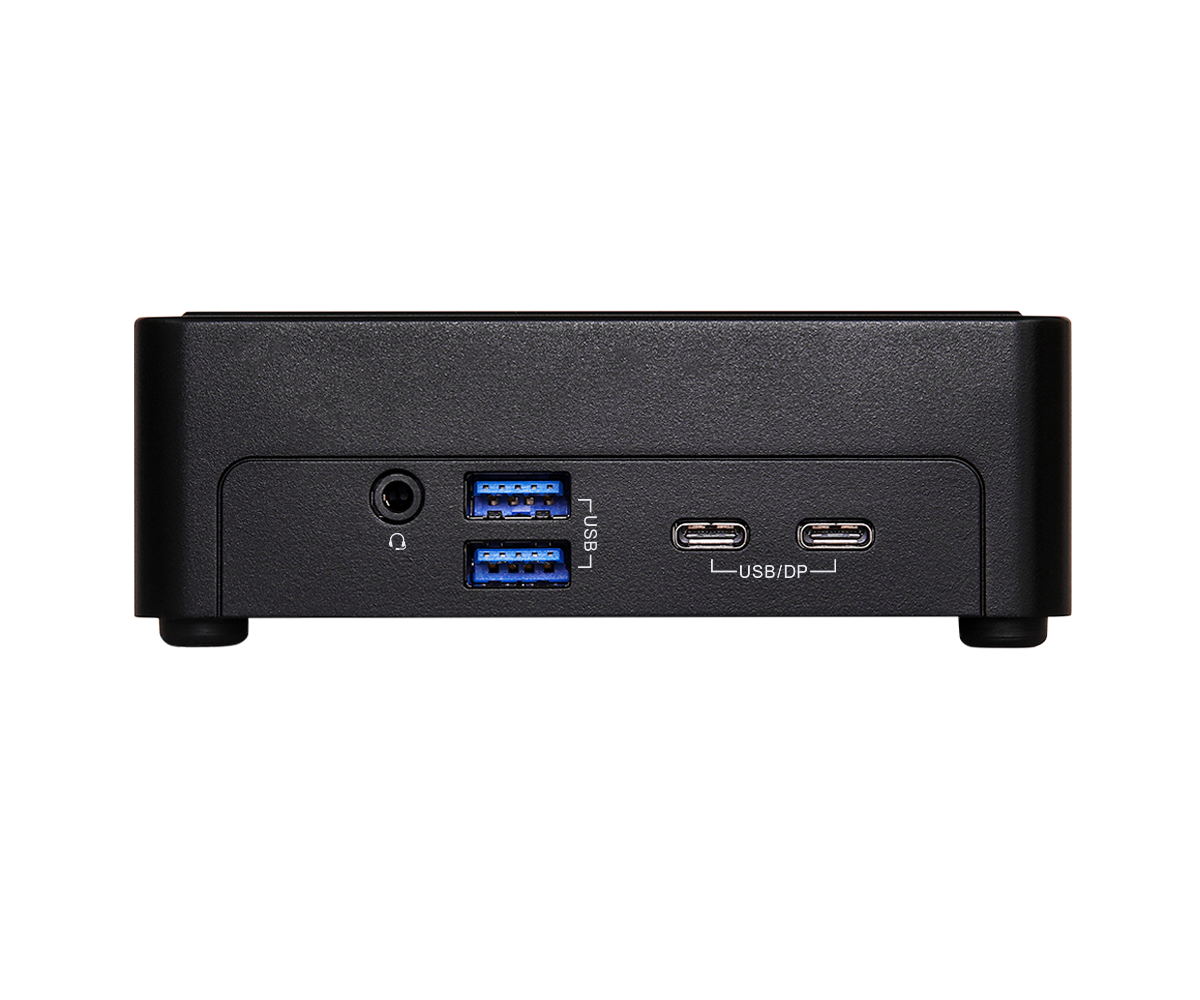

Front I/O
2 x USB 3.2 Gen2 (Type A)
1 x USB4/Thunderbolt™ 4 (Supports DP 2.1 display output)
1 x USB3.2 Gen2x2 (Type-C, Supports DP1.4a display output)
*For Thunderbolt support, please refer to support list.
1 x Audio (headphone & microphone jack)

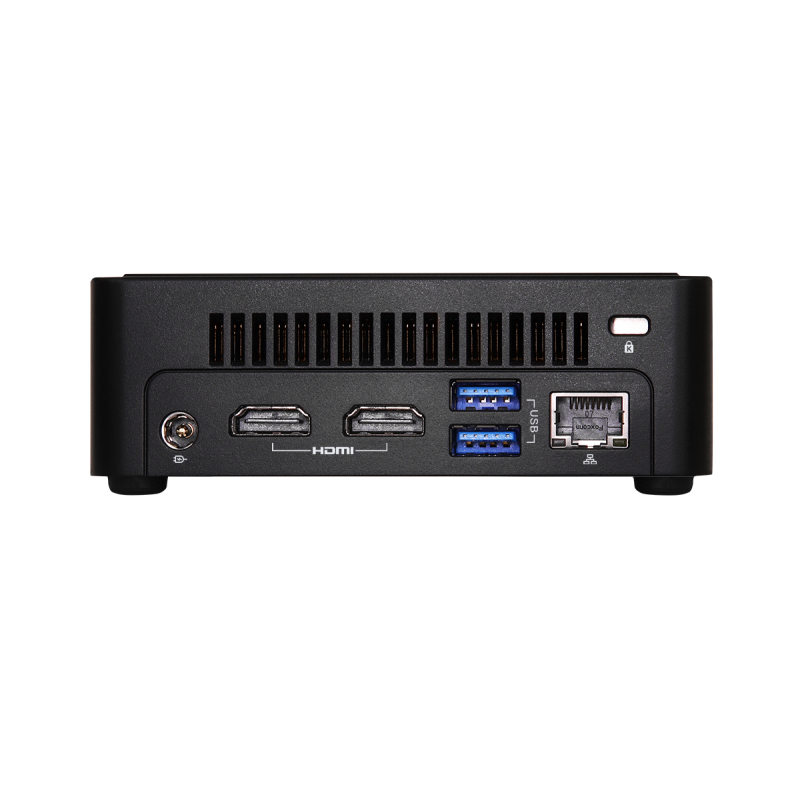

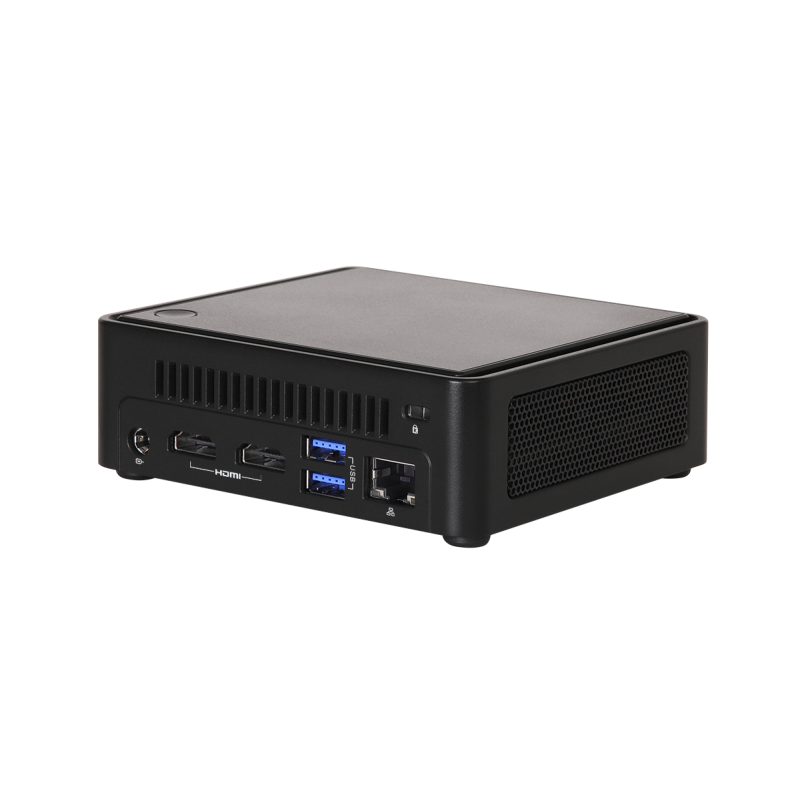

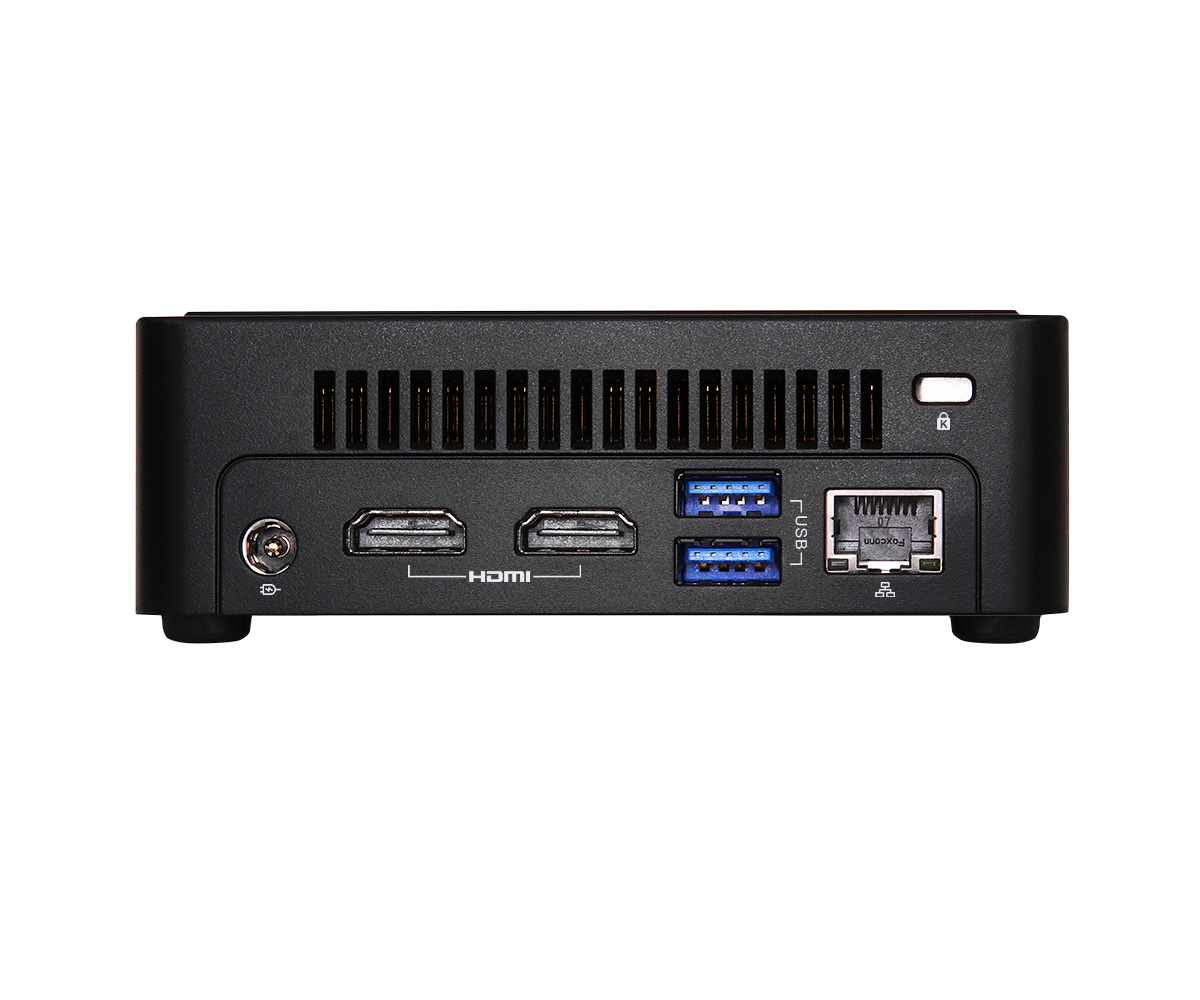

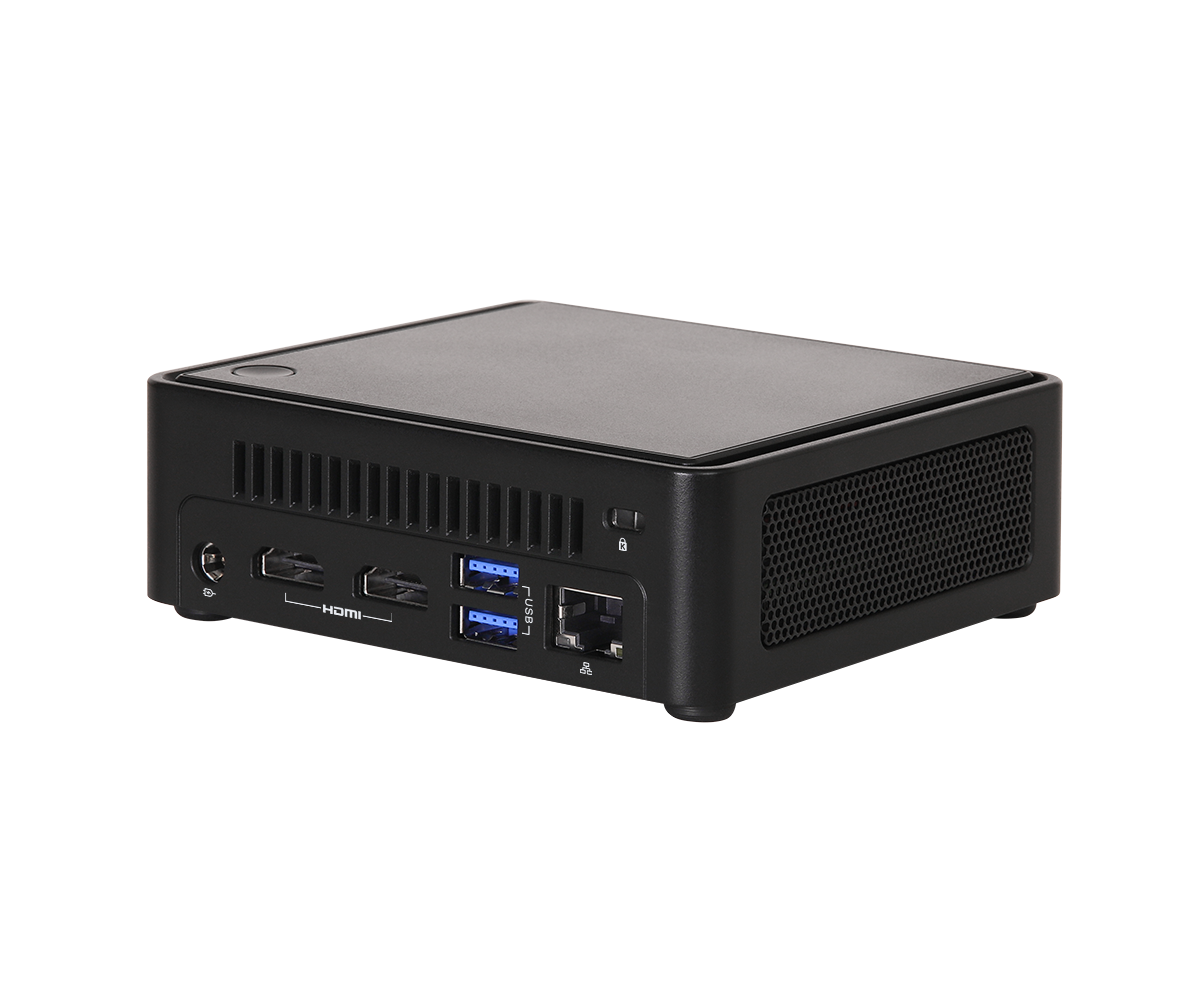

Rear l/O
2 x HDMI 2.1 TMDS
1 x 2.5 Gigabit LAN
2 x USB 3.2 Gen2 (Type-A)
1 x DC Jack
Power
Input PWR: 12V~24V DC-In Jack
Power On: AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Operation Temperature
Input PWR 12V~24V DC-In Jack
Power On AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Specifiche Tecniche
| CPU | Intel® Core™ Ultra Arrow Lake (255H / 225H) |
|---|---|
| Tipo Memoria | 96GB DDR5 SO-DIMM 6400MHZ |
| Storage | 1 x M.2 PCIe (KEY M, 2280) + 1 x M.2 PCIe (KEY M, 2242) |
| GPU | Intel® Arc™ 140T graphics |
| Porte USB | 1 x 2.5 Gigabit LAN 2 x HDMI 2 x Jack 4 x USB 3.2 Gen2 Type A + 1 x USB4 + 1 x USB3.2 Gen2x2 Type-C |
| Lan | x1 10/100/1000/2500 Mbps, 2.5G LAN |
| Dimensioni | 117.5 x 110.0 x 38 mm |
| Peso | 1000g |
