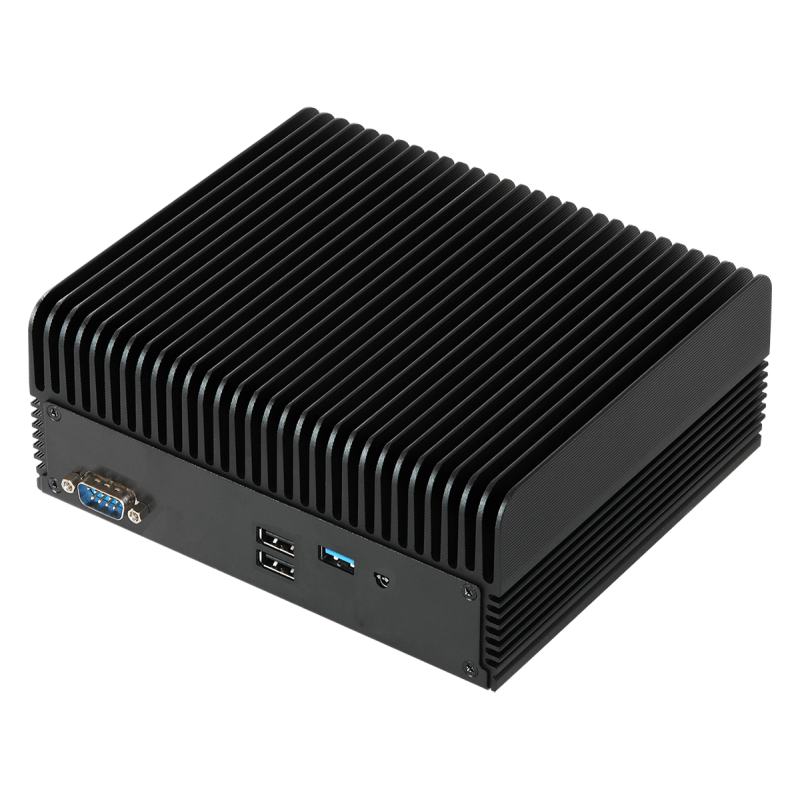

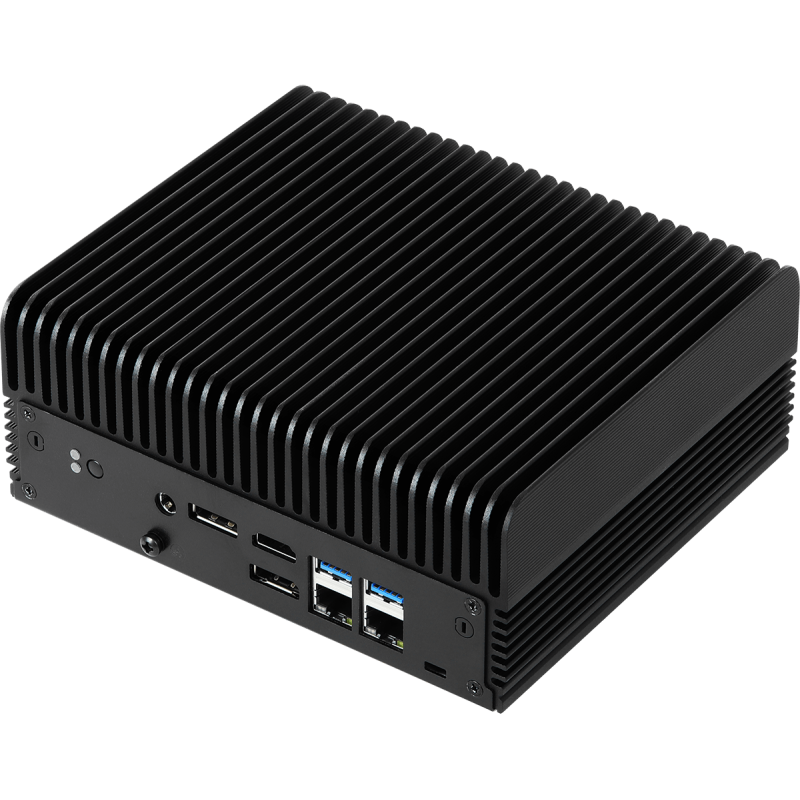

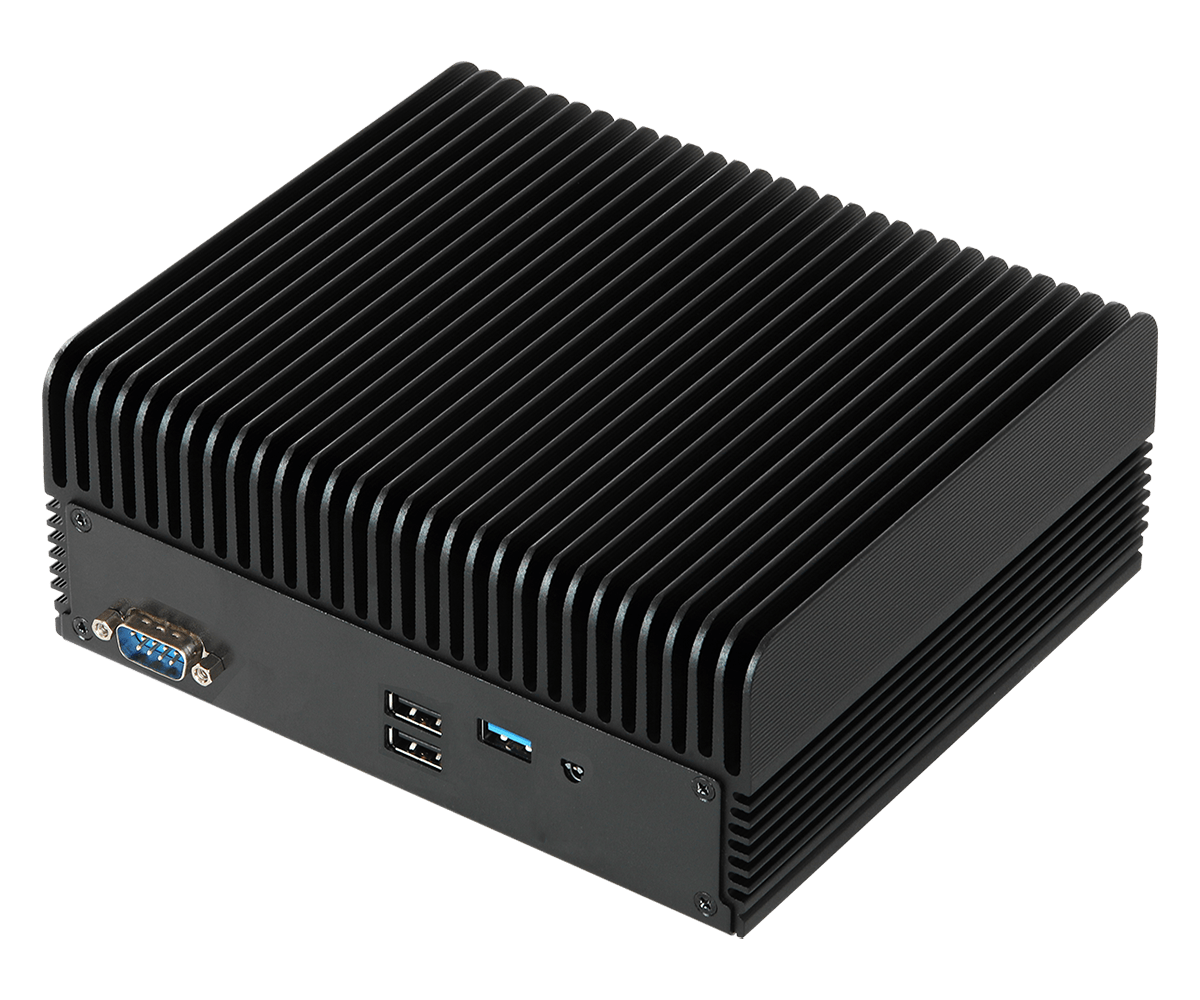

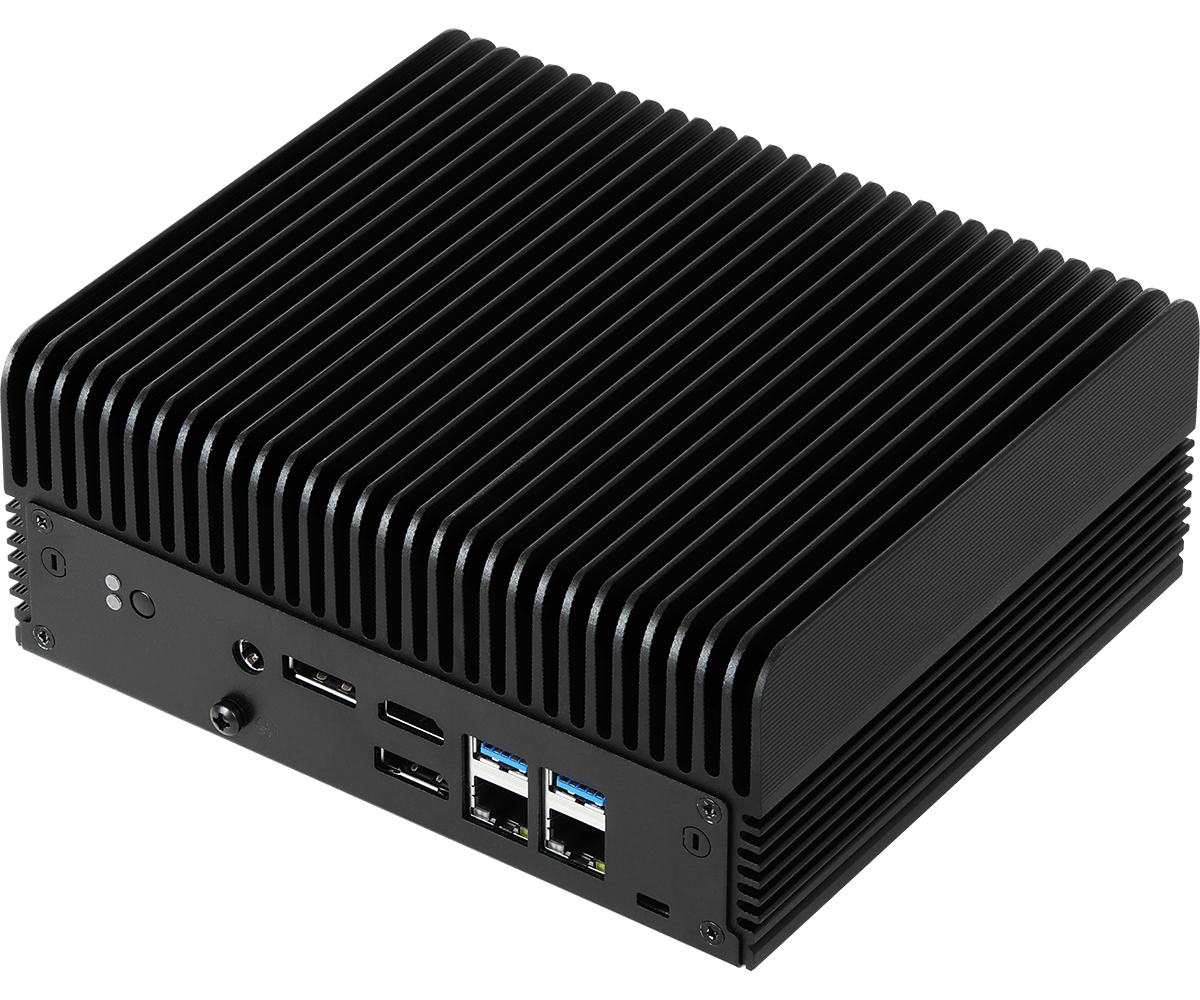

iBOX-8365UE

Dimensions

171.8 x 150 x 71.5 mm

CPU

Intel® 8th Gen (Whiskey lake-U) Core™ Processors

I5-8365UE QC, up to 4.10 GHz

Memory

Dual Channel DDR4 2400 MHz

32 GB (16 GB per DIMM)

2 x 260-pin SO-DIMM

Ethernet

iBOX-8365UE / iBOX-8665UE:

LAN1: 1 x Intel® I219LM, supports AMT/vPro

LAN2: 1 x Realtek RTL8111H

iBOX-8145UE:

LAN1: 1 x Intel® I219V

LAN2: 1 x Realtek RTL8111H

Graphics Support

Intel® Gen9 Graphics DX 12

HDMI 1.4b

Max resolution up to 4096 x 2160@24Hz

DisplayPort 1.2a

Max resolution up to 4096 x 2160@60Hz

MultiDisplay: Triple Display

Audio

Realtek ALC233, High Definition Audio, Line-out, Mic-in

Storage

M.2: 1 x M.2 (Key M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD

*M.2 Key M 2280(optional support, by bracket)

SATA: 1 x SATA3 (6Gb/s), SATA3_1 shared with M.2_Key M

Expansion-Slots

M.2: 1 x Key E (2230) with PCIe x1 and USB 2.0 for Wireless

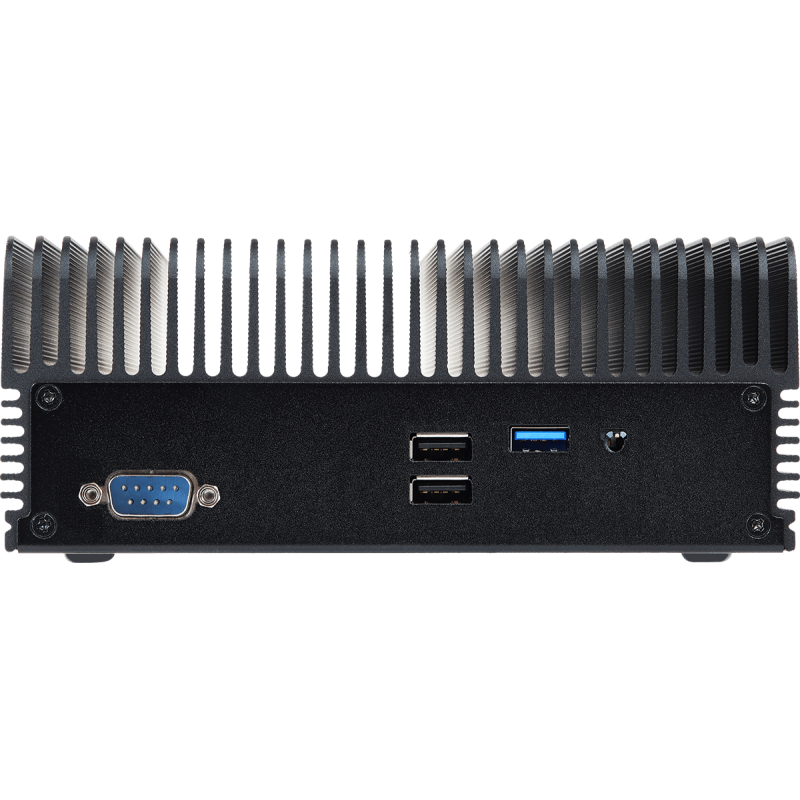

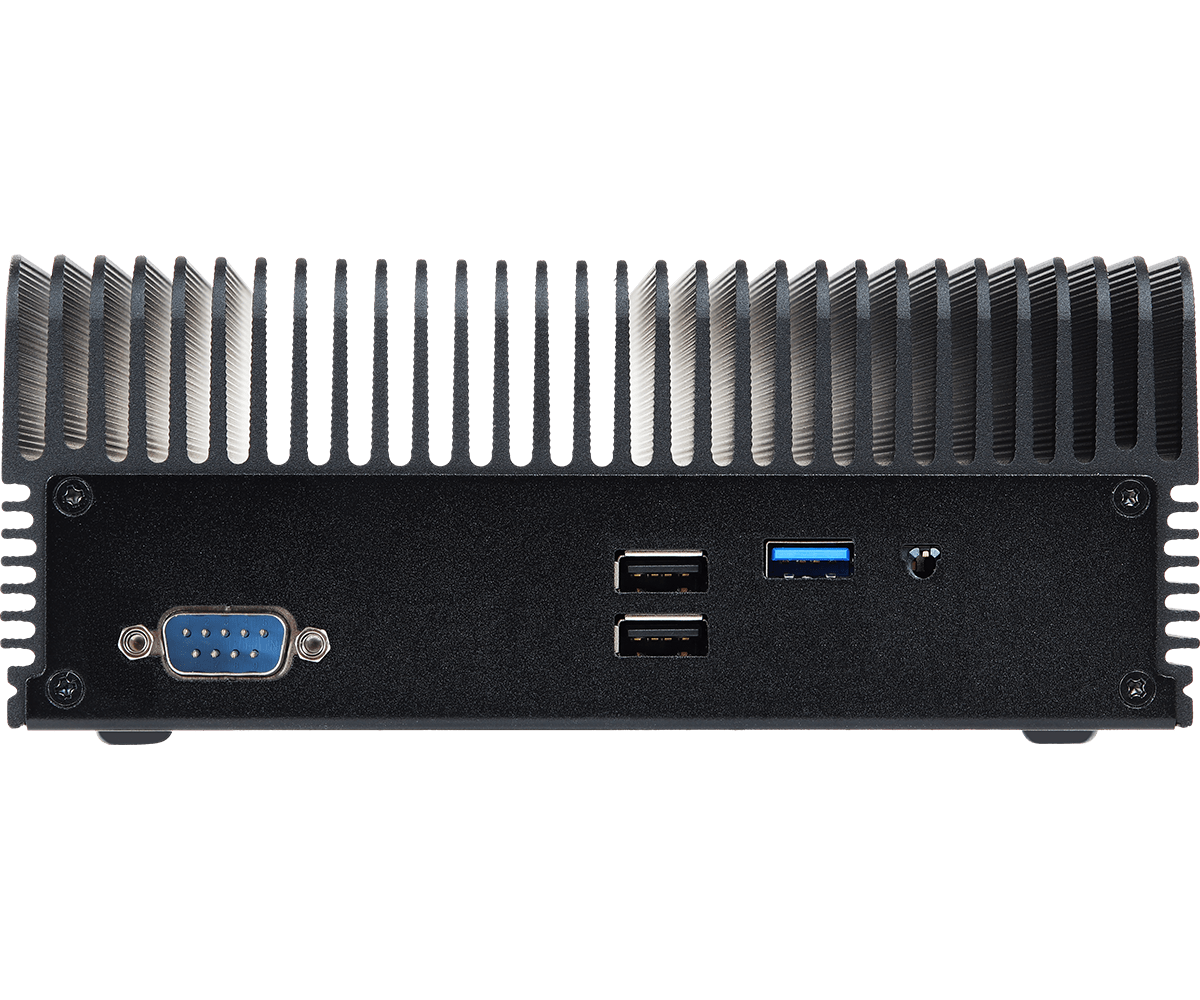

Front I/O

1 x USB 3.2 (Gen1) + 2 x USB 2.0

1 x COM (RS-232)

1 (Mic-in or Line-out)

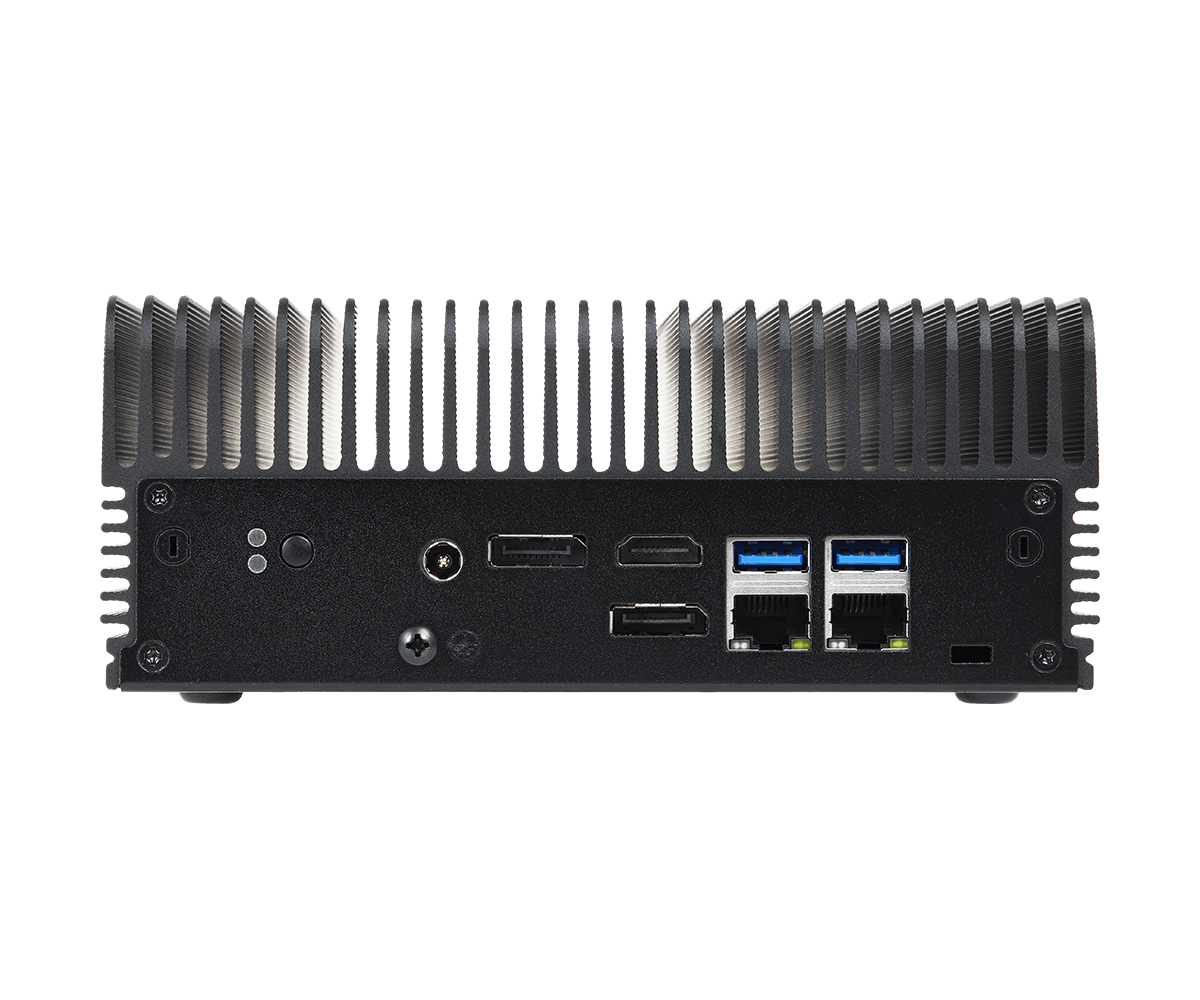

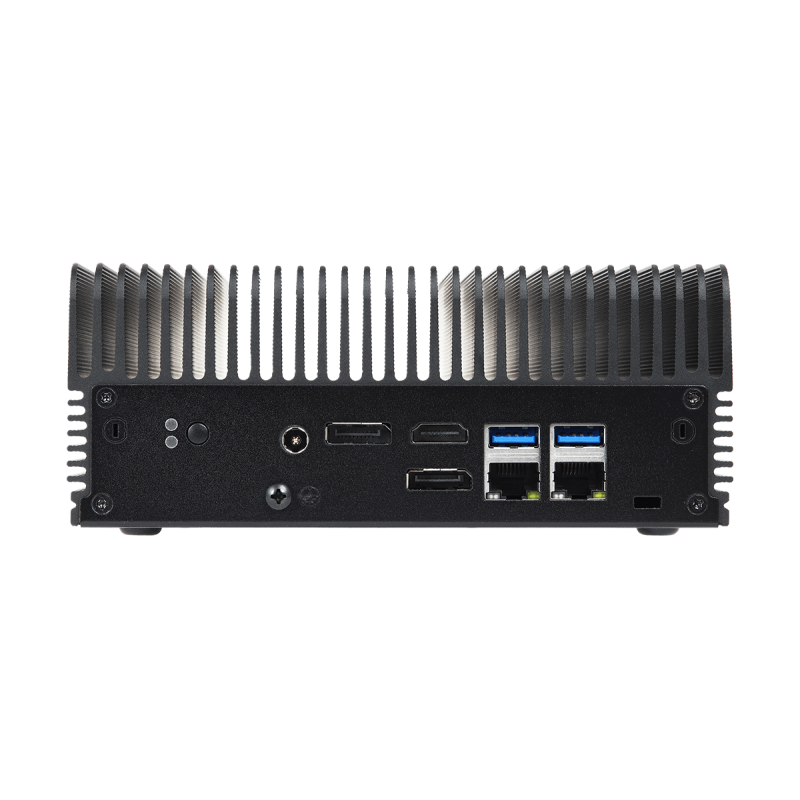

Rear l/O

1 x HDMI 1.4

2 x DP 1.2a

2 x 1 Gigabit LAN

2 x USB 3.2(Gen2)

1 x DC Jack

Power

Input PWR: 1 x 12V/96W Power Adapter

Power On: AT/ATX supported

-AT: Direct PWR on as power input ready

-ATX:Press button to PWR on after power input ready

Operation Temperature

Operating Temp -20ºC ~ 40ºC (With extended temp. peripherals)

Storage Temp -40° C ~ 85° C

Operating Humidity 10% ~ 90%

Storage Humidity 10% ~ 90%
