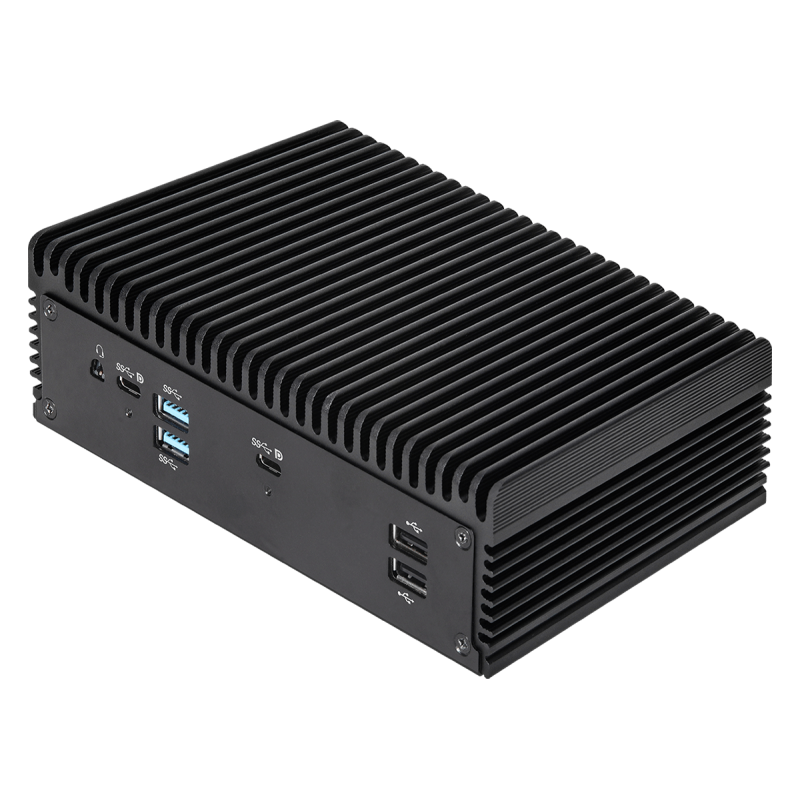

iBOX Intel® Core 11th Gen.

Dimensions

171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97")

CPU

Intel® 11th Gen (Tiger Lake-UP3) Core™ Processors

iBOX-1185G7E (I7-1185G7E, QC, Max Speed up to 4.4GHz)

Memory

Dual Channel DDR4 3200 MHz

64GB (32 GB per DIMM)

2 x 260-pin SO-DIMM

Ethernet

LAN1: Intel® I219LM with 10/100/1000 Mbps, supports vPro

LAN2: Intel® I225LM/I225V with 10/100/1000/2500 Mbps

Graphics Support

Intel® Iris® Xe Graphics

HDMI 2.0a

Max resolution up to 4096x2160@60Hz

DisplayPort 1.4, DP++

Max resolution up to 4096x2160@60Hz

MultiDisplay: Quad-Display (Included 2 outputs from Type-C)

Audio

Realtek ALC233/ALC256, High Definition Audio.

Storage

M.2: 1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe Gen4 x4 for SSD

*M.2 Key M 2280(Supported by bracket)

SATA: 1 x SATA3.0 (6.0 Gb/s)

Expansion-Slots

M.2: 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

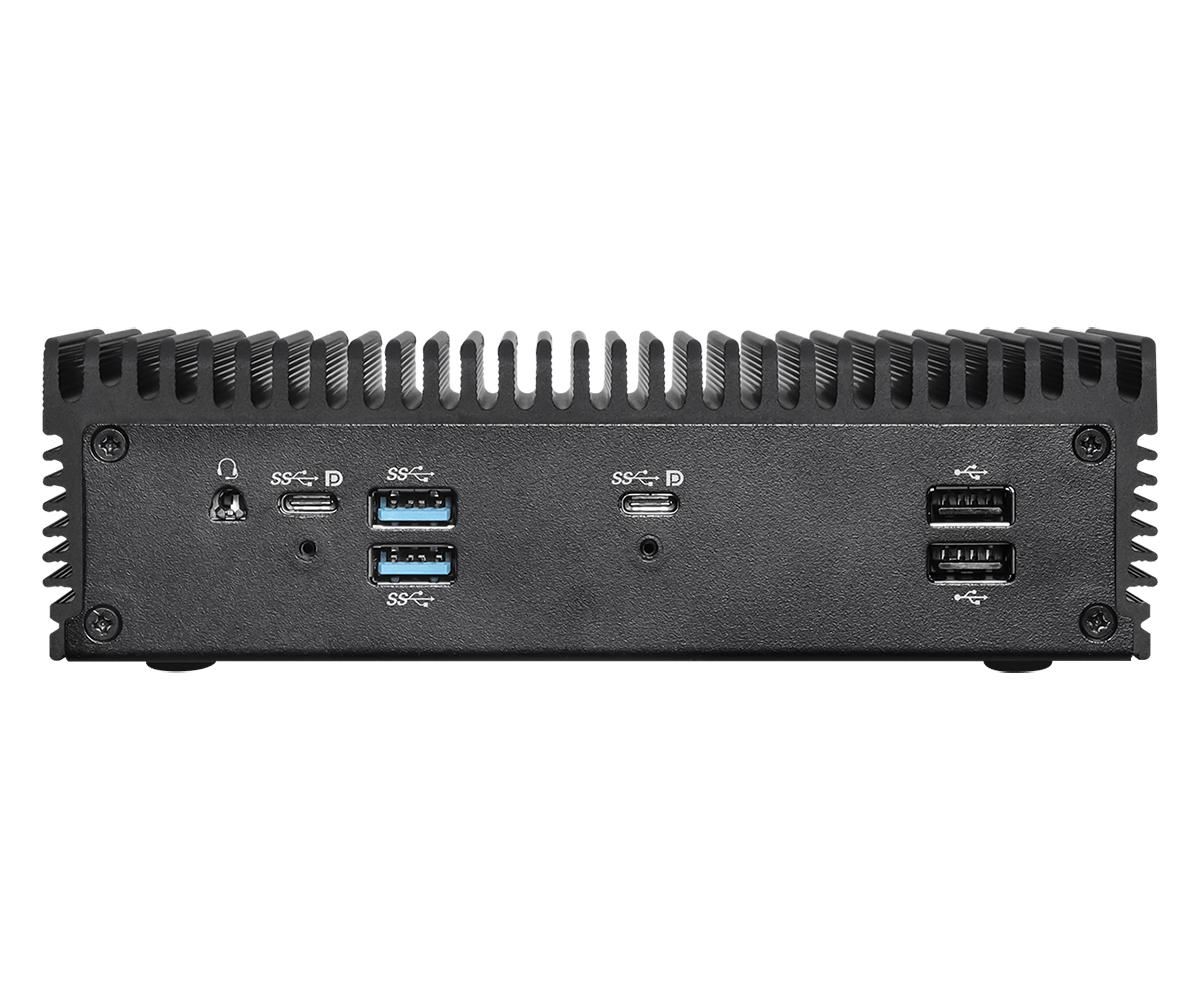

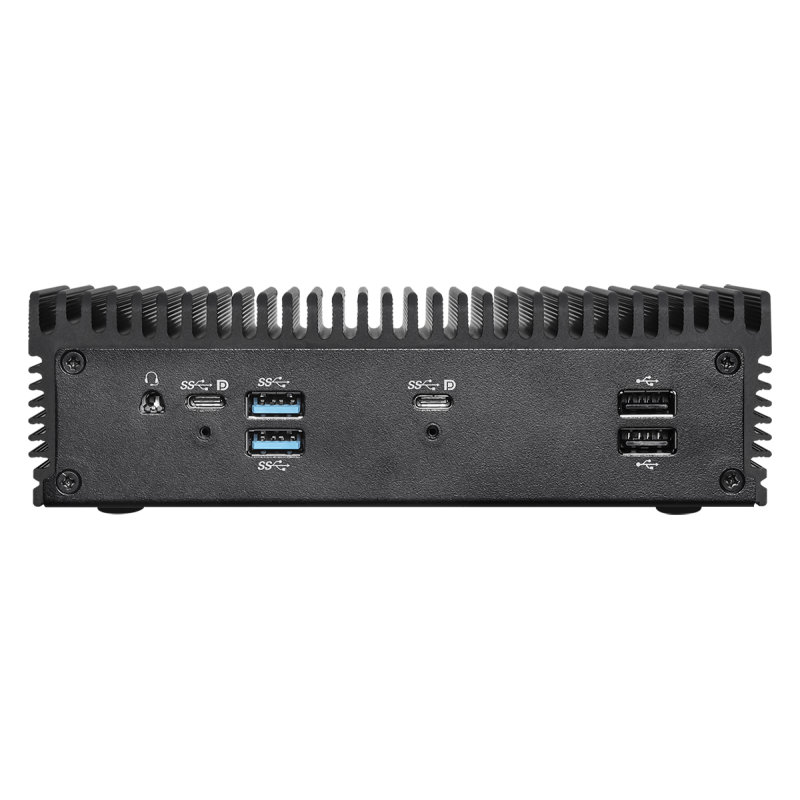

Front I/O

2 x USB 3.2 Gen2 (Type-A)

1 x USB4/Thunderbolt™ 4 (Supports DP1.4 display output)

1 x USB 3.2 Gen2 (Type-C,, supports DP1.4 display output)

2 x USB 2.0

*For Thunderbolt support, please refer to support list.

1 x Audio (headphone & microphone jack)

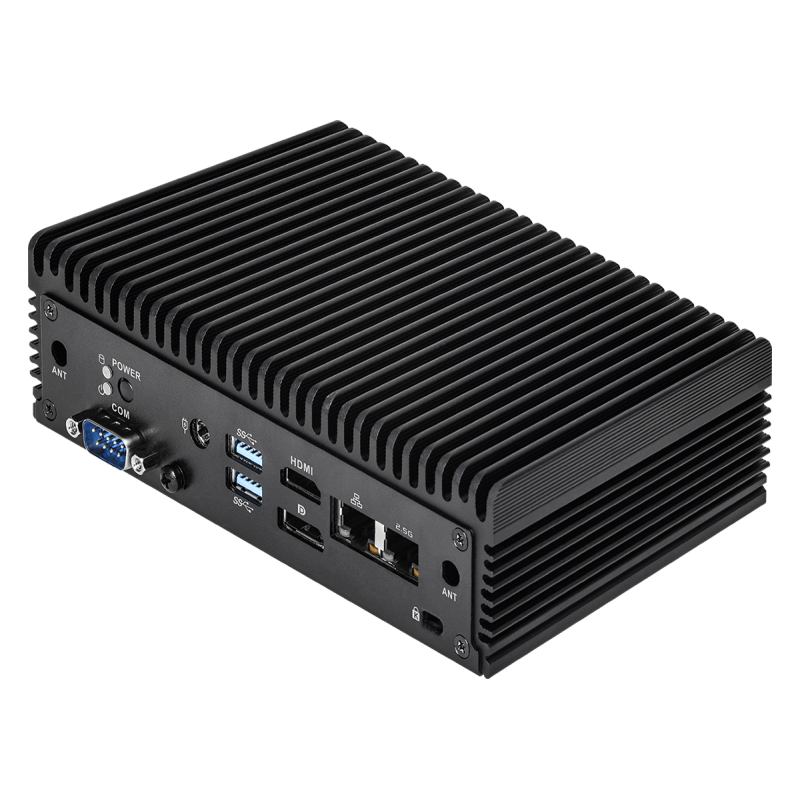

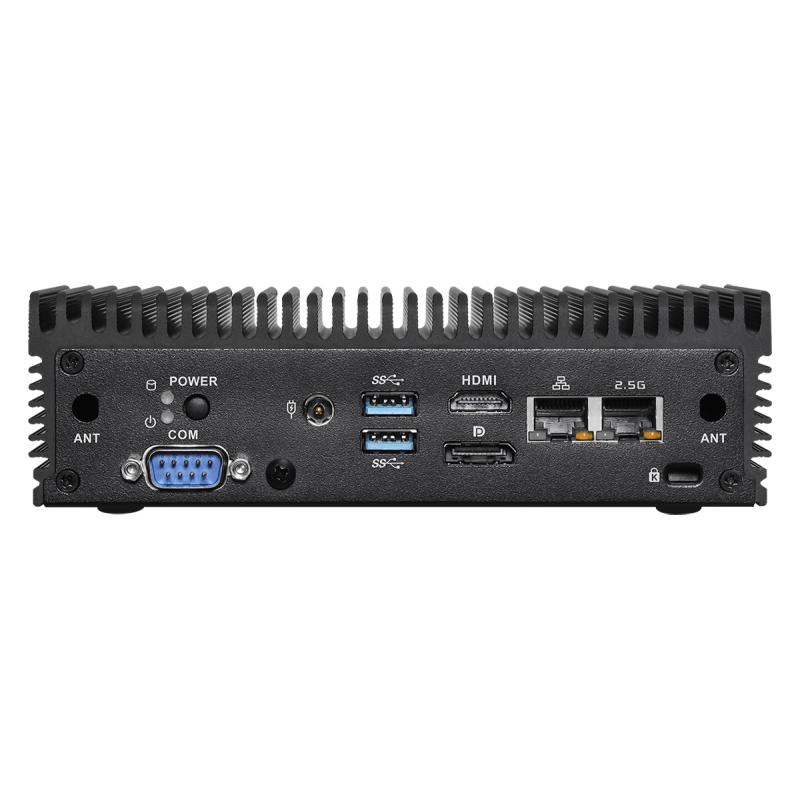

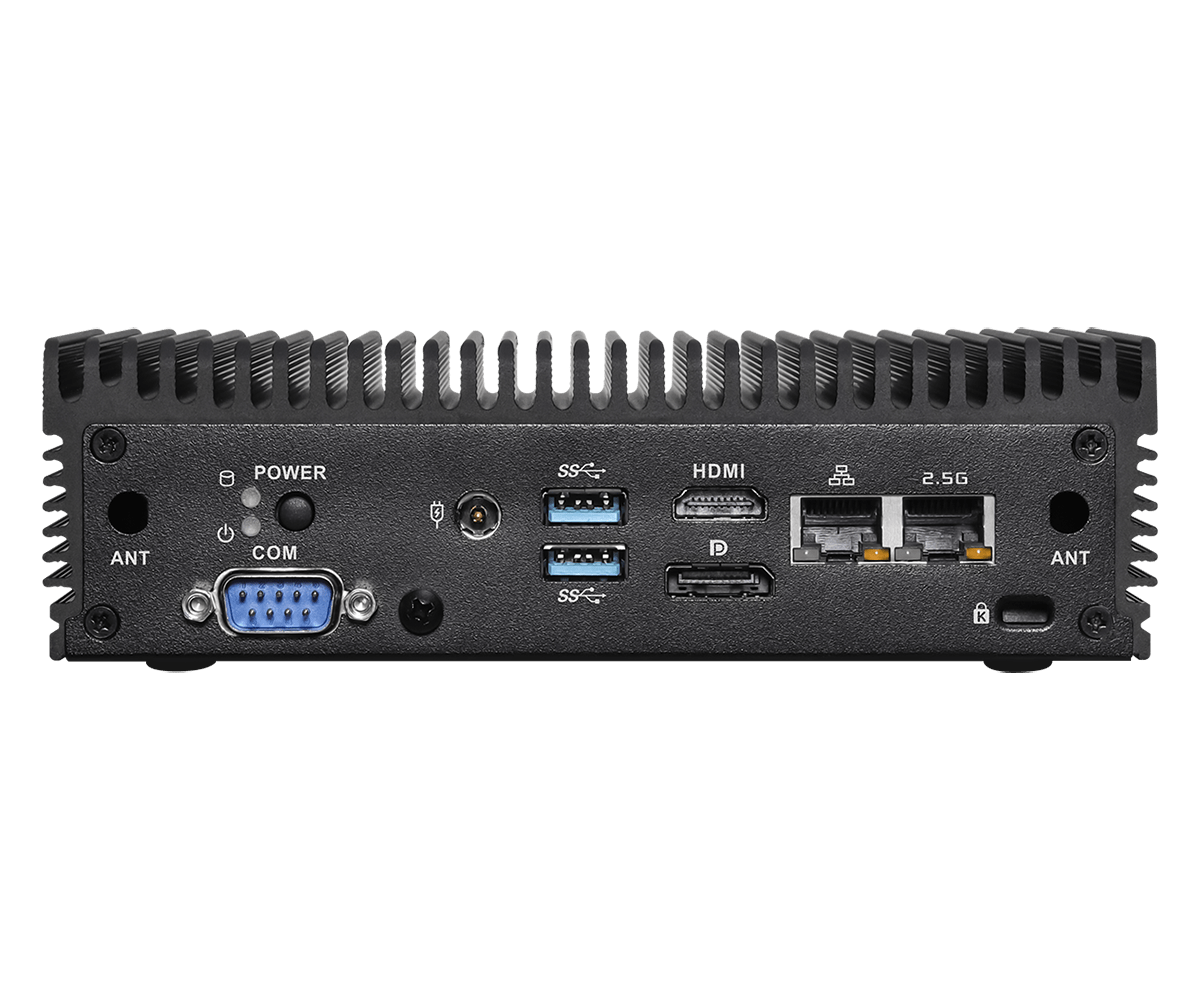

Rear l/O

1 x HDMI 2.0a

1 x DP 1.4

1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN

2 x USB 3.2 Gen2 (Type-A)

1 x COM(RS-232)

1 x DC Jack

Power

Input PWR: 1 x 19V/90W Power Adapter

Power On: AT/ATX Supported

- AT : Directly PWR on as power input ready

- ATX : Press button to PWR on after power input ready

Operation Temperature

Operating Temp -20ºC ~ 50ºC with air flow 0.5~0.8 m/s

(with extended temp. peripherals)

*Optional: Heatsink pack for PCIe Gen4x4 M.2 2280 NVMe SSD (P/N: 13G07P014000AI)

Storage Temp -40° C – 85° C

Operating Humidity 5% ~ 90%

Storage Humidity 5% ~ 90%
