iBOX-V2000M

Dimensions

171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97")

CPU

V2718, 8C, Max Speed up to 4.15GHz

Memory

Dual Channel non-ECC/ECC DDR4 3200 MHz

64GB (32 GB per DIMM)

2 x 260-pin SO-DIMM

Ethernet

LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps

LAN2: Realtek R8111EPV (Dash) with 10/100/1000 Mbps

2 x RJ-45

Graphics Support

AMD Radeon™ Graphics

HDMI 2.0a

Max resolution up to 4096x2160@60Hz

DisplayPort 1.2a, DP++

Max resolution up to 4096x2160@60Hz

MultiDisplay Quad-Display (Included 2 outputs from Type-C)

Audio

Realtek ALC233, High Definition Audio.

Storage

M.2: 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x4 and SATA3 for SSD

*M.2 Key M 2280(Supported by bracket)

SATA: 1 x SATA3.0 (6.0 Gb/s)

Expansion-Slots

1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless

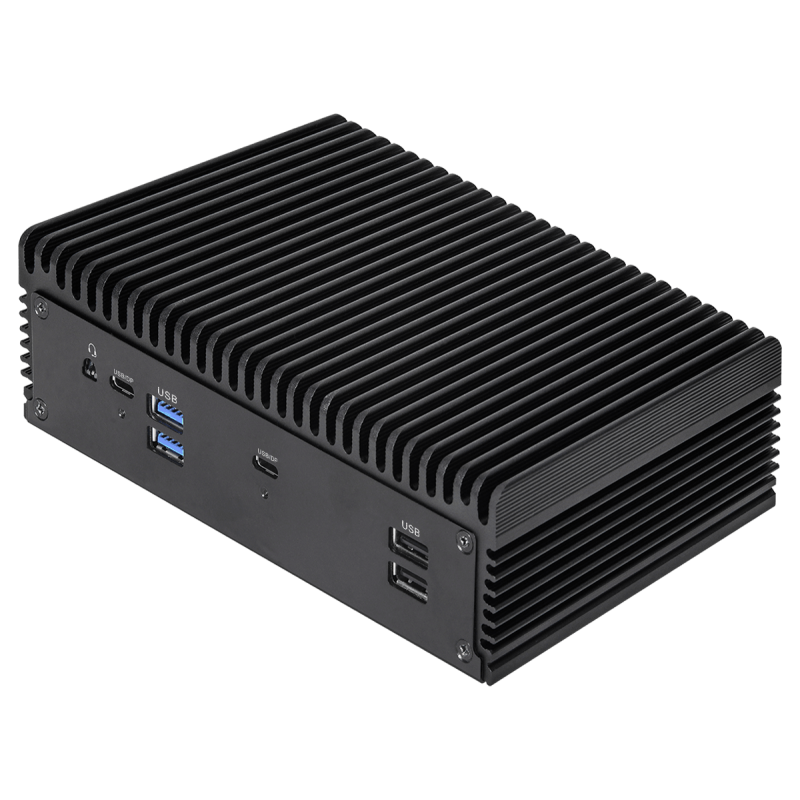

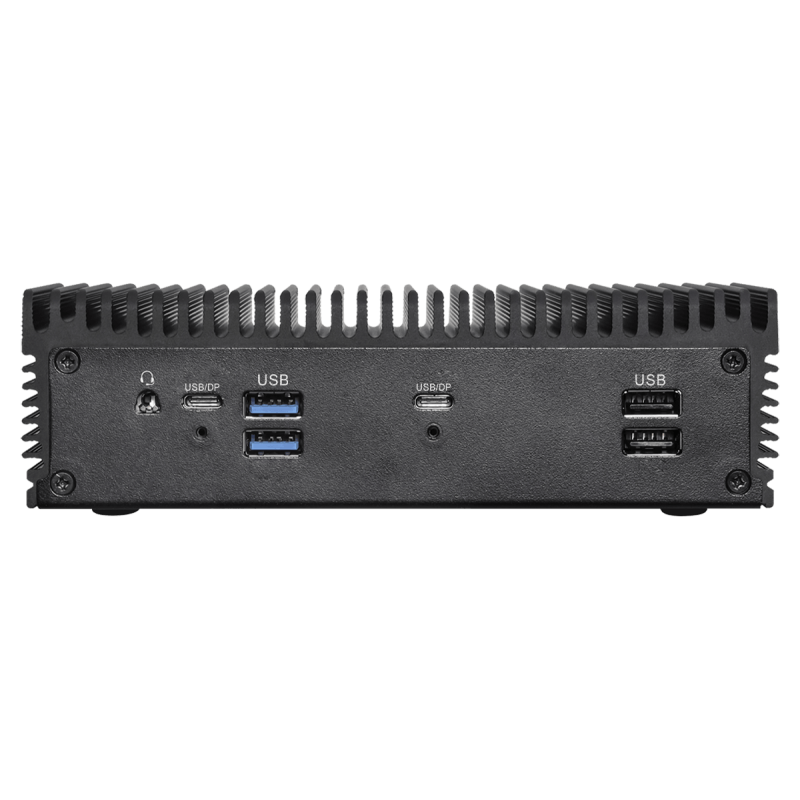

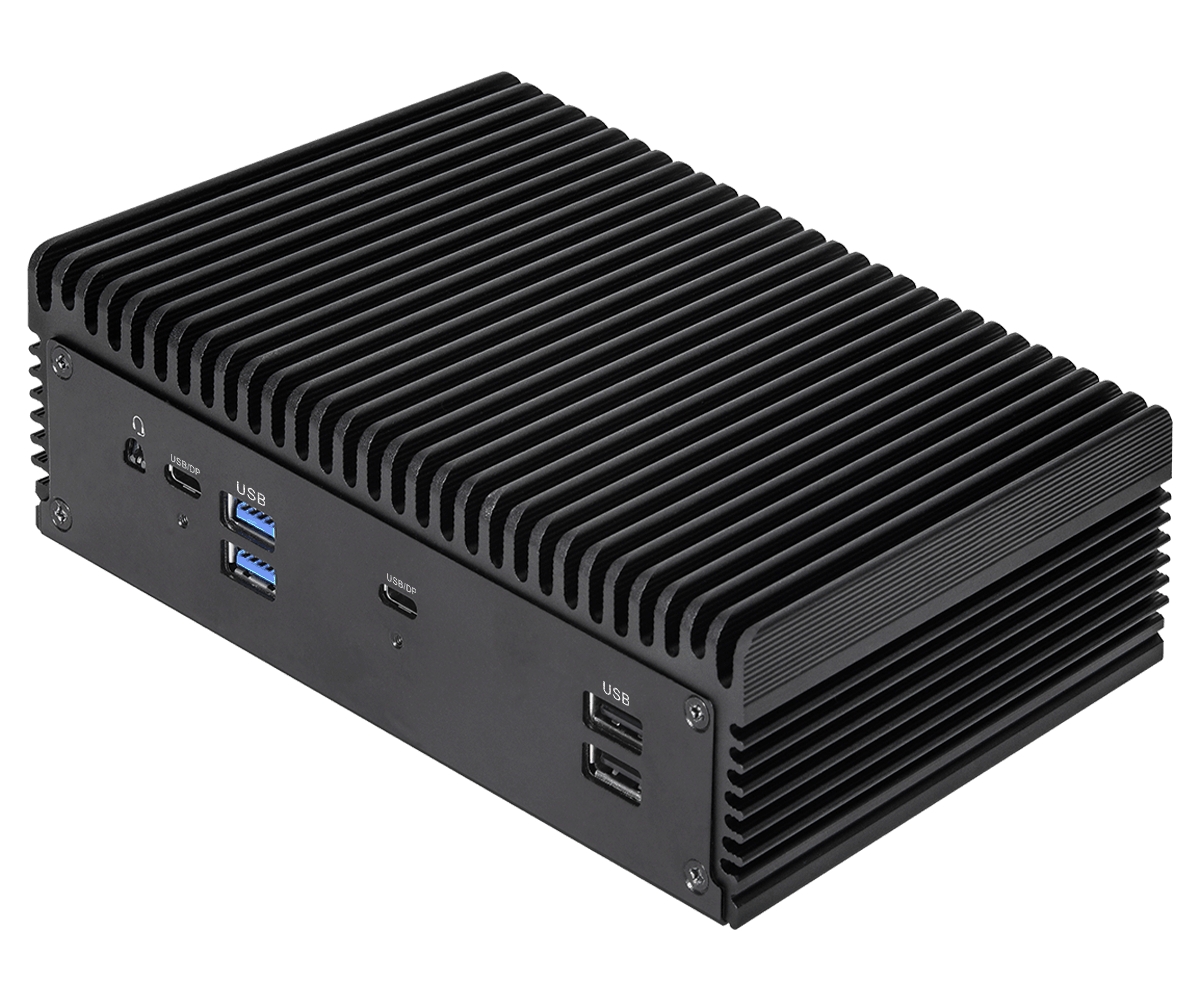

Front I/O

2 x USB 3.2 Gen2 (Type A)

2 x USB 3.2 Gen2 (Type-C, Supports DP1.2a display output)

2 x USB 2.0

1 x Audio (headphone & microphone jack)

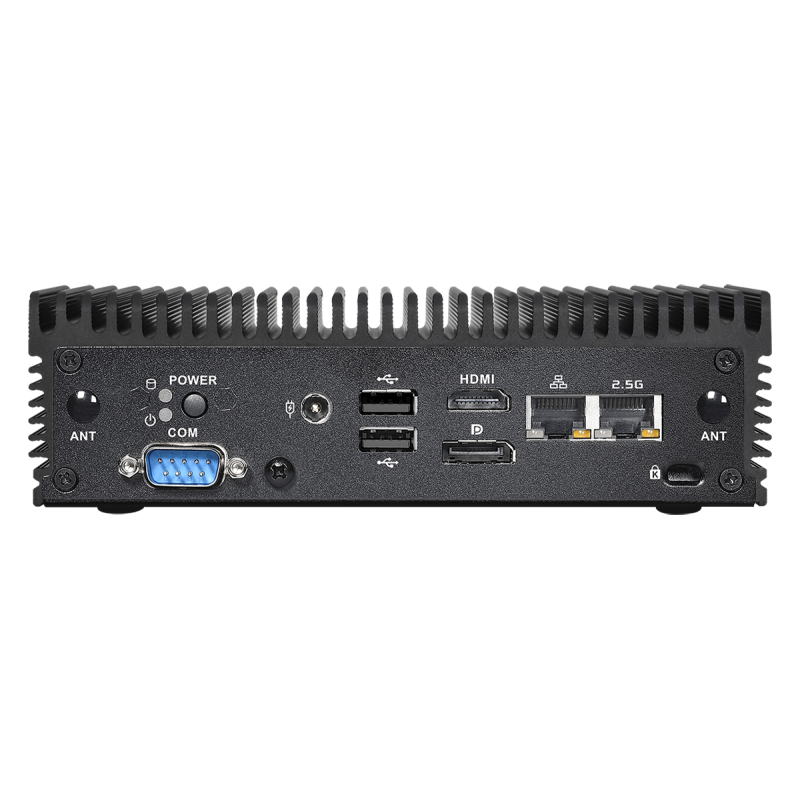

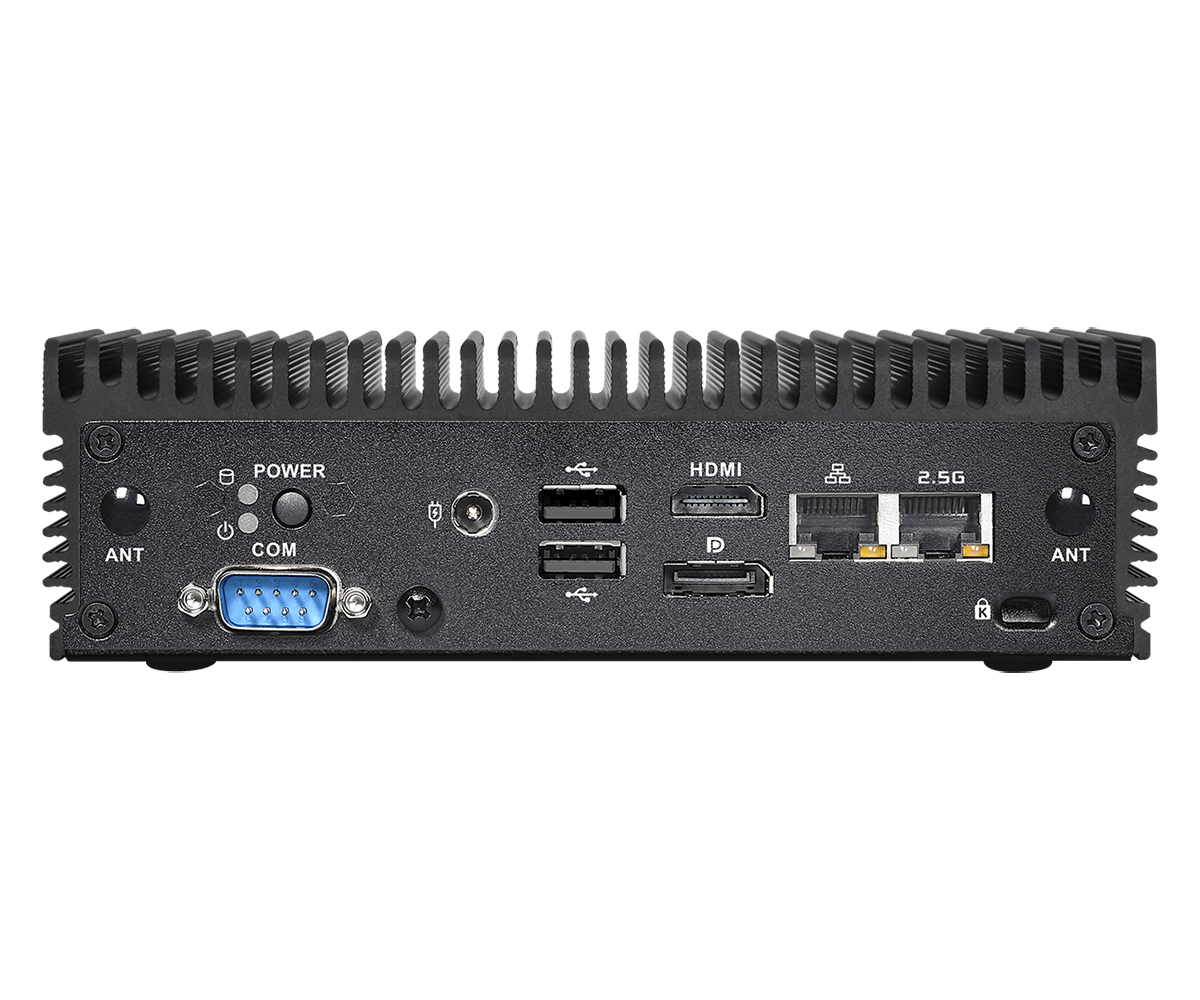

Rear l/O

1 x HDMI 2.0a

1 x DP 1.2a

1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN

2 x USB 2.0

1 x COM(RS-232/422/485)

1 x DC Jack

Power

Input PWR: 19V/90W Power Adapter

Power On: AT/ATX supported

-AT: Direct PWR on as power input ready

-ATX:Press button to PWR on after power input ready

Operation Temperature

Operating Temp -20ºC ~ 40ºC with air flow 0.5~0.8 m/s (with extended temp. peripherals)

Storage Temp -40° C ~ 85° C

Operating Humidity 5% ~ 90%

Storage Humidity 5% ~ 90%
