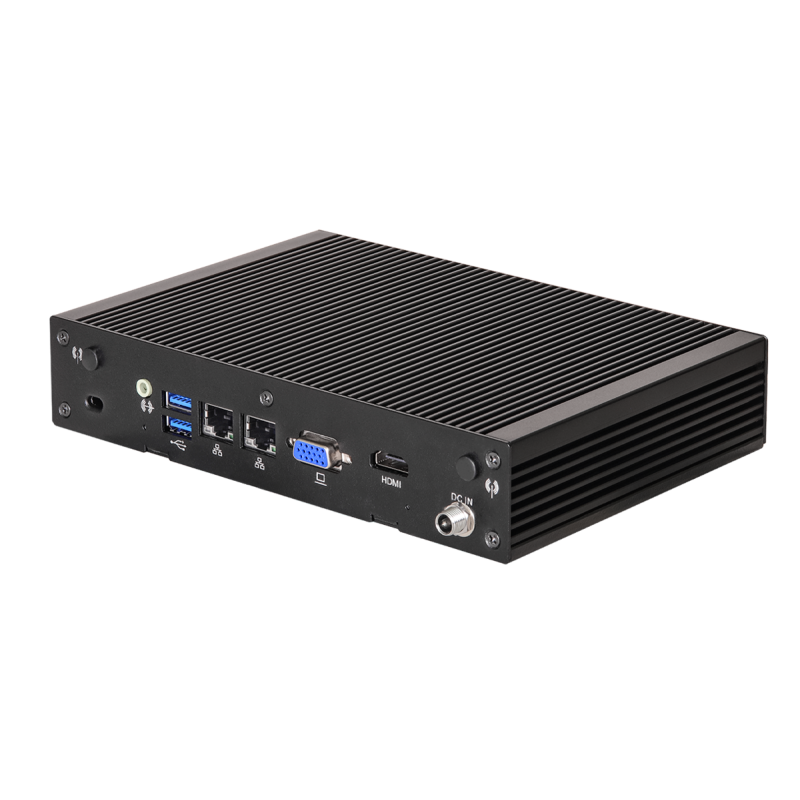

iBOX-210D
- Intel® Celeron® Processor J1900
- 2 x 204-pin SO-DIMM up to 8GB DDR3L 1333MHz (4GB per DIMM)
- 2 x USB 3.1 Gen1, 2 x USB 2.0, 1 x mini-PCIe/mSATA, 1 x mini-PCIe, 2 x COM, 1 x SATA3
- 2 x Realtek 1 Gigabit LAN
- Supports dual display, 1 x HDMI 1.2a, 1 x VGA
- 1 x 19V/65W AC-DC power brick adapter
- 200 x 134.5 x 39mm, Fanless Barebone
Dimensions
200 x 134.5 x 39mm
CPU
Intel® Celeron® Processor J1900, QC, up to 2.42 GHz
Memory
Dual Channel DDR3L 1333 MHz
8 GB (4GB per DIMM)
2 x 204-pin SO-DIMM
Ethernet
2 x Realtek RTL8111G-CG with 10/100/1000 Mbps
2 x RJ-45
Graphics Support
Integrated Intel®Gen7 Intel® Graphics DX 11, OGL3.2
HDMI 1.2a
Max resolution up to 1920 x 1200@24Hz
VGA Max resolution up to 1920x1200@60Hz
MultiDisplay: Dual Display
Audio
Realtek ALC887, High Definition Audio. Line-out,Mic-in
Storage
mSATA: 1 x Full size (Supports PCIe x1 and USB 2.0, shared with m-SATA)
SATA: 1 x SATA2 (3.0Gb/s)
Expansion-Slots
mini-PCIe: 1 x Full/ Half size(Supports PCIe x1 and USB 2.0)
mini-PCIe/mSATA: 1 x Full size (Supports PCIe x1 and USB 2.0, shared with m-SATA)

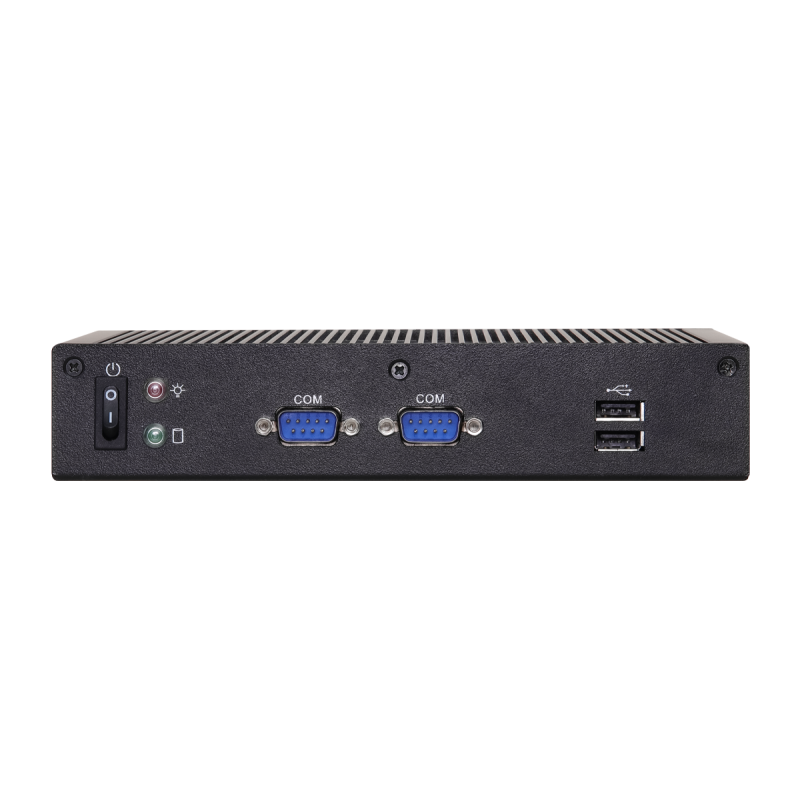

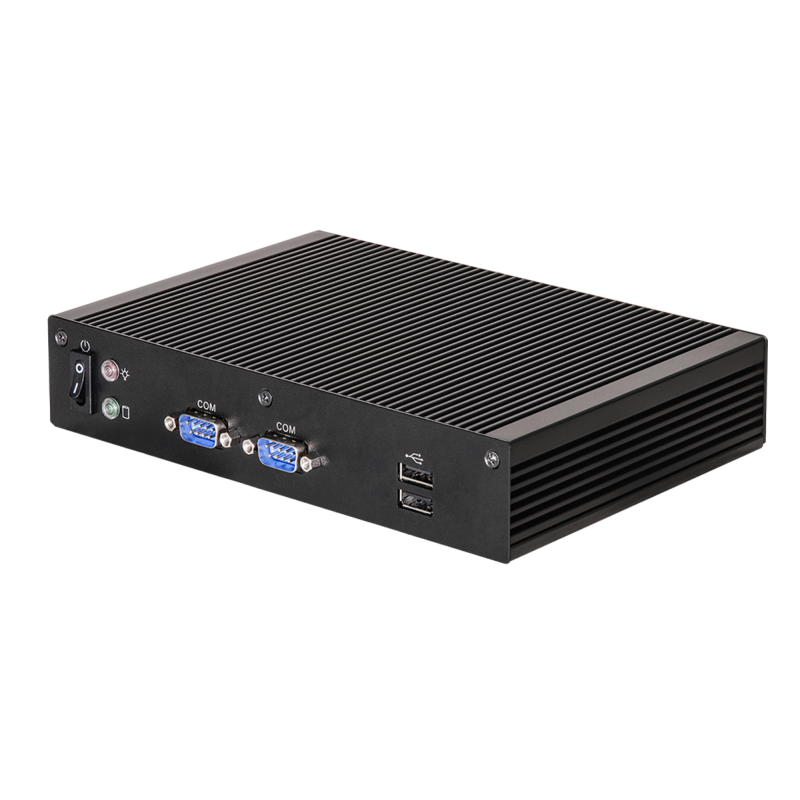

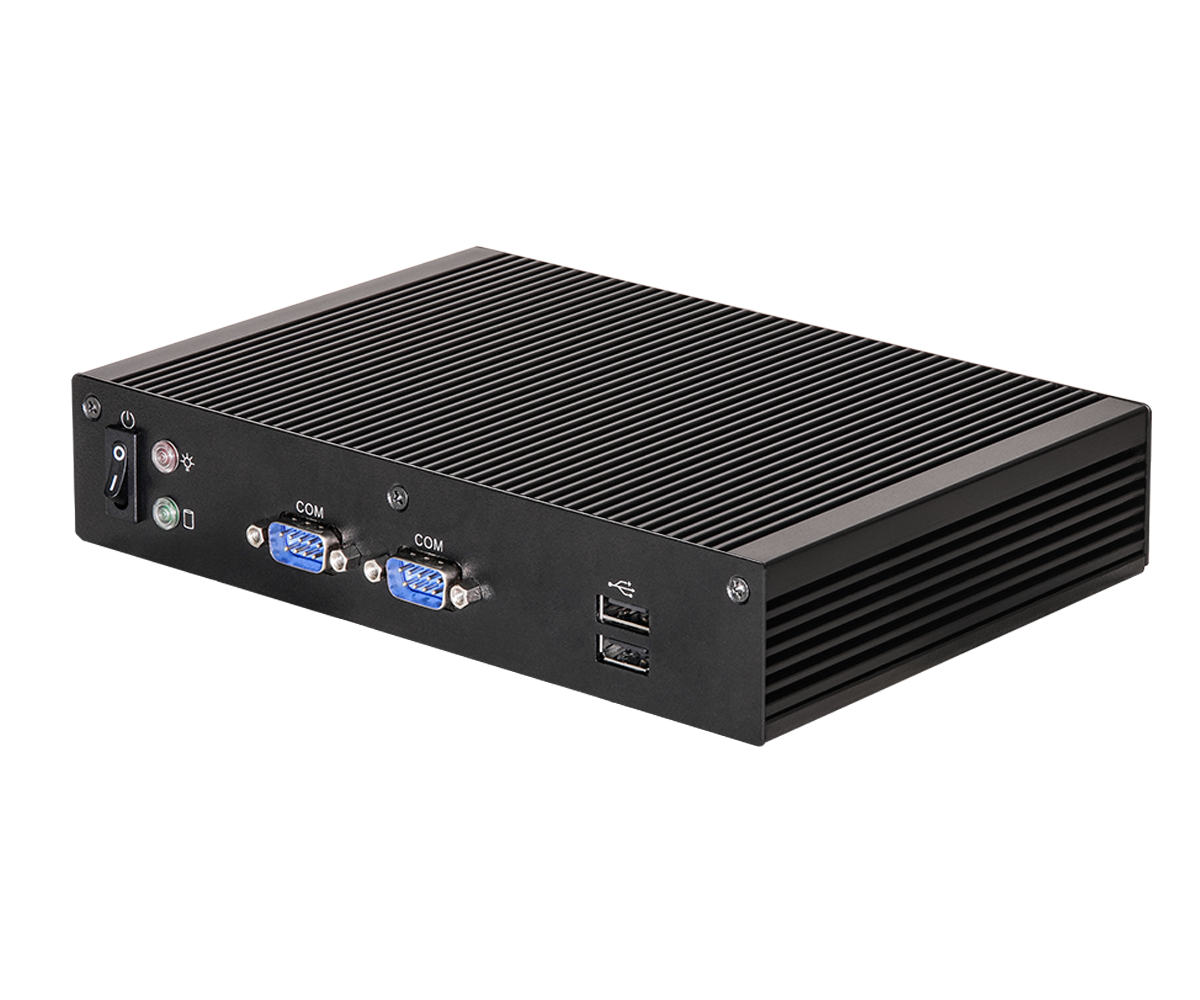

Front I/O
2 x USB 2.0
1 x COM (RS-233/422/485), 1 x COM (RS-232)

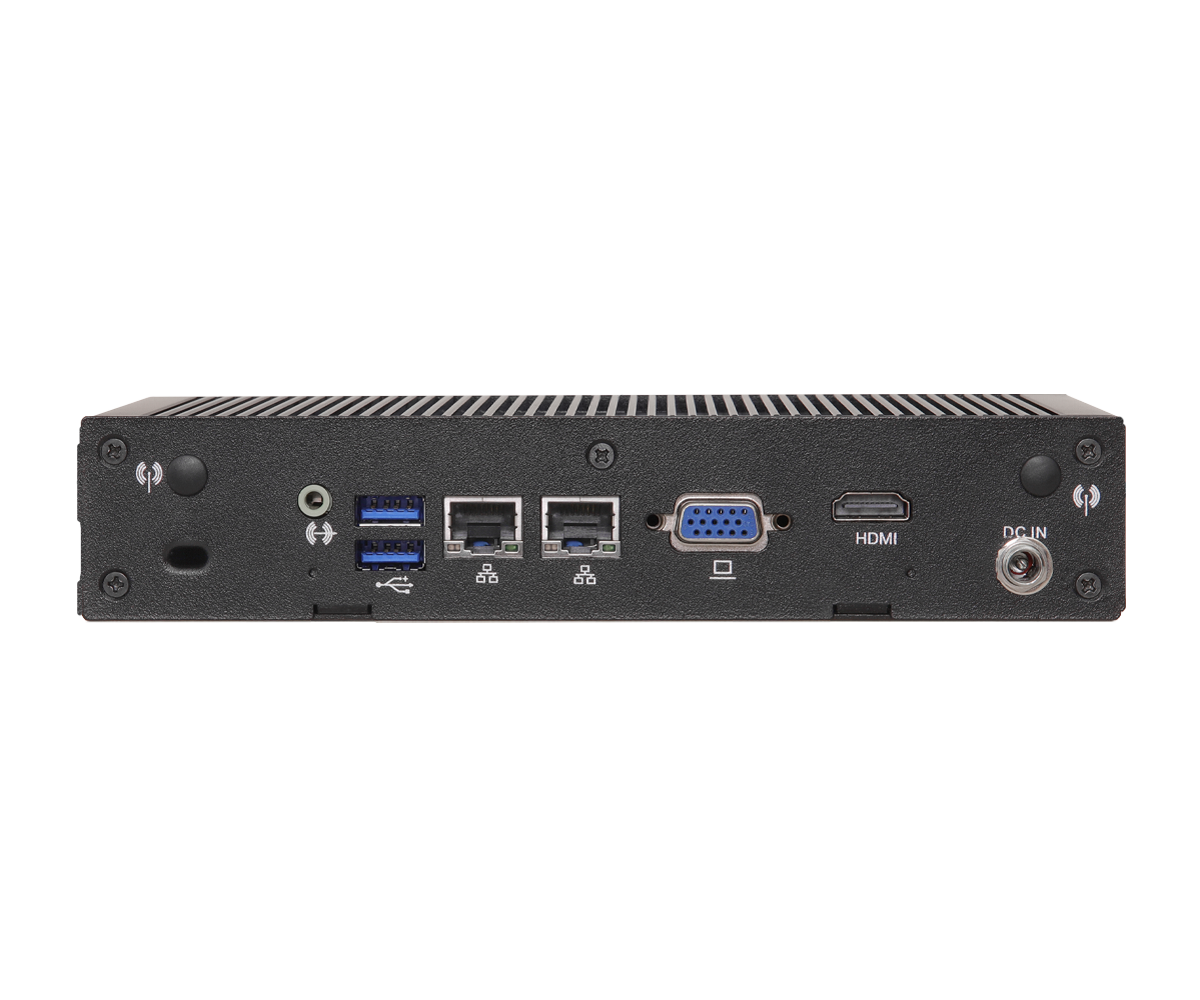

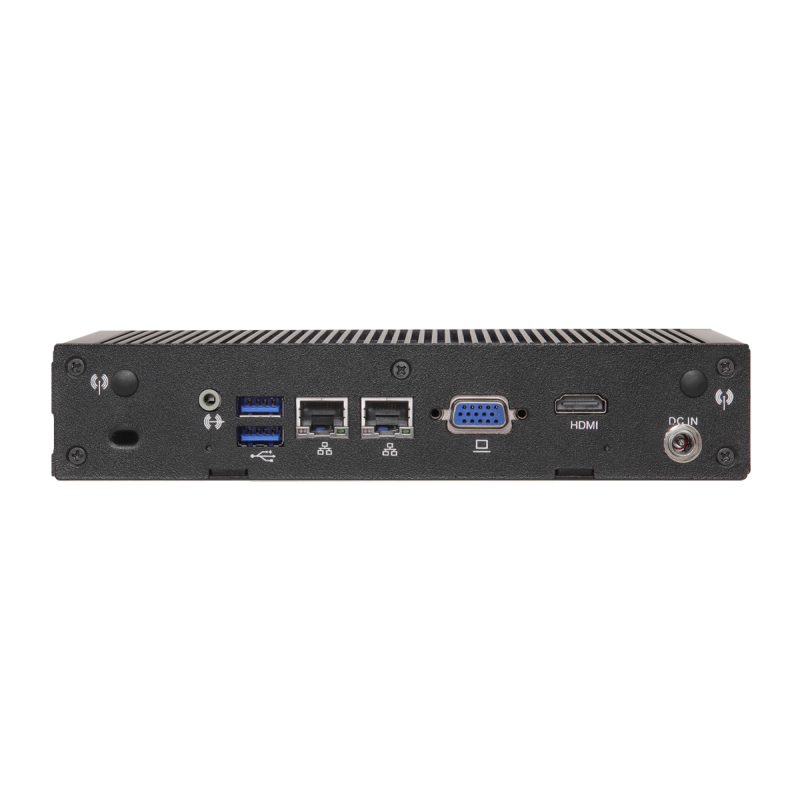

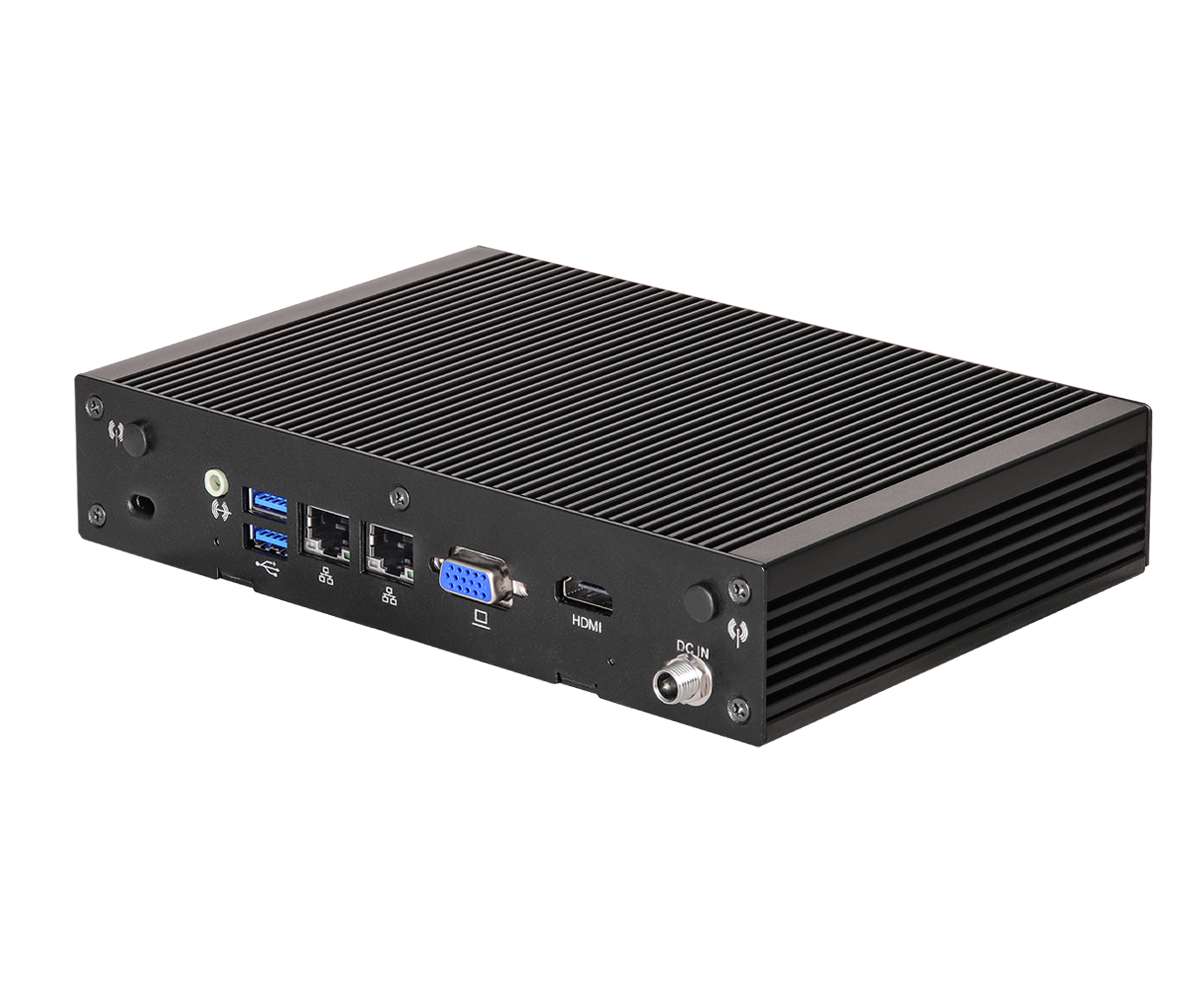

Rear l/O
1 x HDMI 1.2a
1 x VGA
2 x 1 Gigabit LAN
2 x USB 3.0
1 (Line-out)
1 x DC Jack
Power
Input PWR: 1 x 19V/65W AC-DC power brick adapter
Power On: AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Operation Temperature
Operating Temp -20ºC ~ 50ºC (With extended temp. peripherals)
Storage Temp -40° C – 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%
Specifiche Tecniche
| CPU | Intel® Celeron® Processor J1900, QC, up to 2.42 GHz |
|---|---|
| Tipo Memoria | 8 GB DDR3L |
| Storage | 1 x mSATA Full Size + 1 x SATA2 |
| GPU | Integrated Intel®Gen7 Intel® Graphics DX 11, OGL3.2 |
| Porte USB | 1 x Mic-in or Line-out + 1 x Jack 2 x 1 Gigabit LAN 2 x COM + 1 x HDMI + 1 x VGA 2 x USB 2.0 + 2 x USB 3.0 |
| Lan | x2 10/100/1000 Mbps, 1G LAN |
| Dimensioni | 200 x 134.5 x 39 mm |
| Peso | 1300g |
