iBOX-250J
- Intel® Elkhart Lake SoC Processors J6412
- 2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB(16GB per DIMM)
- 1 x USB 3.2 Gen2, 3x x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 3 x COM, 1 x SATA3
- 2 x Intel 2.5 Gigabit LAN
- Supports dual display, 1 x HDMI 2.0b, 1 x VGA
- 1 x 19V/65W AC-DC power brick adapter
- 200 x 134.5 x 39mm (7.87" x 5.3" x 1.54"), Fanless Barebone
Dimensions
200 x 134.5 x 39mm (7.87" x 5.3" x 1.54")
CPU
Intel® Elkhart Lake SoC Processors
iBOX-250J (J6412, QC, Max Speed Up to 2.6GHz, 10W)
Memory
Dual Channel DDR4 3200 MHz
32 GB (16GB per DIMM)
2 x 260-pin SO-DIMM
Ethernet
LAN1: Intel® I225LM/I225V with 10/100/1000/2500 Mbps
LAN2: Intel® I225LM/I225V with 10/100/1000/2500 Mbps
2 x RJ-45
Graphics Support
Intel® Gen 11 Graphics
HDMI 2.0b
Max resolution up to 4096 x 2160@60Hz
Max resolution up to 1920x1200@60Hz
MultiDisplay: Dual Display
Audio
Realtek ALC233/256 HD, High Definition Audio
Storage
M.2: 1 x M.2 (Key M, 3042/3060/2280) with PCIe x1 for SSD
SATA: 1 x SATA3 (6Gb/s)

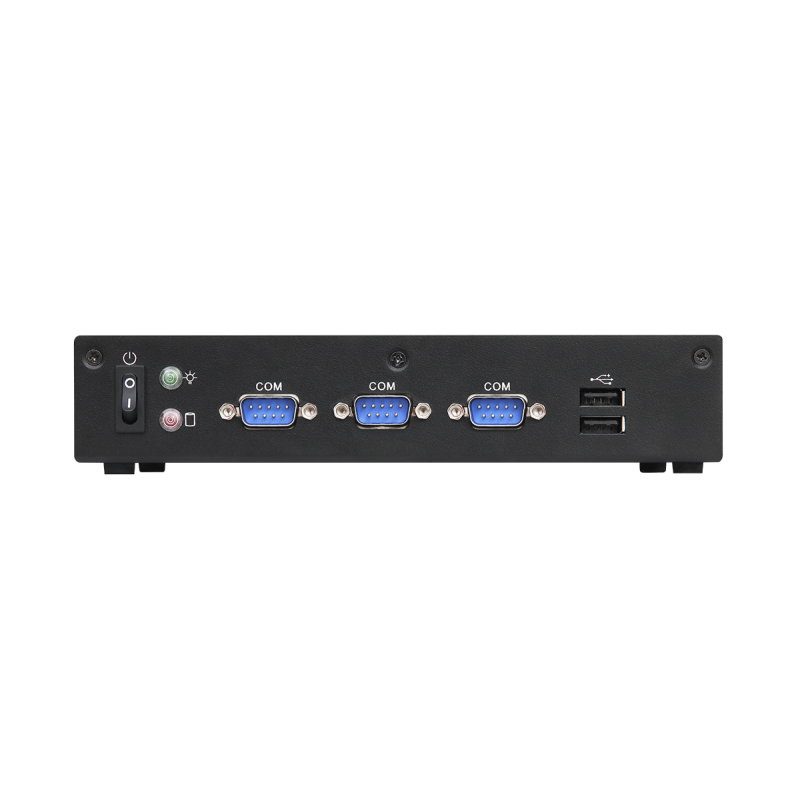

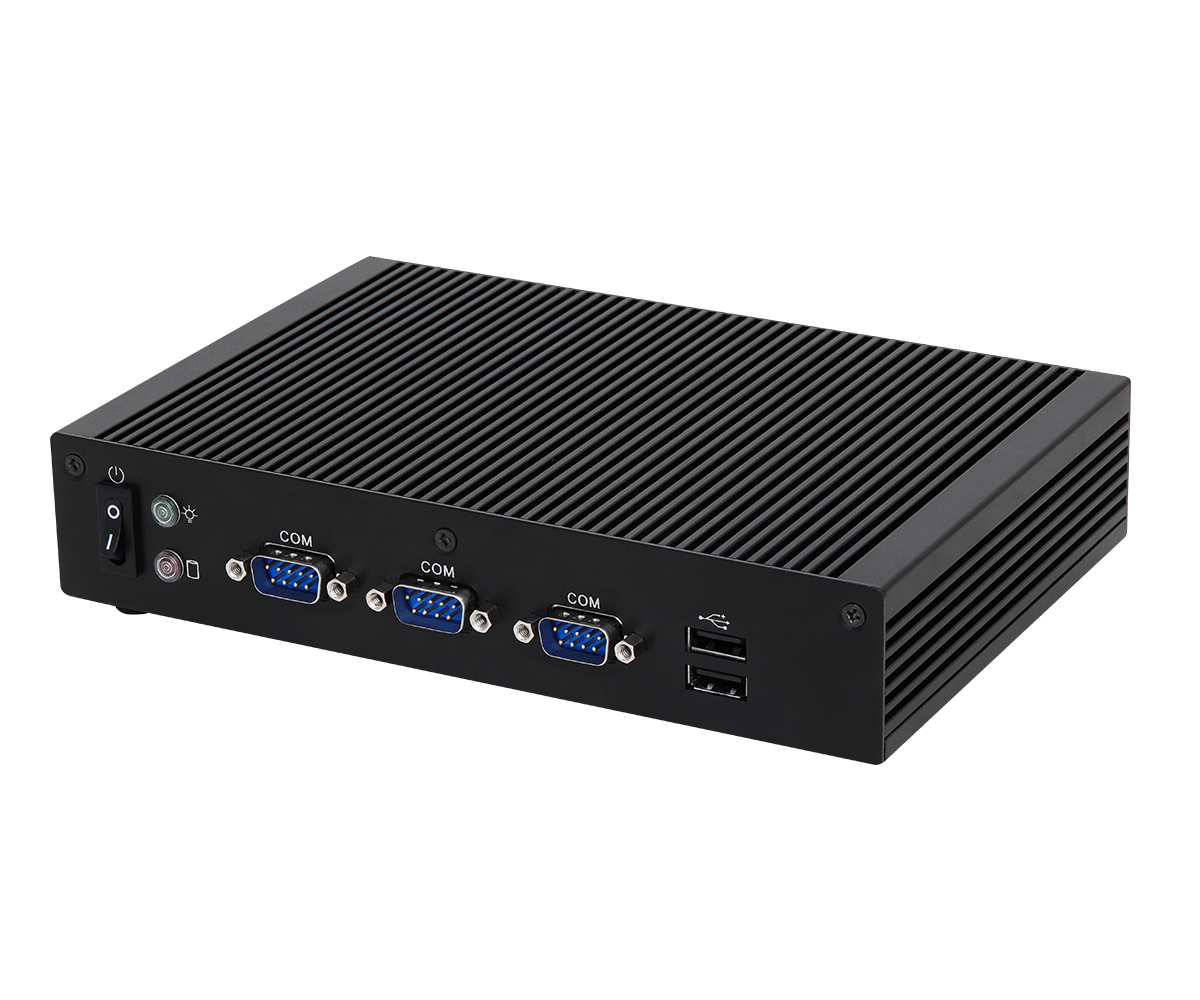

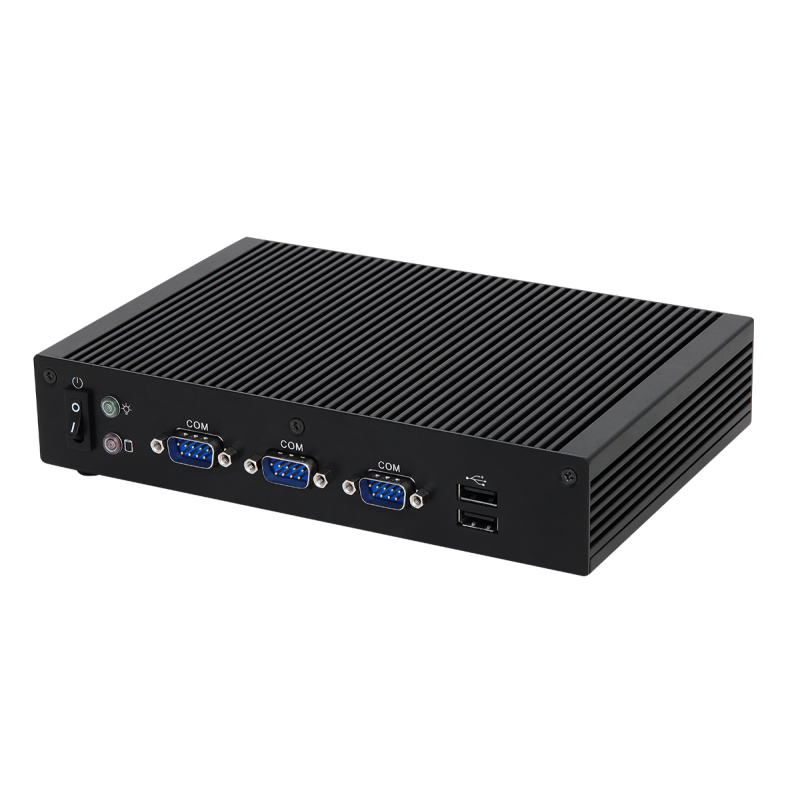

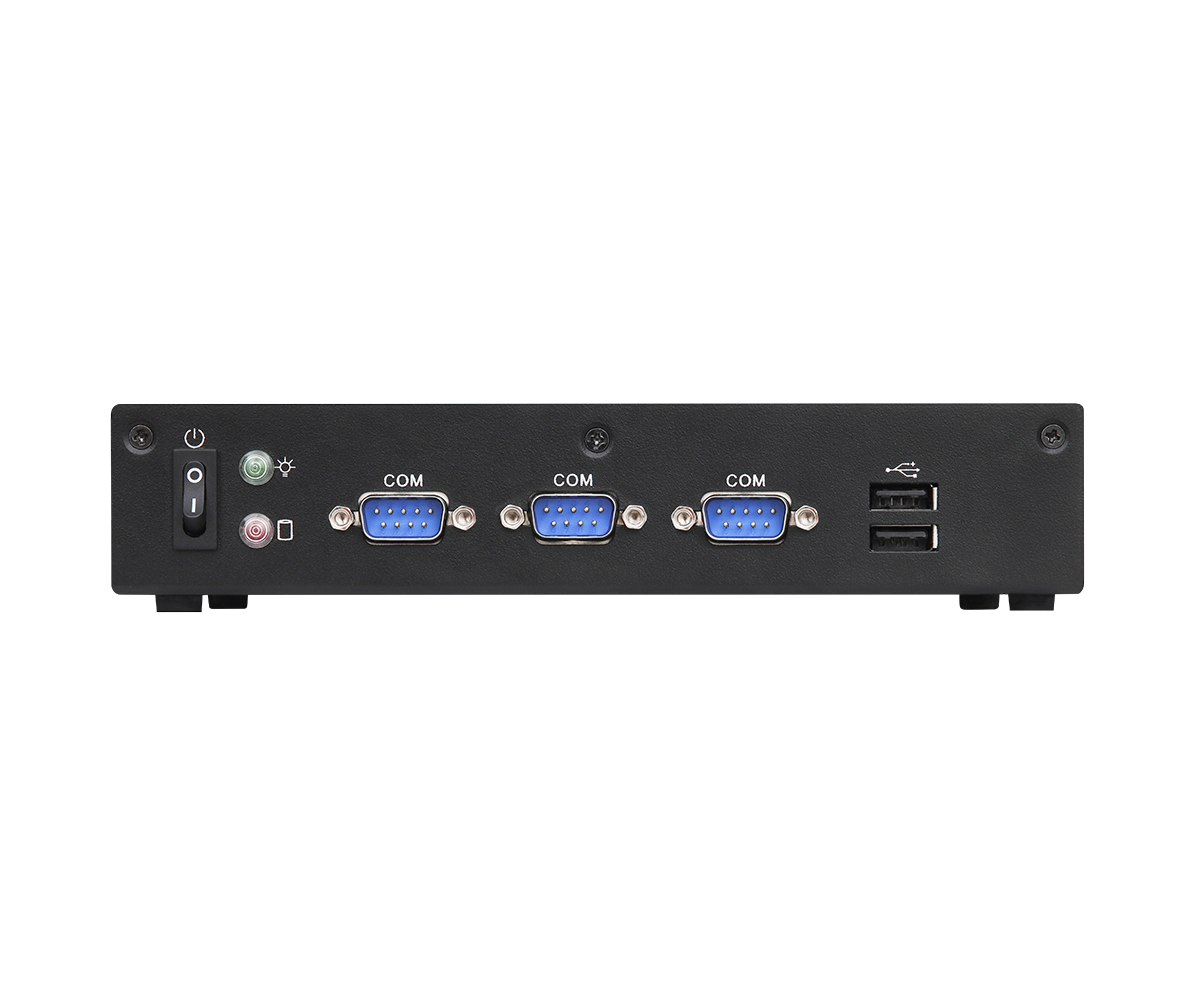

Front I/O
2 x USB 2.0
3 x COM (RS-232)

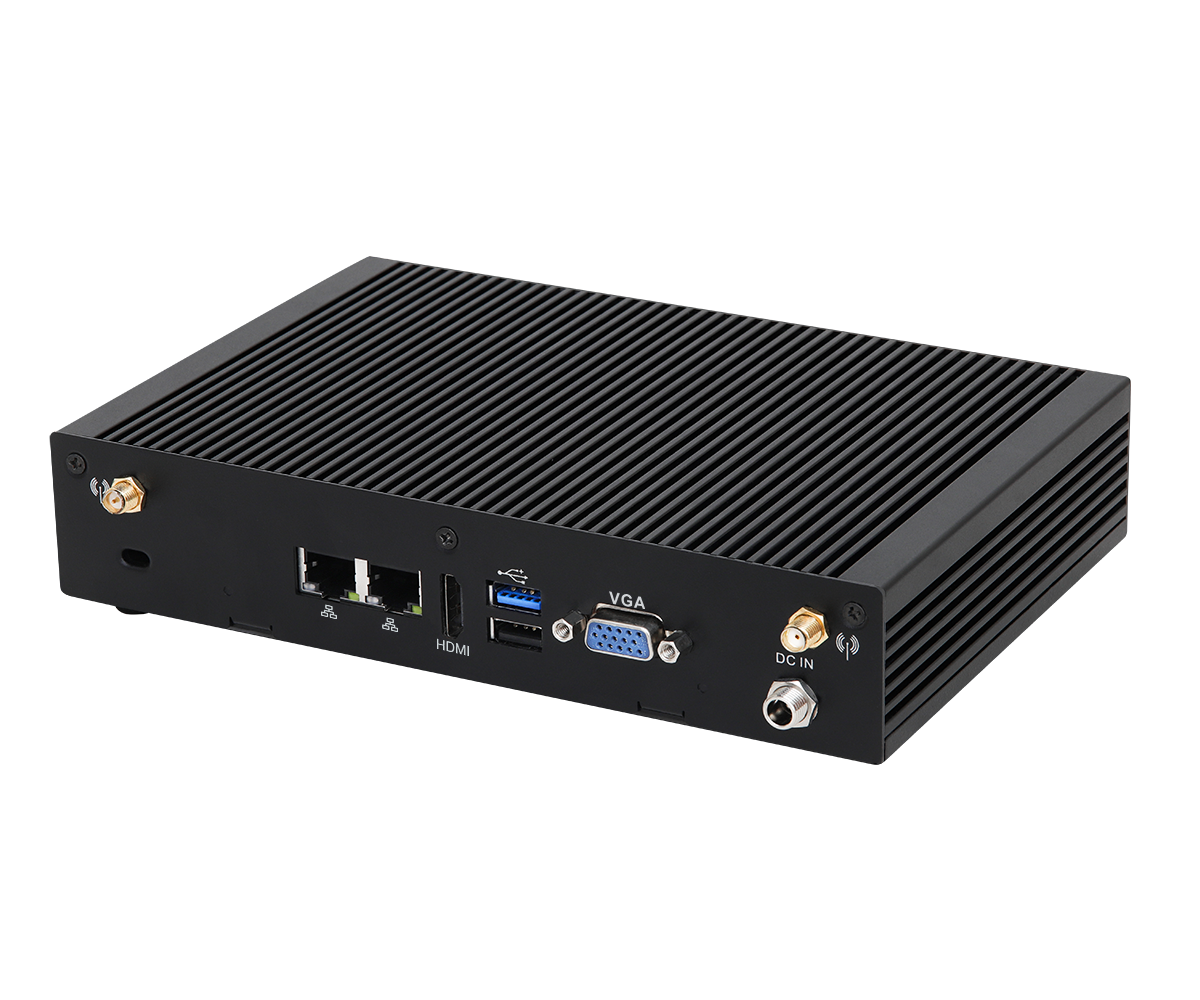

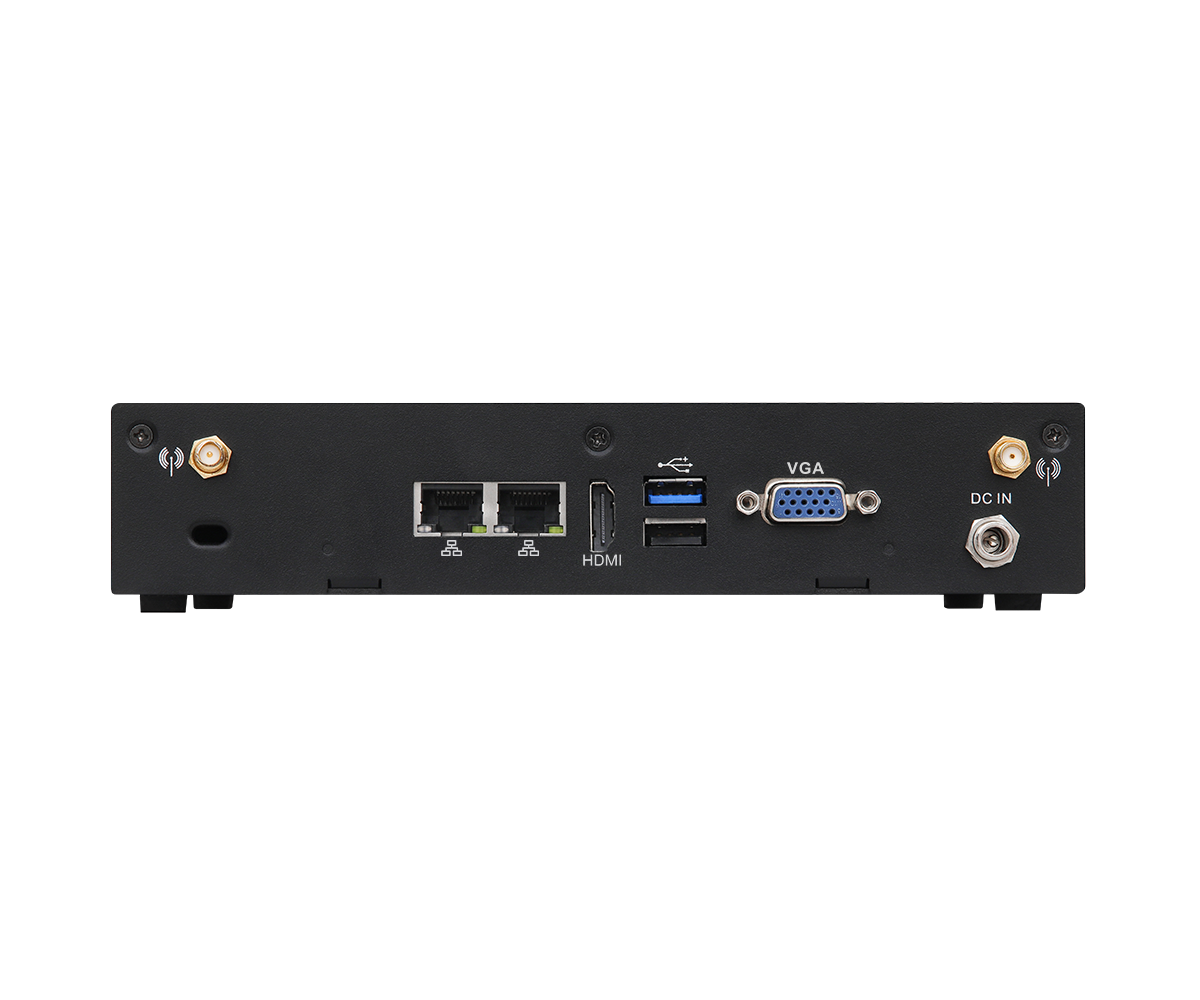

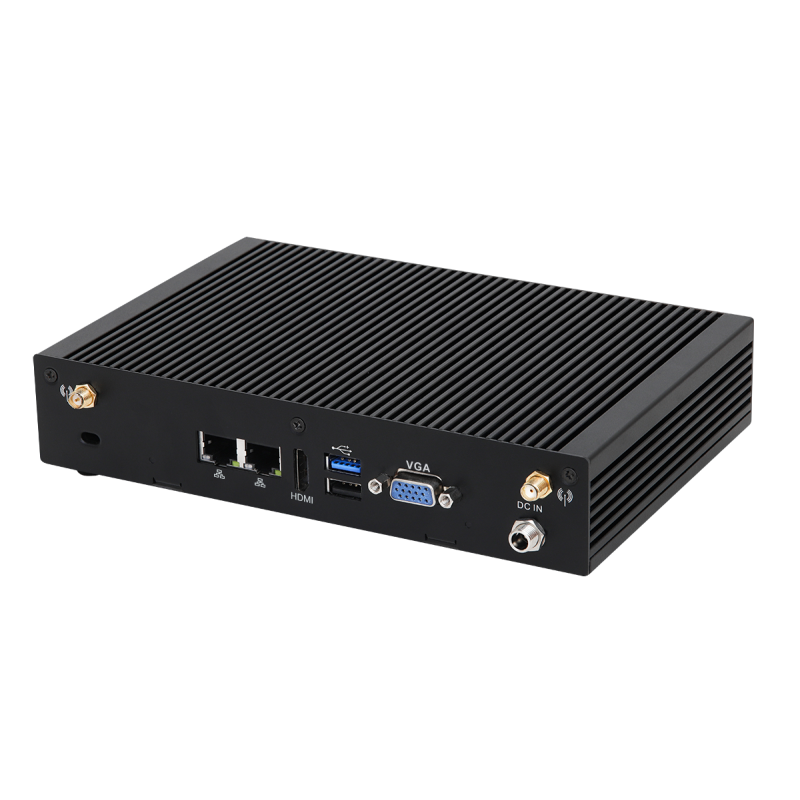

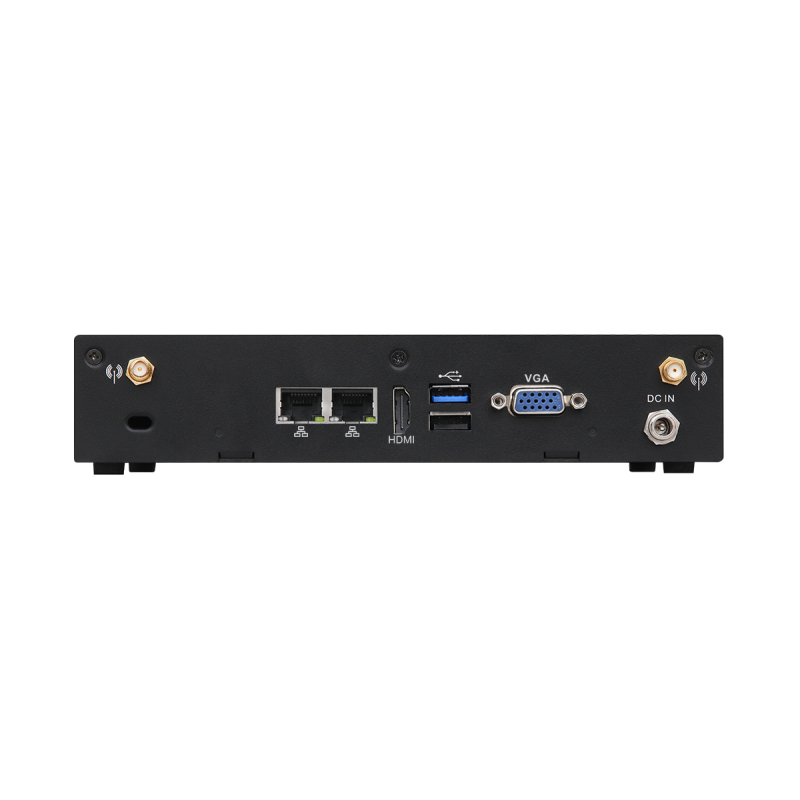

Rear l/O
1 x HDMI 2.0b
1 x VGA
2 x 2.5 Gigabit LAN
1 x USB 3.2 Gen2, 1 x USB 2.0
Power
Input PWR: 9~36V DC-In
Power On: AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Operation Temperature
Operating Temp -20ºC ~ 50ºC (With extended temp. peripherals)
Storage Temp -40° C – 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%
Specifiche Tecniche
| CPU | Intel® Elkhart Lake SoC Processors iBOX-250J (J6412, QC, Max Speed Up to 2.6GHz, 10W) |
|---|---|
| Tipo Memoria | 32GB DDR4 SO-DIMM |
| Storage | x1 M.2 2242 PCIe + x1 SATA3.0 |
| GPU | Intel® Gen 11 Graphics |
| Porte USB | 2 x 2.5 Gigabit LAN 3 x USB 2.0 + 1 x USB 3.2 Gen2 |
| Lan | x2 10/100/1000/2500 Mbps, 2,5G LAN |
| Dimensioni | 200 x 134.5 x 39 mm |
| Peso | 1300g |
