iBOX Intel® Core 13th Gen. D5

Dimensions

171.8 x 109.45 x 50.05mm (6.76" x 4.31" x 1.97")

CPU

Intel® 13th Gen (Raptor Lake-P) Core™ Processors

iBOX-1365UE/D5 ( i7-1365UE, 2P+8E)

Memory

Dual Channel DDR5 4800 MHz

32GB (16GB per DIMM)

2 x 262-pin SO-DIMM

Ethernet

LAN1: Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro

LAN2: Intel® I226V with 10/100/1000/2500 Mbps

2 x RJ-45

Graphics Support

Intel® Iris® Xe Graphics for i7/i5 CPU

HDMI 2.0b

Max resolution up to 4096x2160@60Hz

DisplayPort 2.1/ 1.4a, DP++

Max resolution up to 4096x2160@60Hz

MultiDisplay: Quad-Display (Included 2 outputs from Type-C)

Audio

Realtek ALC256, High Definition Audio.

Storage

M.2: 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD

*M.2 Key M 2280(Supported by bracket)

SATA: 1 x SATA3.0 (6.0 Gb/s)

Expansion-Slots

1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVi for Wireless

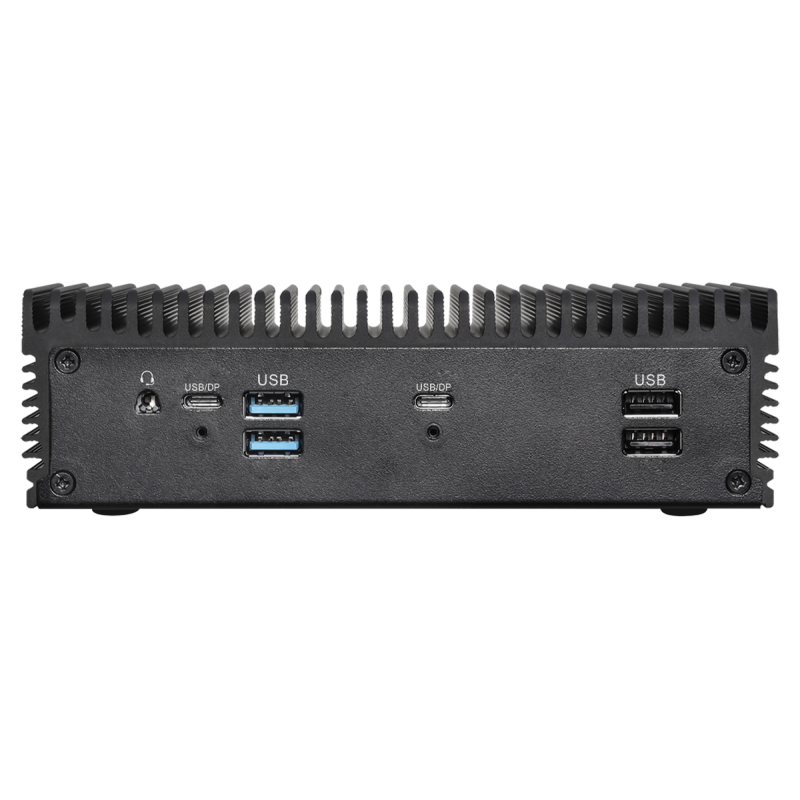

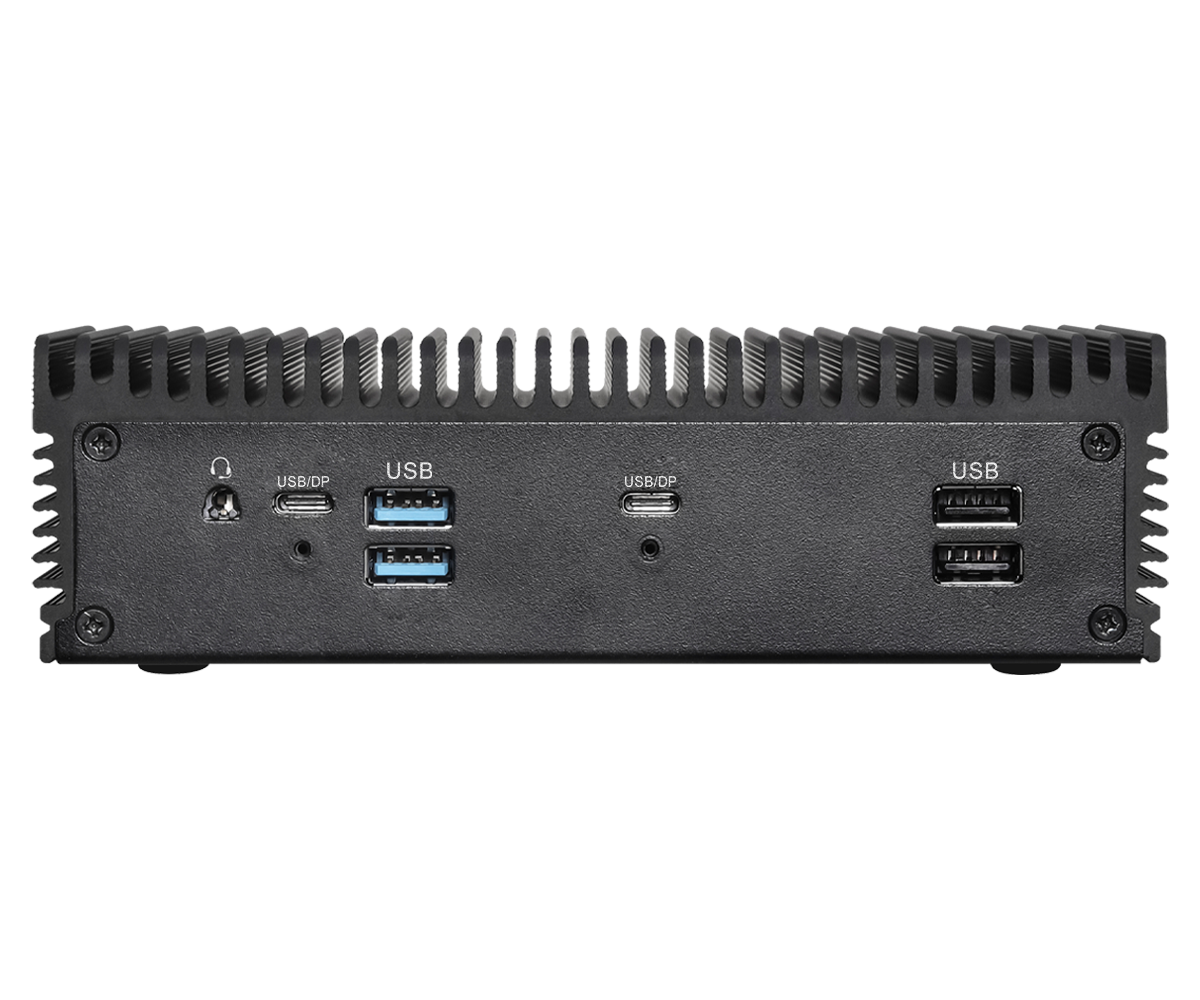

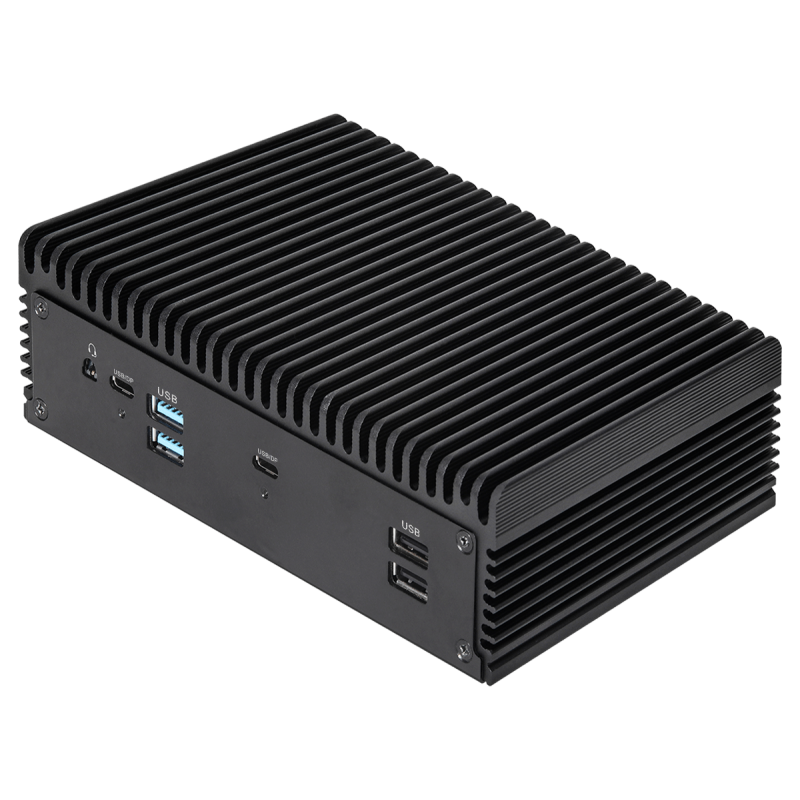

Front I/O

2 x USB 3.2 Gen2 (Type A)

1 x USB 4/Thunderbolt™ 4 (Supports DP 2.1 display output)

1 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output)

2 x USB 2.0

*For Thunderbolt support, please refer to support list.

1 x Audio (headphone & microphone jack)

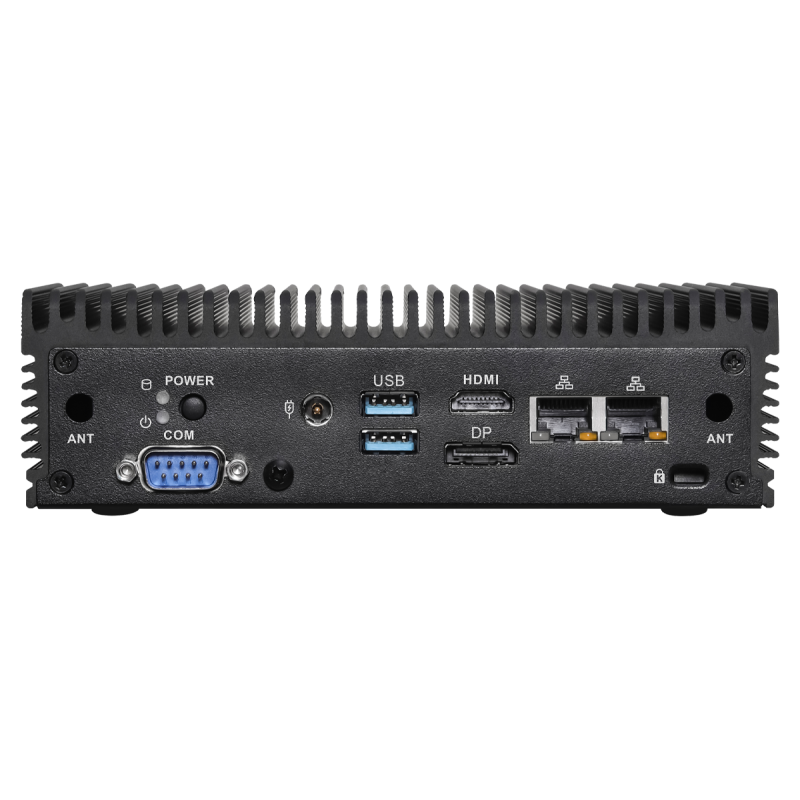

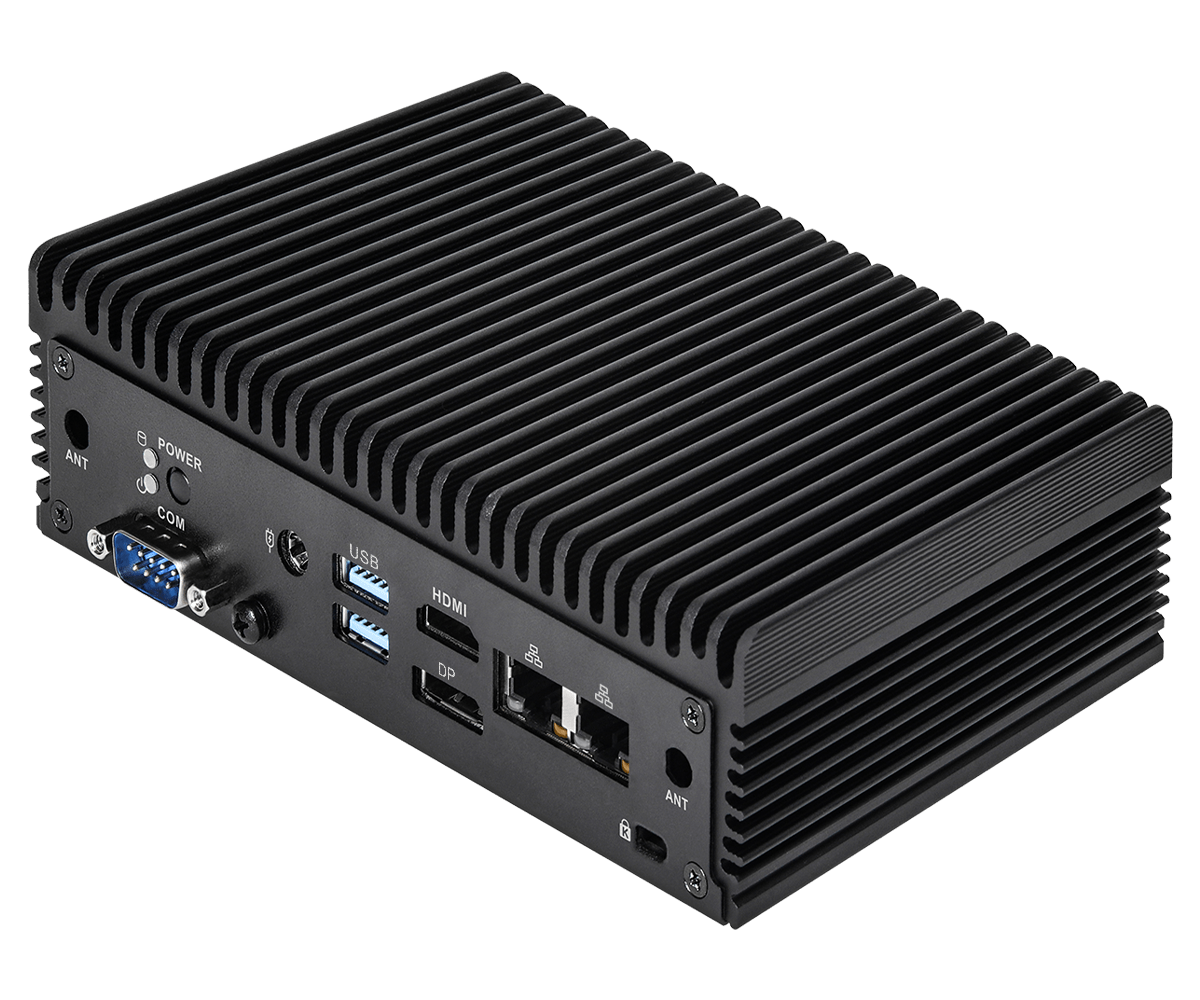

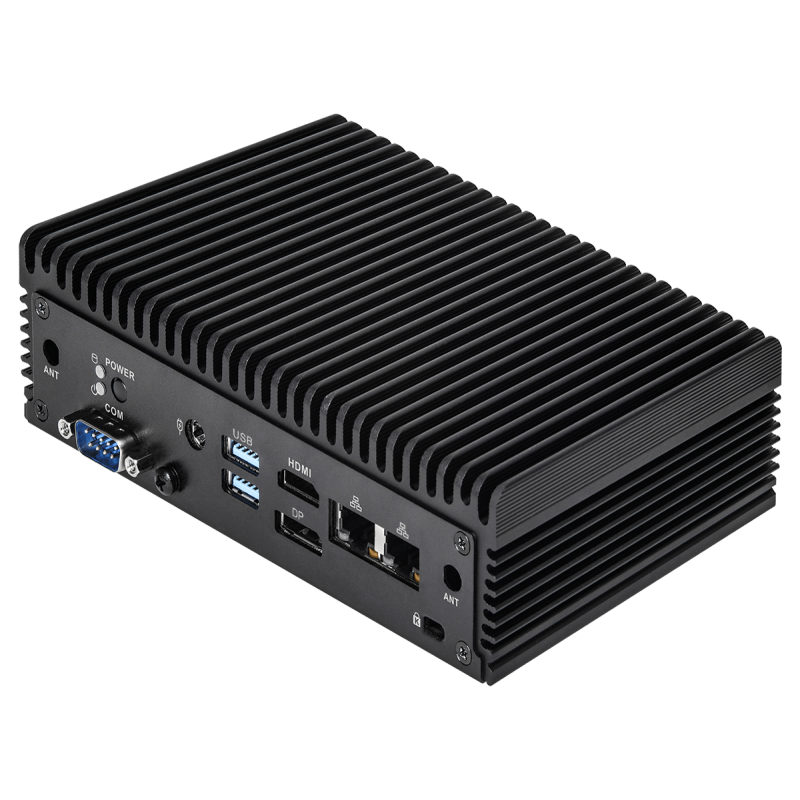

Rear l/O

1 x HDMI 2.0b

1 x DP 1.4a

2 x 2.5 Gigabit LAN

2 x USB 3.2 Gen2 (Type-A)

1 x DC Jack

1 x COM(RS-232/422/485)

Power

Input PWR: 12V~19V DC-In Jack

Power On: AT/ATX Supported

- AT : Directly PWR on as power input ready

- ATX : Press button to PWR on after power input ready

Operation Temperature

Operating Temp -20ºC ~ 50ºC with air flow 0.5~0.8 m/s

(with extended temp. peripherals)

Storage Temp -40° C – 85° C

Operating Humidity 5% ~ 90%

Storage Humidity 5% ~ 90%
