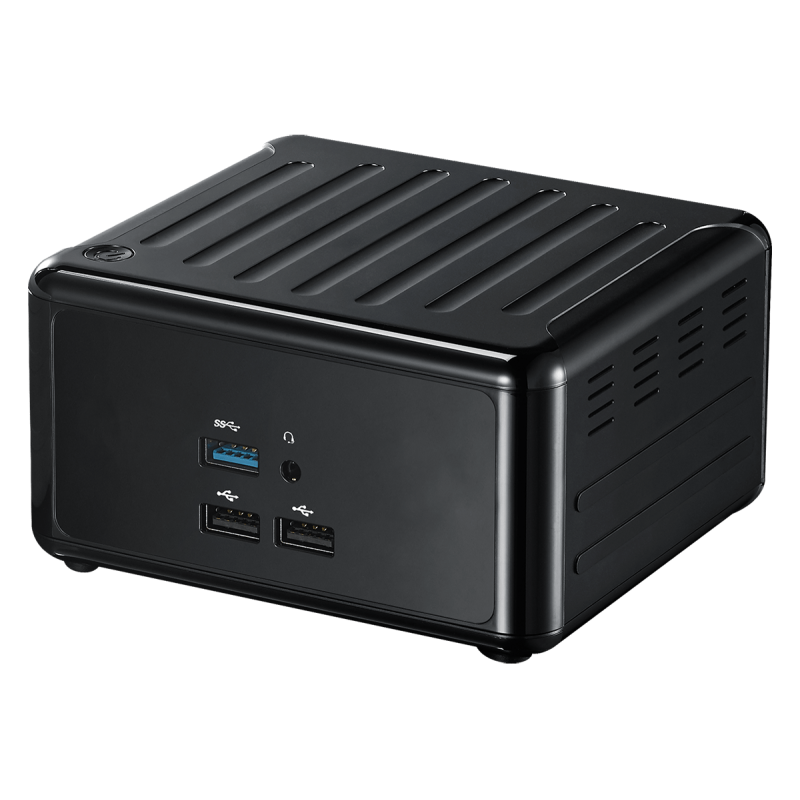

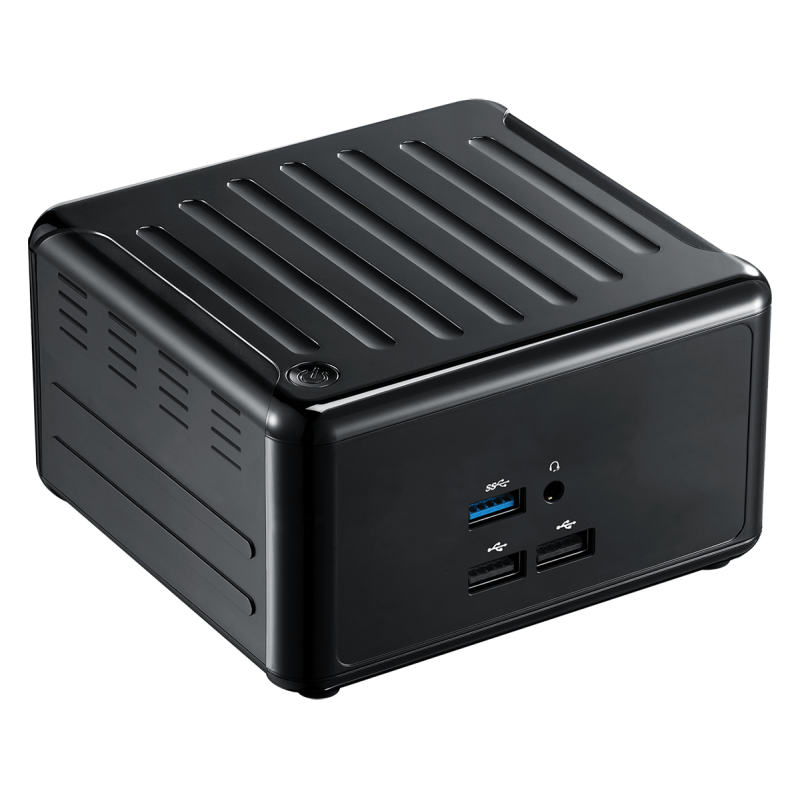

4X4 BOX-V1000M
- AMD Ryzen™ Embedded V-Series V1605B
- 2 x 260-pin SO-DIMM up to 32GB DDR4 2400 MHz with ECC support (16GB per DIMM)
- 3 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x SATA3
- 2 x Realtek 1 Gigabit LAN
- Supports triple display, 1 x HDMI 2.0, 2 x DP 1.2a
- 12V DC-In
- 110.0 x 118.5 x 67.3 mm, Faned Barebone
Dimensions
110.0 x 118.5 x 67.3 mm
CPU
AMD Ryzen™ Embedded V-Series (V1605B, QC, 2GHz, 12-25W)
Memory
Dual Channel DDR4 2400MHz
32 GB (16 GB per DIMM)
2 x 260-pin SO-DIMM
Ethernet
2 x Realtek RTL8111G with 10/100/1000 Mbps
2 x RJ-45
Graphics Support
AMD Radeon™ Vega 8 Graphics
HDMI 2.0
Max resolution up to 4096x2160@60Hz
DisplayPort 1.2a
Max resolution up to 3840x2160@60Hz
MultiDisplay: Triple Display
Audio
Realtek ALC233, High Definition Audio, Line-out, Mic-in
Storage
M.2: 1 x M.2 (Key M, 2242/2260) with PCIe x4 and SATA3 for SSD
*Not support M.2 Key M 2280
SATA: 1 x SATA3 (6Gb/s), SATA3_1 shared with M.2_Key M
Expansion-Slots
1 x 802.11ac (433 Mbps) + BT 4.2 (M.2 Key E, 2230 PCIe x1, USB 2.0 for Wireless)

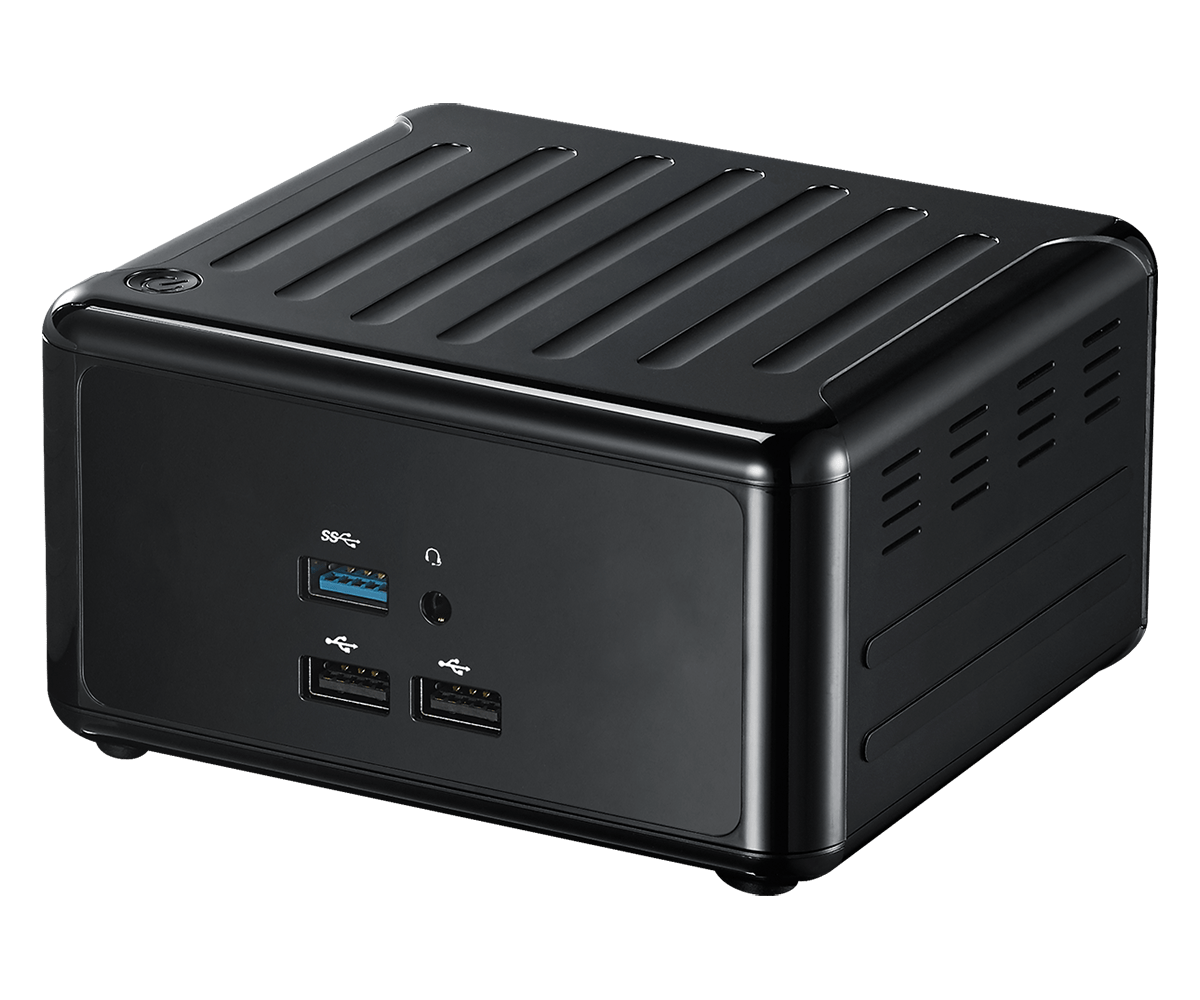

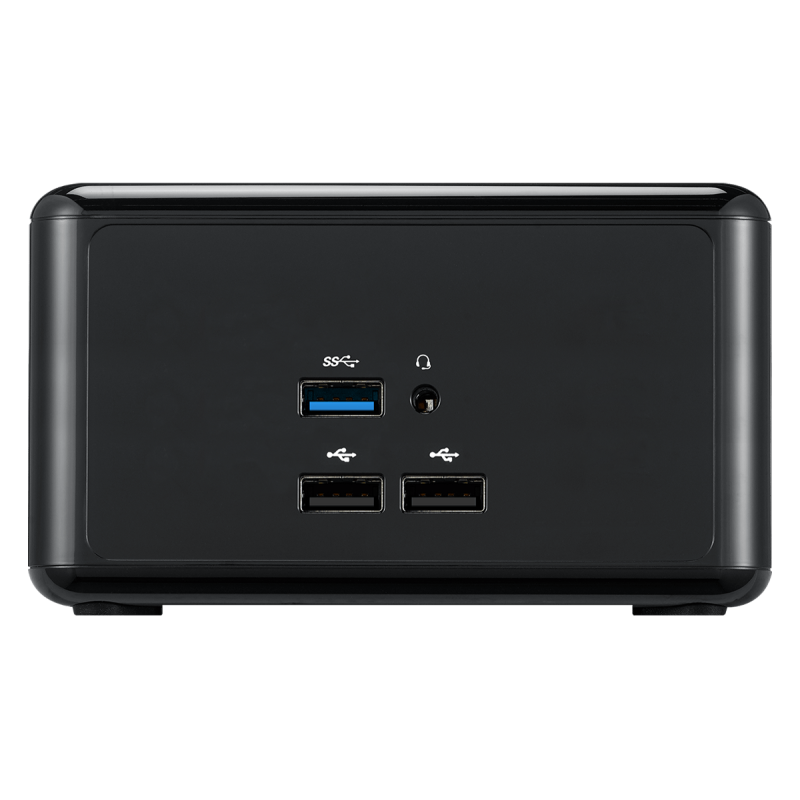

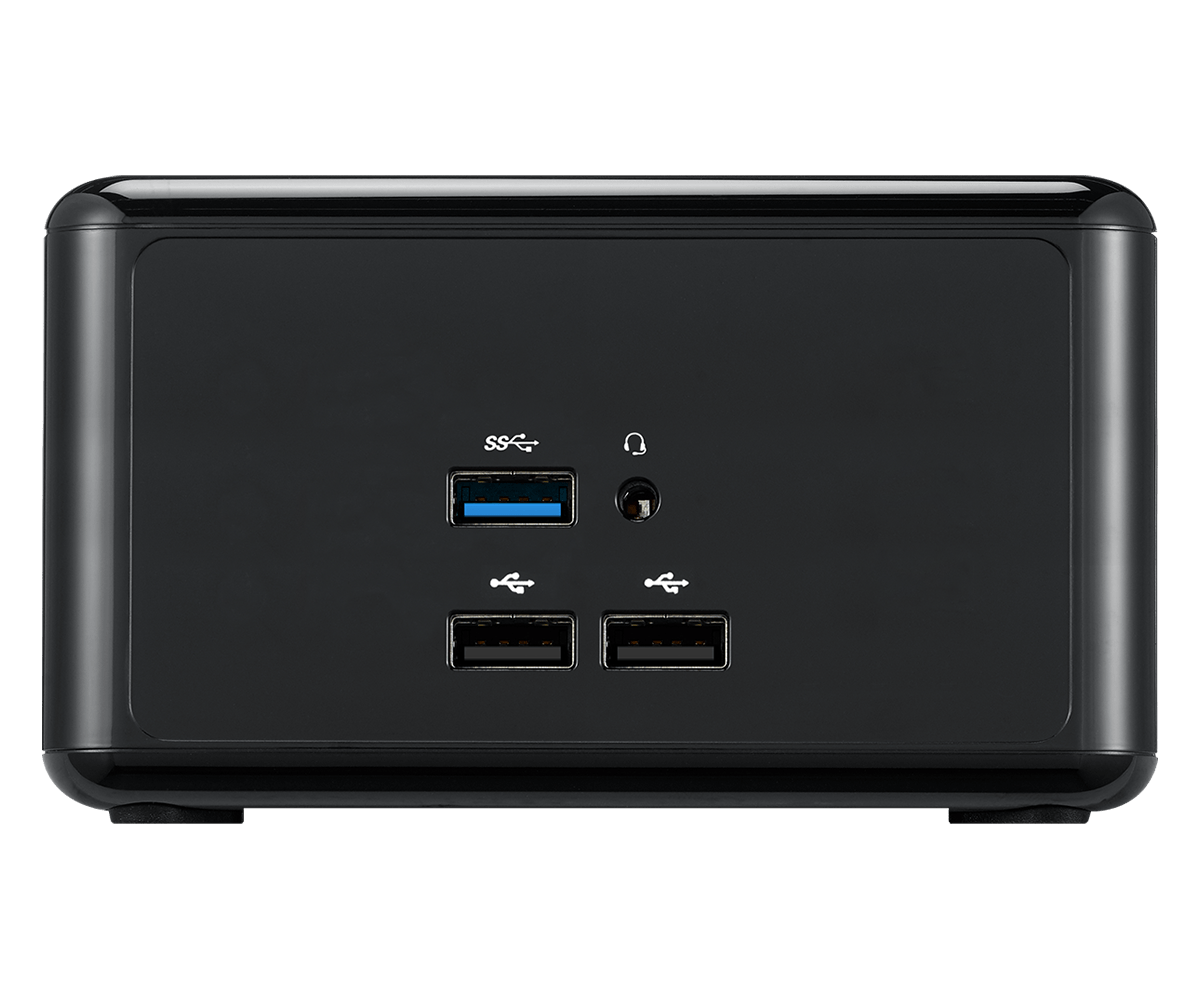

Front I/O
1 x USB 3.2 (Gen2) + 2 x USB 2.0
1 x Audio (Mic-in or Line-out)

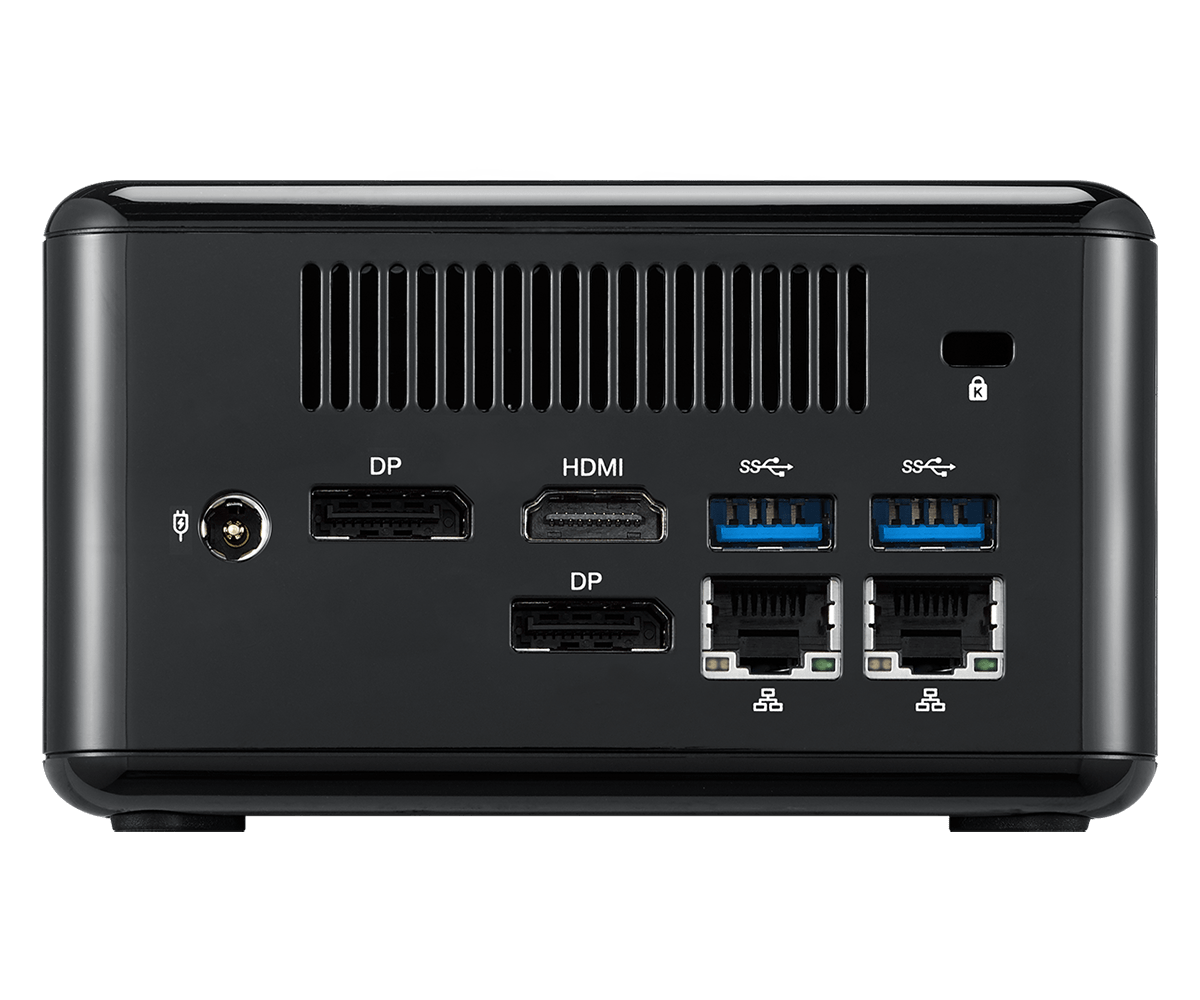

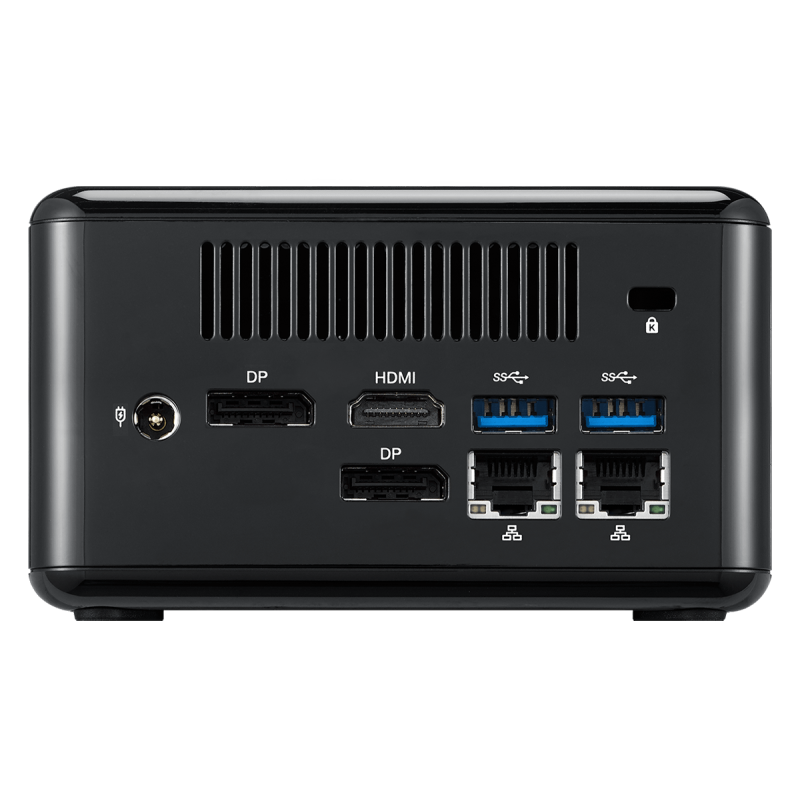

Rear l/O
1 x HDMI 2.0
2 x DP 1.2a
2 x 1 Gigabit LAN
2 x USB 3.2(Gen2)
1 x DC Jack
Power
Input PWR: 1 x 12V/96W Power Adapter
Power On: AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready
Operation Temperature
Operating Temp 0ºC ~ 40ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%
Specifiche Tecniche
| CPU | AMD Ryzen™ Embedded V-Series (V1605B, QC, 2GHz, 12-25W) |
|---|---|
| Tipo Memoria | 32GB DDR4 SO-DIMM |
| Storage | x1 M.2 2242 PCIe + x1 SATA3.0 |
| GPU | AMD Radeon™ Vega 8 Graphics |
| Porte USB | 1 x COM + 1 x HDMI + 2 x DisplayPort 1 x Mic-in or Line-out + 1 x Jack 2 x 1 Gigabit LAN 3 x USB 3.2 Gen2 + 2 x USB 2.0 |
| Lan | x2 10/100/1000 Mbps, 1G LAN |
| Dimensioni | 110.0 x 118.5 x 67.3 mm |
| Peso | 1000g |
