4X4 BOX-R2000M
- AMD Ryzen™ Embedded R2314
- 2 x 260-pin ECC/non-ECC DDR4 2666 MHz, up to 64GB (32GB per DIMM)
- 3 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6E Module), 1 x SATA3
- 1 x Realtek 2.5 Gigabit LAN, 1 x Realtek 1 Gigabit LAN
- Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.2a (2 from Type-C)
- TPM 2.0 onboard IC
- 19V/90W Power Adapter
- 117.5 x 110.0 x 47.85mm (4.63" x 4.33" x 1.88"), Fanned Barebone
Dimensions
117.5 x 110.0 x 47.85mm (4.63" x 4.33" x 1.88")
CPU
AMD Ryzen™ Embedded R-Series
4X4 BOX-R2000M (R2314, QC, Max Speed up to 3.5GHz)
Memory
Dual Channel ECC/non-ECC DDR4 2666 MHz
64GB (32 GB per DIMM)
2 x 260-pin SO-DIMM
Ethernet
LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek R8111H with 10/100/1000 Mbps
2 x RJ-45
Graphics Support
AMD Radeon™ Graphics
HDMI 2.0a
Max resolution up to 4096x2160@60Hz
DisplayPort 1.2a, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay: Quad Display (Included 2 outputs from Type-C)
Audio
Realtek ALC256, High Definition Audio.
Storage
M.2: 1 x M.2 (KEY M, 2242/2260/2280) with PCIe Gen3 x4 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA: 1 x SATA3 (6Gb/s)
Expansion-Slots
1 x Wi-Fi 6E 802.11ax + BT 5.2

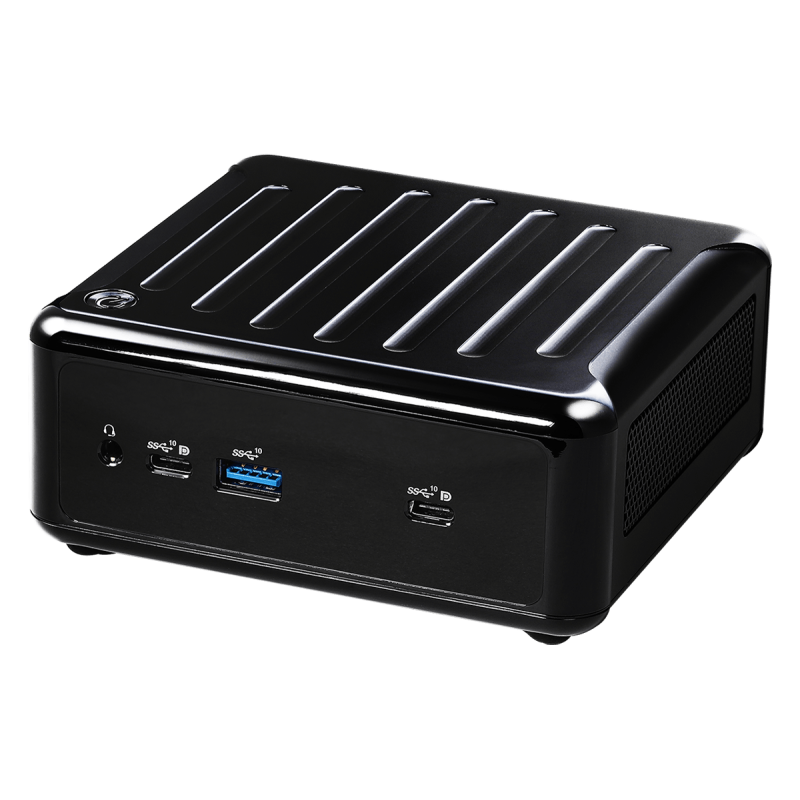

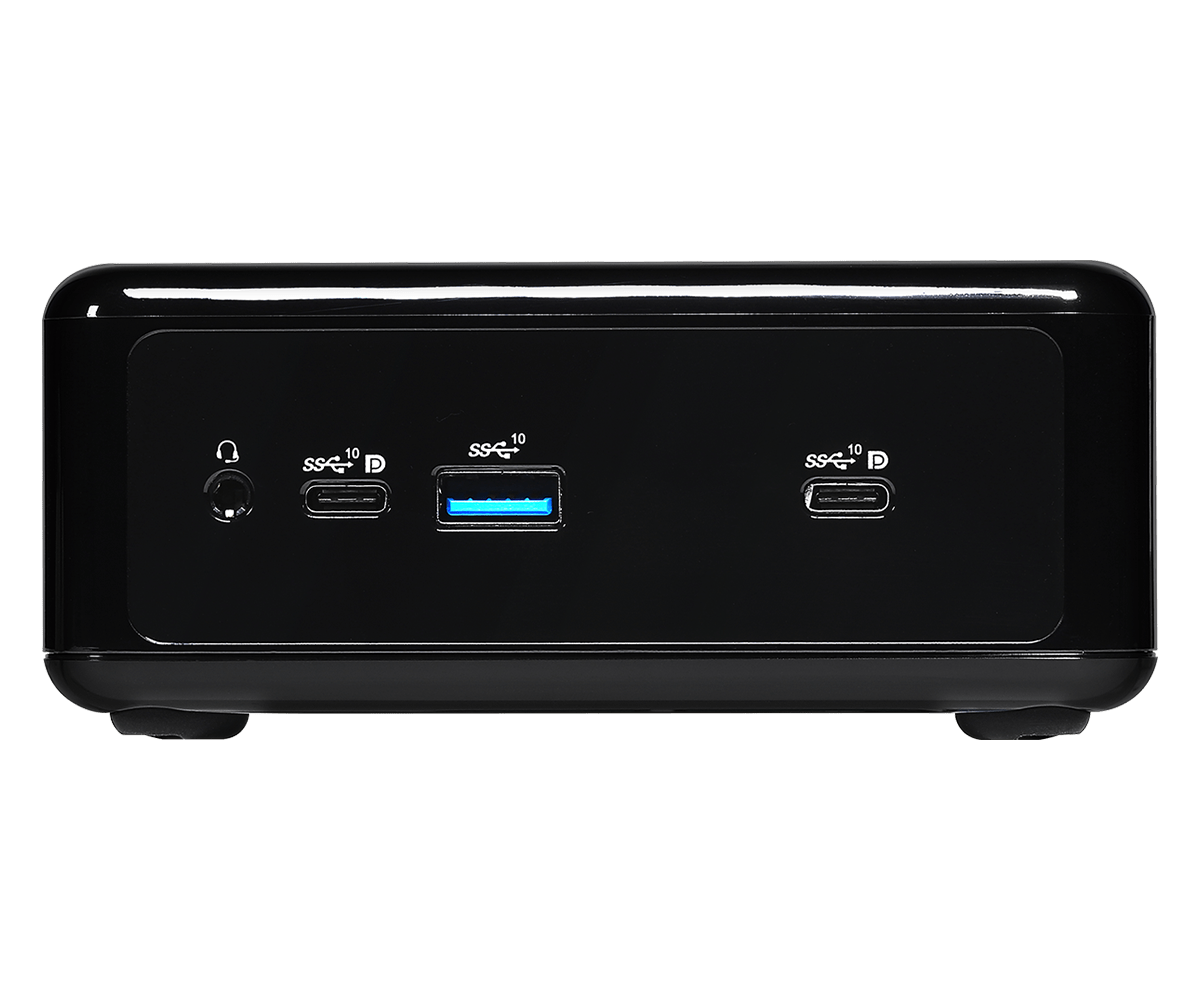

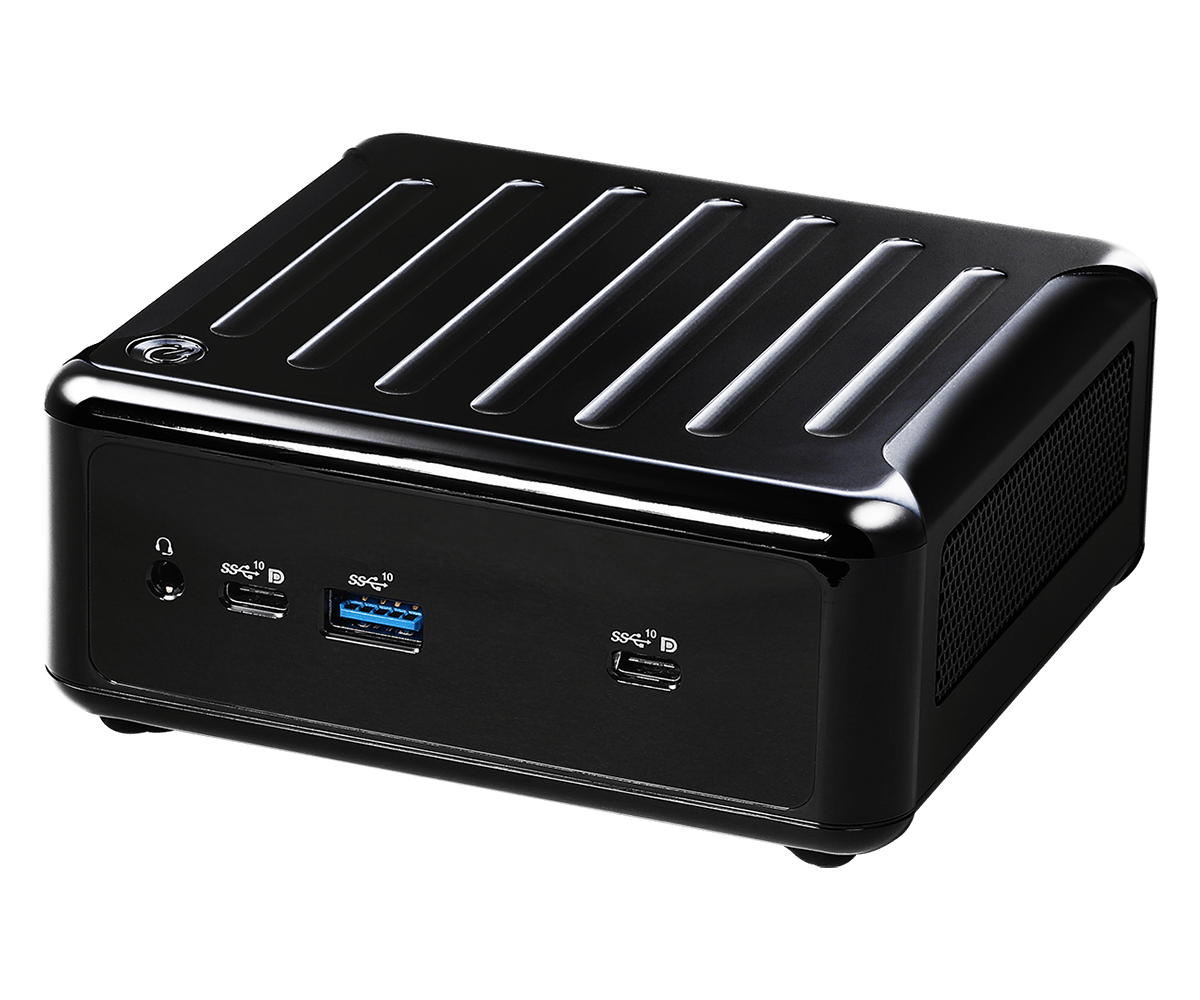

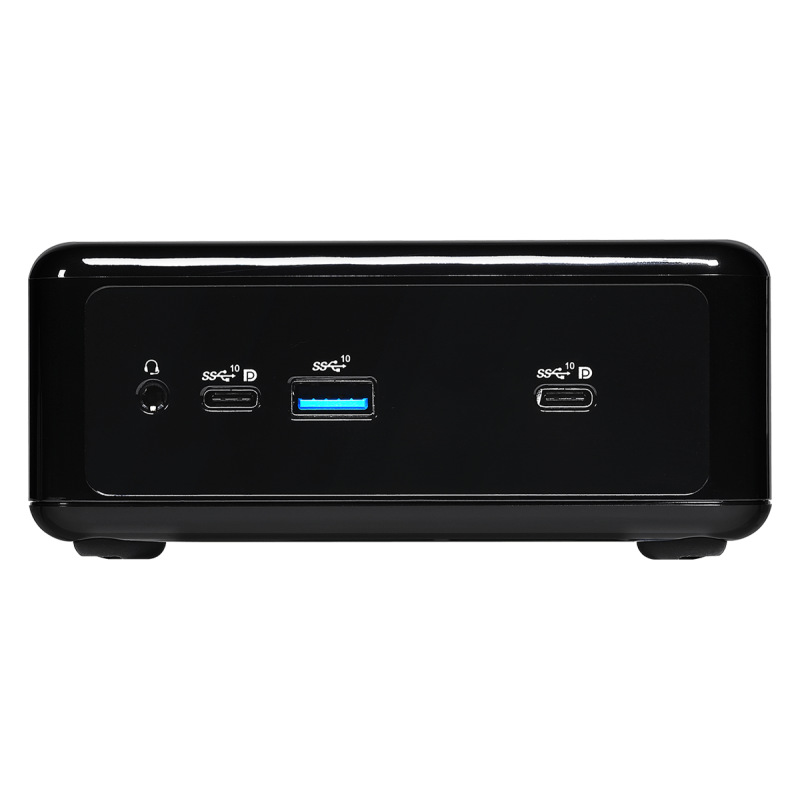

Front I/O
1 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C, Supports DP 1.2a display output)
1 x Audio (headphone & microphone jack)

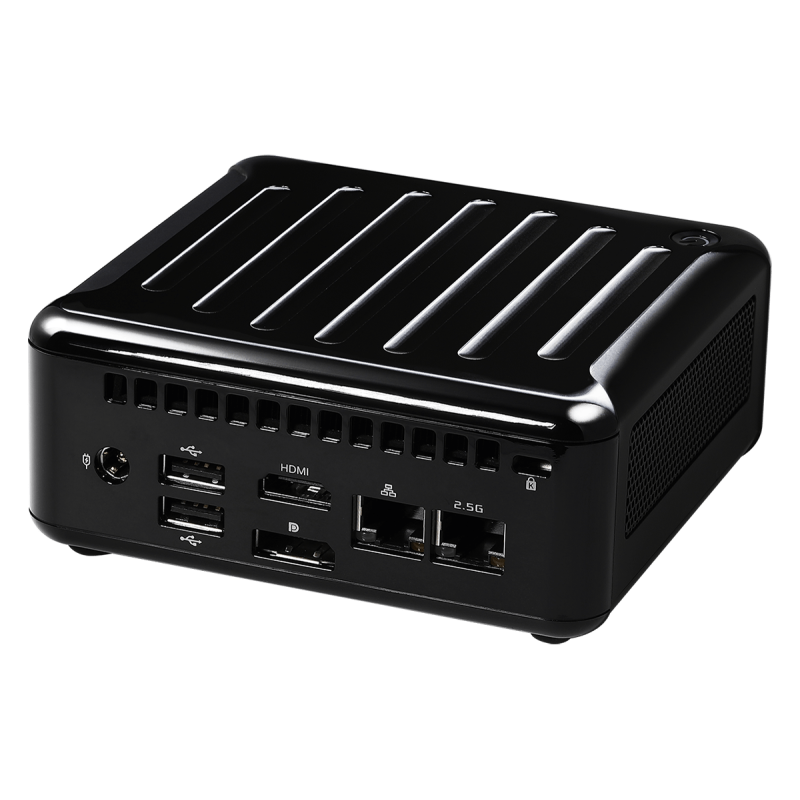

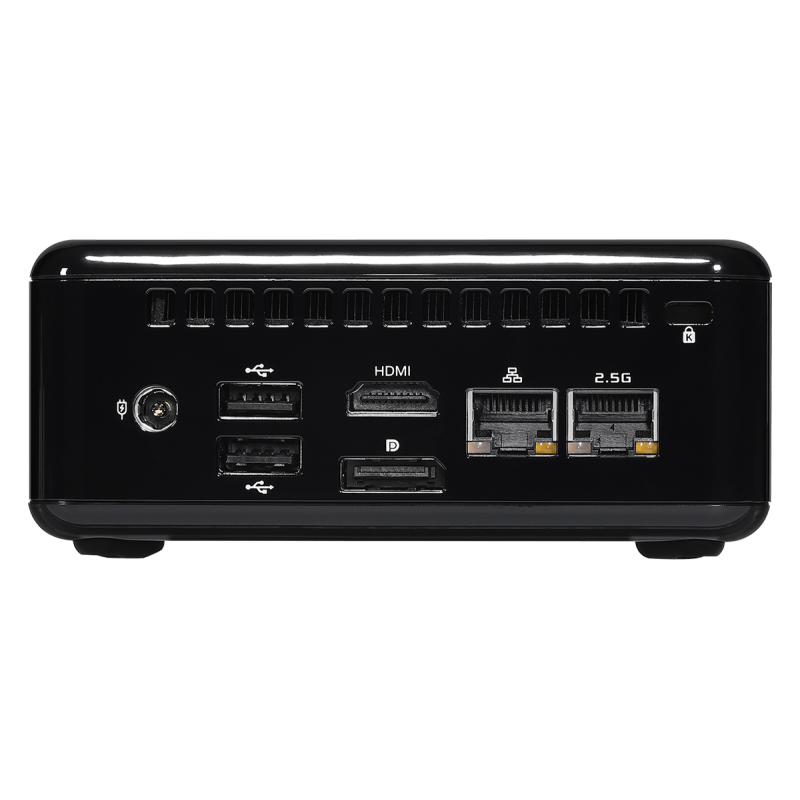

Rear l/O
1 x HDMI 2.0a
1 x DP 1.2a
Ethernet 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
2 x USB 2.0
1 x DC Jack
Power
Input PWR: 12V~24V DC-In Jack
Power On: AT/ATX supported
-AT: Direct PWR on as power input ready
-ATX:Press button to PWR on after power input ready
Operation Temperature
Operating Temp 0ºC ~ 40ºC
Storage Temp -40° C ~ 85° C
Operating Humidity 10% ~ 90%
Storage Humidity 10% ~ 90%
Specifiche Tecniche
| CPU | AMD Ryzen™ Embedded R-Series 4X4 BOX-R2000M (R2314, QC, Max Speed up to 3.5GHz) |
|---|---|
| Tipo Memoria | 64GB DDR4 SO-DIMM |
| Storage | x1 M.2 2242 PCIe + x1 SATA3.0 |
| GPU | AMD Radeon™ Graphics |
| Porte USB | 1 x 1 Gigabit LAN + 1 x 2.5 Gigabit LAN 1 x HDMI + 1 x DisplayPort 2 x Jack 2 x USB 3.2 Gen2 Type-C + 2 x USB 2.0 + 1 x USB 3.2 Gen2 Type-A |
| Lan | x1 10/100/1000 Mbps, 1G LAN x1 10/100/1000/2500 Mbps, 2.5G LAN |
| Dimensioni | 117.5 x 110.0 x 47.85 mm |
| Peso | 1000g |
