NUC BOX Intel® Core 11th Gen.
- Intel® 11th Gen (Tiger Lake-UP3) Core™, Processors: I7-1165G7, I3-1115G4, Celeron 6305E
- 2 x 260-pin SO-DIMM DDR4 3200MHz up to 64GB (32GB per DIMM)
- 1 x USB4/Thunderbolt™4, 4 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6), 1 x SATA3
- 1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
- Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.4 (2 from Type C)
- TPM 2.0 onboard IC
- 19V/90W Power Adapter
- 117.5 x 110.0 x 47.85mm(4.63" x 4.33" x 1.88"), Fanned Barebone
Dimensions
117.5 x 110.0 x 47.85mm(4.63" x 4.33" x 1.88")
CPU
Intel® 11th Gen (Tiger Lake-UP3) Core™ Processors
NUC BOX-1165G7 (I7-1165G7, QC, Max Speed up to 4.7GHz)
Memory
Dual Channel DDR4 3200 MHz
64GB (32 GB per DIMM)
2 x 260-pin SO-DIMM
Ethernet
LAN1: Intel® I219V with 10/100/1000 Mbps
LAN2: Intel® I225LM/I225V with 10/100/1000/2500 Mbps
2 x RJ-45
Graphics Support
Intel® Iris® Xe Graphics
HDMI 2.0a
Max resolution up to 4096x2160@60Hz
DisplayPort 1.4, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay: Quad-Display (Included 2 outputs from Type-C)
Audio
Realtek ALC233/ALC256, High Definition Audio.
Storage
M.2: 1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe Gen4 x4 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA: 1 x SATA3.0 (6.0 Gb/s)
Expansion-Slots
1 x Wi-Fi 6 802.11ax + BT 5.2

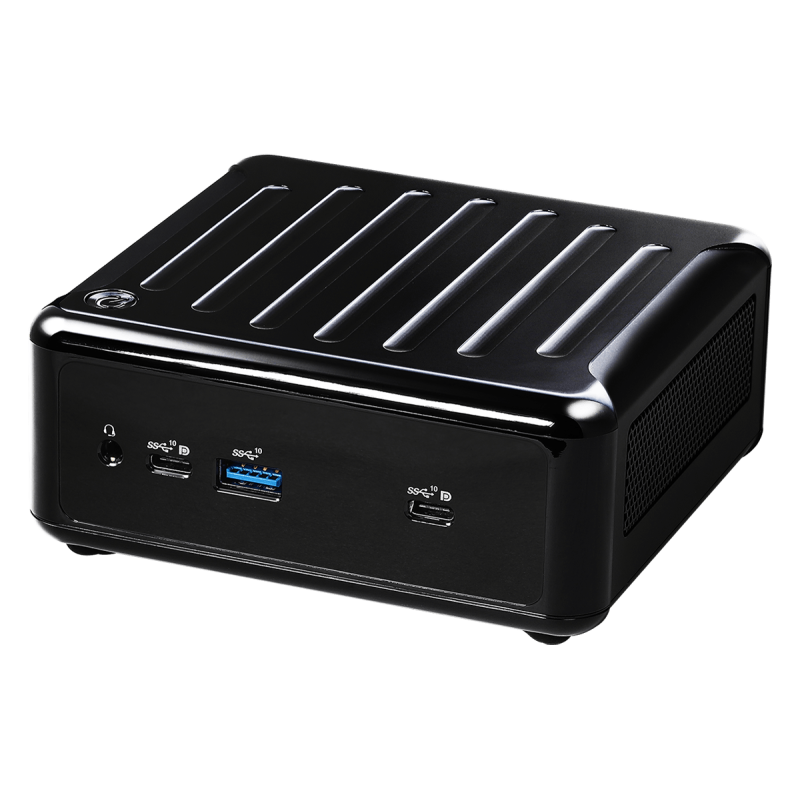

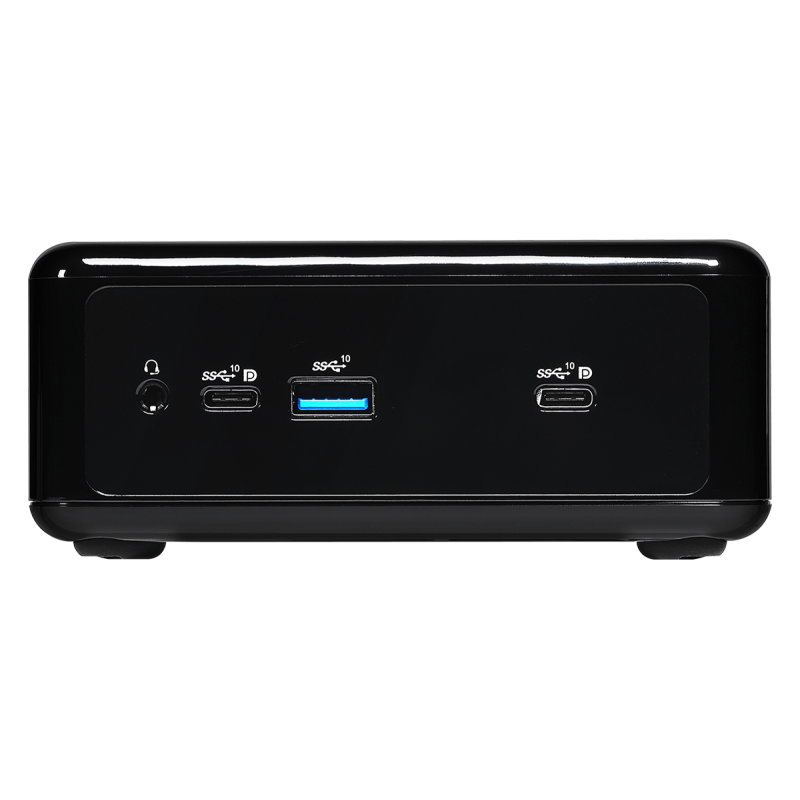

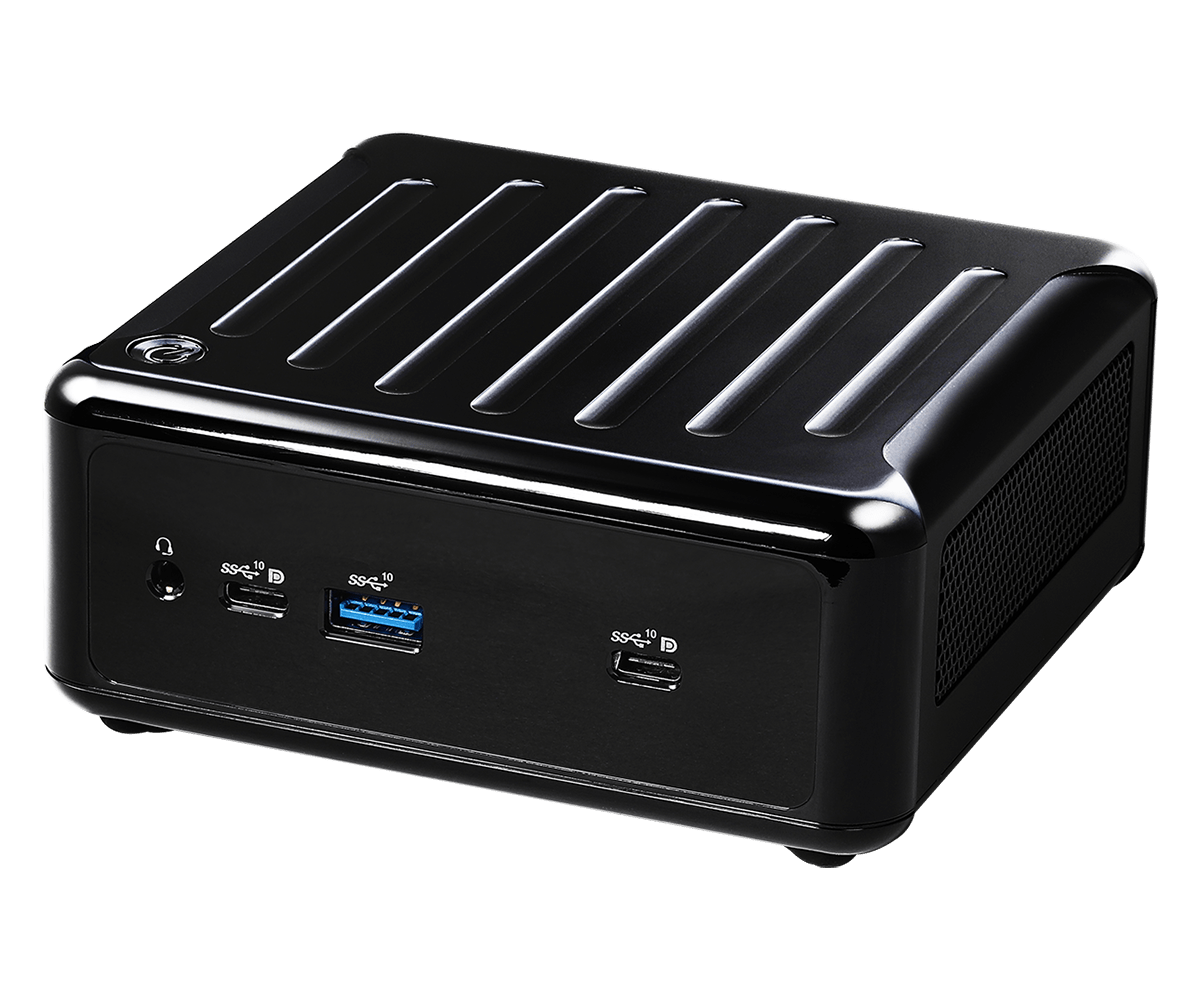

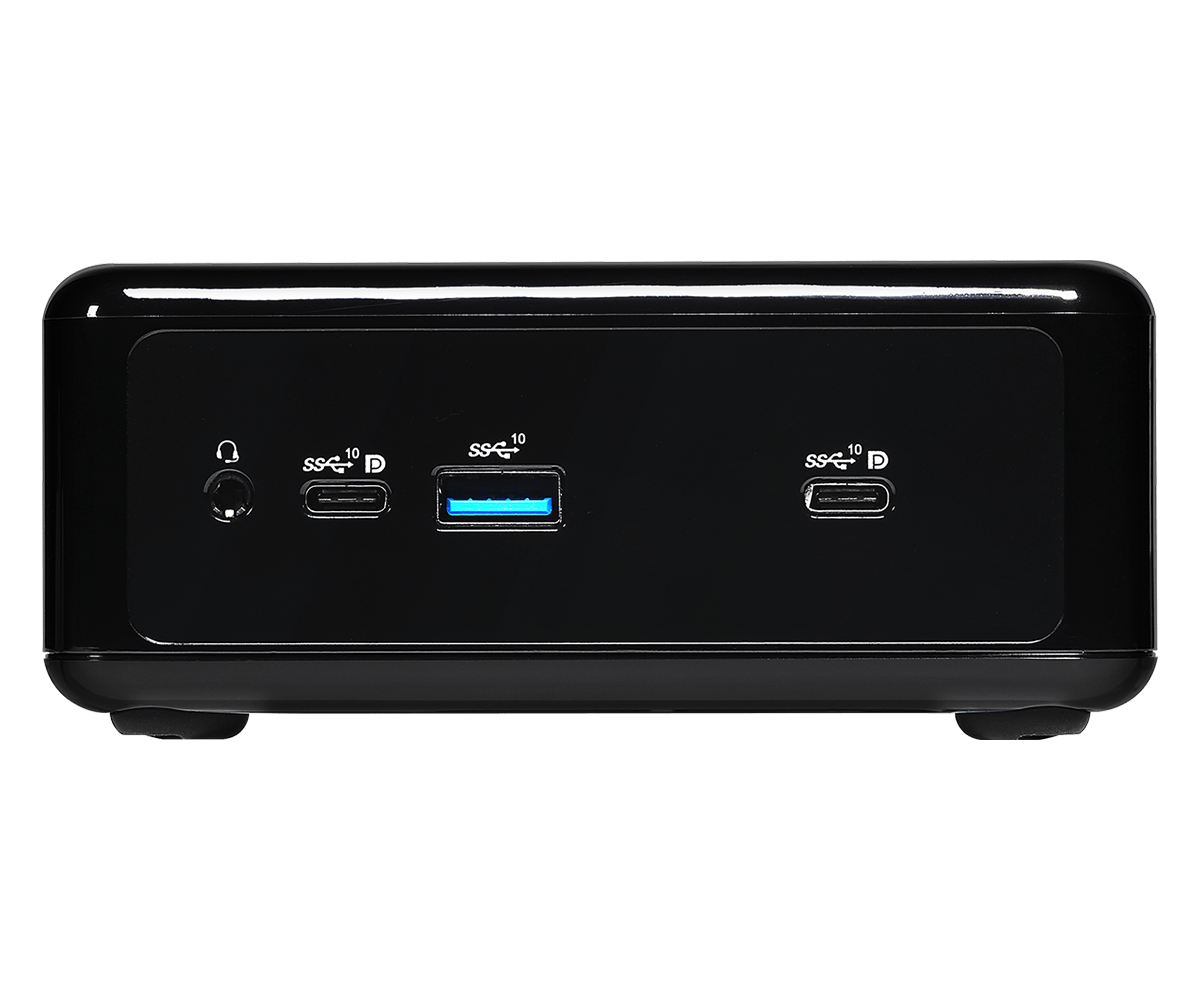

Front I/O
2 x USB 3.2 Gen2 (Type A)
1 x USB 4/Thunderbolt™ 4 (Supports DP1.4 display output)
1 x USB 3.2 Gen2 (Type-C, supports DP1.4 display output)
*For Thunderbolt support, please refer to support list.
1 x Audio (headphone & microphone jack)

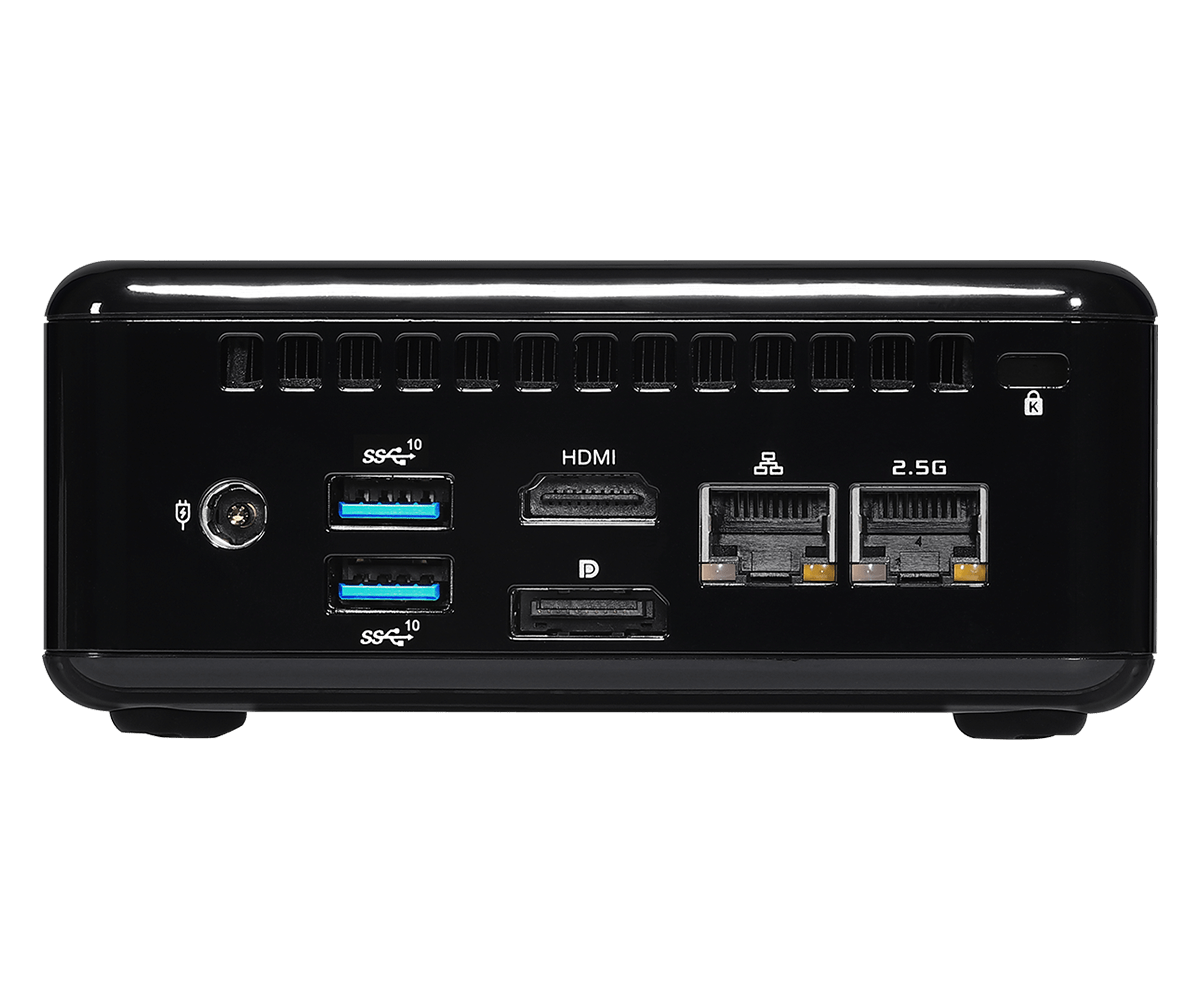

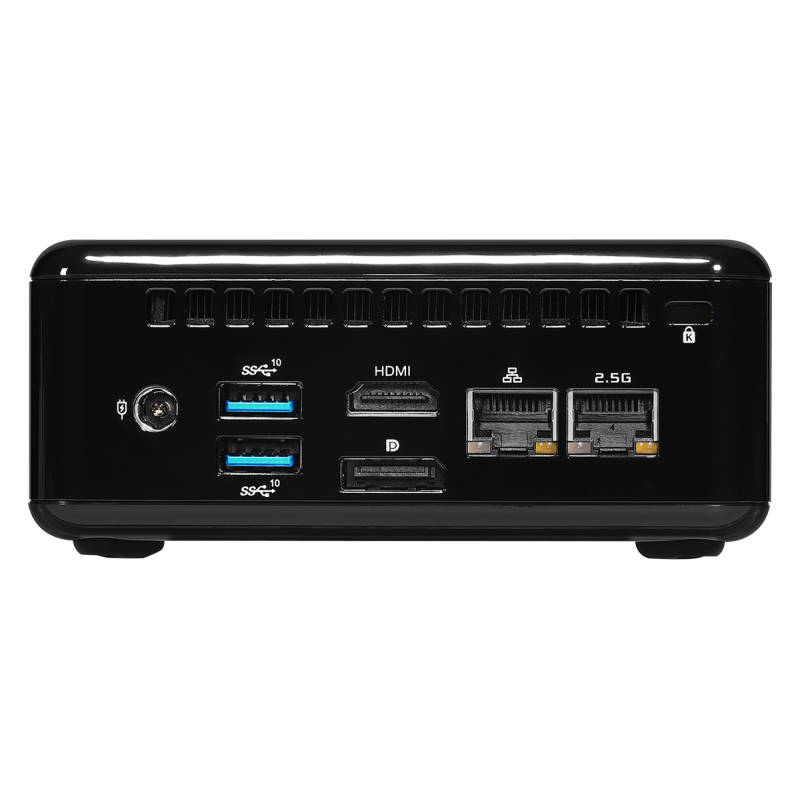

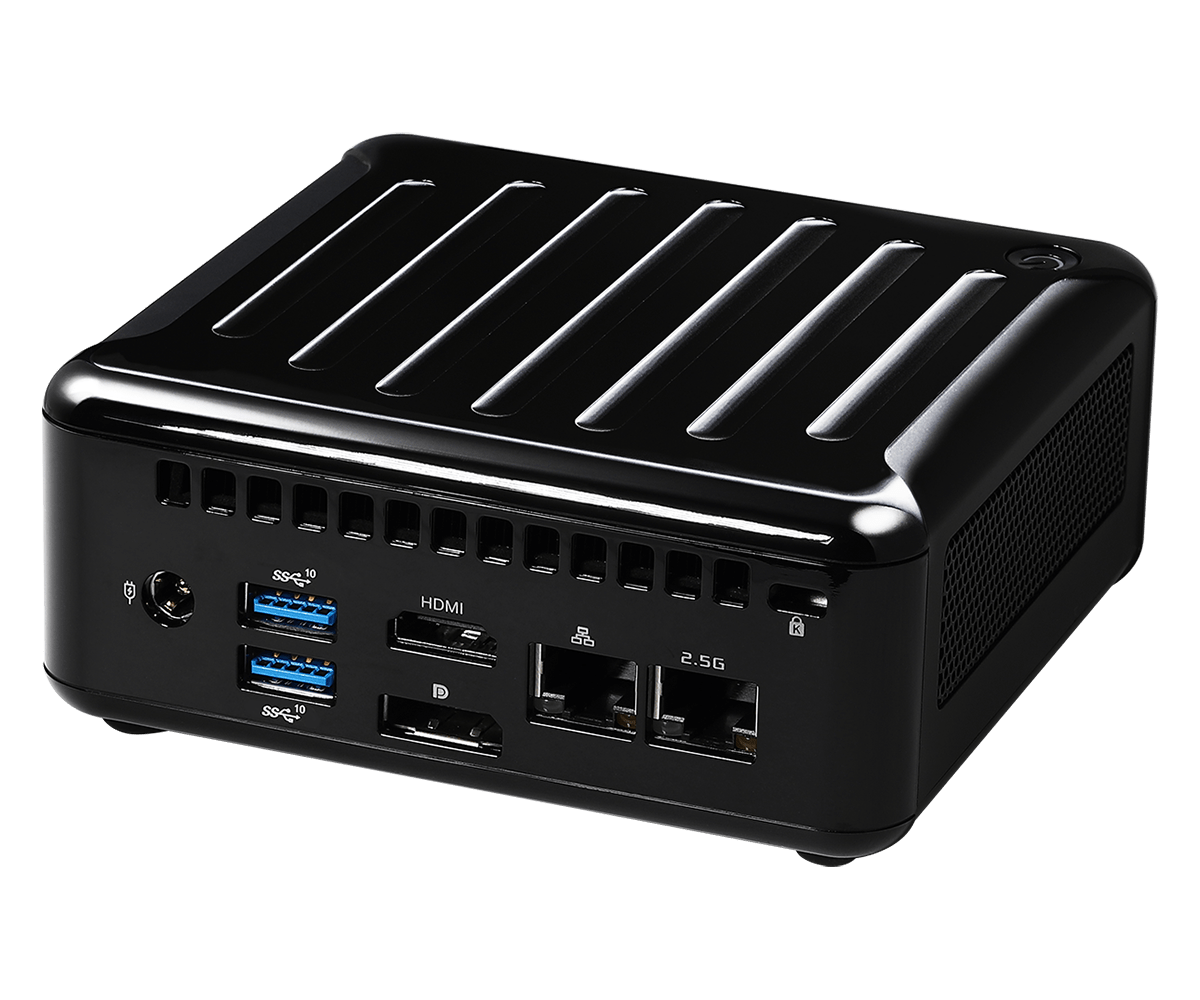

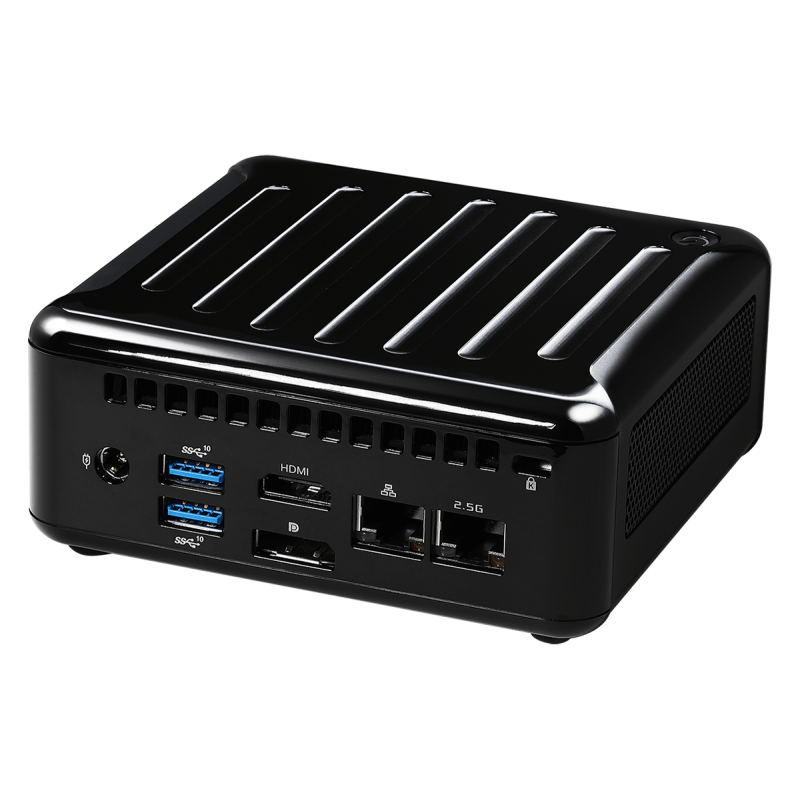

Rear l/O
1 x HDMI 2.0a
1 x DP 1.4
1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
2 x USB 3.2 Gen2 (Type-A)
1 x DC Jack
Power
Input PWR: 12V~19V DC-In Jack
Power On: AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Operation Temperature
Operating Temp 0ºC ~ 40ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%
Specifiche Tecniche
| CPU | Intel® 11th Gen (Tiger Lake) Core™ Processors (I7-1165G7, I5-1135G7, I3-1115G4, Celeron 6305E) |
|---|---|
| Tipo Memoria | 64GB DDR4 SO-DIMM |
| Storage | x1 M.2 2242 PCIe + x1 SATA3.0 |
| GPU | Integrata - Intel® Iris® Xe Graphics |
| Porte USB | 1 x 1 Gigabit LAN + 1 x 2.5 Gigabit LAN 1 x HDMI + 1 x DisplayPort 2 x Jack 4 x USB 3.2 Gen2 Type-A + 1 x USB4 + 1 x USB 3.2 Gen2 Type-C |
| Lan | x1 10/100/1000 Mbps, 1G LAN x1 10/100/1000/2500 Mbps, 2.5G LAN |
| Dimensioni | 117.5 x 110.0 x 47.85 mm |
| Peso | 1000g |
