NUC BOX-J6412
- Intel® ElkHart Lake Processors J6412
- 2 x 260-pin SO-DIMM DDR4 3200 MHz, up to 32GB (16GB per DIMM)
- 4 x USB 3.2 Gen2, 1 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E (WiFi Module), 1 x SATA3
- 2 x Realtek 1 Gigabit LAN
- Supports Dual display, 1 x HDMI 2.0b, 1 x DP 1.4
- TPM 2.0 onboard IC
- 19V/65W Power Adapter
- 117.5 x 110.0 x 47.85mm (4.63" x 4.33" x 1.88"), Fanned Barebone
Dimensions
117.5 x 110.0 x 47.85mm(4.63" x 4.33" x 1.88")
CPU
Intel® ElkHart Lake Processors
NUC BOX-J6412 (J6412, QC, Max Speed up to 2.6GHz, 10W)
Memory
Dual Channel DDR4 3200 MHz
32GB (16 GB per DIMM)
2 x 260-pin SO-DIMM
Ethernet
Realtek RTL8111G-CG/RTL8111H-CG with 10/100/1000 Mbps
2 x RJ-45
Graphics Support
Intel® Gen 11 Graphics
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort 1.4, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay: Dual-Display
Audio
Realtek ALC233/ALC256, High Definition Audio.
Storage
M.2: 1 x M.2(KEY M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA: 1 x SATA3.0 (6.0 Gb/s)
Expansion-Slots
1 x 802.11ac + BT 4.2

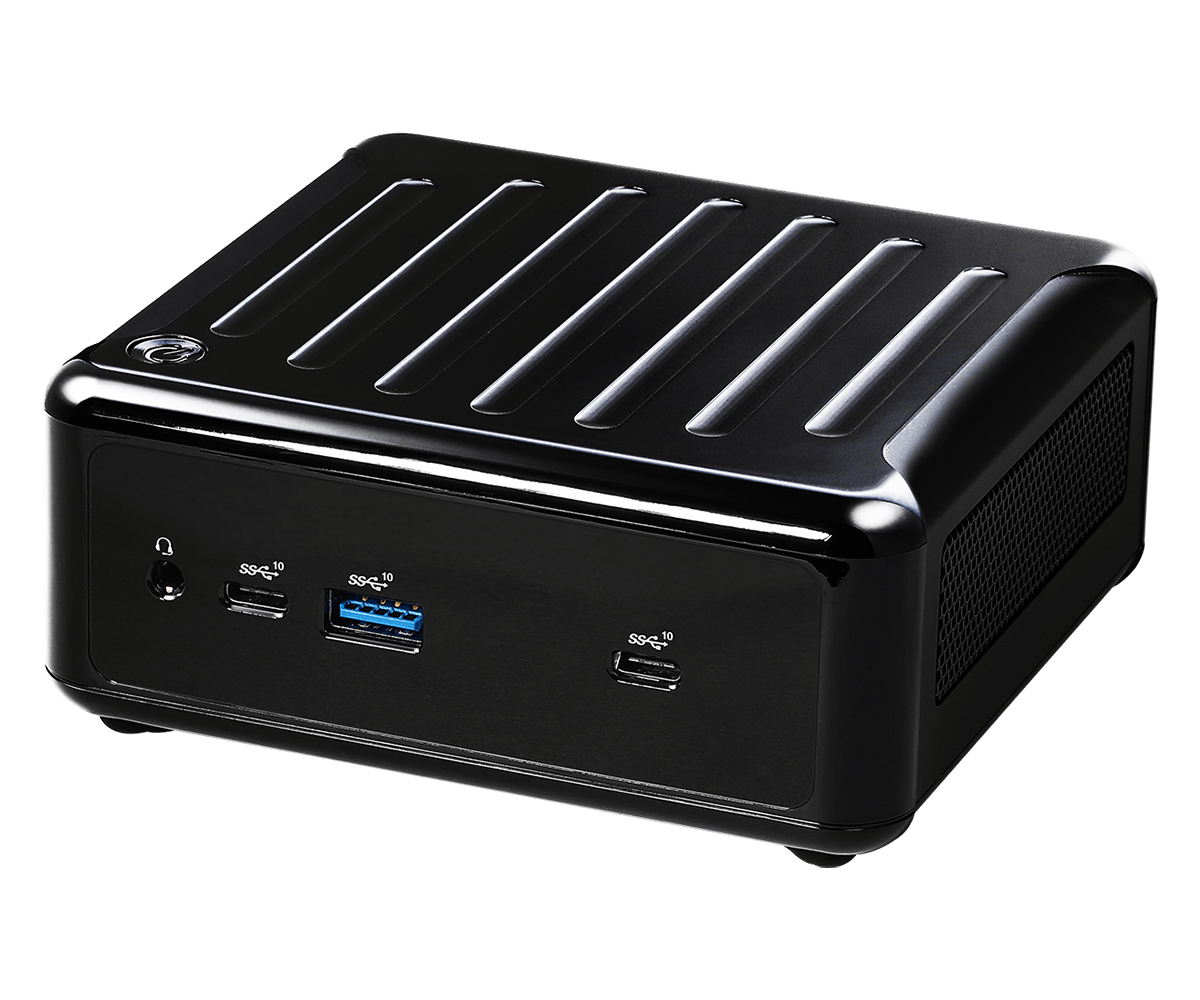

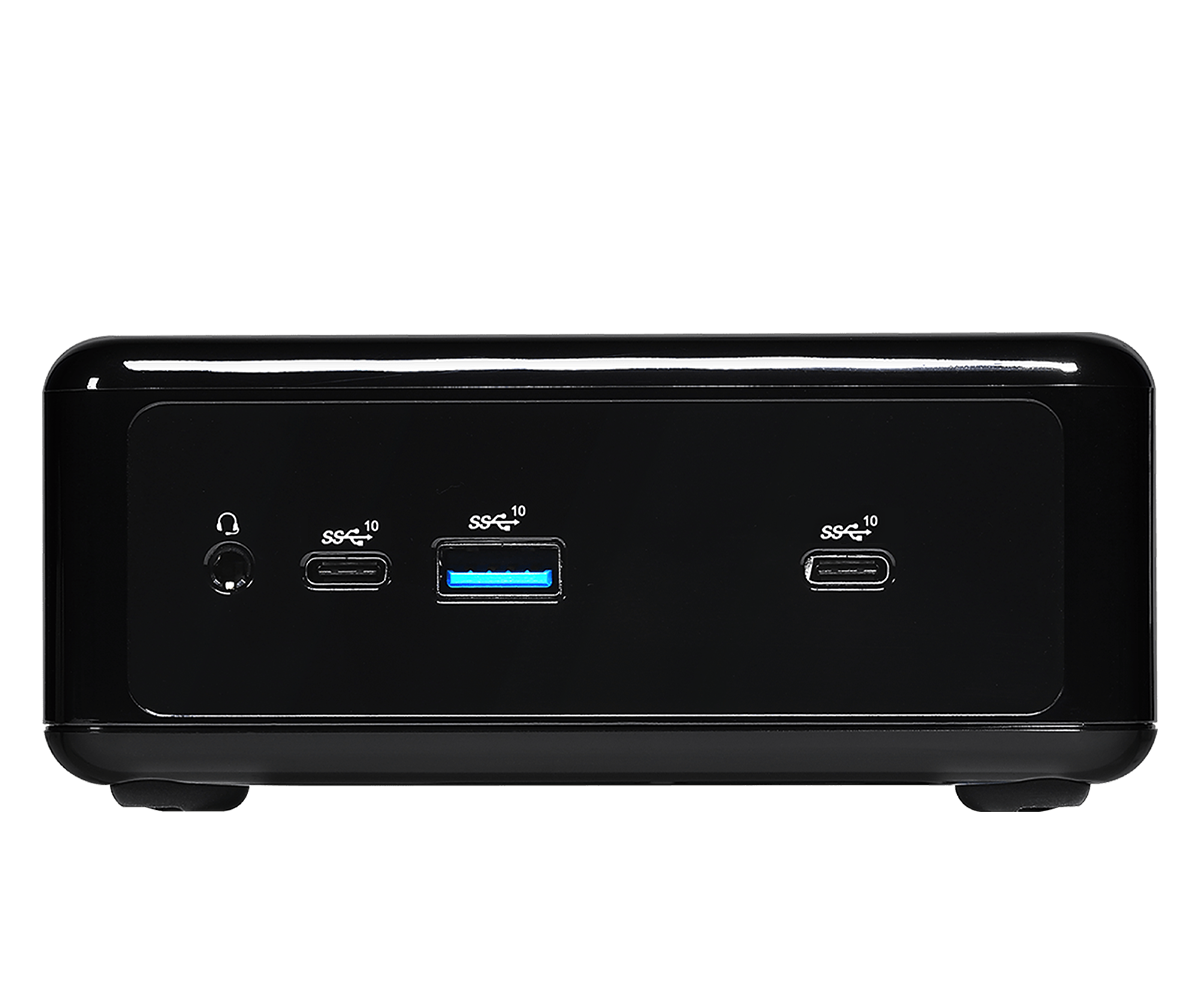

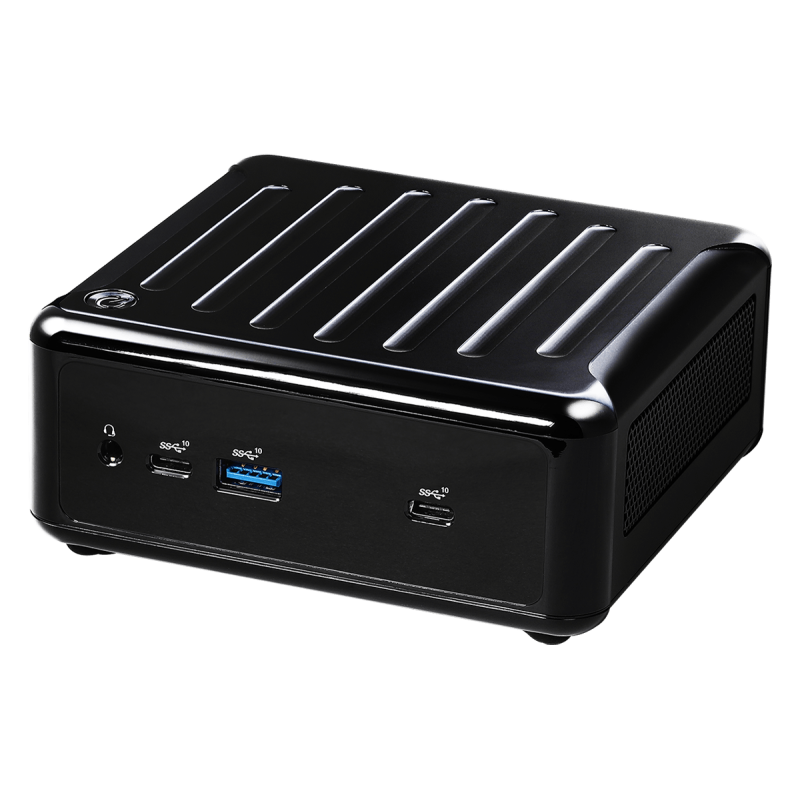

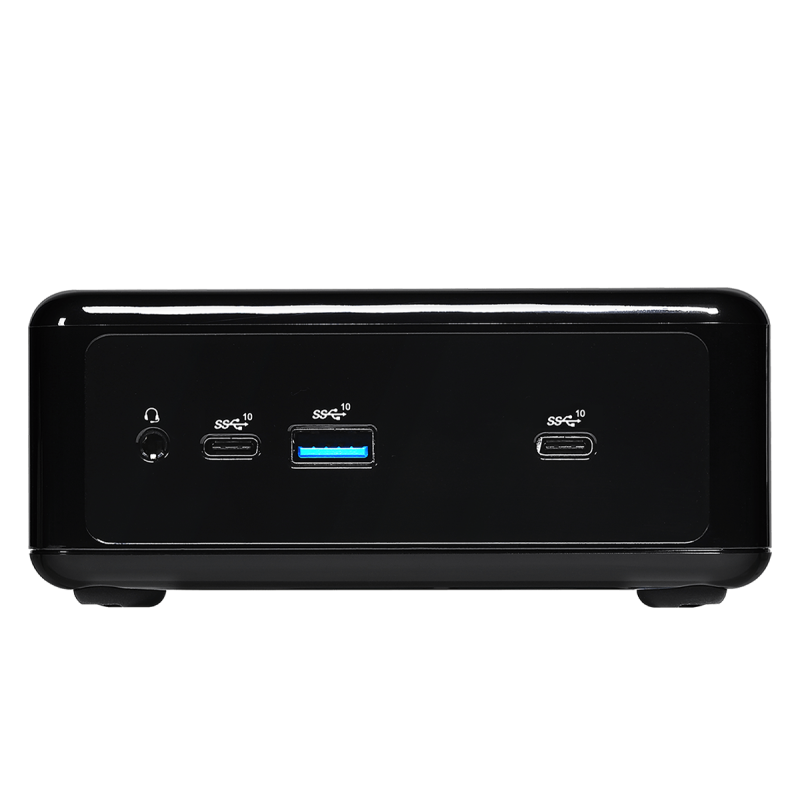

Front I/O
1 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C)
1 x Audio (headphone & microphone jack)

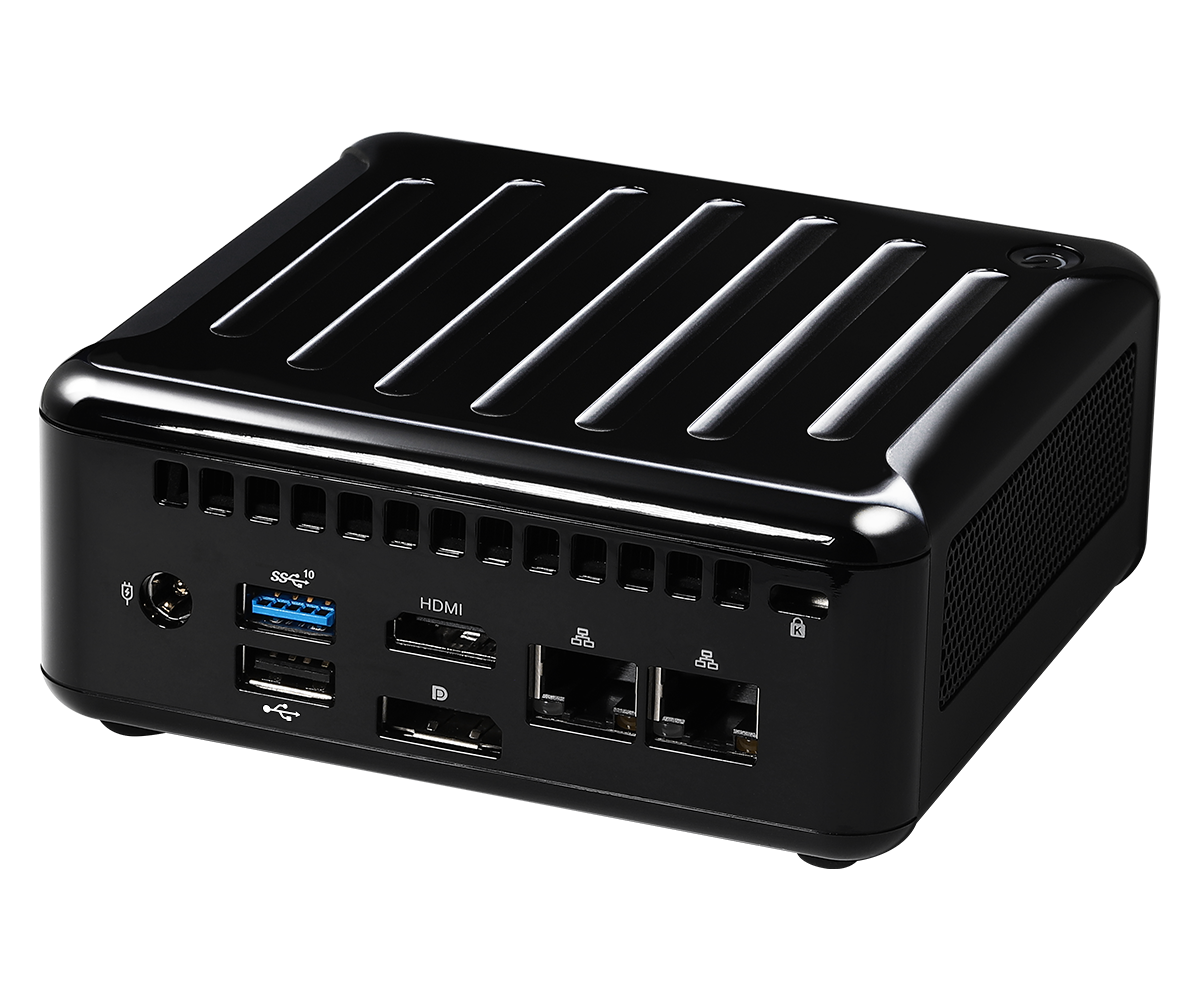

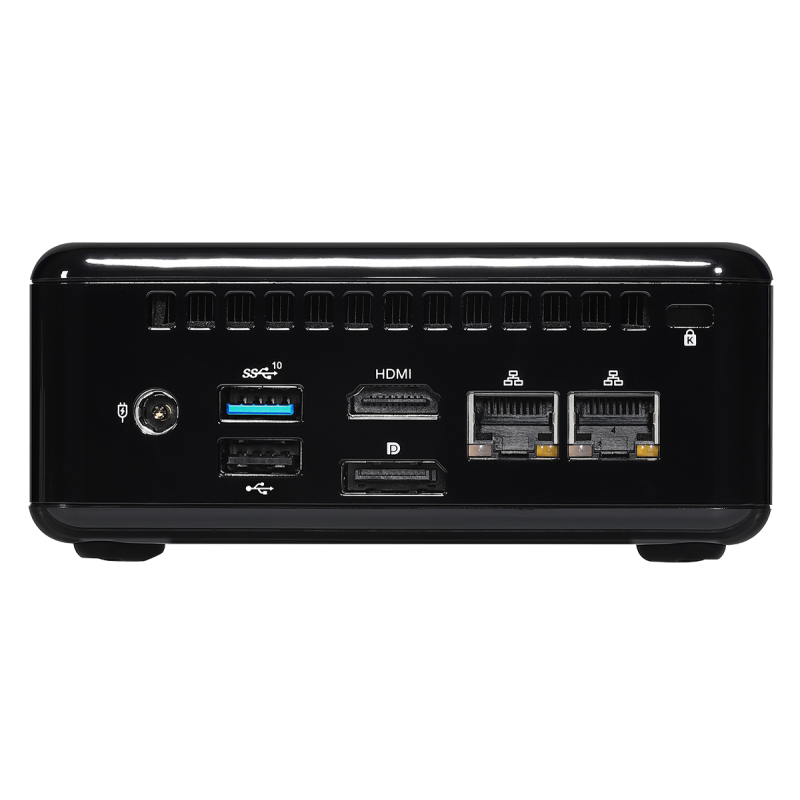

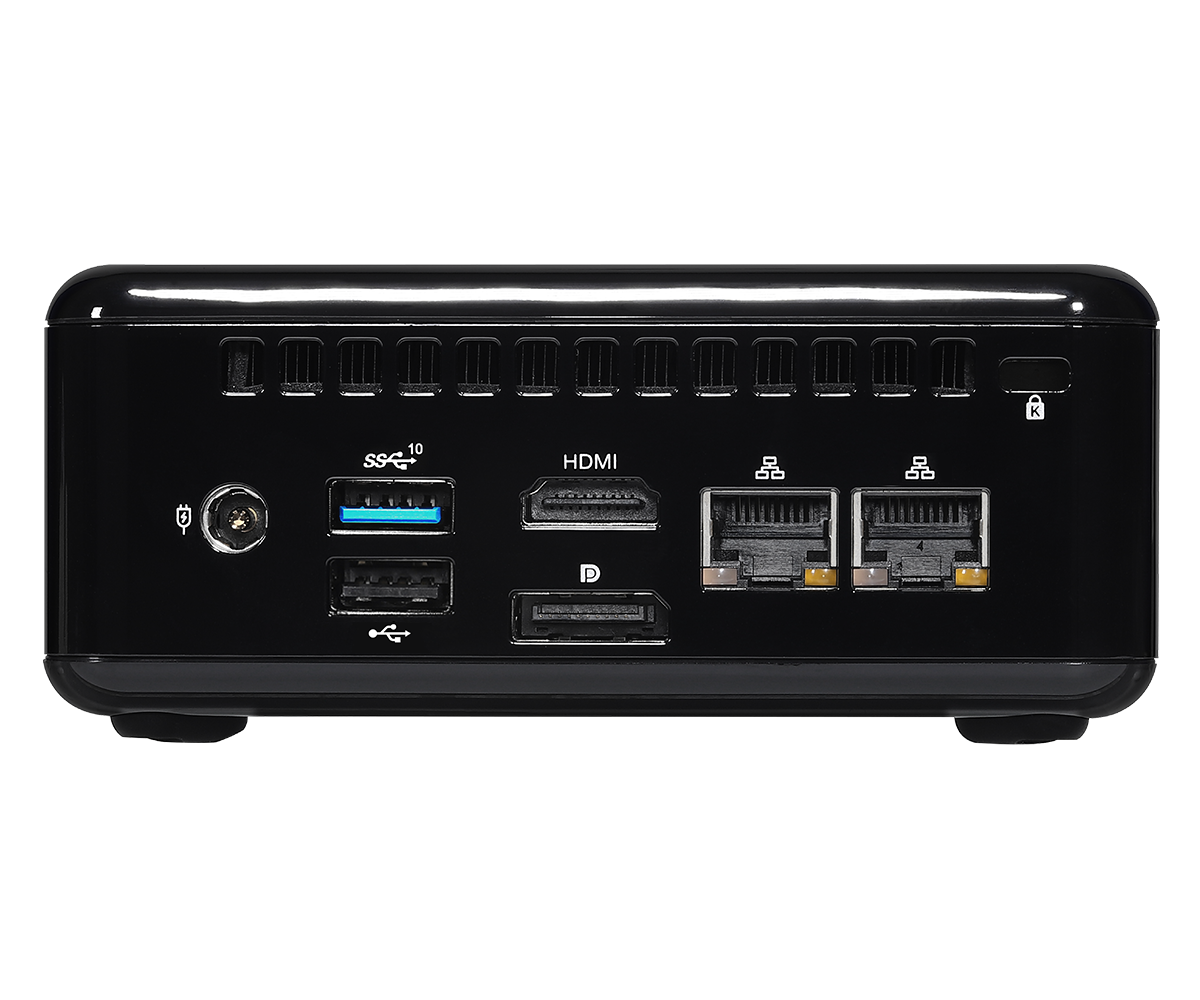

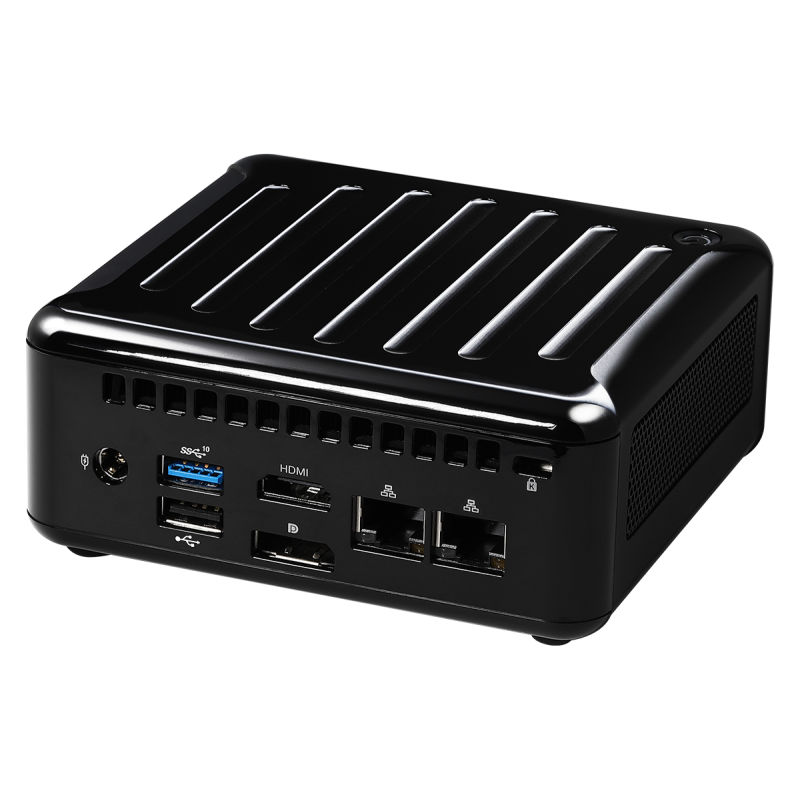

Rear l/O
1 x HDMI 2.0b
1 x DP 1.4
2 x 1 Gigabit LAN
1 x USB 2.0
1 x USB 3.2 Gen2 (Type-A)
1 x DC Jack
Power
Input PWR: 1 x 19V/65W Power Adapter
Power On: AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Operation Temperature
Operating Temp 0ºC ~ 40ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%
Specifiche Tecniche
| CPU | Intel® ElkHart Lake Processors NUC BOX-J6412 (J6412, QC, Max Speed up to 2.6GHz, 10W) |
|---|---|
| Tipo Memoria | 32GB DDR4 SO-DIMM |
| Storage | x1 M.2 2242 PCIe + x1 SATA3.0 |
| GPU | Intel® Gen 11 Graphics |
| Porte USB | 1 x HDMI + 1 x DisplayPort 2 x Jack 2 x USB 3.2 Gen2 Type-A + 2 x USB 3.2 Gen2 Type-C + 1 x USB 2.0 |
| Lan | x1 10/100/1000 Mbps, 1G LAN x2 10/100/1000 Mbps, 1G LAN |
| Dimensioni | 117.5 x 110.0 x 47.85 mm |
| Peso | 1000g |
