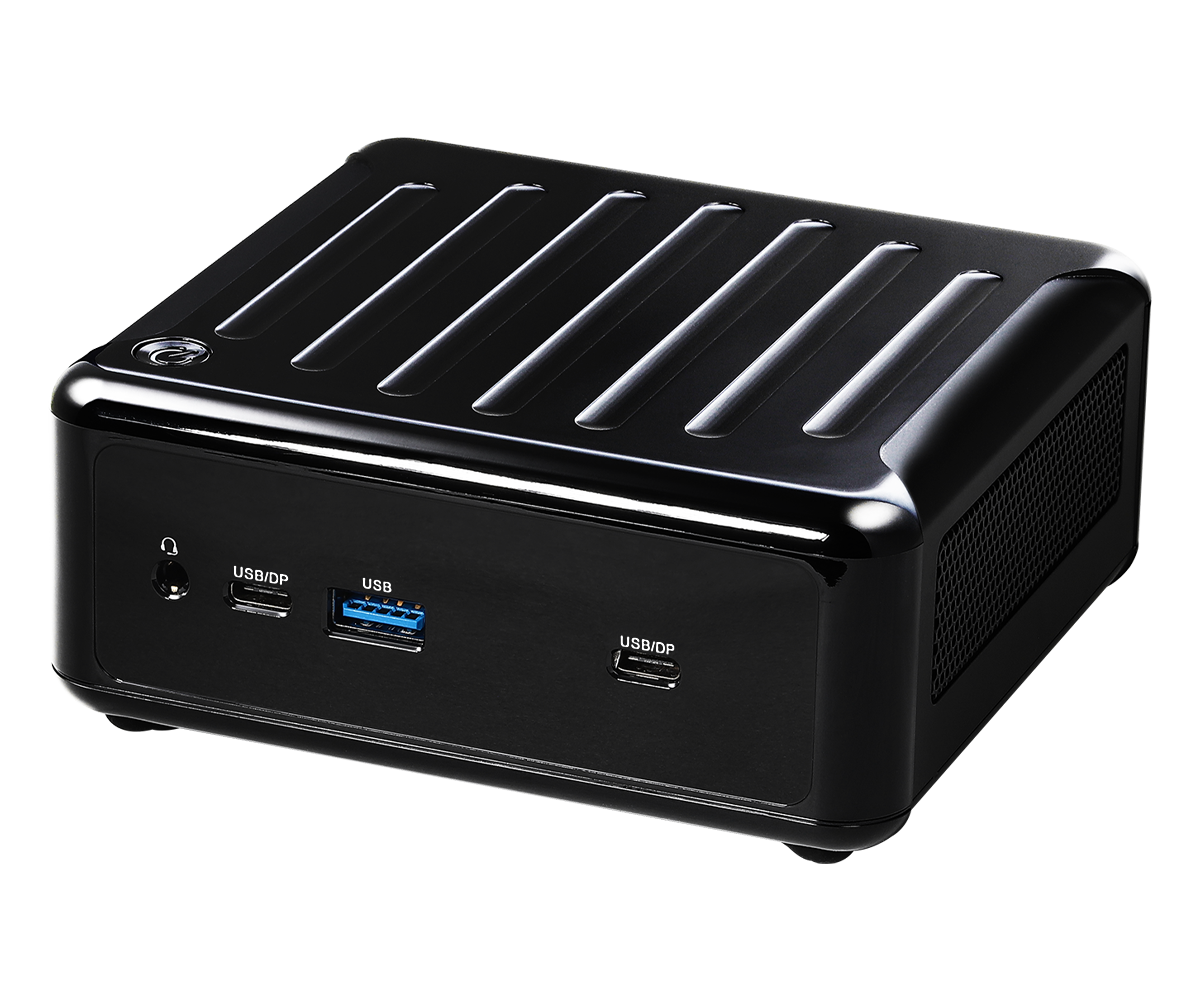

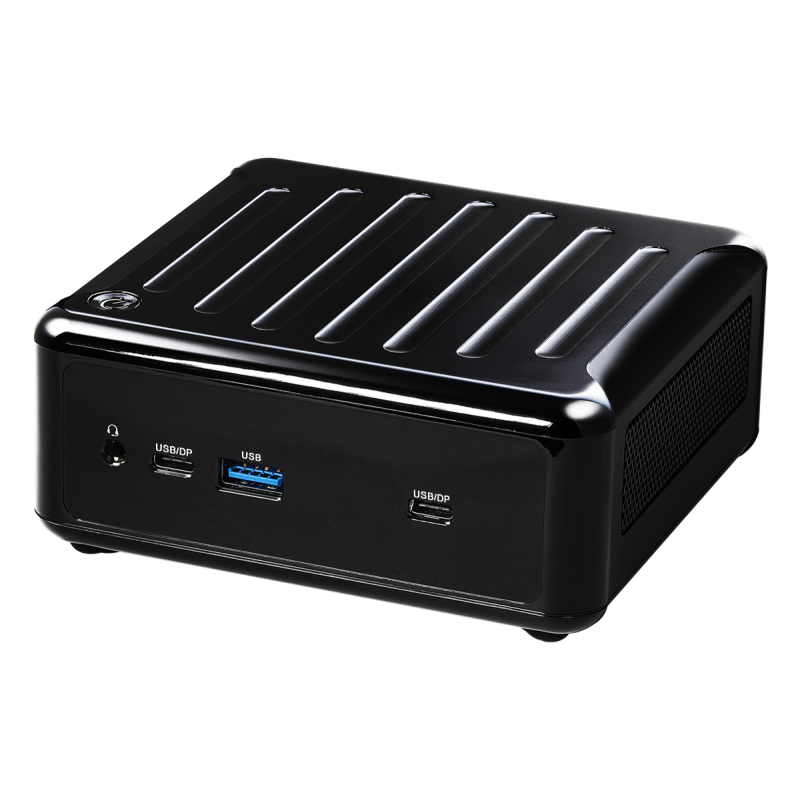

NUC BOX Intel® Core 12th Gen.
- Intel® 12th Gen (Alder Lake-P) Core™ Processors: i7-1260P, i5-1240P, i31220P.
- 2 x 260-pin SO-DIMM DDR4 3200MHz up to 64GB (32GB per DIMM)
- 1 x USB4/Thunderbolt™4, 4 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6E), 1 x SATA3
- 2 x Intel 2.5 Gigabit LAN
- Supports Quad display, 1 x HDMI 2.0b, 3 x DP 1.4a(2 from Type C)
- TPM 2.0 onboard IC
- Supports Intel® vPro
- 19V/90W Power Adapter
- 117.5 x 110.0 x 47.85mm(4.63" x 4.33" x 1.88"), Fanned Barebone
Dimensions
117.5 x 110.0 x 47.85mm (4.63" x 4.33" x 1.88")
CPU
NUC BOX-1260P
Memory
Technology Dual Channel DDR4 3200 MHz
64GB (32 GB per DIMM)
2 x 260-pin SO-DIMM
Ethernet
LAN1: Intel® I225LM with 10/100/1000/2500 Mbps, supports vPro
LAN2: Intel® I225LM/I225V with 10/100/1000/2500 Mbps
2 x RJ-45
Graphics Support
Intel® Iris® Xe Graphics
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort 1.4, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay: Quad-Display (Included 2 outputs from Type-C)
Audio
Realtek ALC233/ALC256, High Definition Audio.
Storage
M.2: 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD
*M.2 Key M 2280(Supported by bracket)
SATA: 1 x SATA3.0 (6.0 Gb/s)
Expansion-Slots
1 x Wi-Fi 6E 802.11ax + BT 5.3

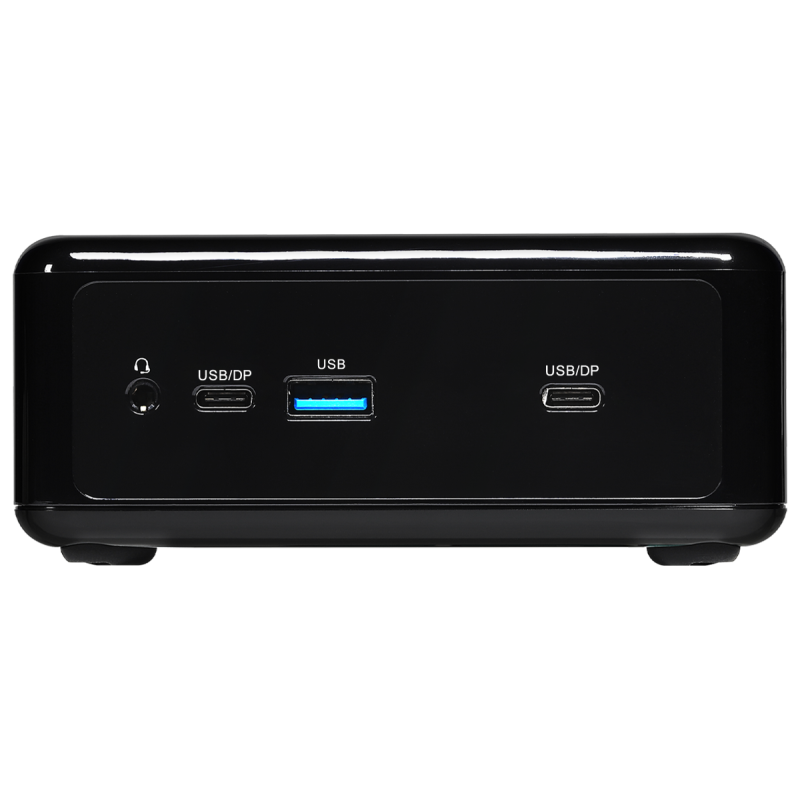

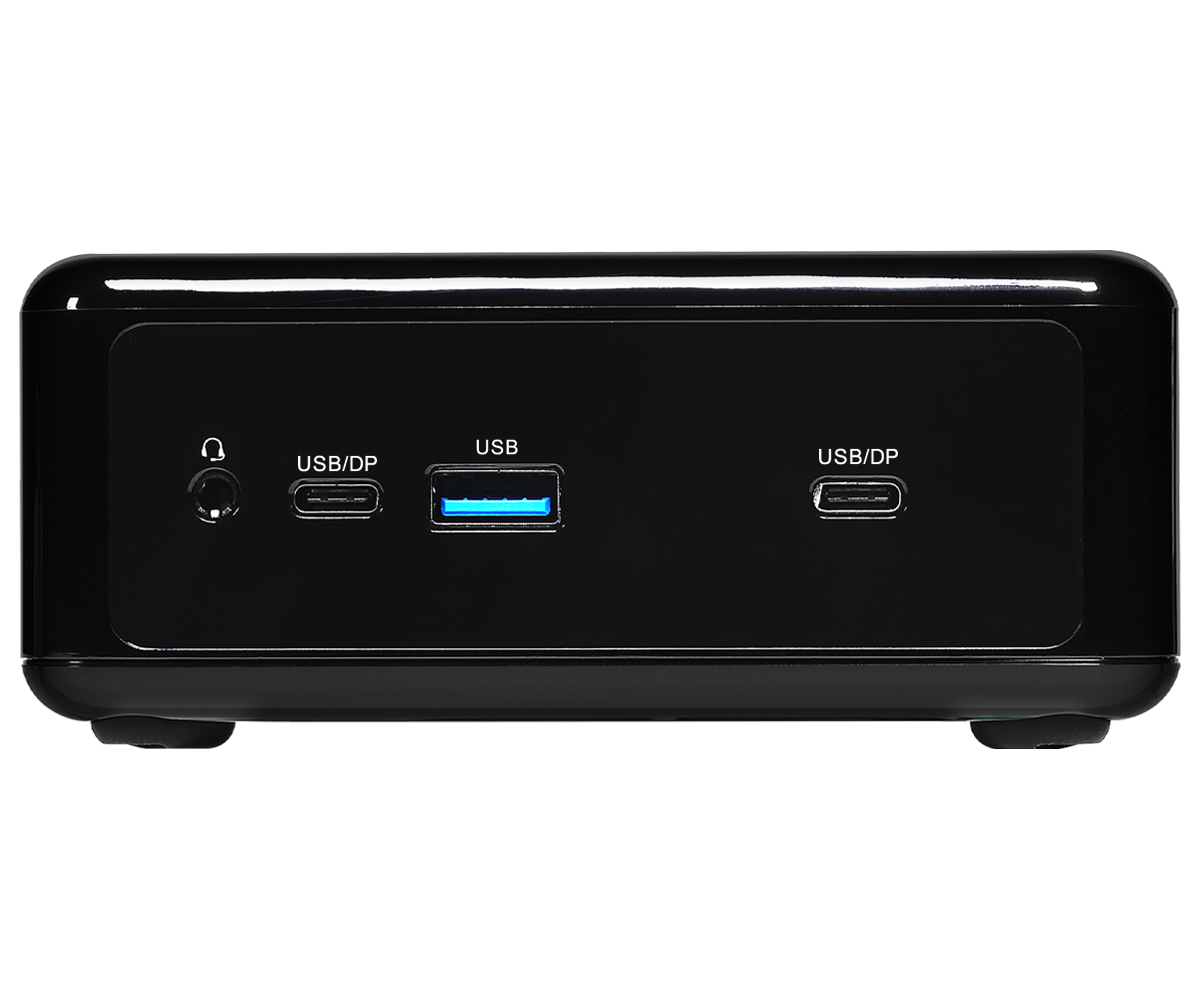

Front I/O
1 x USB 3.2 Gen2 (Type A)
1 x USB4/Thunderbolt™ 4 (supports DP 1.4a display output)
1 x USB 3.2 Gen2 (Type-C, supports DP 1.4a display output)
*For Thunderbolt support, please refer to support list.
1 x Audio (headphone & microphone jack)

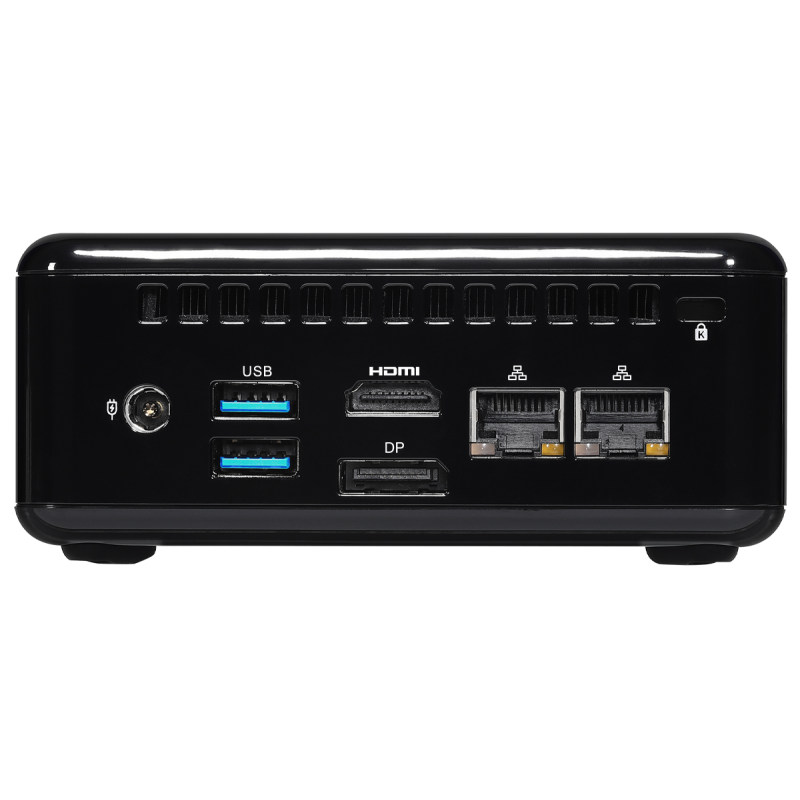

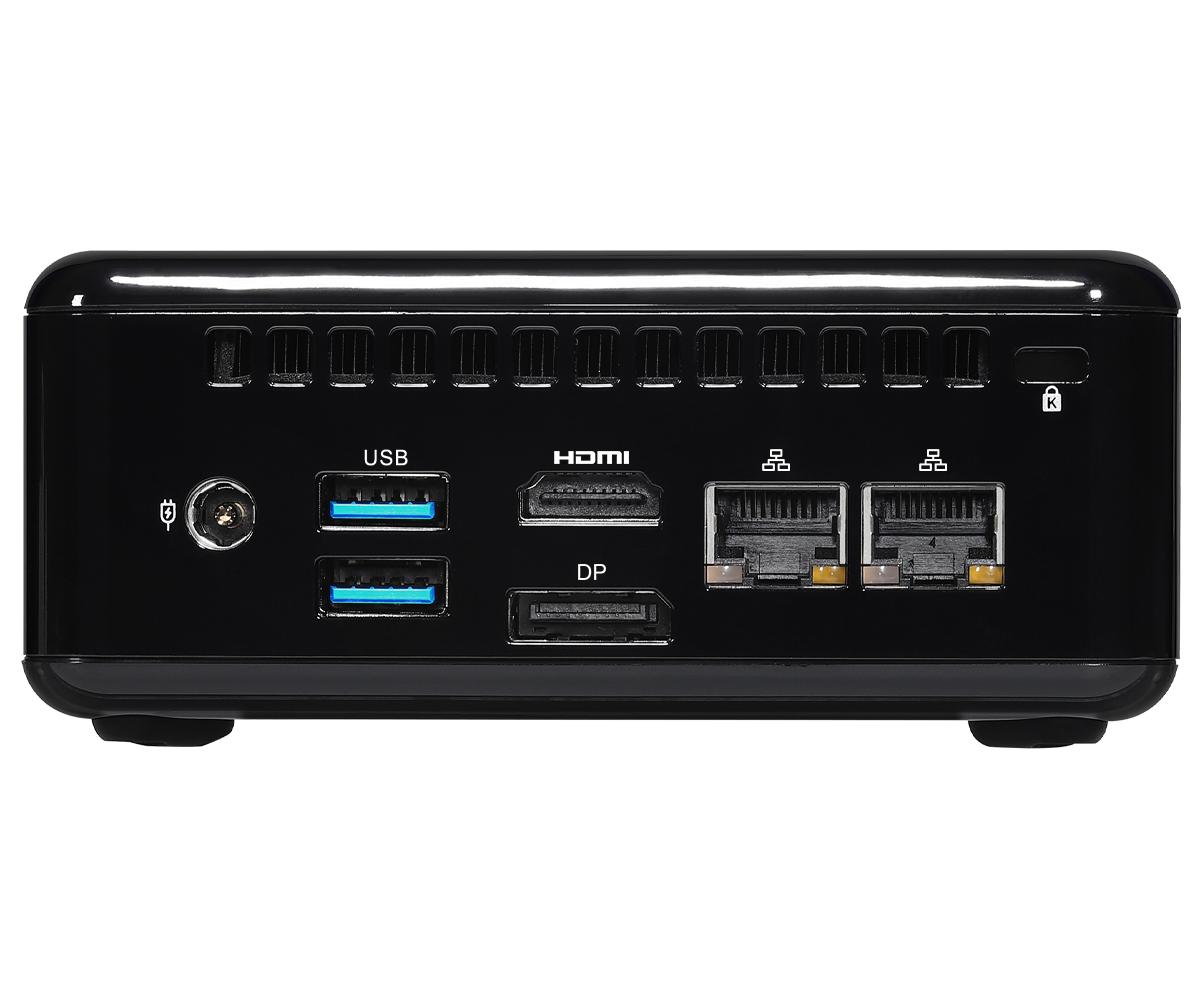

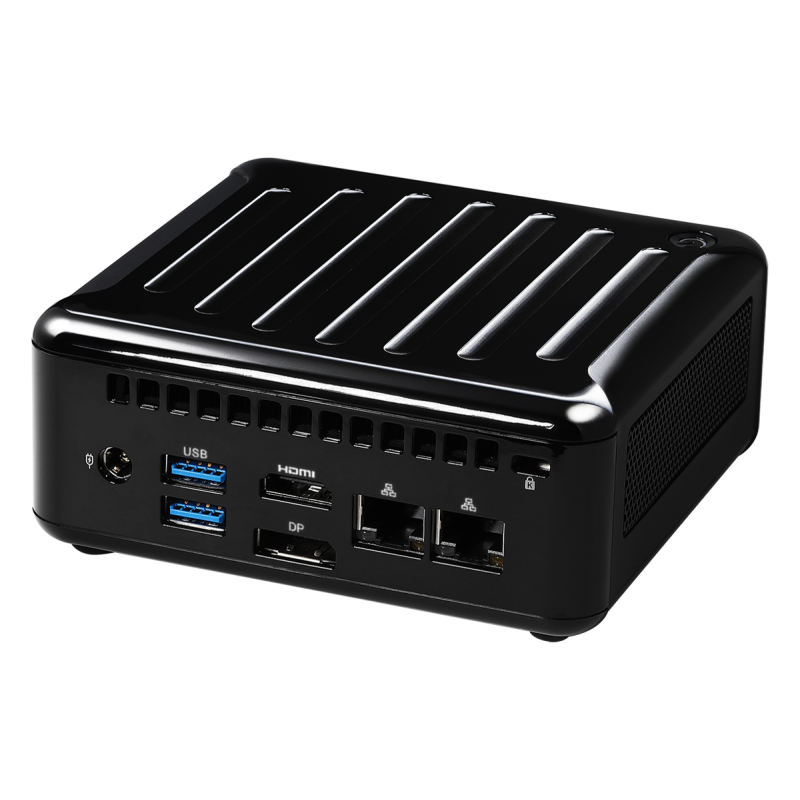

Rear l/O
1 x HDMI 2.0b
DisplayPort 1 x DP 1.4a
Ethernet 2 x 2.5 Gigabit LAN
USB 2 x USB 3.2 Gen2 (Type-A)
1 x DC Jack
Power
Input PWR: 12V~19V DC-In Jack
Power On: AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Operation Temperature
Operating Temp 0ºC ~ 40ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%
Specifiche Tecniche
| CPU | Intel® Core™ 12th Gen Alder Lake (i7-1260P, i5-1240P, i3-1220P) |
|---|---|
| Tipo Memoria | 64GB DDR4 SO-DIMM |
| Storage | x1 M.2 2242 PCIe + x1 SATA3.0 |
| GPU | Integrata - Intel® Iris® Xe Graphics |
| Porte USB | 1 x HDMI + 1 x DisplayPort 2 x 2.5 Gigabit LAN 2 x Jack 3 x USB 3.2 Gen2 Type-A + 1 x USB4 + 1 x USB 3.2 Gen2 Type-C |
| Lan | x2 10/100/1000/2500 Mbps, 2,5G LAN |
| Dimensioni | 117.5 x 110.0 x 47.85 mm |
| Peso | 1000g |
