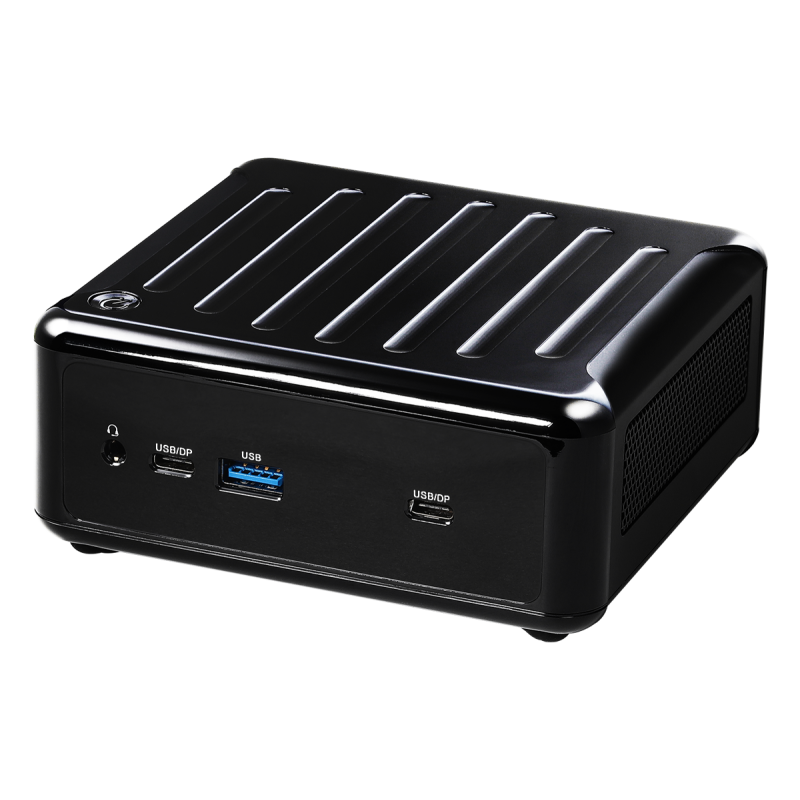

NUC BOX-N97
- Intel® Alder Lake-N Processors N97
- 1 x 260-pin SO-DIMM DDR4 3200 MHz , up to 32GB
- 5 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6E Module), 1 x SATA3
- 2 x Realtek 2.5 Gigabit LAN
- Supports Triple display, 2 x HDMI 2.0b, 2 x DP 1.4a (from Type-C)
- TPM 2.0 onboard IC
- 19V/65W Power Adapter
- 117.5 x 110.0 x 47.85mm (4.63" x 4.33" x 1.88"), Fanned Barebone
Dimensions
117.5 x 110.0 x 47.85mm (4.63" x 4.33" x 1.88")
CPU
Intel® Alder Lake-N Processors N97
Memory
Single Channel DDR4 3200 MHz
32GB
1 x 260-pin SO-DIMM
Ethernet
LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek RTL8125BG with 10/100/1000/2500 Mbps
2 x RJ-45
Graphics Support
Intel® UHD Graphics
HDMI 2.0b
Max resolution up to 4096x2160@60Hz
DisplayPort 1.4a, DP++
Max resolution up to 4096x2160@60Hz
MultiDisplay: Triple-Display (Included 2 outputs from Type-C)
Audio
Realtek ALC256, High Definition Audio.
Storage
M.2: 1 x M.2(KEY M, 2242/2260/2280) with PCIe Gen3 x1 and SATA3 for SSD
*M.2: Key M 2280(Supported by bracket)
SATA 1 x SATA3.0 (6.0 Gb/s)
Expansion-Slots
1 x Wifi-Fi 6E 802.11ax + BT 5.2

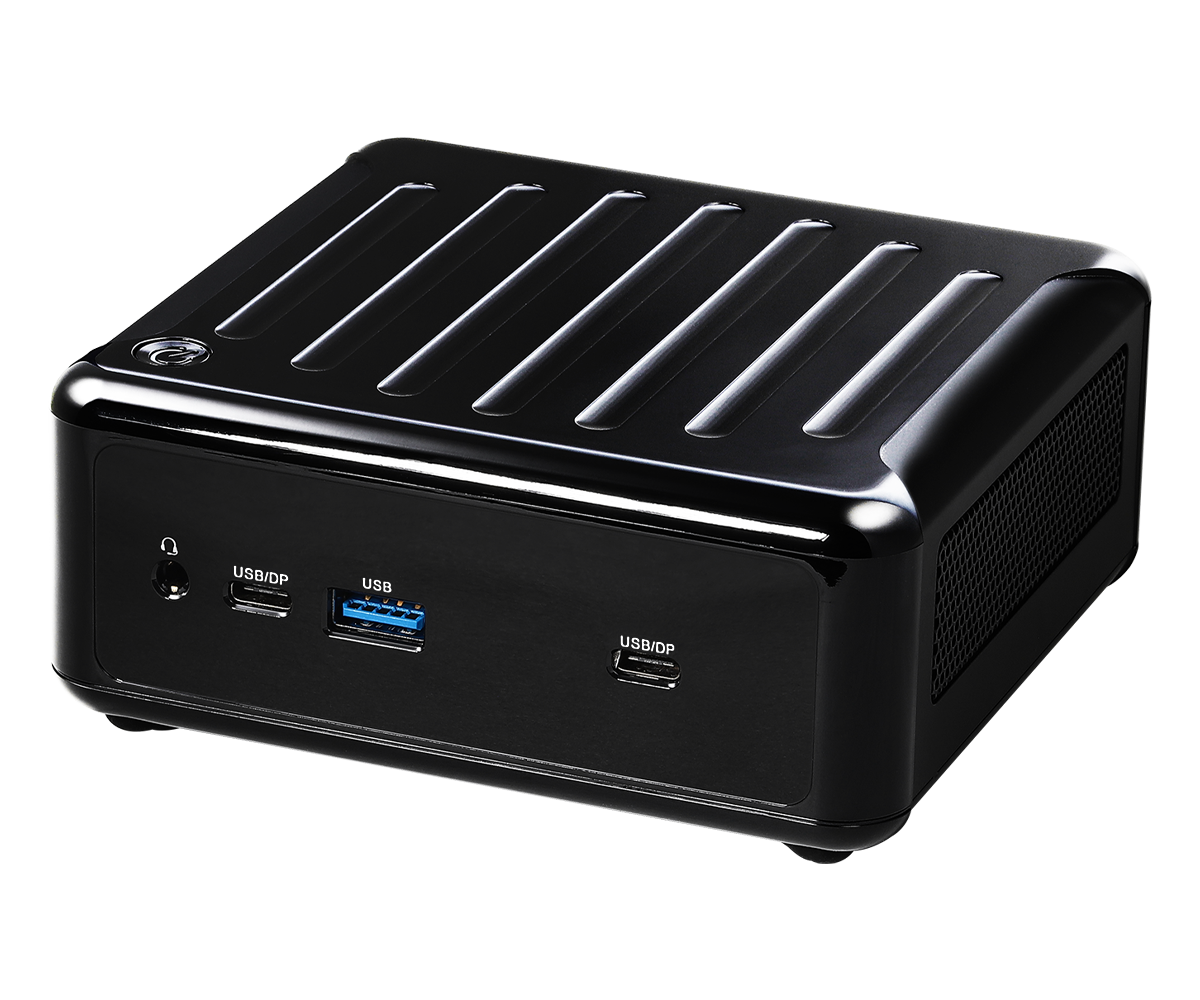

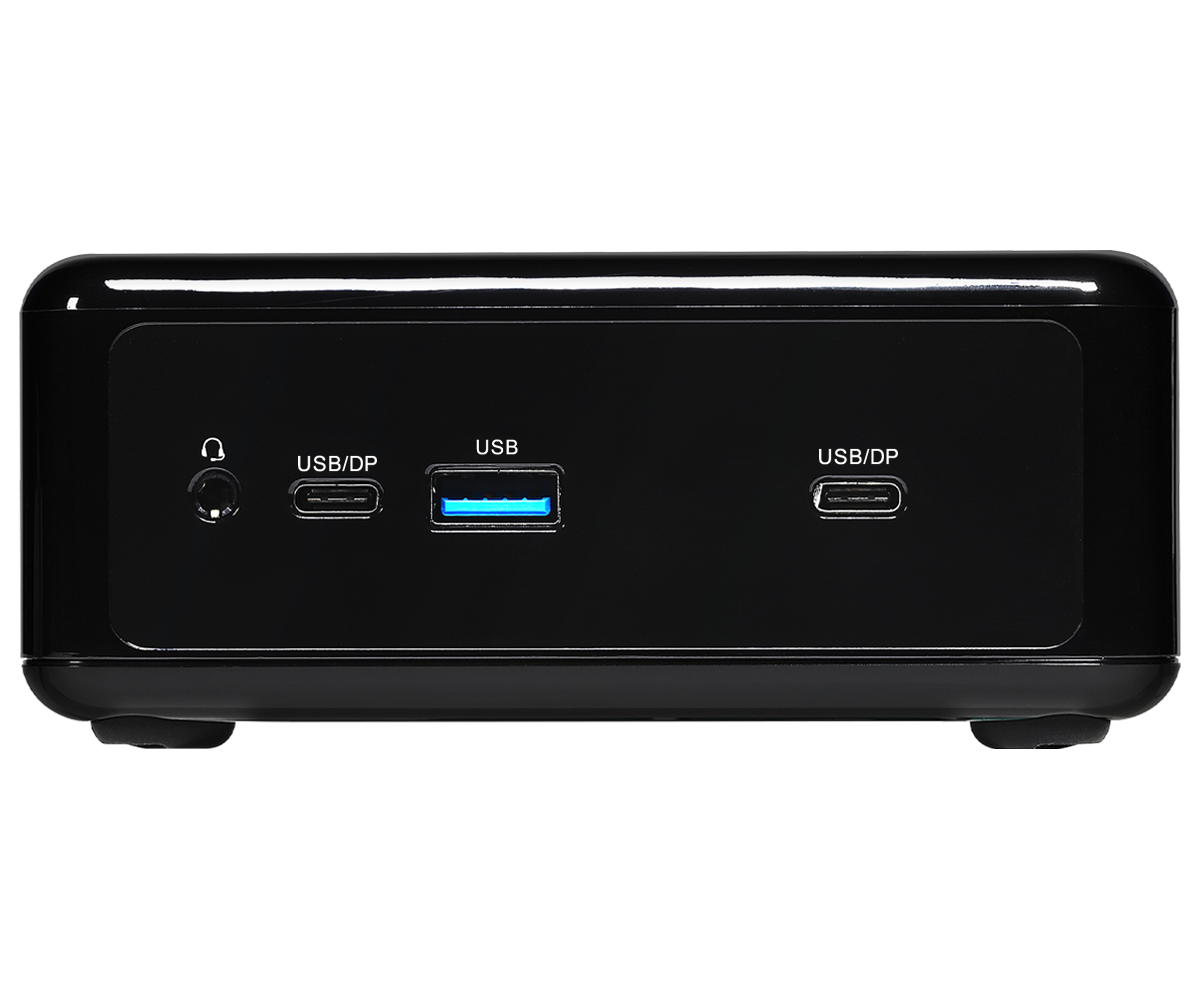

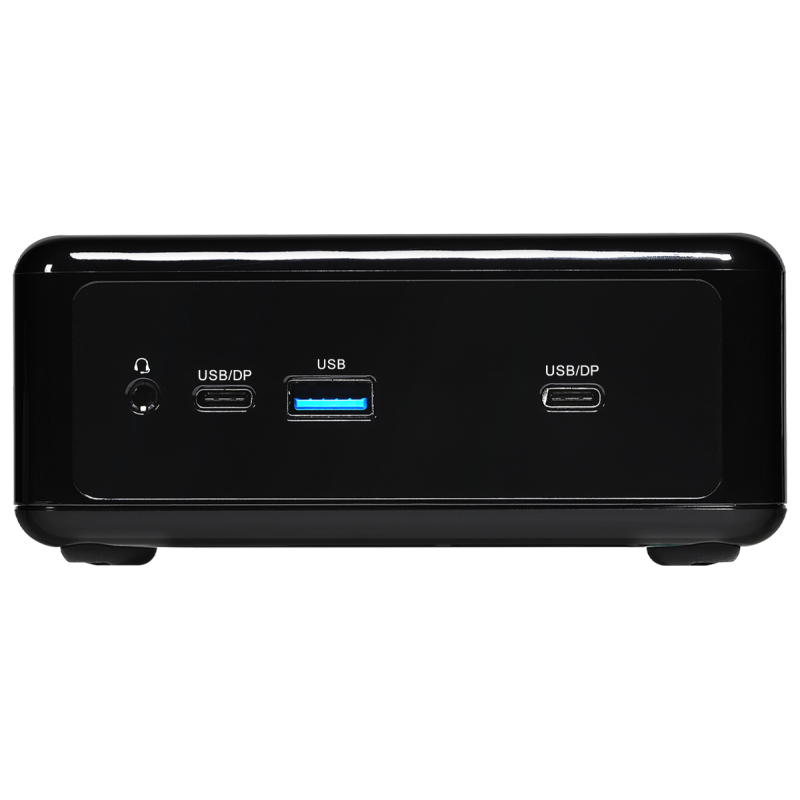

Front I/O
1 x USB 3.2 Gen2 (Type-A)
2 x USB 3.2 Gen2 (Type-C, Supports DP1.4a display output)
1 x Audio (headphone & microphone jack)

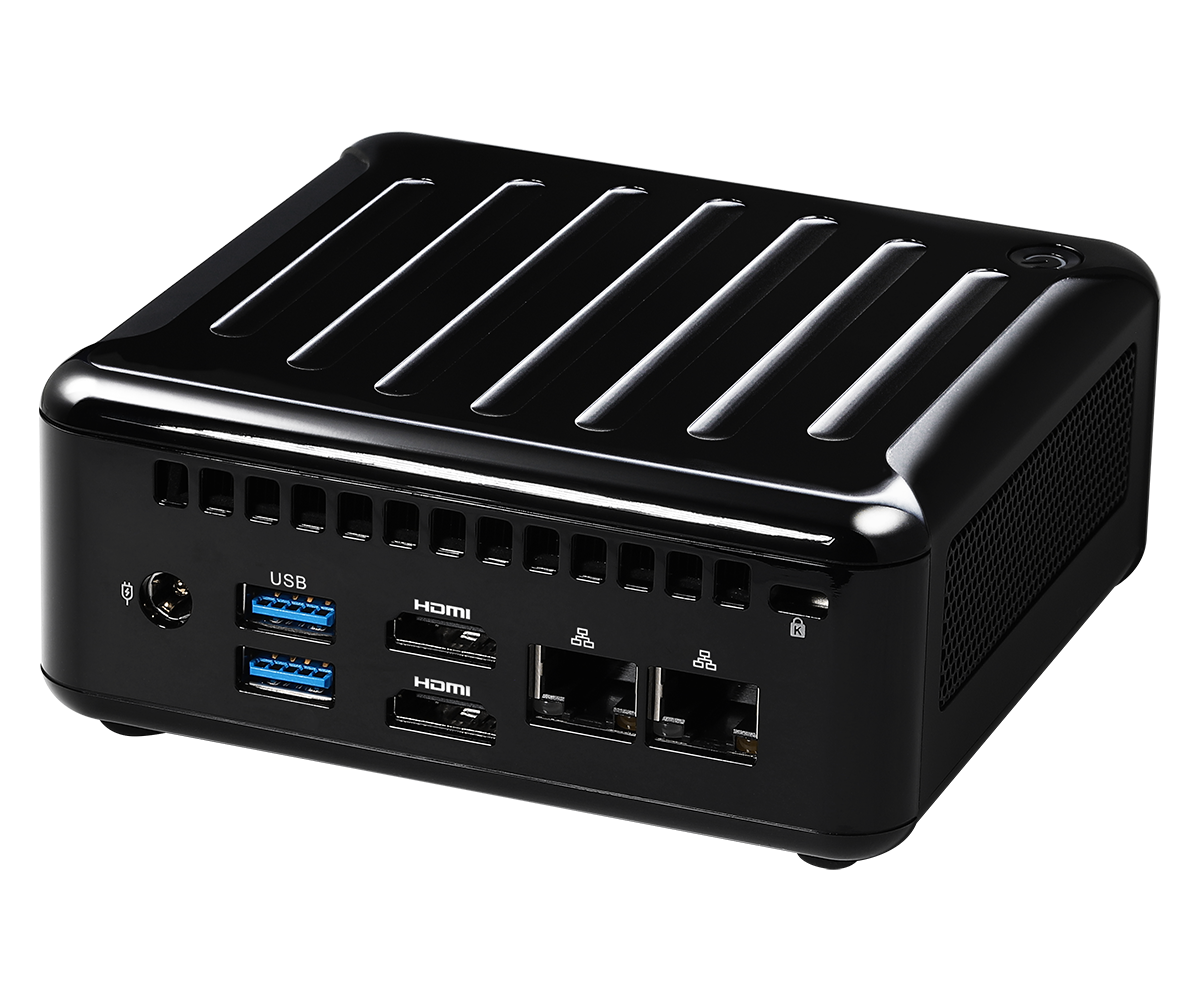

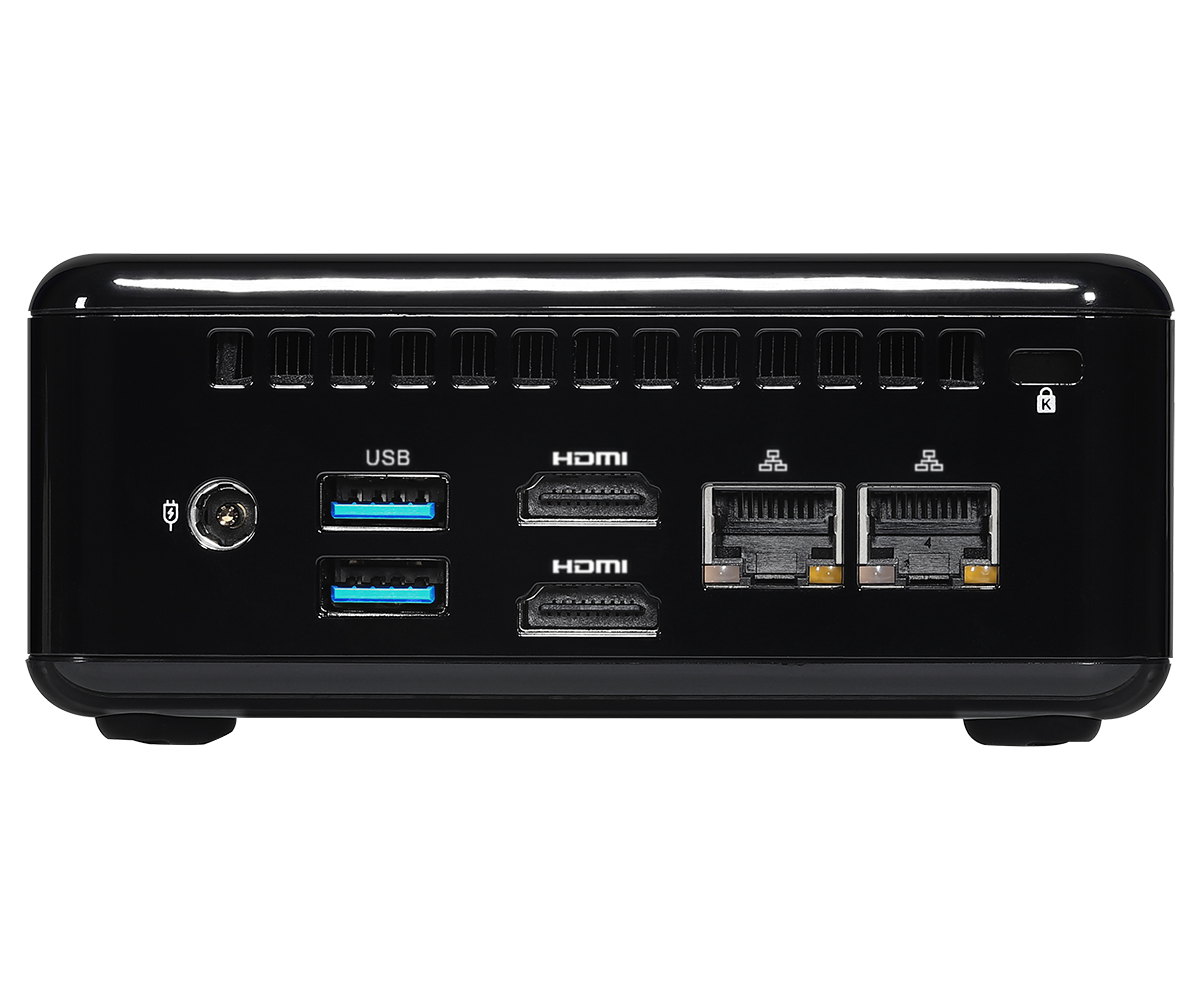

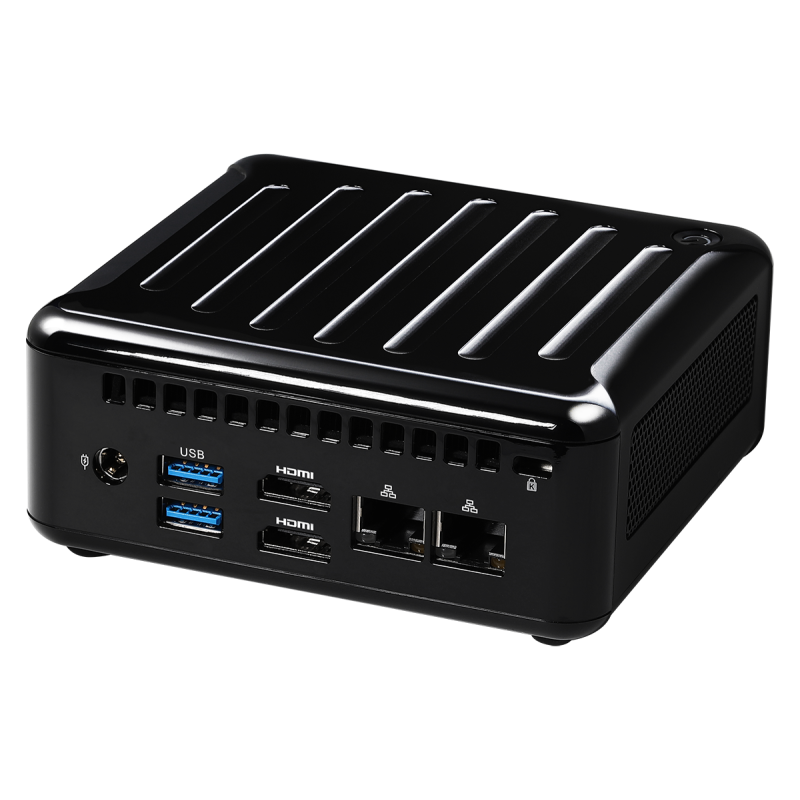

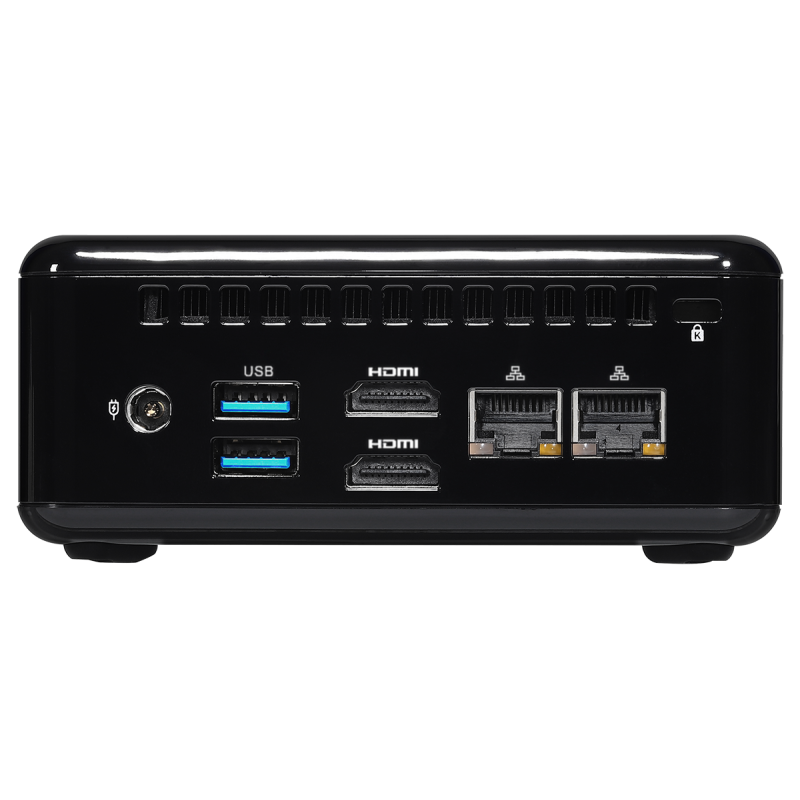

Rear l/O
2 x HDMI 2.0b
Ethernet 2 x 2.5 Gigabit LAN
USB 2 x USB 3.2 Gen2 (Type-A)
1 x DC Jack
Power
Input PWR: 9V~19V DC-In Jack
Power On: AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Operation Temperature
Operating Temp 0ºC ~ 40ºC
Storage Temp -40° C – 85° C
Operating Humidity 5% ~ 90%
Storage Humidity 5% ~ 90%
Specifiche Tecniche
| CPU | Intel® Alder Lake-N Processors N97 |
|---|---|
| Tipo Memoria | 32GB DDR4 SO-DIMM |
| Storage | x1 M.2 2242 PCIe + x1 SATA3.0 |
| GPU | Integrata - Intel UHD Graphics |
| Porte USB | 2 x 2.5 Gigabit LAN 2 x HDMI 2 x Jack 3 x USB 3.2 Gen2 Type-A + 2 x USB 3.2 Gen2 Type-C |
| Lan | x2 10/100/1000/2500 Mbps, 2,5G LAN |
| Dimensioni | 117.5 x 110.0 x 47.85 mm |
| Peso | 1000g |
