NUC BOX Intel® Core 13th Gen. D4

Dimensions

117.5 x 110.0 x 47.85mm (4.63" x 4.33" x 1.88")

CPU

Intel® 13th Gen (Raptor Lake-P) Core™ Processors

NUC BOX-1360P/D4 (i7-1360P, 4P+8E)

Memory

Dual Channel DDR4 3200 MHz

64GB (32 GB per DIMM)

2 x 260-pin SO-DIMM

Ethernet

LAN1: Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro

LAN2: Intel® I226LM/I226V with 10/100/1000/2500 Mbps

2 x RJ-45

Graphics Support

Intel® Iris® Xe Graphics

HDMI 2.0b

Max resolution up to 4096x2160@60Hz

DisplayPort 1.4a, DP++

Max resolution up to 4096x2160@60Hz

MultiDisplay: Quad-Display (Included 2 outputs from Type-C)

Audio

Realtek ALC233/ALC256, High Definition Audio.

Storage

M.2: 1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x4 for SSD

*M.2 Key M 2280(Supported by bracket)

SATA: 1 x SATA3.0 (6.0 Gb/s)

Expansion-Slots

1 x Wi-Fi 6E 802.11ax + BT 5.3

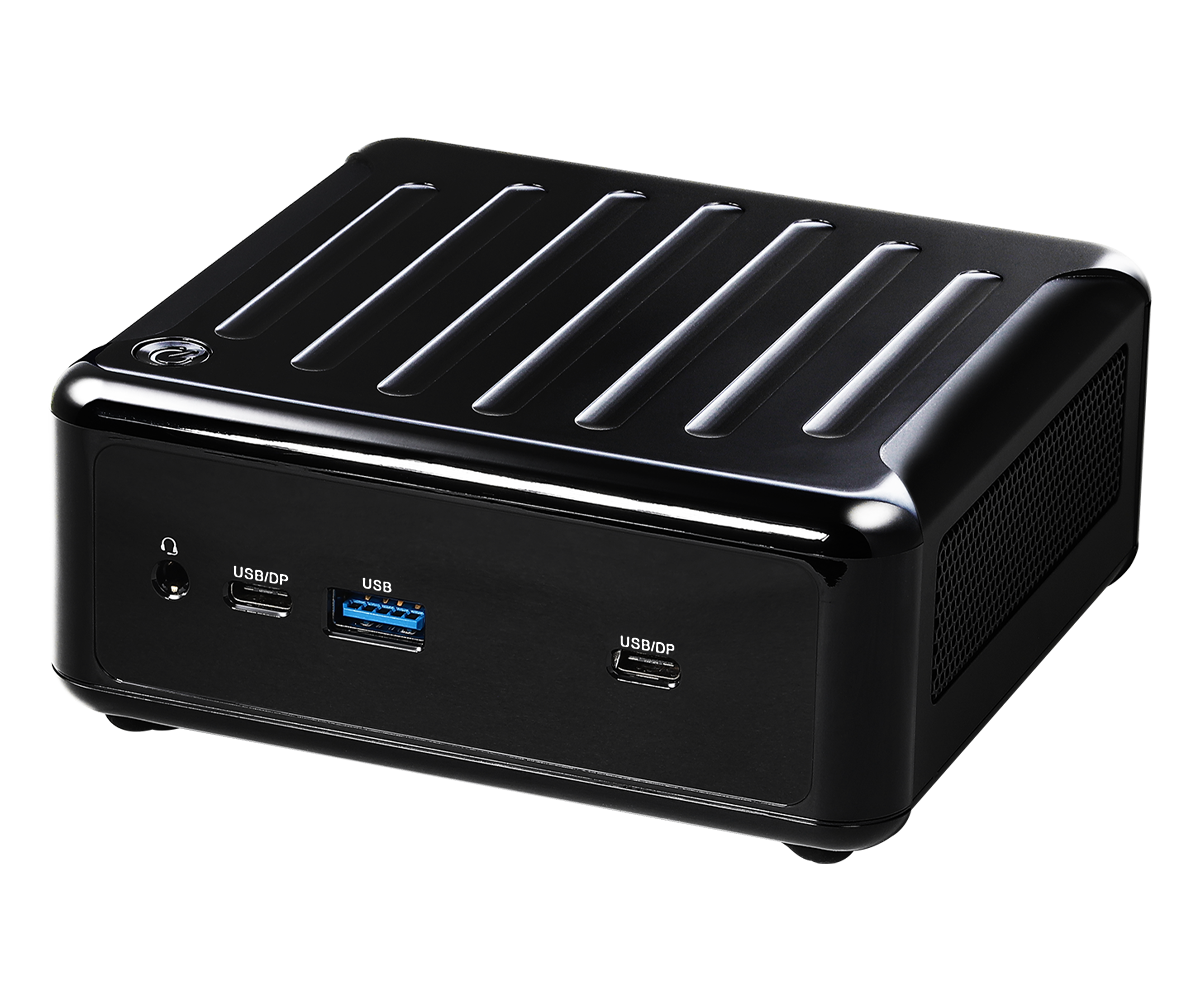

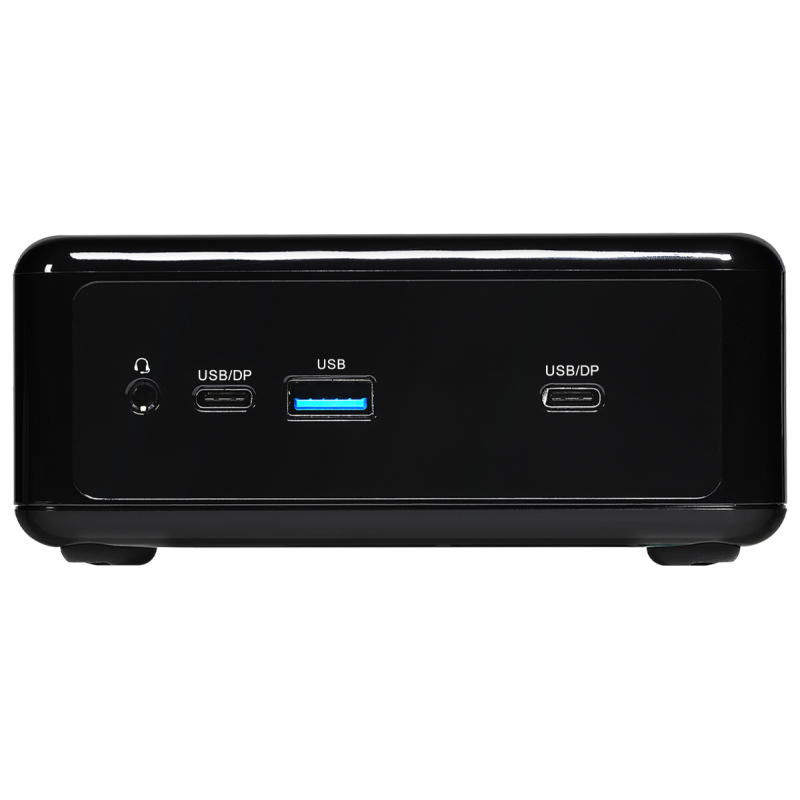

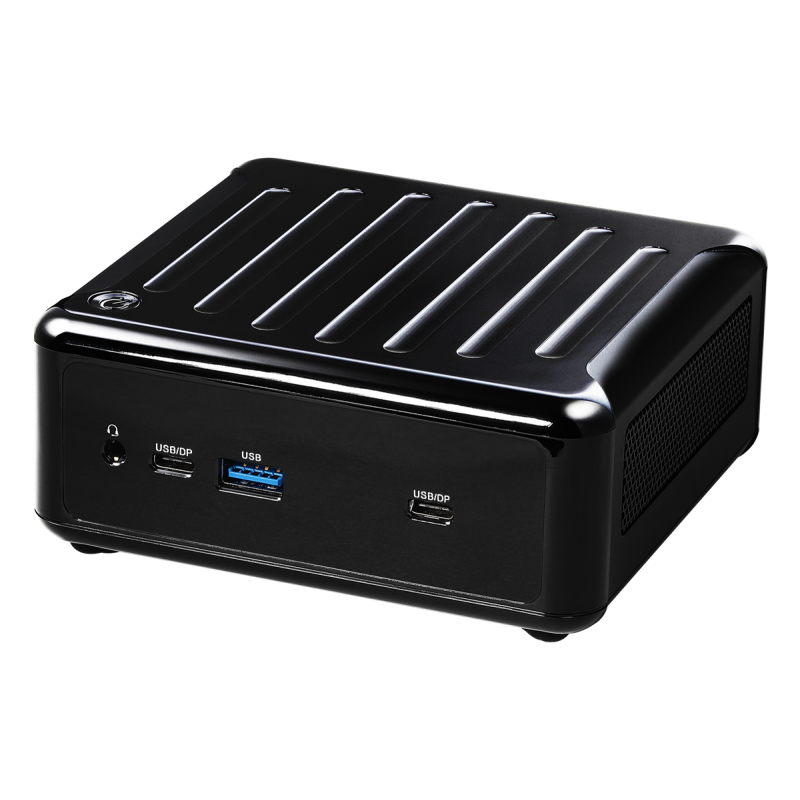

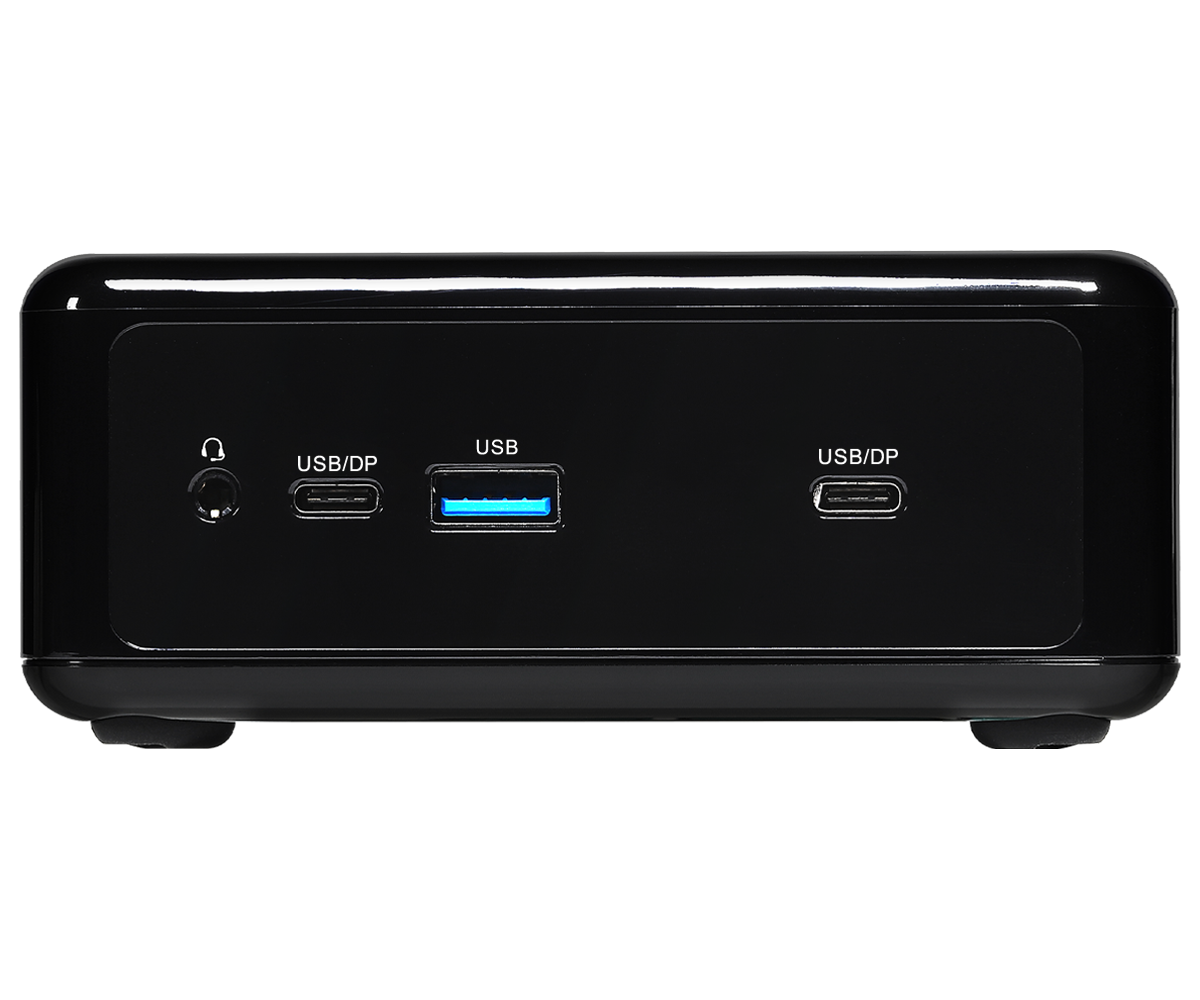

Front I/O

1 x USB 3.2 Gen2 (Type-A)

1 x USB4/Thunderbolt™ 4 (Supports DP1.4a display output)

1 x USB 3.2 Gen2 (Type-C, Supports DP1.4a display output)

*For Thunderbolt support, please refer to support list.

1 x Audio (headphone & microphone jack)

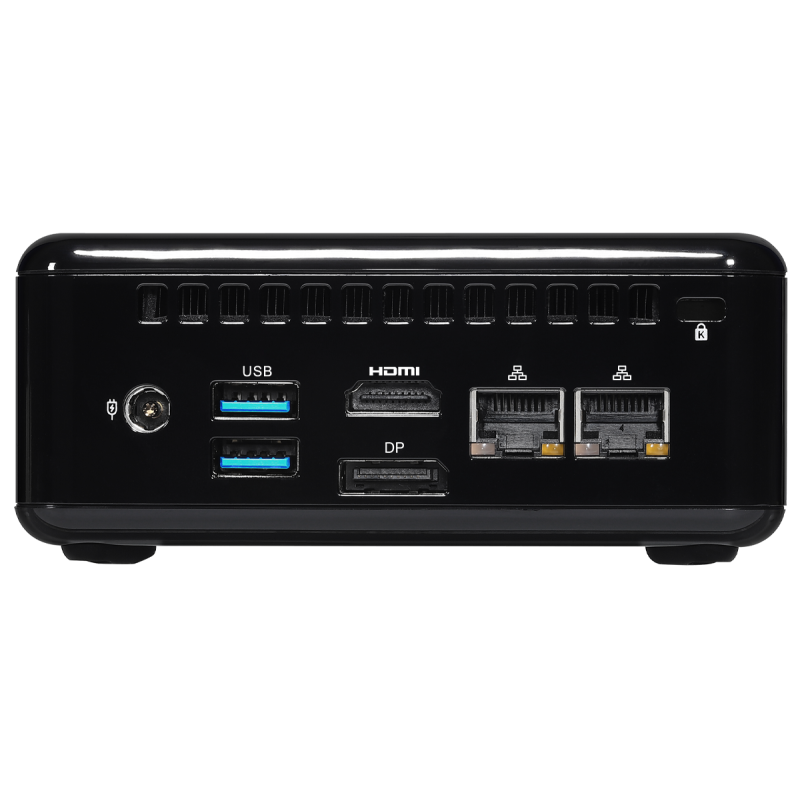

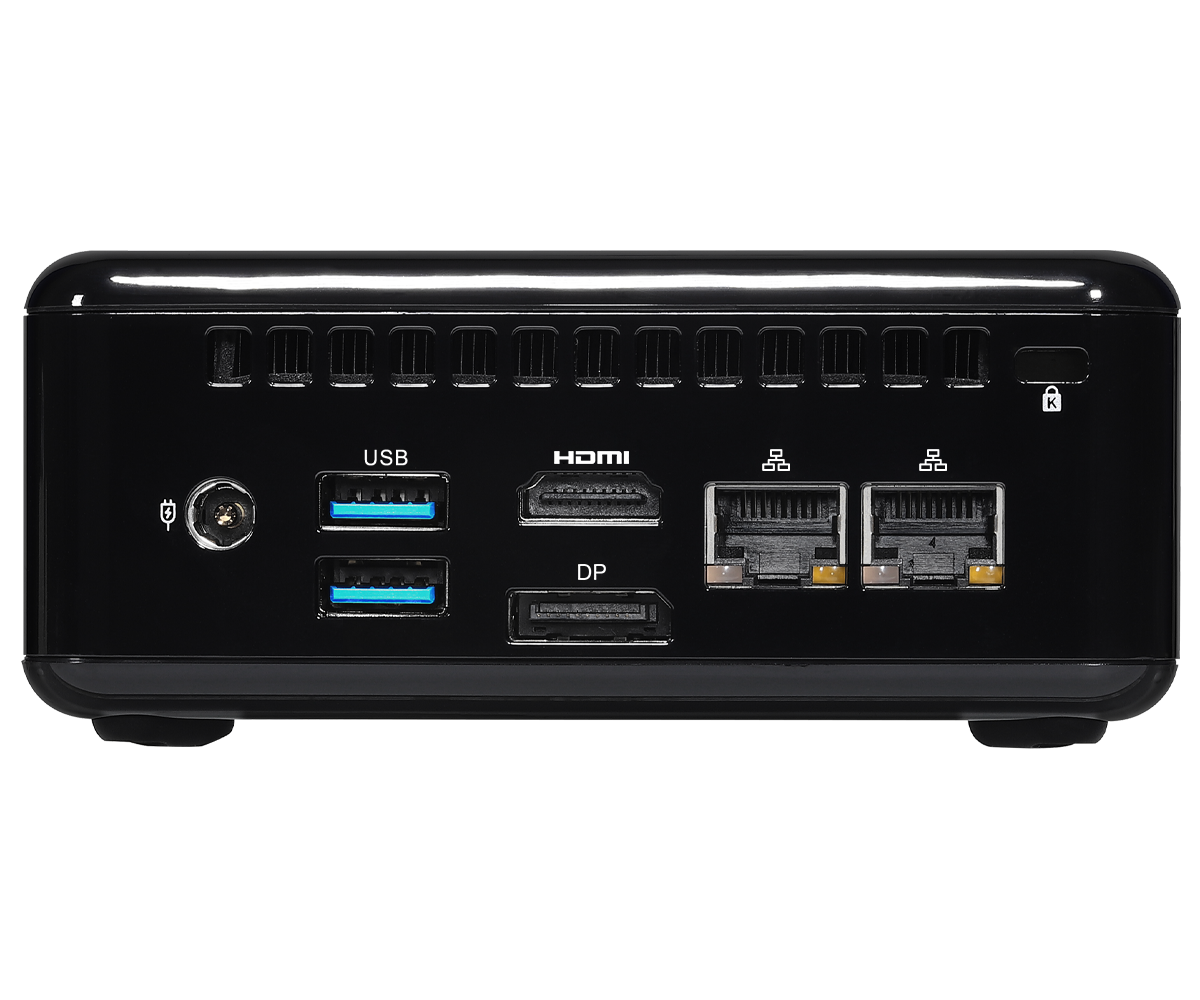

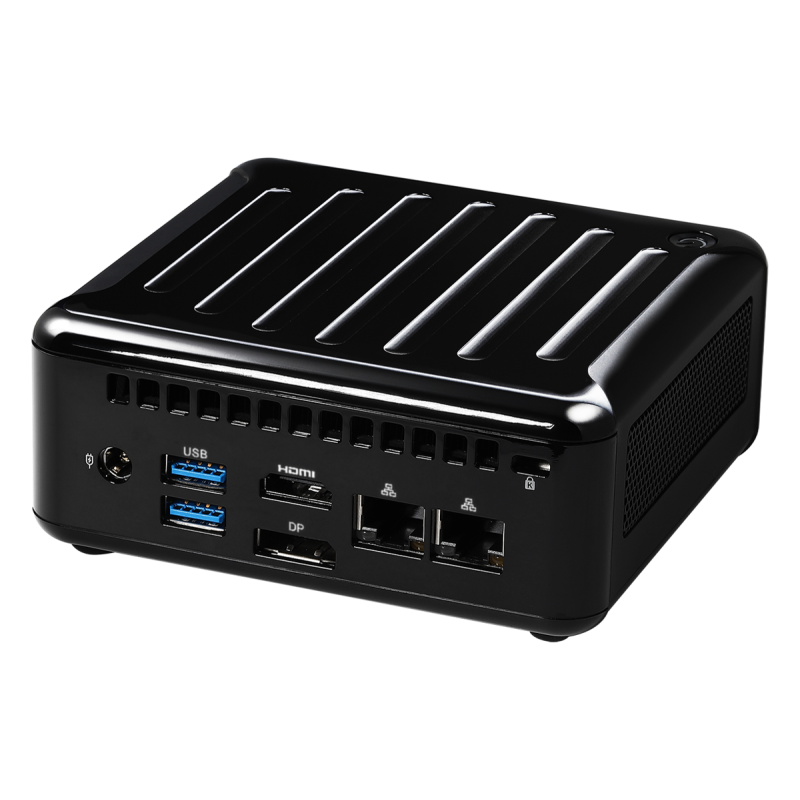

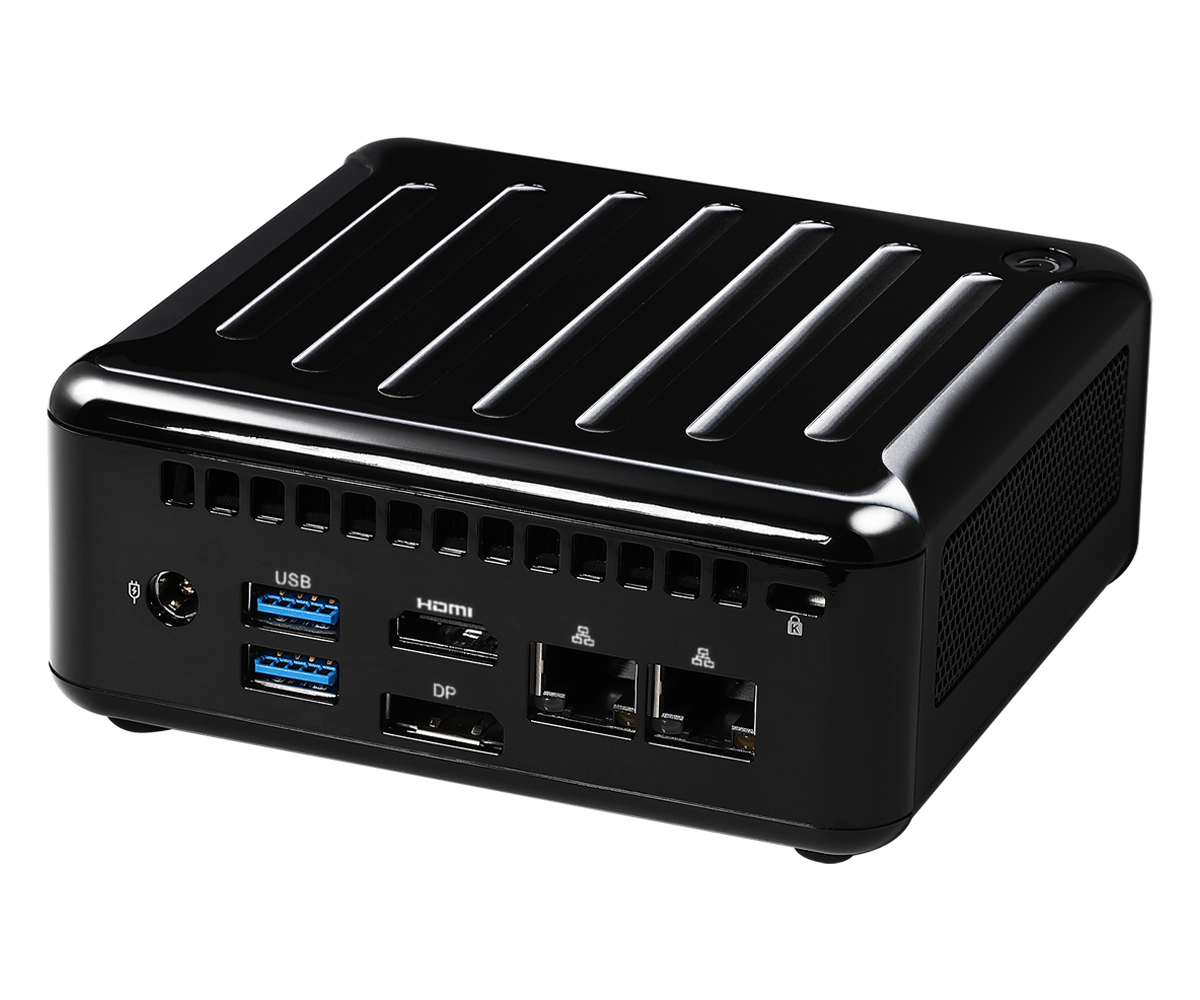

Rear l/O

1 x HDMI 2.0b

1 x DP 1.4a

2 x 2.5 Gigabit LAN

2 x USB 3.2 Gen2 (Type-A)

1 x DC Jack

Power

Input PWR: 12V~19V DC-In Jack

Power On: AT/ATX Supported

- AT : Directly PWR on as power input ready

- ATX : Press button to PWR on after power input ready

Operation Temperature

Operating Temp 0ºC ~ 40ºC

Storage Temp -40° C ~ 85° C

Operating Humidity 5% ~ 90%

Storage Humidity 5% ~ 90%
