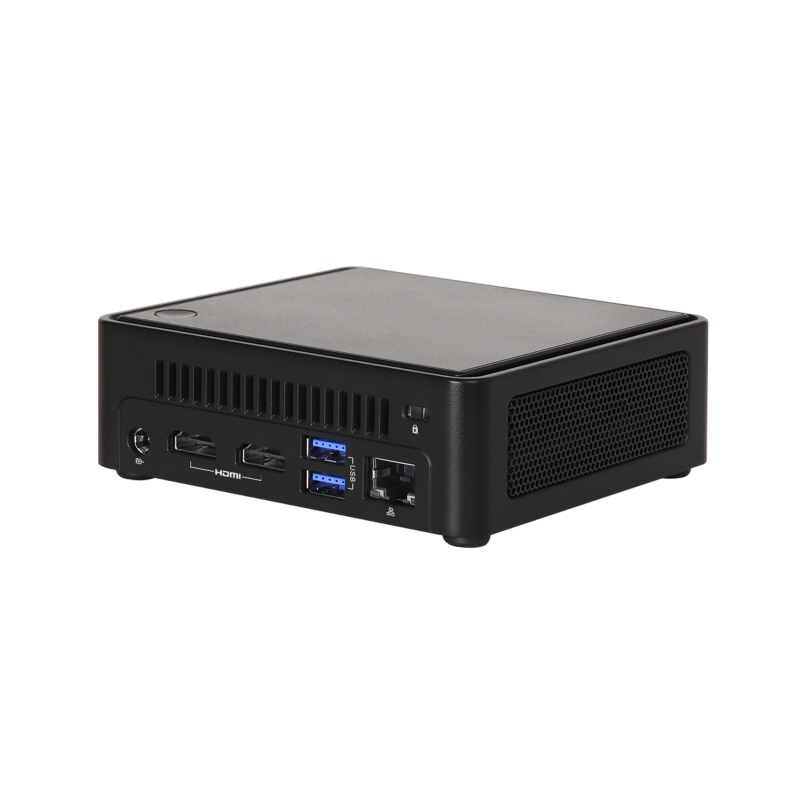

NUCS BOX Intel® Core 13th Gen. D4

• Intel® 13th Gen (Raptor Lake-P) Core™ Processors i7-1360P
• 2 x 260-pin SO-DIMM DDR4 3200MHz up to 64GB (32GB per DIMM)
• 1 x USB4/Thunderbolt™4, 5 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6E Module)
• 1 x Intel 2.5 Gigabit LAN
• Supports Quad display, 2 x HDMI 2.0b, 2 x DP 1.4a (from Type-C)
• TPM 2.0 onboard IC
• Supports Intel® vPro
• 19V/90W Power Adapter
• 117.5 x 110.0 x 38mm(4.63" x 4.33" x 1.50"), Slim Type Fanned Barebone

Dimensions

117.5 x 110.0 x 38mm(4.63" x 4.33" x 1.50")

CPU

Intel® 13th Gen (Raptor Lake-P) Core™ Processors

NUCS BOX-1360P/D4( i7-1360P, 4P+8E)

Memory

Dual Channel DDR4 3200 MHz

64GB (32 GB per DIMM)

2 x 260-pin SO-DIMM

Ethernet

Intel® I226LM with 10/100/1000/2500 Mbps, supports vPro

1 x RJ-45

Graphics Support

Intel® Iris® Xe Graphics

HDMI 2.0b

Max resolution up to 4096x2160@60Hz

DisplayPort 1.4, DP++

Max resolution up to 4096x2160@60Hz

MultiDisplay: Quad-Display (Included 2 outputs from Type-C)

Audio

Realtek ALC233/ALC256, High Definition Audio.

Storage

1 x M.2 (Key M, 2242/2280) with PCIe Gen4 x4 for SSD

Expansion-Slots

1 x Wi-Fi 6E 802.11ax + BT 5.3

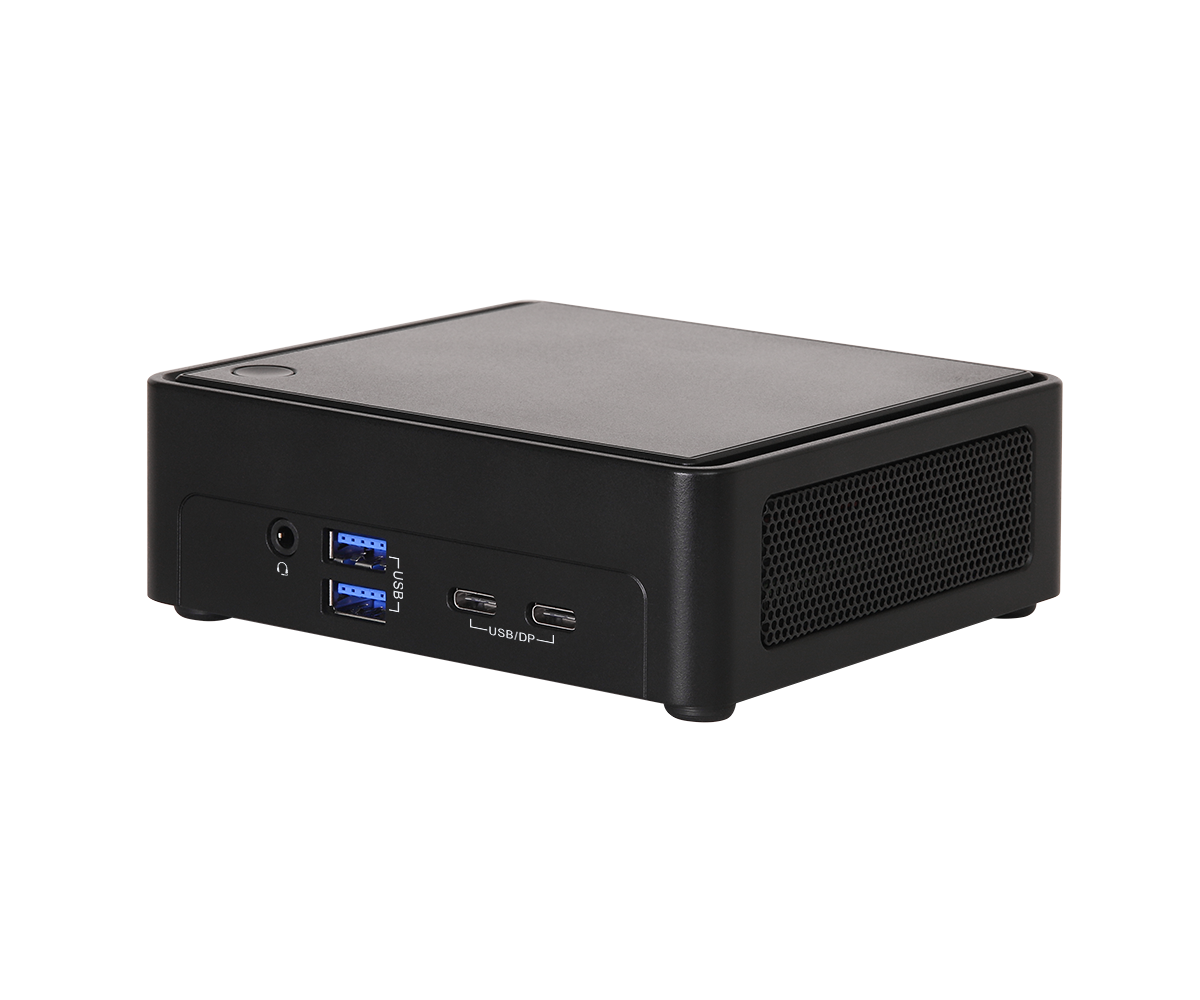

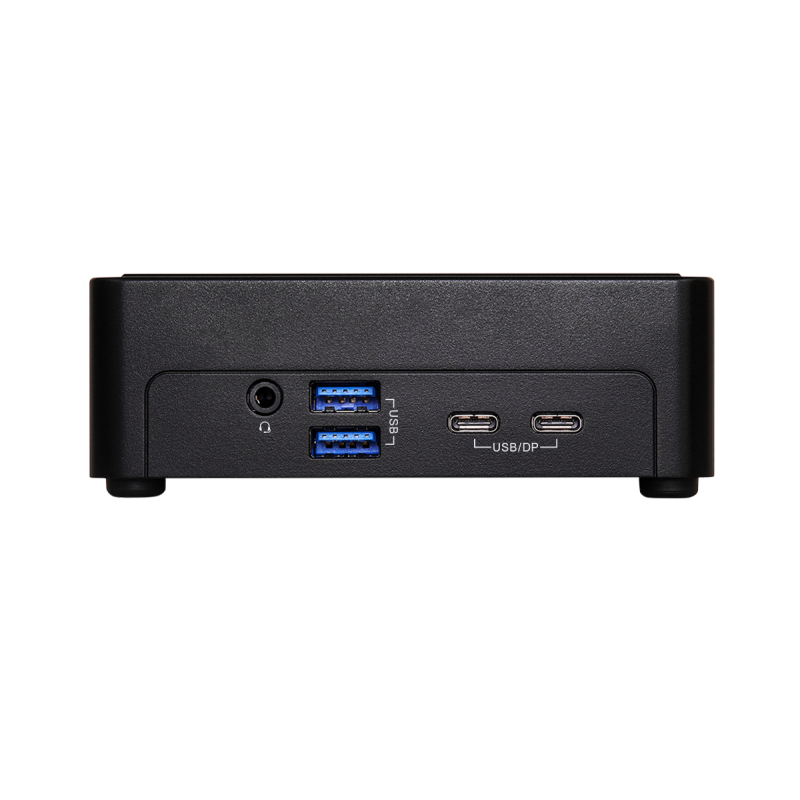

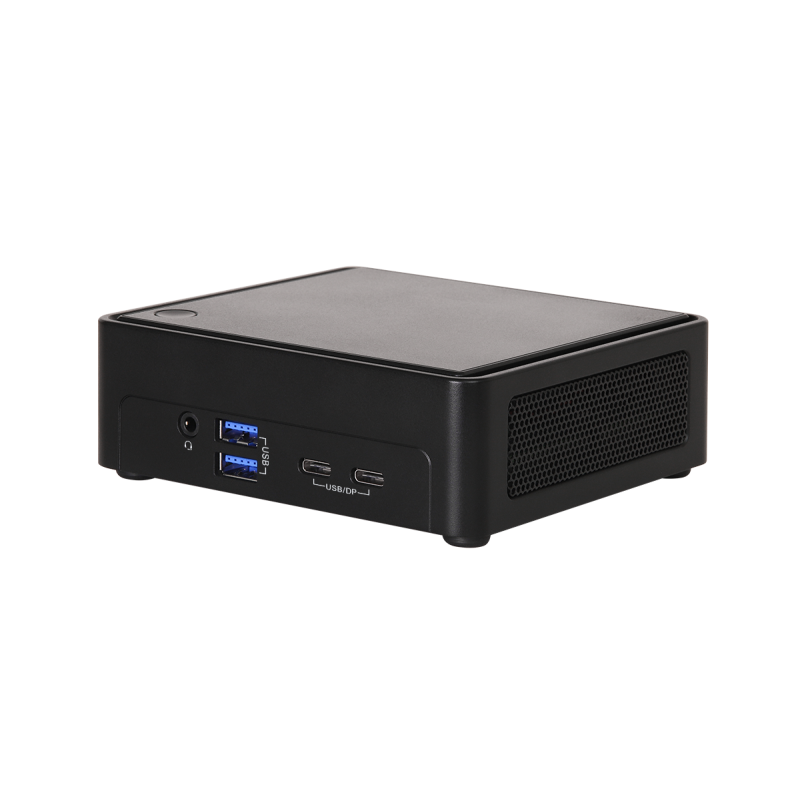

Front I/O

2 x USB 3.2 Gen2 (Type A)

1 x USB4/Thunderbolt™ 4 (Supports DP 1.4a display output)

1 x USB 3.2 Gen2 (Type-C, Supports DP 1.4a display output)

*For Thunderbolt support, please refer to support list.

1 x Audio (headphone & microphone jack)

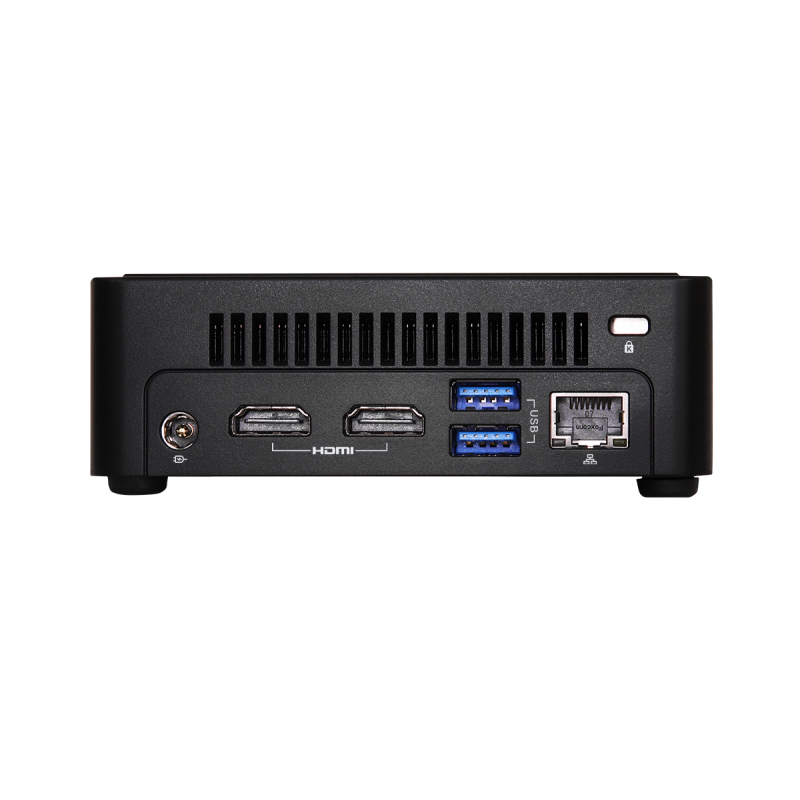

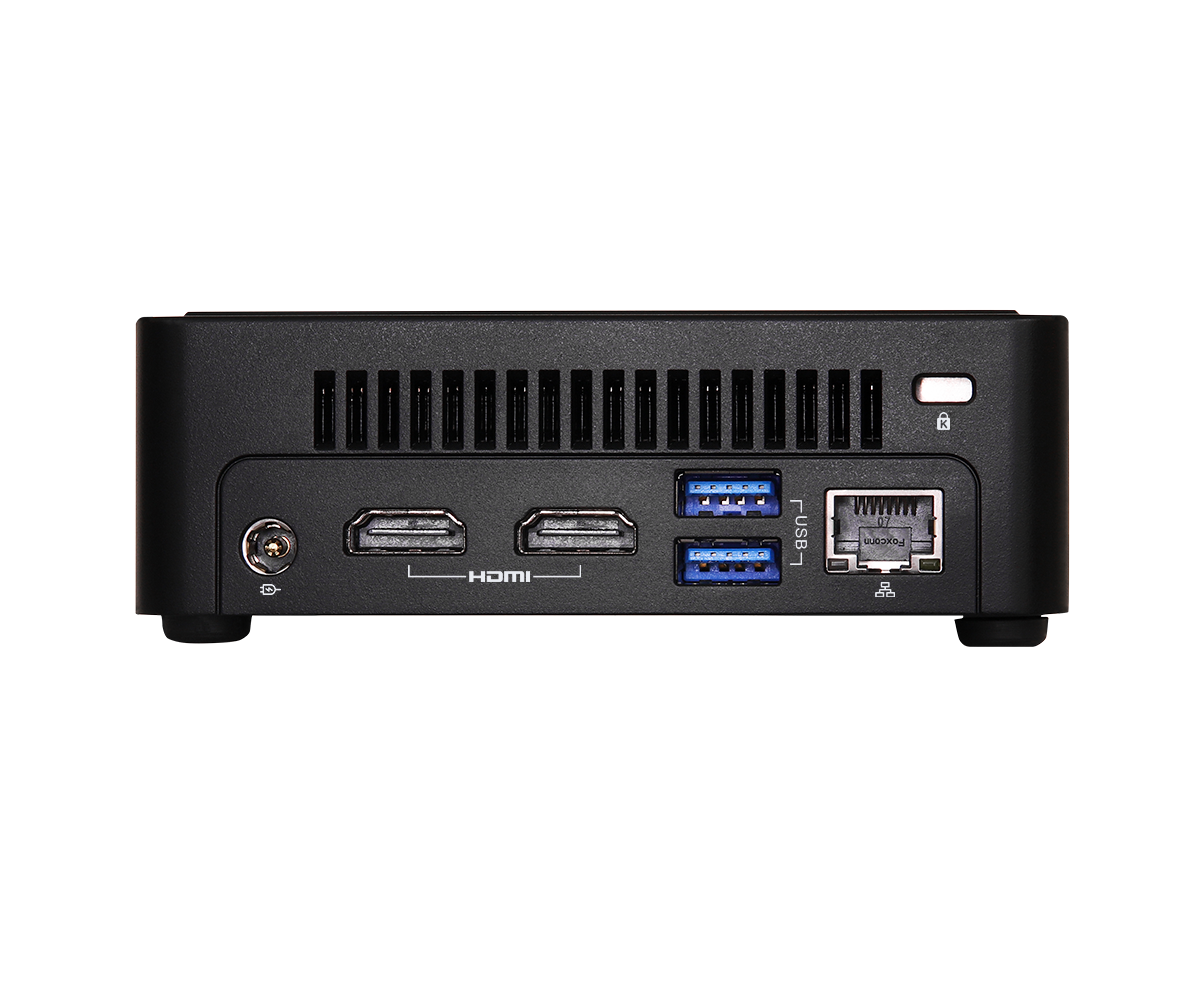

Rear l/O

2 x HDMI 2.0b

1 x 2.5 Gigabit LAN

2 x USB 3.2 Gen2 (Type-A)

1 x DC Jack

Power

Input PWR: 12V~19V DC-In Jack

Power On: AT/ATX Supported

- AT : Directly PWR on as power input ready

- ATX : Press button to PWR on after power input ready

Operation Temperature

Operating Temp 0ºC ~ 40ºC

Storage Temp -40° C – 85° C

Operating Humidity 5% ~ 90%

Storage Humidity 5% ~ 90%
